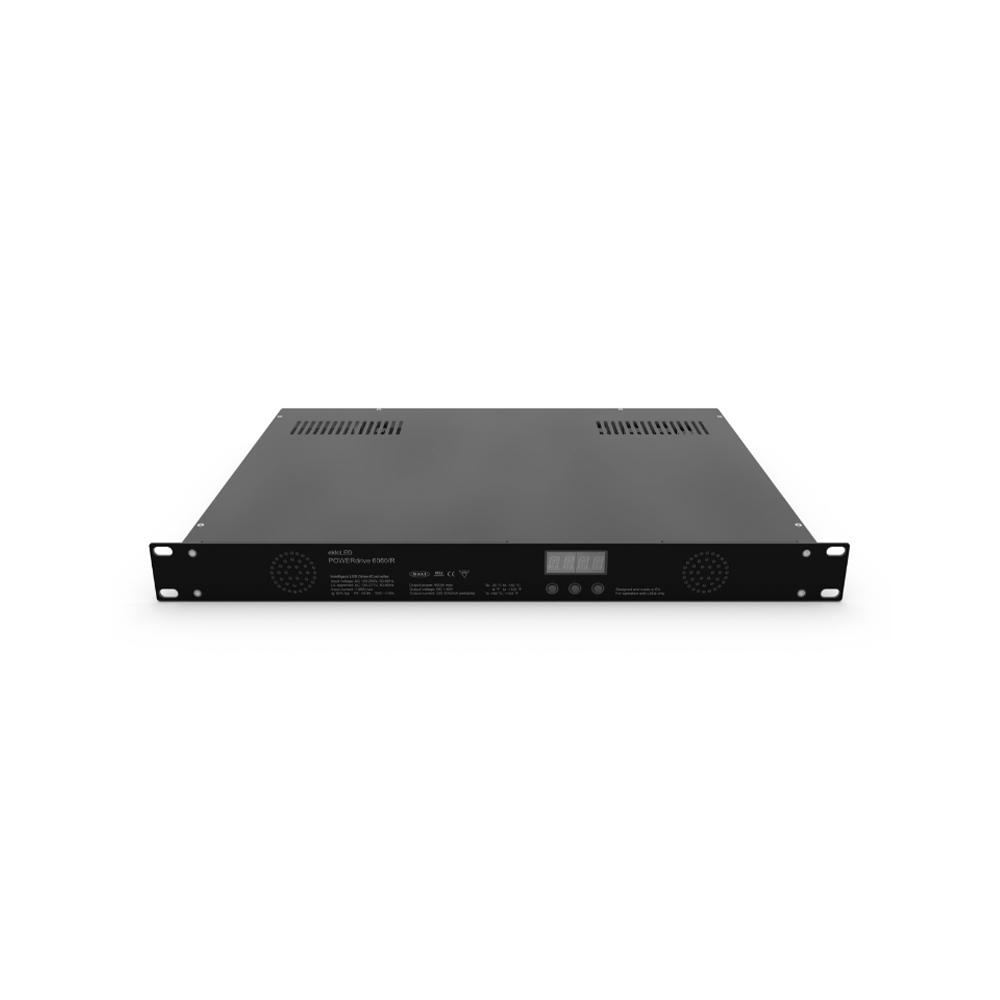

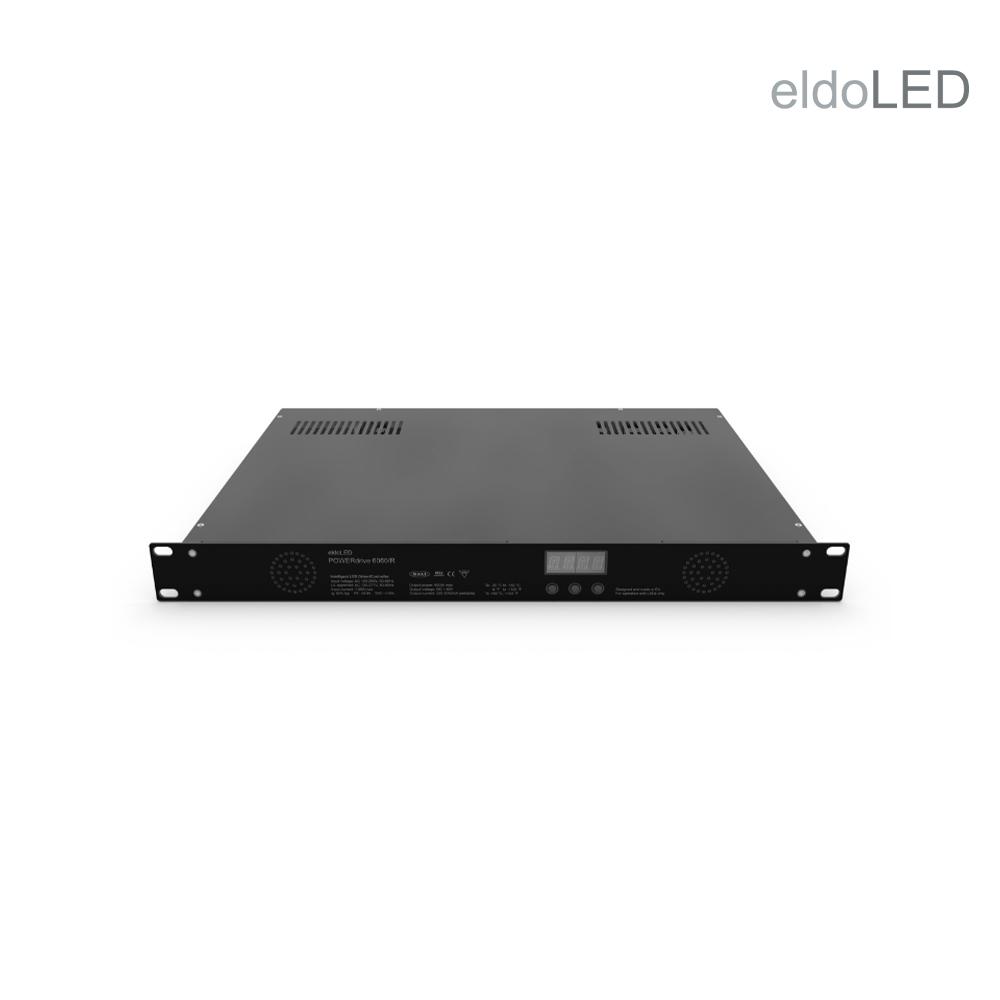

LED driver | eldoLED POWERdrive 6060 | 600W | DMX/DALI/0-10V
215-685This POWERdrive 6060/R LED driver from eldoLED is unique: in fact, this driver integrates 32 drivers into one. This makes it possible to control the driver using various systems, such as DMX, DALI or 0-10. Thanks to this feature, this is the ultimate driver when it comes to a professional, but also 'clean' solution for controlling lighting.
Features
- Can be combined with a variety of LED lighting, including RGBW, tuneable white and single color lighting
- Ideal for use in large residential buildings or offices where it may be difficult to install or access drivers
- Output current: 200 - 1050 mA
- Output voltage: 2 - 48 volts
Product Name
LED driver | eldoLED POWERdrive 6060 | 600W | DMX/DALI/0-10V
Ean
8714984943964
Outer box qty
1st
Housing
Plastic housing
Model
Static
Output voltage
2 - 48V
Output current
200 - 1050mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
600 - 600W
Degree of protection (IP)
IP20

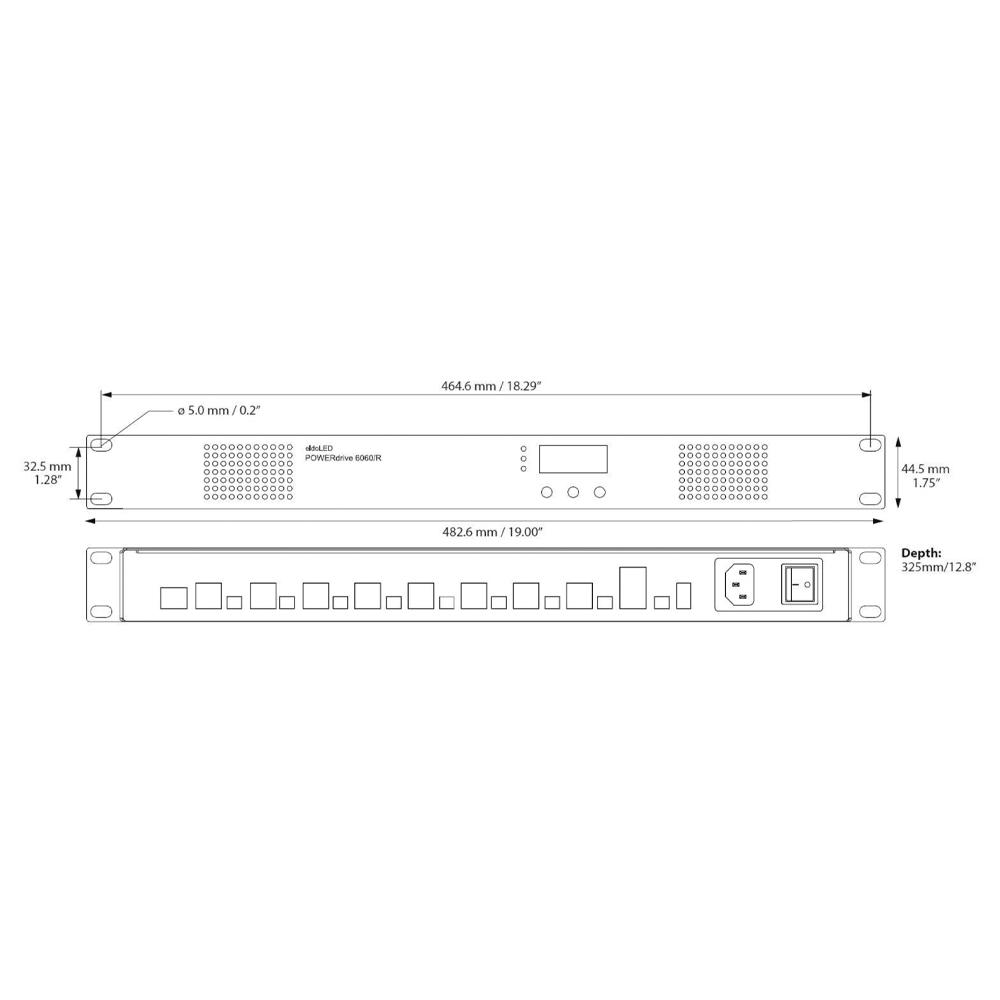

Length
482.6mm
Width
325mm
Height
44.5mm
Power consumption
600W
Input voltage
120 - 230V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Multi dimmable
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
50000h
DIN-rail mounting
No
Brand
eldoLED
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
LED driver | eldoLED POWERdrive 6060 | 600W | DMX/DALI/0-10V
Input voltage
120 - 230V
Ean
8714984943964
Frequency input voltage
50 - 60Hz
Outer box qty
1st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
2 - 48V
Control method
Multi dimmable
Output current
200 - 1050mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 50°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
50000h
Output power
600 - 600W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
eldoLED
Length
482.6mm
Dimmable
Yes
Width
325mm
Emergency power supply system
None
Height
44.5mm
Control type
Constant current
Power consumption
600W
Warranty
5 years
This POWERdrive 6060/R LED driver from eldoLED is unique: in fact, this driver integrates 32 drivers into one. This makes it possible to control the driver using various systems, such as DMX, DALI or 0-10. Thanks to this feature, this is the ultimate driver when it comes to a professional, but also 'clean' solution for controlling lighting.
Features
Can be combined with a variety of LED lighting, including RGBW, tuneable white and single color lighting
Ideal for use in large residential buildings or offices where it may be difficult to install or access drivers
Output current: 200 - 1050 mA
Output voltage: 2 - 48Â volts
Datasheet
Datasheet-led-driver-eldoled-powerdrive-6060-600w-dmxdali0-10v-215-685.pdf
Other attachment
20220908103201806_1345211851.pdf
20220908103140681_-337657235.pdf
Characteristics sheet
20220908103126571_-1264898107.pdf
2022090810311979_-710995744.pdf
