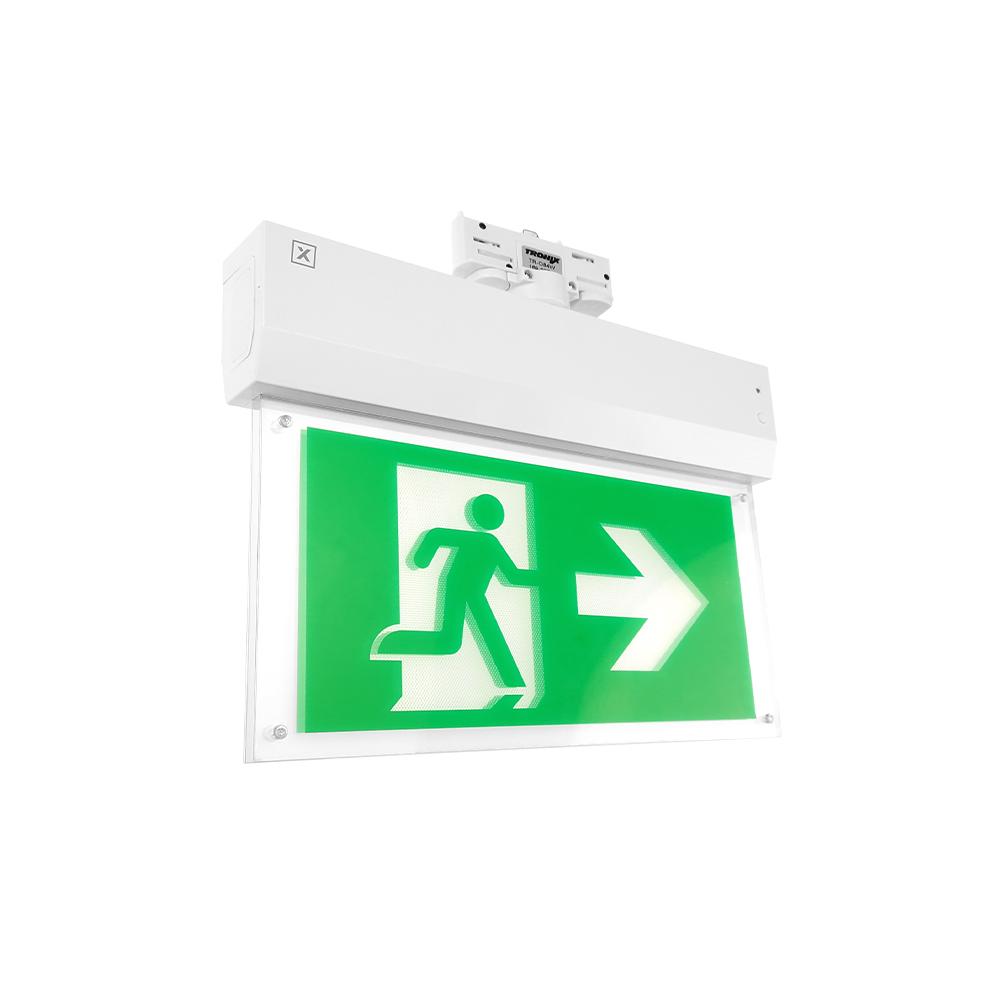

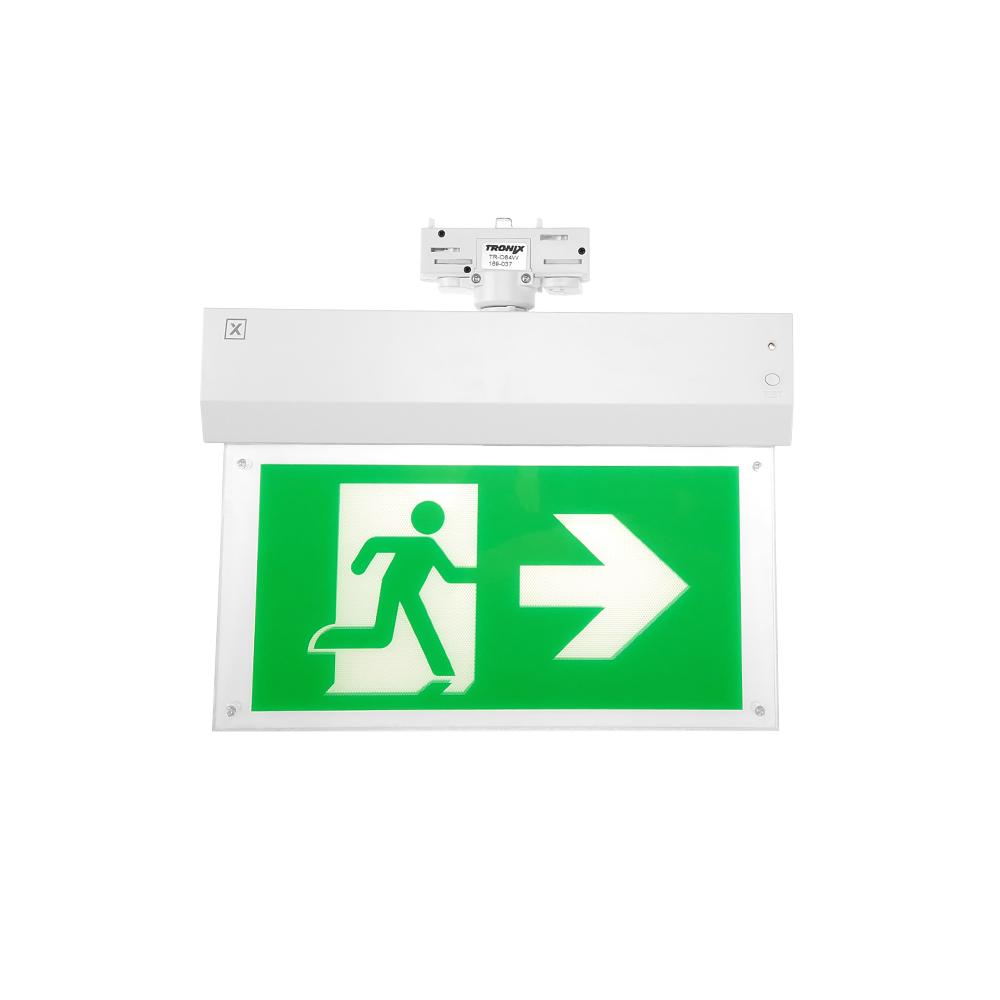

Led Exit Sign | 3 Phase Track | White | AT | Incl Pictograms
600-060Compact and versatile emergency lighting fixture for 3-phase track systems. Features a 25 m viewing distance, automatic self-test, and interchangeable pictograms – for quick installation and reliable escape route indication.
Key product features
- Mounting method: Track adapter
- Max. system power (W): 1
- Housing colour: White
- Type of indicator: Single-sided/double-sided
- Recognition distance (m): 25
- Function: Escape route indication
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
Led Exit Sign | 3 Phase Track | White | AT | Incl Pictograms
Ean
8714984950672
Outer box qty
6st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
150 - 150mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Busbar adaptor
Degree of protection (IP)
IP20
Nominal voltage
220 - 240V
Length
340mm
Width
62mm
Height
105mm
Height/depth
105mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting/signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK00
RAL-number housing
9016
Connection type
Plug-in connection
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
80lm
Nominal operation time
3 - 3h
Max. system power
3W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
80 - 80lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
25m
Luminous flux in emergency mode
80lm
Type of indicator
Single/double-sided
Power consumption in emergency mode
1W
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Insert sheet/plate
Warranty
5 years (battery 2 years)
Product Name
Led Exit Sign | 3 Phase Track | White | AT | Incl Pictograms
Impact strength
IK00
Ean
8714984950672
RAL-number housing
9016
Outer box qty
6st
Connection type
Plug-in connection
Housing material
Plastic
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Rated lifetime L70/B50 at 25 °C
50000h
Housing colour
White
Luminous flux in standby mode
80lm
Material cover
Plastic, transparent
Nominal operation time
3 - 3h
Voltage type
AC
Max. system power
3W
Nominal current
150 - 150mA
Power factor
0.3
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Busbar adaptor
With heating element for battery
No
Degree of protection (IP)
IP20
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
80 - 80lm
Length
340mm
Emergency power supply system
Peripheral (individual battery)
Width
62mm
Emergency function monitoring system
Automatic self test
Height
105mm
Recognition distance
25m
Height/depth
105mm
Luminous flux in emergency mode
80lm
Colour temperature
5000 - 5000K
Type of indicator
Single/double-sided
Exchangeable control gear
No
Power consumption in emergency mode
1W
Function
Escape route lighting/signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Insert sheet/plate
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)
Suitable for continuous circuit
Yes
This emergency fixture is available in black or white and specifically designed for connection to 230V 3-phase track systems. Ideal for indoor environments such as retail, offices, educational buildings and utility spaces. The track-mounted adapter enables quick, tidy and flexible installation.
The integrated LED module (5000K) consumes just 1 watt and provides even illumination across the pictogram, ensuring visibility up to 25 metres. A long-life, low-maintenance LiFePO4 battery is built in, providing reliable emergency performance. The automatic self-test function periodically checks the battery, LED module and switching mechanism. Faults are indicated via a built-in status LED, simplifying inspection and maintenance.

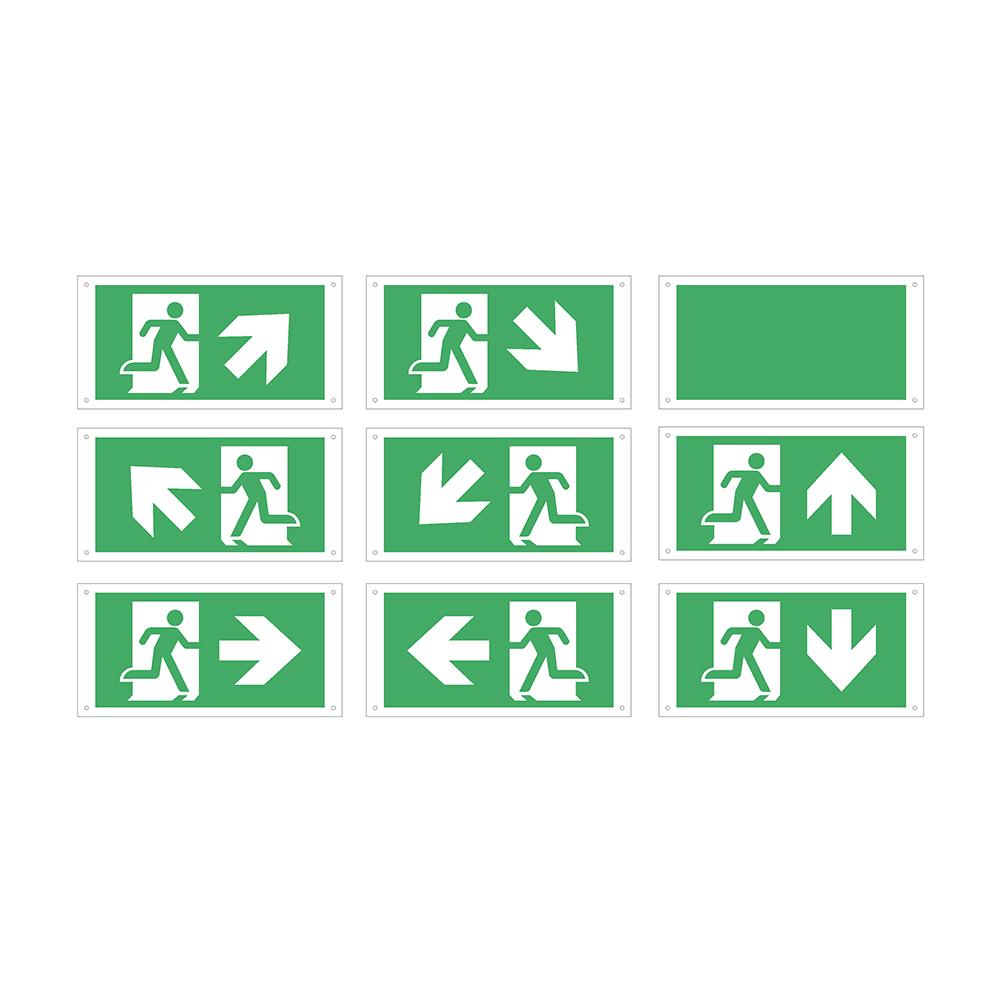

A full set of interchangeable pictogram inserts is included: left, right, up, down, both diagonals, and a fully green blank. Supplied as a complete set, all inserts can be easily interchanged.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-exit-sign-3-phase-track-white-at-incl-pictograms-600-060.pdf
Energy labels
Characteristics sheet
600-060_061_technical_datasheet_extended.pdf
