LED exit sign IP65 | surface mount | AT | incl. pictograms
600-043Impact-resistant and waterproof LED emergency light with automatic self-test, 240-lumen output, and a 30-metre viewing distance. Designed for ceiling mounting in indoor and outdoor areas. Supplied with 9 interchangeable pictograms.
Key product features
- Mounting method: Ceiling surface mounting
- Max. system power (W): 5
- Degree of protection (IP): IP65
- Recognition distance (m): 30
- Function: Escape route indication
- Impact strength: IK10
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
LED exit sign IP65 | surface mount | AT | incl. pictograms
Ean
8714984946972
Outer box qty
6st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
White
Material cover
Plastic, opal
Voltage type
AC
Nominal current
80 - 80mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Ceiling surface mounting
Degree of protection (IP)
IP65
Nominal voltage
220 - 240V

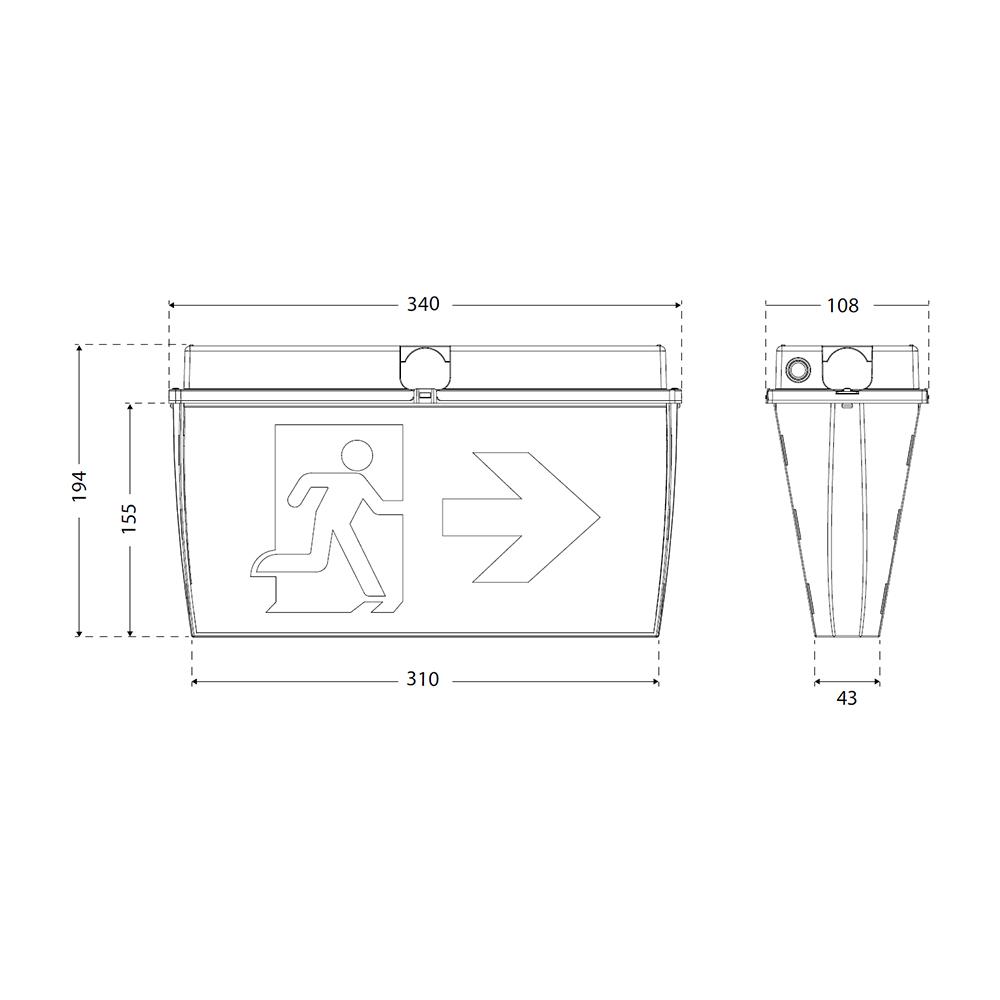

Length
194mm
Width
340mm
Height
108mm
Height/depth
108mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK10
RAL-number housing
9016
Connection type
Plug-in connection
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
240lm
Nominal operation time
3 - 3h
Max. system power
5W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
240 - 240lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
30m
Power consumption in emergency mode
2W
Type of indicator
Single/double-sided
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Insert sheet/plate
Warranty
5 years (battery 2 years)
Product Name
LED exit sign IP65 | surface mount | AT | incl. pictograms
Suitable for continuous circuit
Yes
Ean
8714984946972
Impact strength
IK10
Outer box qty
6st
RAL-number housing
9016
Housing material
Plastic
Connection type
Plug-in connection
Lamp type
LED not exchangeable
Light distributor
Diffuser lens/optic/panel
Housing colour
White
Rated lifetime L70/B50 at 25 °C
50000h
Material cover
Plastic, opal
Luminous flux in standby mode
240lm
Voltage type
AC
Nominal operation time
3 - 3h
Nominal current
80 - 80mA
Max. system power
5W
Type of control gear
LED operating device current-controlled
Power factor
0.3
Battery technology
Lithium-ion
Type of wiring
Ending
Mounting method
Ceiling surface mounting
Number of poles
2
Degree of protection (IP)
IP65
With heating element for battery
No
Nominal voltage
220 - 240V
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Length
194mm
Rated luminous flux according to IEC 62722-2- 1
240 - 240lm
Width
340mm
Emergency power supply system
Peripheral (individual battery)
Height
108mm
Emergency function monitoring system
Automatic self test
Height/depth
108mm
Recognition distance
30m
Colour temperature
5000 - 5000K
Power consumption in emergency mode
2W
Exchangeable control gear
No
Type of indicator
Single/double-sided
Function
Escape route signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Insert sheet/plate
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)

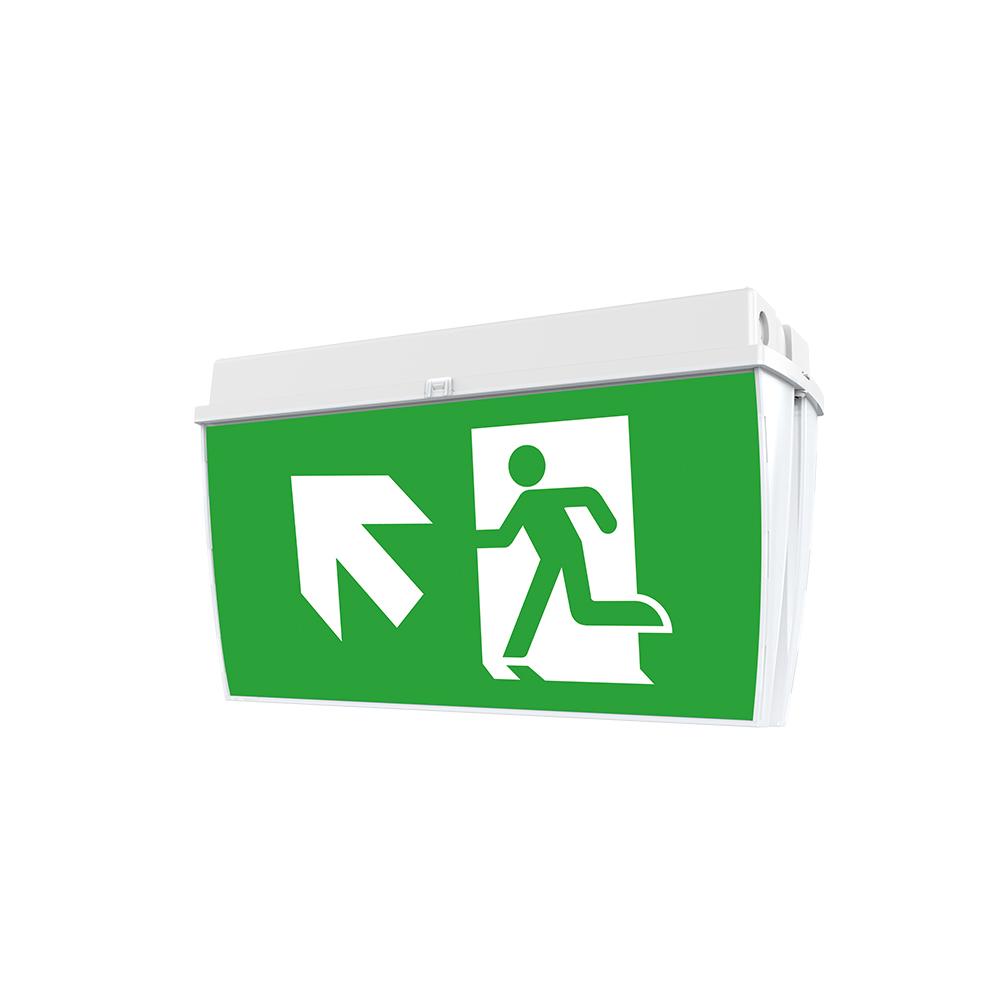

This robust LED emergency luminaire offers IP65 protection and IK10 impact resistance, making it ideal for ceiling installation in demanding environments such as entrances, corridors, stairwells, schools, or parking facilities – both indoors and outdoors.
It delivers 240 lumens (5000K) at a maximum system power of 5 W. The integrated LiFePO4 battery (3.2 V – 1500 mAh) ensures a minimum of 3 hours of emergency lighting in case of a power outage. A 30-metre viewing distance meets the requirements for escape route indication.
Equipped with an automatic self-test function, the unit performs a monthly functional test (3 minutes) and an annual duration test (1 or 3 hours). Errors are signalled via a two-tone LED indicator with flashing code. Manual tests (30 seconds to 3 hours) can be initiated via the integrated test button.
The white polycarbonate housing is fully dust- and waterproof, with high impact resistance. Supplied with 9 interchangeable pictogram inserts (left, right, up, down, diagonal), suitable for single- or double-sided installation using one housing.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-exit-sign-ip65-surface-mount-at-incl-pictograms-600-043.pdf
Energy labels
Other attachment
600-043_Luminaire_photometric_test_report.pdf
600-043_IES.IES
Characteristics sheet
600-043_technical_datasheet_extended.pdf
