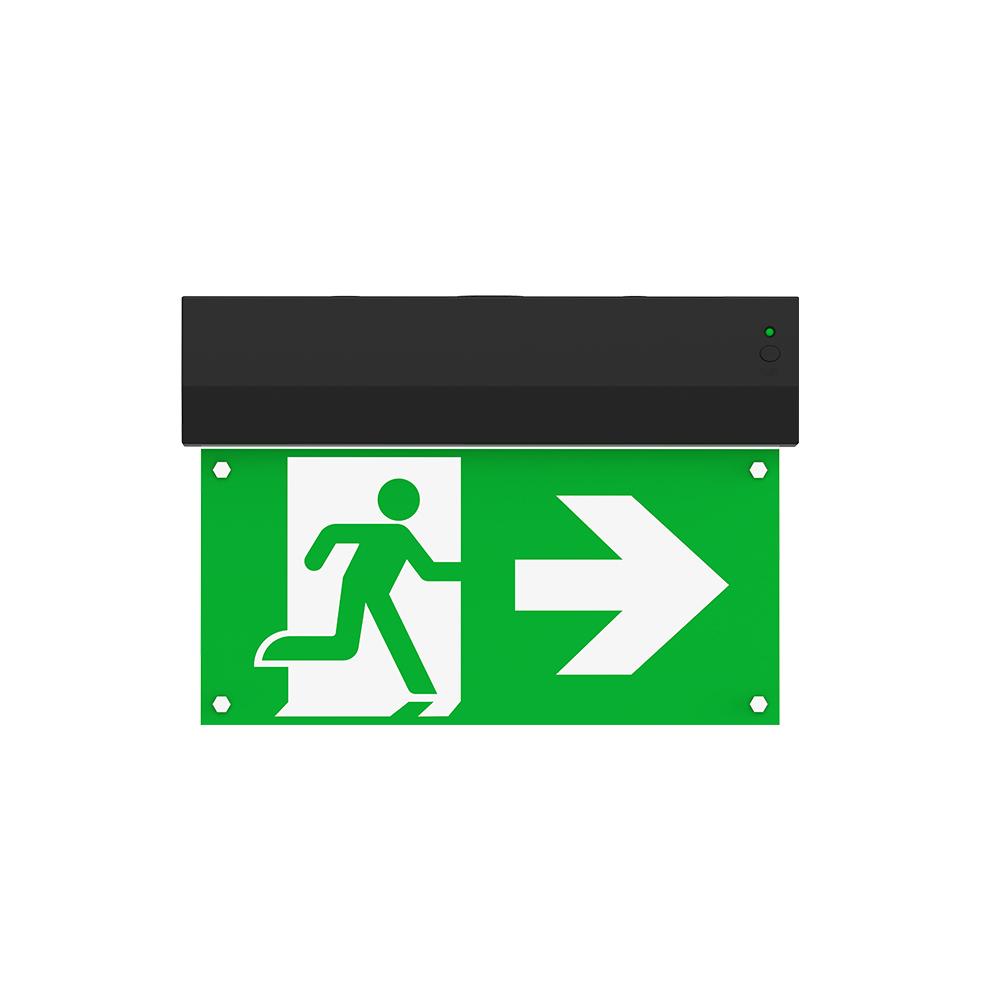

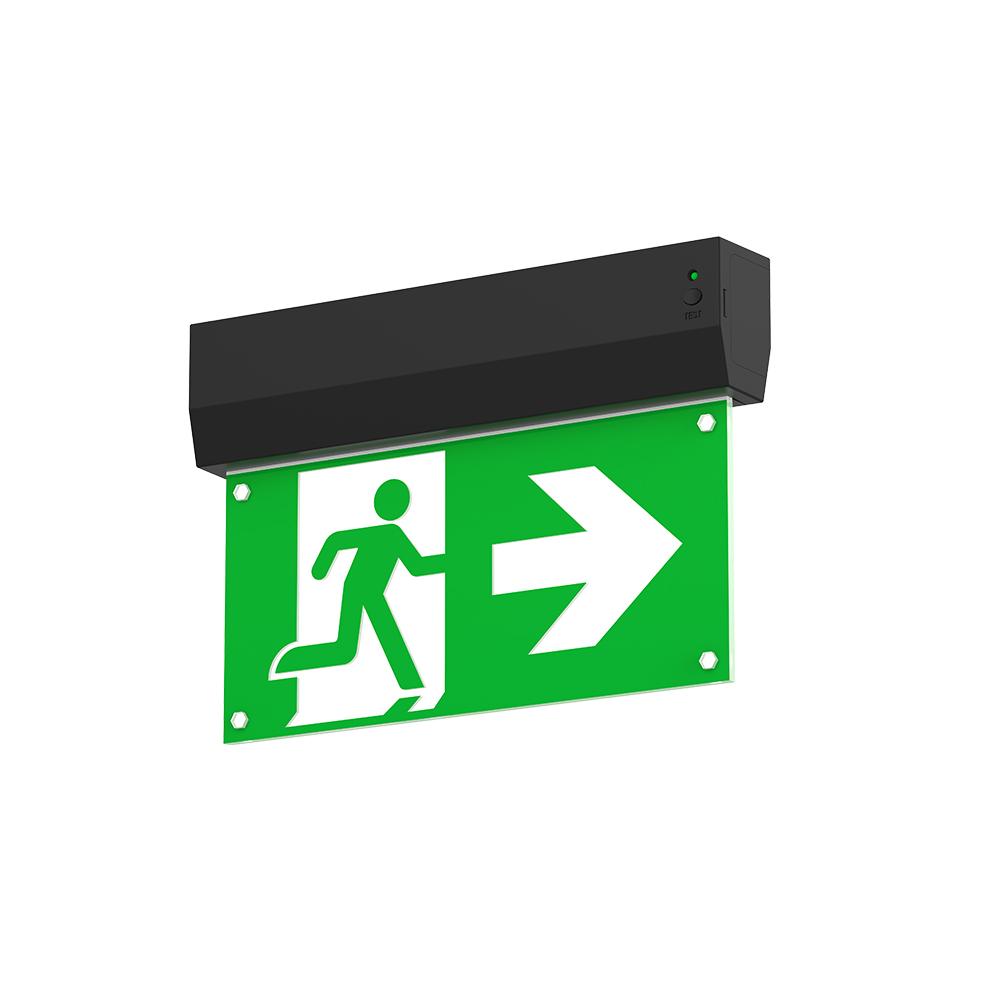

LED exit sign | surface mount | small | black | incl. pict.
600-045Compact and versatile LED emergency luminaire with a 20 m visibility range, automatic self-test, and interchangeable pictograms. Suitable for wall and ceiling mounting in professional environments.
Key product features
- Mounting method: Surface-mounted (wall/ceiling)
- Max. system power (W): 3
- Housing colour: Black
- Type of indicator: Single-sided/double-sided
- Recognition distance (m): 20
- Function: Escape route indication
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
LED exit sign | surface mount | small | black | incl. pict.
Ean
8714984949492
Outer box qty
20st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
Black
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
150 - 150mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Wall surface mounting/ceiling surface mounting
Degree of protection (IP)
IP20
Nominal voltage
220 - 240V

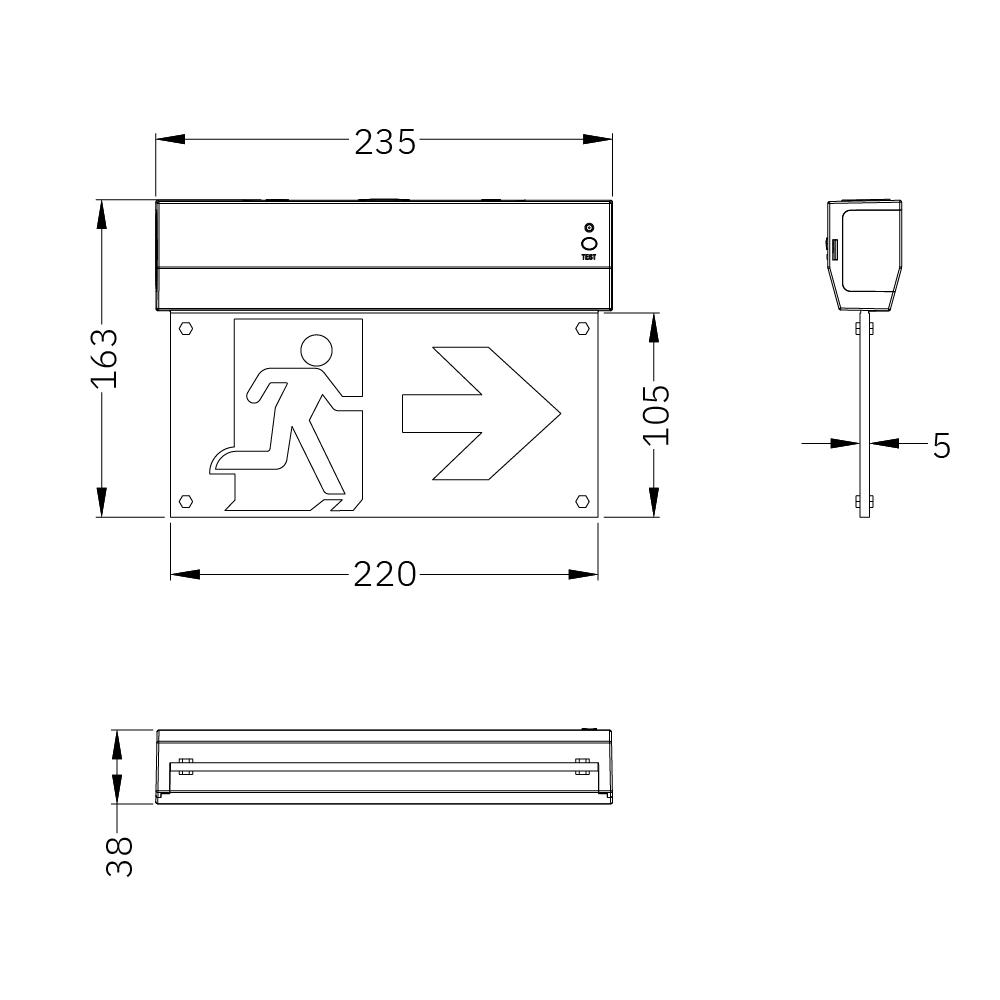

Length
235mm
Width
38mm
Height
163mm
Height/depth
163mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting/signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK00
RAL-number housing
9005
Connection type
Plug-in connection
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
26lm
Nominal operation time
3 - 3h
Max. system power
3W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
26 - 26lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
20m
Luminous flux in emergency mode
26lm
Type of indicator
Single/double-sided
Power consumption in emergency mode
0.5W
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Insert sheet/plate
Warranty
5 years (battery 2 years)
Product Name
LED exit sign | surface mount | small | black | incl. pict.
Impact strength
IK00
Ean
8714984949492
RAL-number housing
9005
Outer box qty
20st
Connection type
Plug-in connection
Housing material
Plastic
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Rated lifetime L70/B50 at 25 °C
50000h
Housing colour
Black
Luminous flux in standby mode
26lm
Material cover
Plastic, transparent
Nominal operation time
3 - 3h
Voltage type
AC
Max. system power
3W
Nominal current
150 - 150mA
Power factor
0.3
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Wall surface mounting/ceiling surface mounting
With heating element for battery
No
Degree of protection (IP)
IP20
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
26 - 26lm
Length
235mm
Emergency power supply system
Peripheral (individual battery)
Width
38mm
Emergency function monitoring system
Automatic self test
Height
163mm
Recognition distance
20m
Height/depth
163mm
Luminous flux in emergency mode
26lm
Colour temperature
5000 - 5000K
Type of indicator
Single/double-sided
Exchangeable control gear
No
Power consumption in emergency mode
0.5W
Function
Escape route lighting/signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Insert sheet/plate
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)
Suitable for continuous circuit
Yes
This flexible emergency luminaire features an automatic self-test, 20 metre viewing distance, and a full set of interchangeable pictograms. Suitable for wall, ceiling or side mounting, and optionally usable as a recessed or track-mounted unit. Available in black or white ABS housing with IP20 rating. Fitted with a durable LiFePO4 battery for reliable operation during power outages.

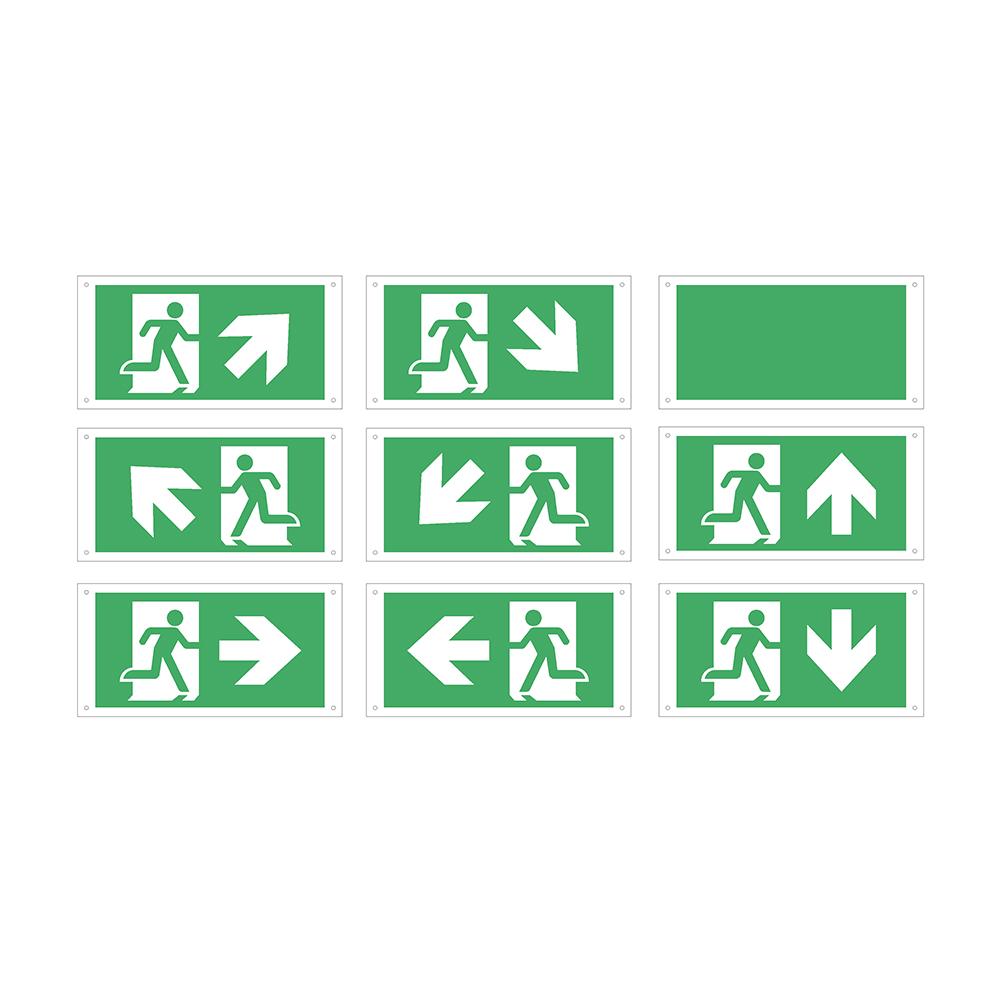

The included set of pictogram inserts covers all standard directions: left, right, up, down, diagonal top left/bottom left, diagonal top right/bottom right, and a fully green blank insert. All variants are supplied in a single package and are easy to replace.
The automatic self-test continuously monitors the battery, LED module, charging circuit and the switch between mains and emergency mode. A 3-minute functional test is performed monthly and a full 3-hour duration test is conducted annually. Errors are indicated via a two-tone LED status indicator with blink codes. Manual test cycles (30 seconds to 3 hours) can be triggered using the built-in test button.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-exit-sign-surface-mount-small-black-incl-pict-600-045.pdf

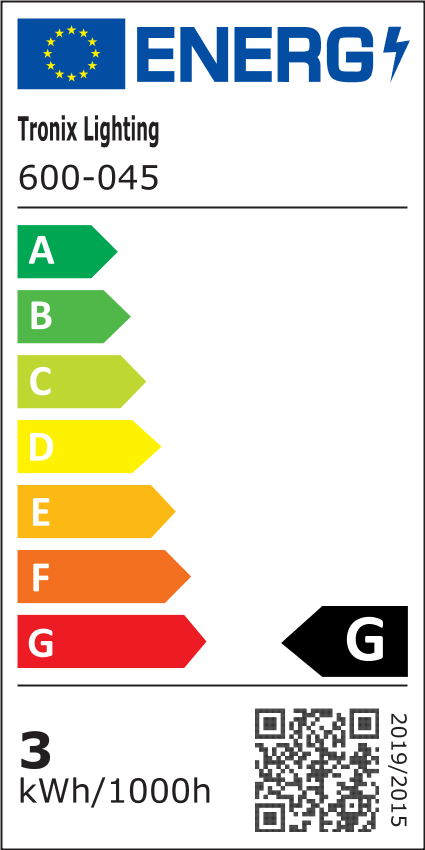

Energy labels
