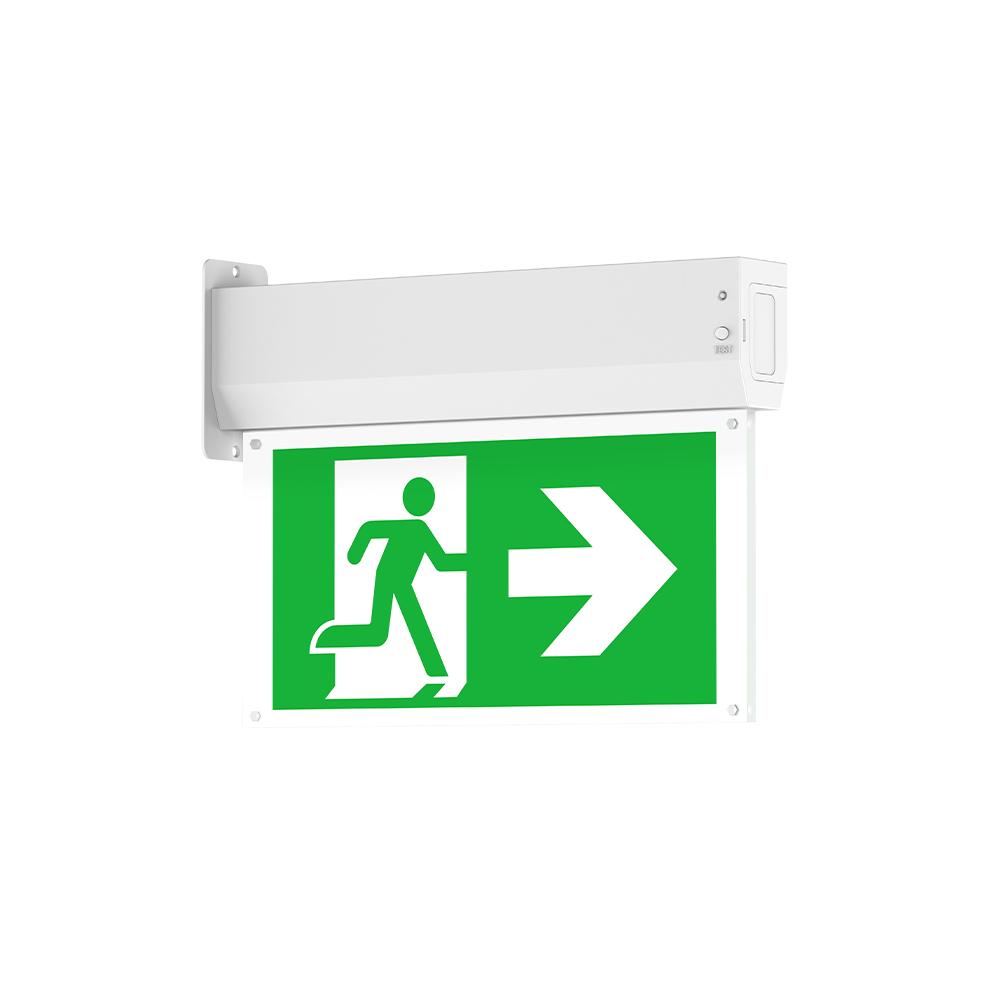

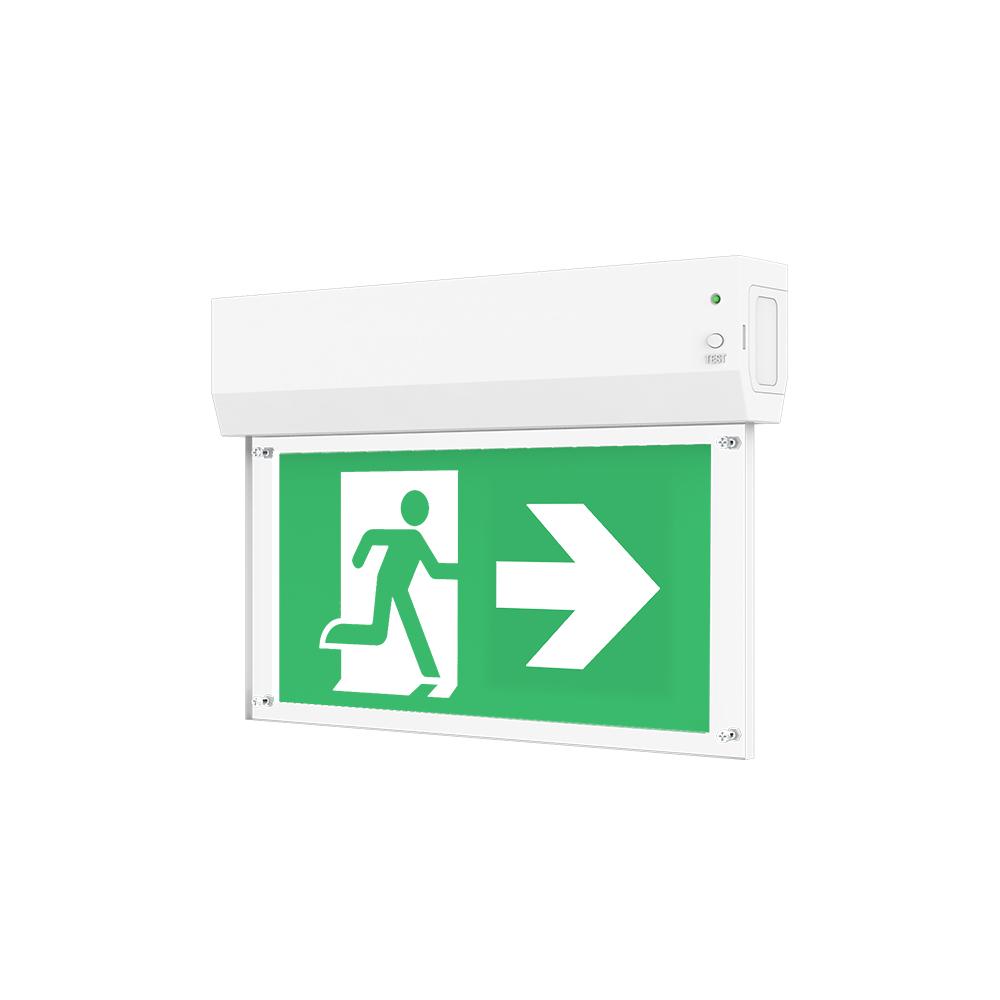

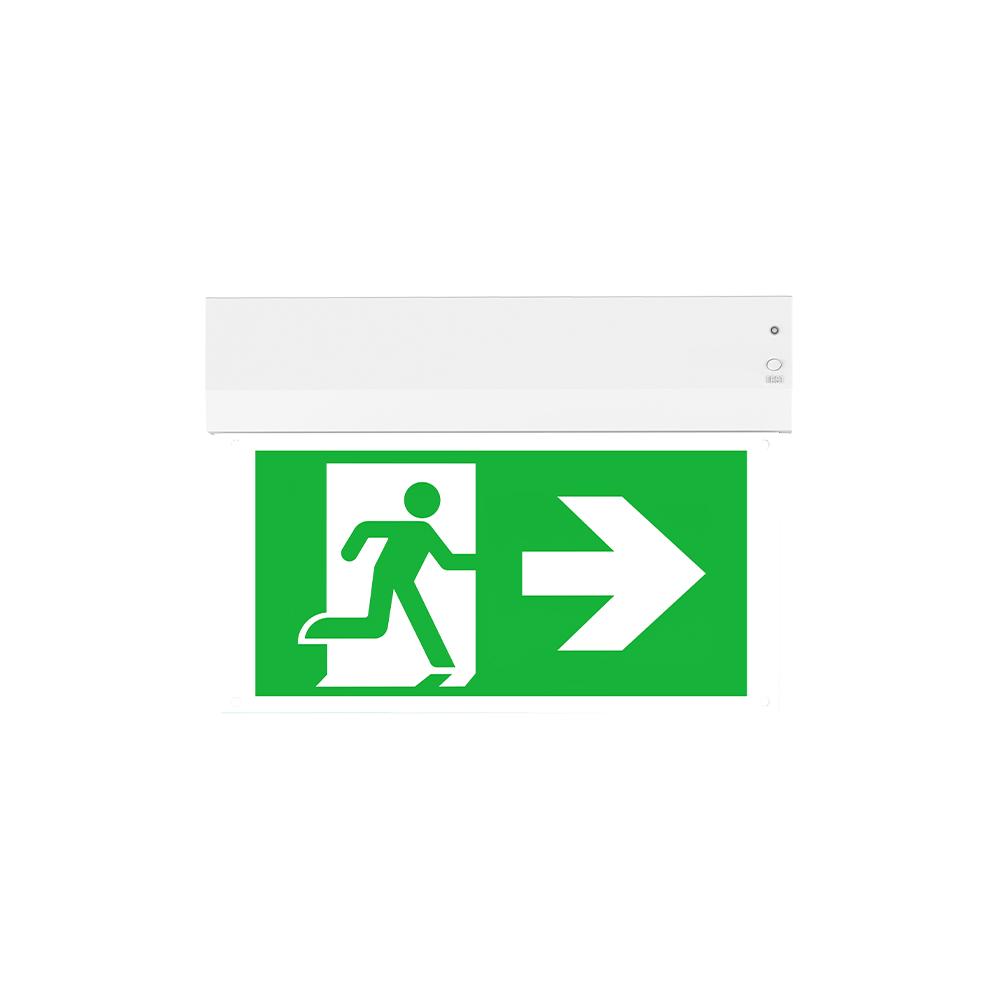

LED exit sign | surface mount | white | AT | incl. pictogram
600-022Compact and versatile emergency lighting fixture with 25 m viewing distance, multiple mounting options and interchangeable pictograms. Equipped with an automatic self-test function for easy and efficient maintenance.
Key product features
- Mounting method: Surface-mounted (wall/ceiling)
- Max. system power (W): 1
- Housing colour: White
- Type of indicator: Single-sided/double-sided
- Recognition distance (m): 25
- Function: Escape route indication
- Emergency function monitoring system: Automatic self-test
Product Name
LED exit sign | surface mount | white | AT | incl. pictogram
Ean
8714984935235
Outer box qty
6st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
150 - 150mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Ceiling surface mounting
Degree of protection (IP)
IP20
Nominal voltage
220 - 240V

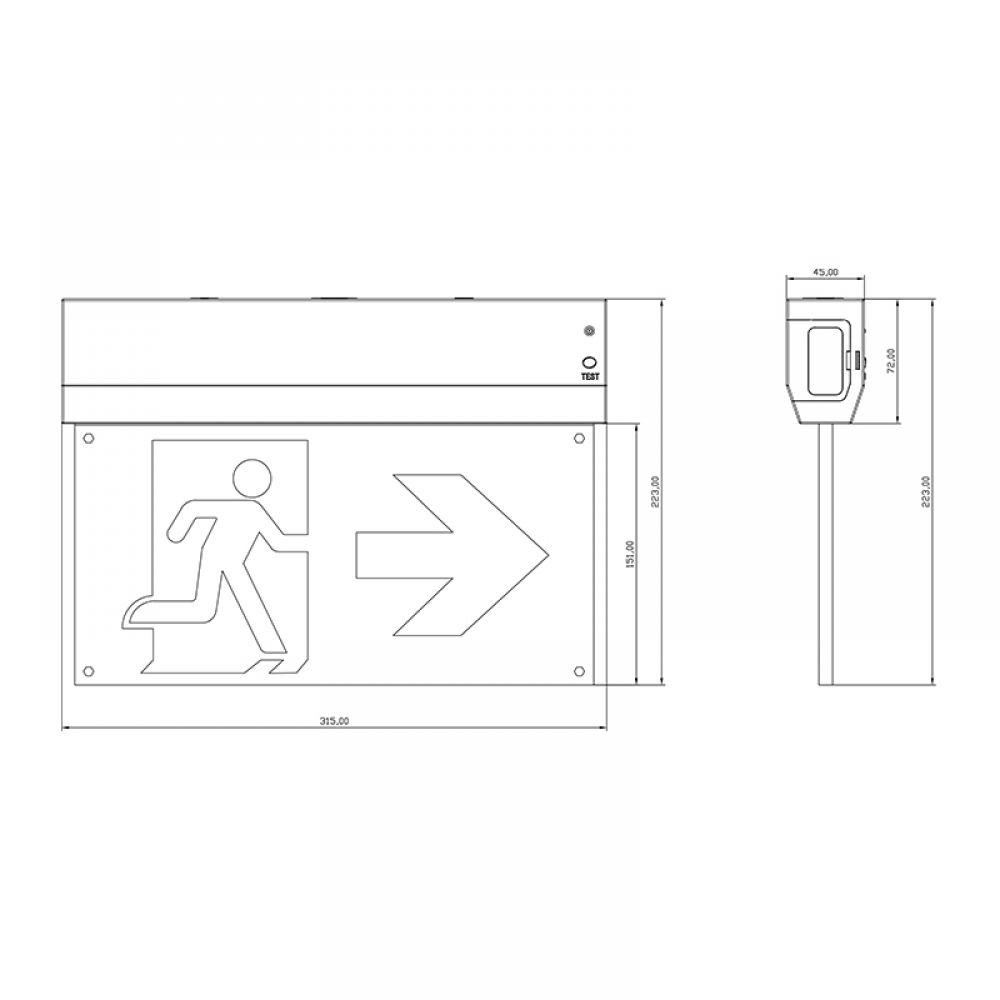

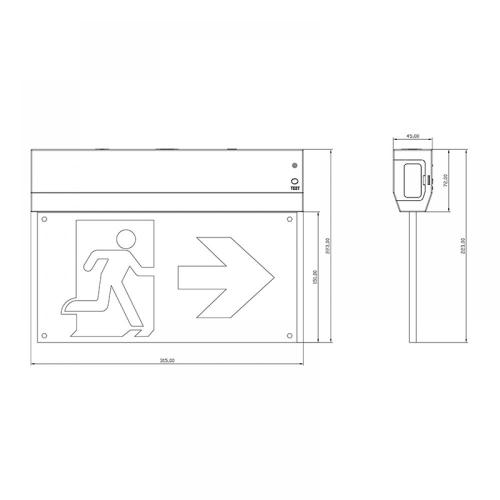

Length
315mm
Width
45mm
Height
223mm
Height/depth
223mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK00
RAL-number housing
9016
Connection type
Plug-in connection
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
80lm
Nominal operation time
3 - 3h
Max. system power
3W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
80 - 80lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
25m
Luminous flux in emergency mode
80lm
Type of indicator
Single/double-sided
Power consumption in emergency mode
1W
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Insert sheet/plate
Warranty
5 years (battery 2 years)
Product Name
LED exit sign | surface mount | white | AT | incl. pictogram
Impact strength
IK00
Ean
8714984935235
RAL-number housing
9016
Outer box qty
6st
Connection type
Plug-in connection
Housing material
Plastic
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Rated lifetime L70/B50 at 25 °C
50000h
Housing colour
White
Luminous flux in standby mode
80lm
Material cover
Plastic, transparent
Nominal operation time
3 - 3h
Voltage type
AC
Max. system power
3W
Nominal current
150 - 150mA
Power factor
0.3
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Ceiling surface mounting
With heating element for battery
No
Degree of protection (IP)
IP20
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
80 - 80lm
Length
315mm
Emergency power supply system
Peripheral (individual battery)
Width
45mm
Emergency function monitoring system
Automatic self test
Height
223mm
Recognition distance
25m
Height/depth
223mm
Luminous flux in emergency mode
80lm
Colour temperature
5000 - 5000K
Type of indicator
Single/double-sided
Exchangeable control gear
No
Power consumption in emergency mode
1W
Function
Escape route signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Insert sheet/plate
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)
Suitable for continuous circuit
Yes
Versatile emergency fixture with 25 m visibility and built-in self-testing. Suitable for wall, ceiling and lateral mounting; optionally adaptable for pendant, recessed or track installation. The long-lasting LiFePO4 battery ensures reliable operation in the event of a power outage. Available in black or white ABS housing (IP20).

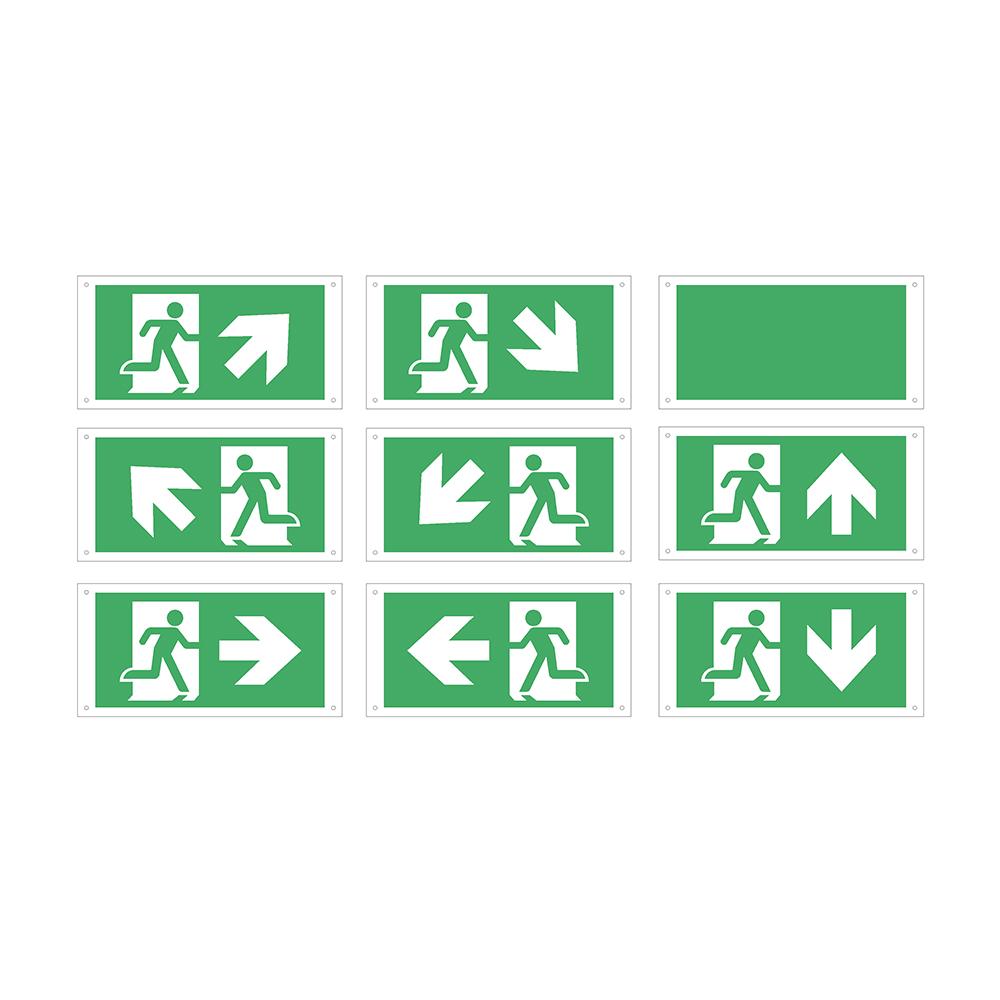

The included set of interchangeable pictograms covers all common directions, including left, right, up, down, both diagonals and a fully green blank insert. All inserts are supplied as standard and can be easily swapped.
The automatic self-test monitors the battery, LED module, charging circuit and switchover between mains and emergency operation. The fixture performs a monthly 3-minute function test and an annual 3-hour duration test. Any faults are indicated via a dual-colour LED with blink code. Manual tests (30 seconds to 3 hours) can be set via the integrated test button.
