LED exit sign | wall mount | white | AT | incl. pictograms
600-019Compact LED emergency luminaire with automatic self-test, orientation lighting and interchangeable pictograms. Suitable for wall mounting or semi-recessed installation. Ideal for permanent escape route indication in professional environments.
Key product features
- Mounting method: Surface/recessed
- Max. system power (W): 5
- Housing colour: White
- Type of indicator: Single-sided
- Recognition distance (m): 25
- Function: Escape route lighting/indication
- Emergency function monitoring system: Automatic self-diagnosis
Product Name
LED exit sign | wall mount | white | AT | incl. pictograms
Ean
8714984942349
Outer box qty
10st
Housing material
Plastic
Lamp type
LED not exchangeable
Housing colour
White
Material cover
Plastic, transparent
Voltage type
AC
Nominal current
50 - 50mA
Type of control gear
LED operating device current-controlled
Battery technology
Lithium-ion
Mounting method
Surface mounting/recessed mounting
Degree of protection (IP)
IP40
Nominal voltage
220 - 240V

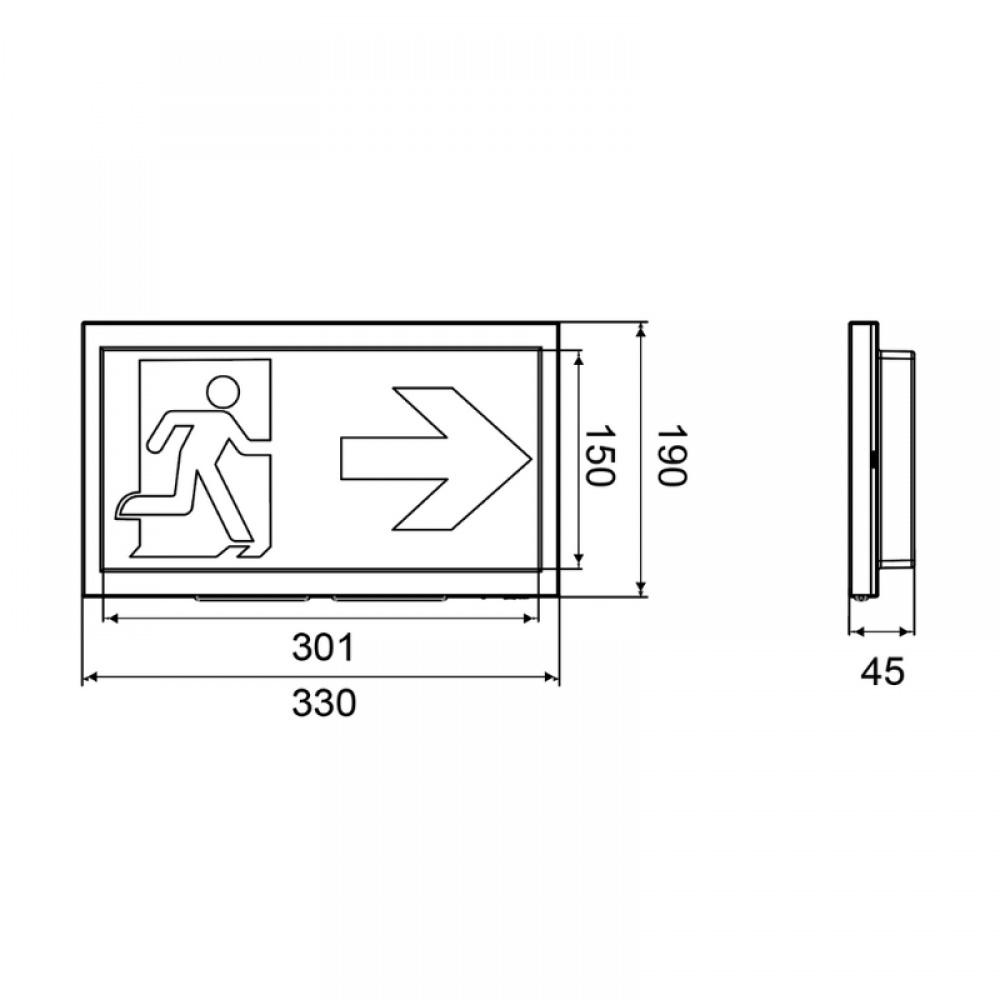

Length
330mm
Width
190mm
Height
45mm
Height/depth
45mm
Colour temperature
5000 - 5000K
Exchangeable control gear
No
Function
Escape route lighting/signage
With pictogram
Yes
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
Impact strength
IK07
RAL-number housing
9016
Connection type
Plug-in connection
Light distributor
None
Rated lifetime L70/B50 at 25 °C
50000h
Luminous flux in standby mode
35lm
Nominal operation time
3 - 3h
Max. system power
1W
Power factor
0.3
Type of wiring
Ending
Number of poles
2
With heating element for battery
No
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Rated luminous flux according to IEC 62722-2- 1
35 - 35lm
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Recognition distance
25m
Luminous flux in emergency mode
50lm
Type of indicator
Single-sided
Power consumption in emergency mode
1.5W
Connectable conductor cross section
0.75 - 2.5mm²
Suitable for labelling type
Insert sheet/plate
Warranty
5 years (battery 2 years)
Product Name
LED exit sign | wall mount | white | AT | incl. pictograms
Impact strength
IK07
Ean
8714984942349
RAL-number housing
9016
Outer box qty
10st
Connection type
Plug-in connection
Housing material
Plastic
Light distributor
None
Lamp type
LED not exchangeable
Rated lifetime L70/B50 at 25 °C
50000h
Housing colour
White
Luminous flux in standby mode
35lm
Material cover
Plastic, transparent
Nominal operation time
3 - 3h
Voltage type
AC
Max. system power
1W
Nominal current
50 - 50mA
Power factor
0.3
Type of control gear
LED operating device current-controlled
Type of wiring
Ending
Battery technology
Lithium-ion
Number of poles
2
Mounting method
Surface mounting/recessed mounting
With heating element for battery
No
Degree of protection (IP)
IP40
Type of lithium-ion battery
Lithium iron phosphate (LiFePO4)
Nominal voltage
220 - 240V
Rated luminous flux according to IEC 62722-2- 1
35 - 35lm
Length
330mm
Emergency power supply system
Peripheral (individual battery)
Width
190mm
Emergency function monitoring system
Automatic self test
Height
45mm
Recognition distance
25m
Height/depth
45mm
Luminous flux in emergency mode
50lm
Colour temperature
5000 - 5000K
Type of indicator
Single-sided
Exchangeable control gear
No
Power consumption in emergency mode
1.5W
Function
Escape route lighting/signage
Connectable conductor cross section
0.75 - 2.5mm²
With pictogram
Yes
Suitable for labelling type
Insert sheet/plate
Suitable for standby switching
Yes
Warranty
5 years (battery 2 years)
Suitable for continuous circuit
Yes
LED emergency luminaire in black or white with integrated orientation lighting, designed for fixed wall installation. The combination of pictogram and downlight functions makes this unit ideal for escape route indication in corridors and stairwells.
Equipped with an automatic self-test that monitors the battery, LED module, charging circuit and changeover between mains and emergency operation. A monthly functional test and an annual duration test of 3 hours are performed automatically. Any errors are indicated via a two-tone LED indicator.
The light output is 1.5 W, with a total system power of 5 W. The integrated LiFePO4 battery (3.2 V – 1500 mAh) provides a minimum of 3 hours of autonomy during power failure.

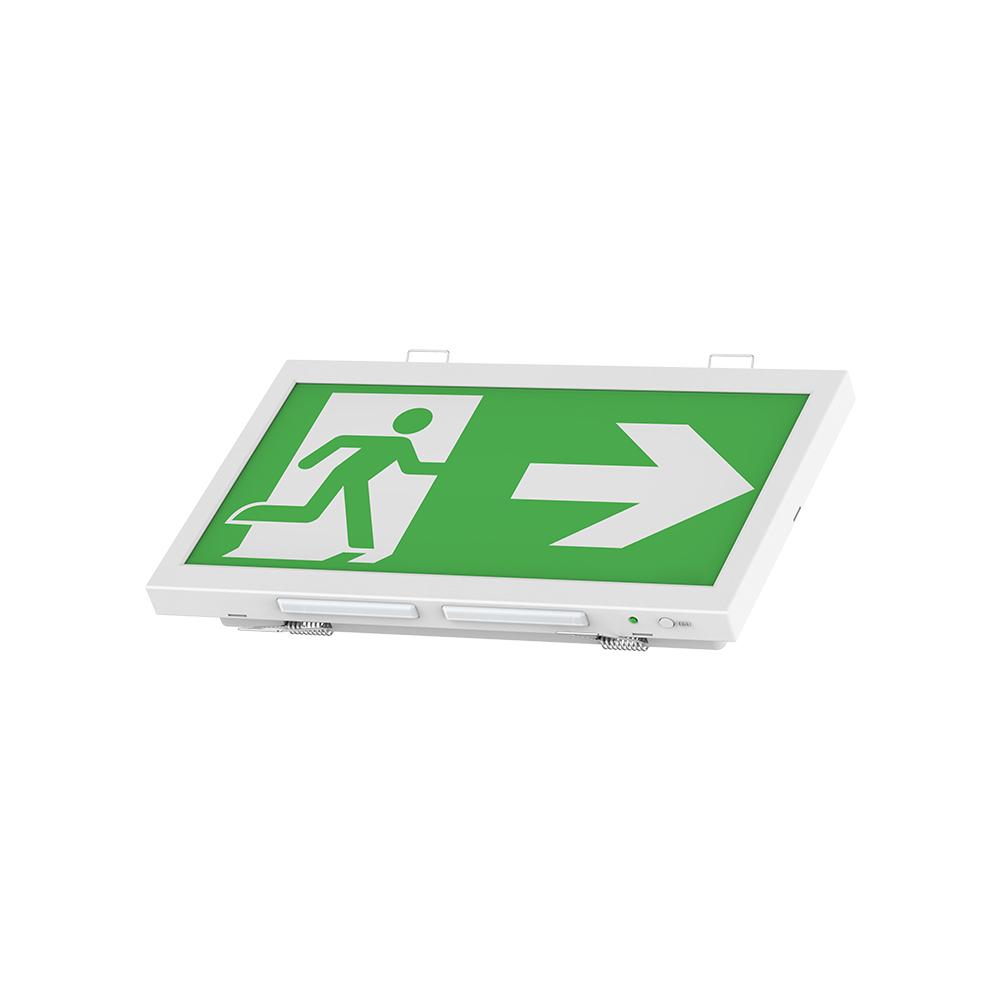

The housing is made of impact-resistant polycarbonate (IK07, IP40) and can optionally be semi-recessed using the included spring clips. Supplied with interchangeable pictogram inserts for various directions, including diagonal options.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-exit-sign-wall-mount-white-at-incl-pictograms-600-019.pdf
Energy labels
Other attachment
600-019_020_EMERGENCY MODE_Luminaire_photometric_test_report.pdf
600-019_020_MAINTAINED_Luminaire_photometric_test_report.pdf
600-019_020_EMERGENCY MODE_IES.IES
600-019_020_MAINTAINED_IES.IES
Characteristics sheet
600-019_020_technical_datasheet_extended.pdf
Manual
600-019_Manual_NL.pdf
600-019_Manual_EN.pdf
