LED T5 || surface mount | 60cm | 8W | 3-CCT
177-061This T5 LED fixture is a replacement for traditional T5 fixtures and can be connected up to 750W. In addition, this luminaire is easy pre-settable in the color temperatures 3000K, 4000K or 5700K. This functionality makes this luminaire very versatile. It's not only suitable for (parking) garages, sheds or warehouses, but also for general lighting in commercial buildings, offices or schools.
Features
- Pre-settable in the color temperatures 3000K, 4000K and 5700K

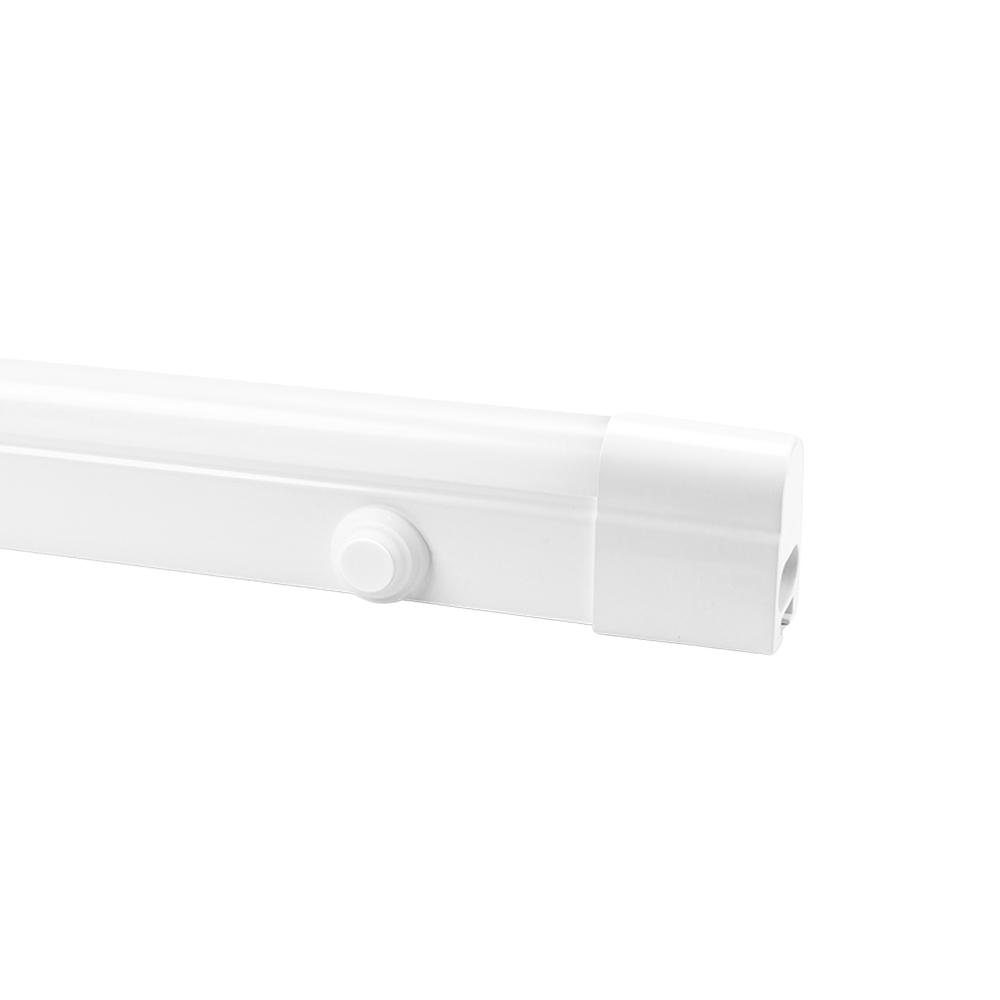

- On/off switch on the front of the luminaire

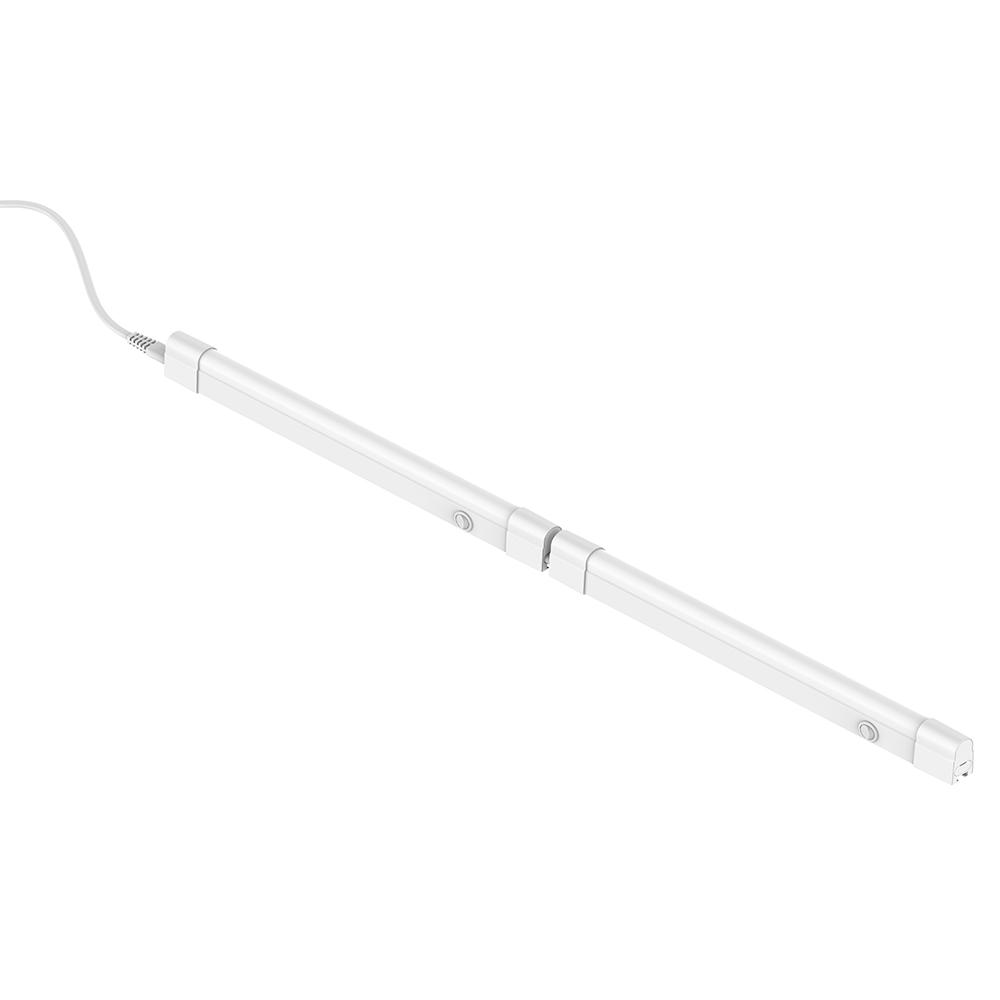

- Can be placed in one line up to 750W
- Long lifespan of 50.000 hours

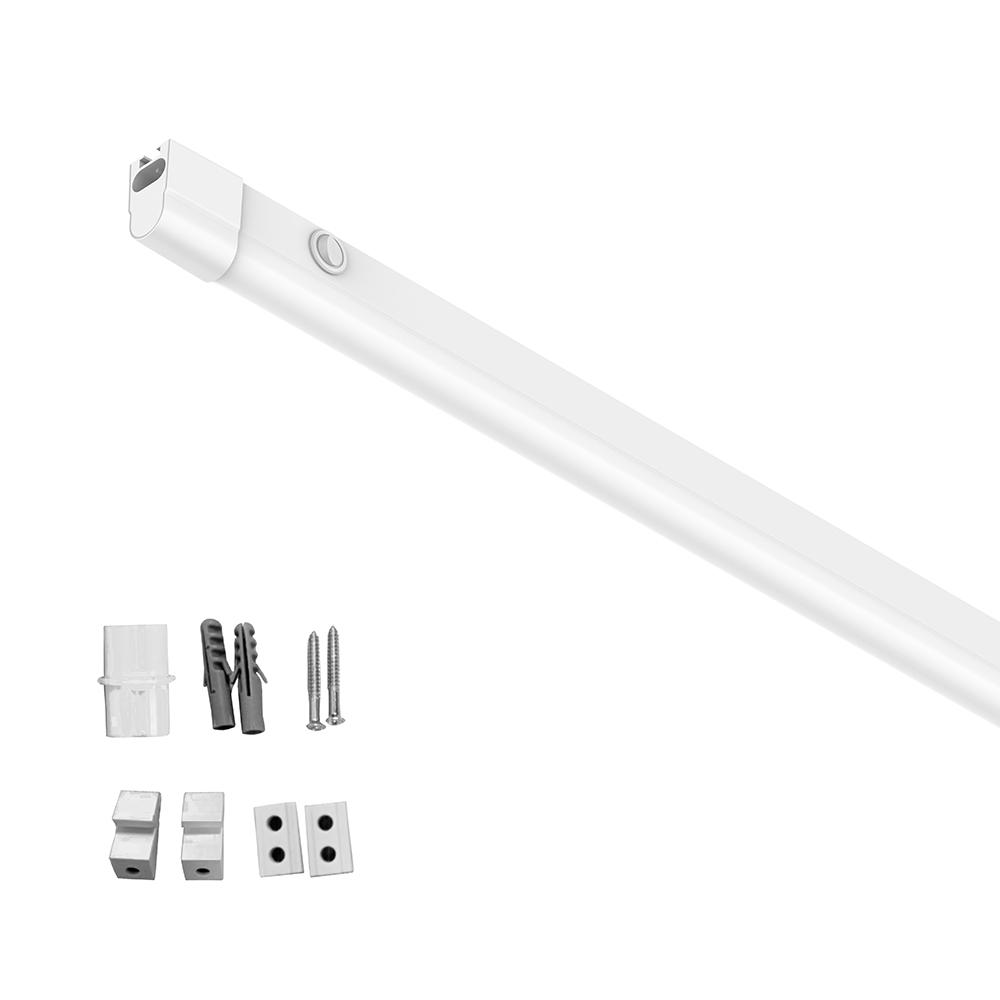

- Including accessories to mount the luminaire on a ceiling or wall. Includes connector to create a long light line with multiple luminaires.

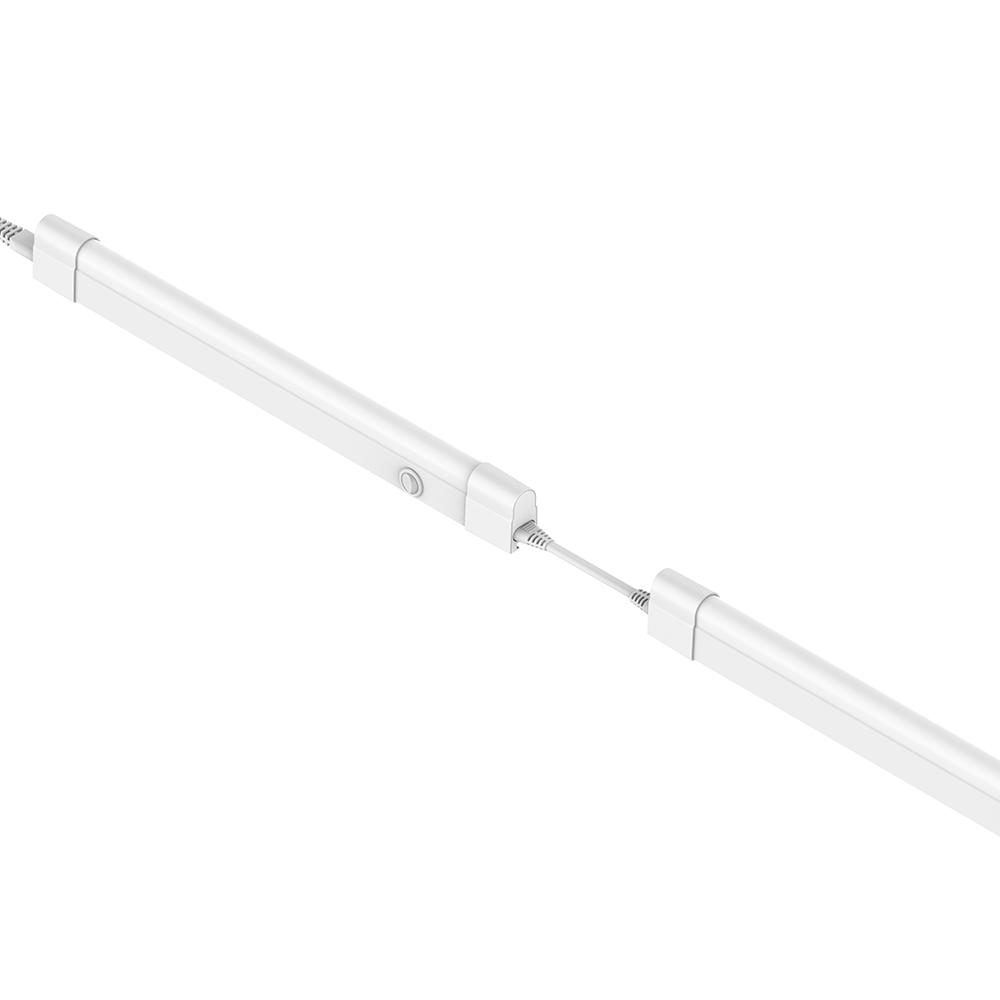

- Prefer a greater distance between the luminaires? This is possible with connector cable 177-065
- Exclusive power cable (1 power cable for max. 750W) 177-068 or 177-069
Product Name
LED T5 || surface mount | 60cm | 8W | 3-CCT
Ean
8714984936751
Outer box qty
50st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Suitable for emergency lighting
No
Nominal current
33 - 36mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V

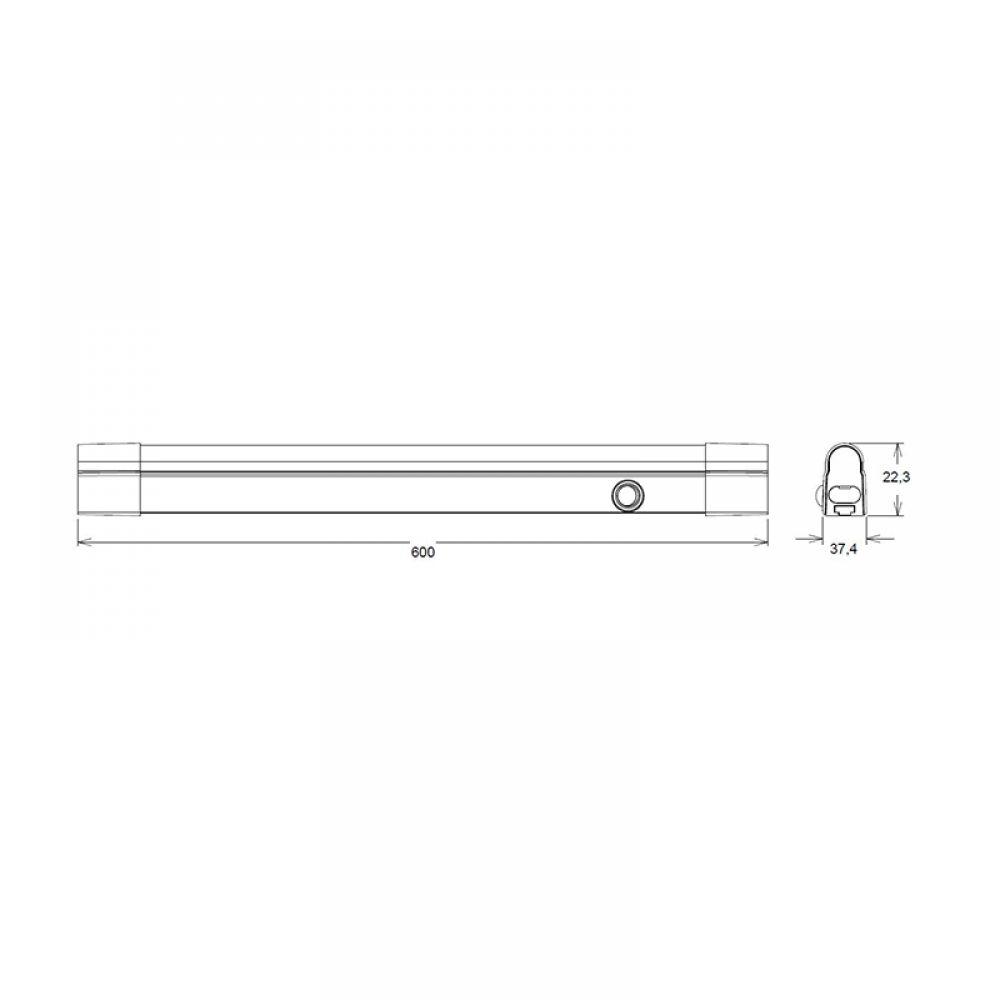

Length
600mm
Width
22mm
Height/depth
37mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
No
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Indirect
Dimming RF
No
Dimming Zigbee
No
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Plastic-coated
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
No
Max. system power
8W
Beam angle adjustable
No
Power factor
0.9
Type of wiring
Loop-through wiring included
Number of poles
2
Compatible with Casambi
No
Luminaire efficacy
97 - 113lm/W
Dimmable
No
Rated luminous flux according to IEC 62722-2- 1
867 - 975lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
35
Degree of protection (IP), front side
IP42
With mounting material
Yes
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Warranty
5 years
Product Name
LED T5 || surface mount | 60cm | 8W | 3-CCT
Beam angle
> 80° - Extreme wide beam
Ean
8714984936751
Light outlet
Indirect
Outer box qty
50st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Plastic
Light distributor
Diffuser lens/optic/panel
Housing colour
White
Surface protection housing
Plastic-coated
Material cover
Plastic, opal
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
33 - 36mA
Colour of light adjustable
Positions
Voltage type
AC
Luminous flux adjustable
No
Type of control gear
LED operating device current-controlled
Max. system power
8W
With control gear
Yes
Beam angle adjustable
No
Constant light output (CLO)
No
Power factor
0.9
Type of grid
None
Type of wiring
Loop-through wiring included
Nominal voltage
220 - 240V
Number of poles
2
Length
600mm
Compatible with Casambi
No
Width
22mm
Luminaire efficacy
97 - 113lm/W
Height/depth
37mm
Dimmable
No
Colour of light
White
Rated luminous flux according to IEC 62722-2- 1
867 - 975lm
Colour rendering index CRI
80-89
Emergency power supply system
None
Exchangeable control gear
No
Suitable for ceiling mounting
Yes
Dimming 0-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 1-10 V
No
Suitable for wall mounting
Yes
Dimming DALI
No
Suitable for suspended mounting
No
Dimming phase cut-off (trailing edge)
No
Suitable for workplace according to EN 12464-1
No
With movement sensor
No
Unified Glare Ratio (UGR)
35
With presence detector
No
Degree of protection (IP), front side
IP42
Impact strength
IK02
With mounting material
Yes
With light sensor
No
Colour temperature
3000 - 4000 - 5700K
Suitable for surface mounting
Yes
With connection cord and plug
No
Suitable for built-in mounting
No
Warranty
5 years
Light distribution
Symmetric
This T5 LED fixture is a replacement for traditional T5 fixtures and can be connected up to 750W. In addition, this luminaire is easy pre-settable in the color temperatures 3000K, 4000K or 5700K. This functionality makes this luminaire very versatile. It's not only suitable for (parking) garages, sheds or warehouses, but also for general lighting in commercial buildings, offices or schools.
Features
Pre-settable in the color temperatures 3000K, 4000K and 5700K
On/off switch on the front of the luminaire
Can be placed in one line up to 750W
Long lifespan of 50.000 hours
Including accessories to mount the luminaire on a ceiling or wall. Includes connector to create a long light line with multiple luminaires.
Prefer a greater distance between the luminaires? This is possible with connector cable 177-065
Exclusive power cable (1 power cable for max. 750W) 177-068 or 177-069
Datasheet
Datasheet-led-t5-surface-mount-60cm-8w-3-cct-177-061.pdf
Energy labels
Other attachment
177-061_3000K_Luminaire_photometric_test_report.pdf
177-061_4000K_Luminaire_photometric_test_report.pdf
177-061_5700K_Luminaire_photometric_test_report.pdf
177-061_3000K_IES.IES
177-061_4000K_IES.IES
177-061_5700K_IES.IES
Characteristics sheet
177-061_062_technical_datasheet_extended.pdf
Manual
177-061_Manual_NL.pdf
177-061_Manual_EN.pdf
