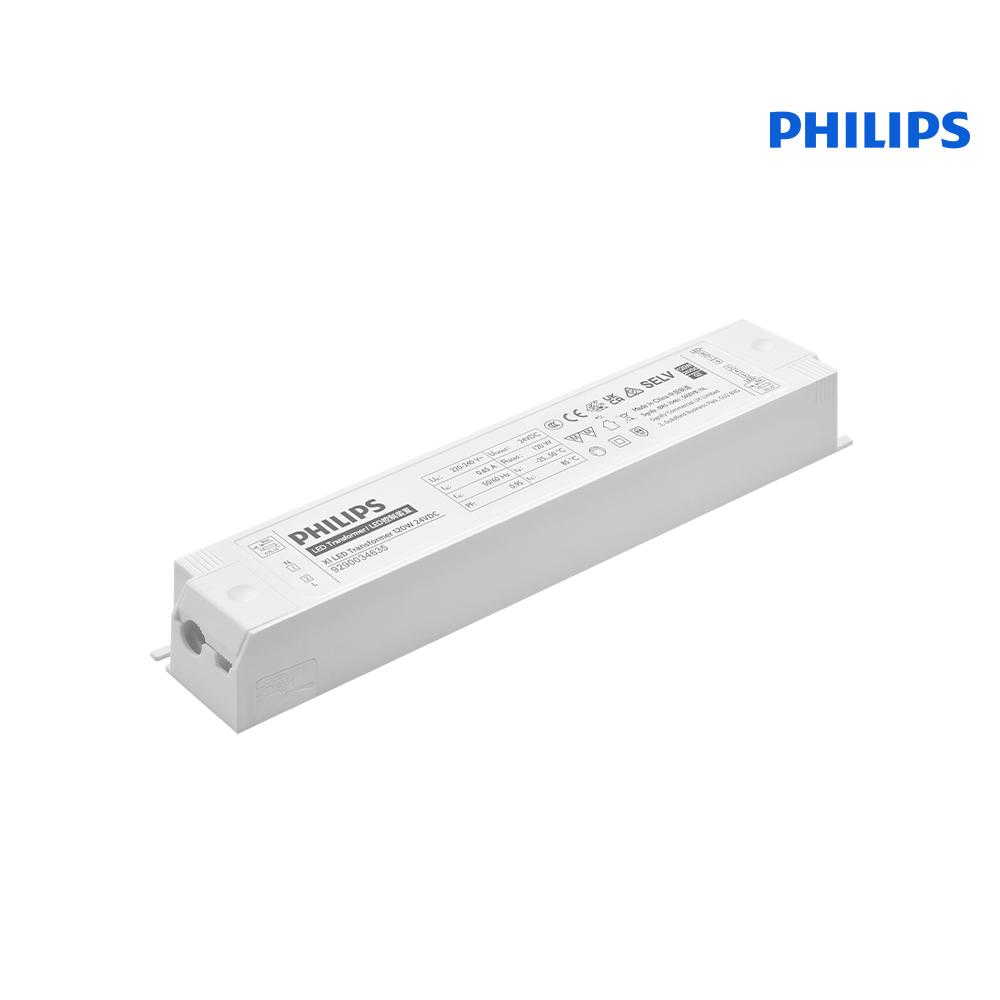

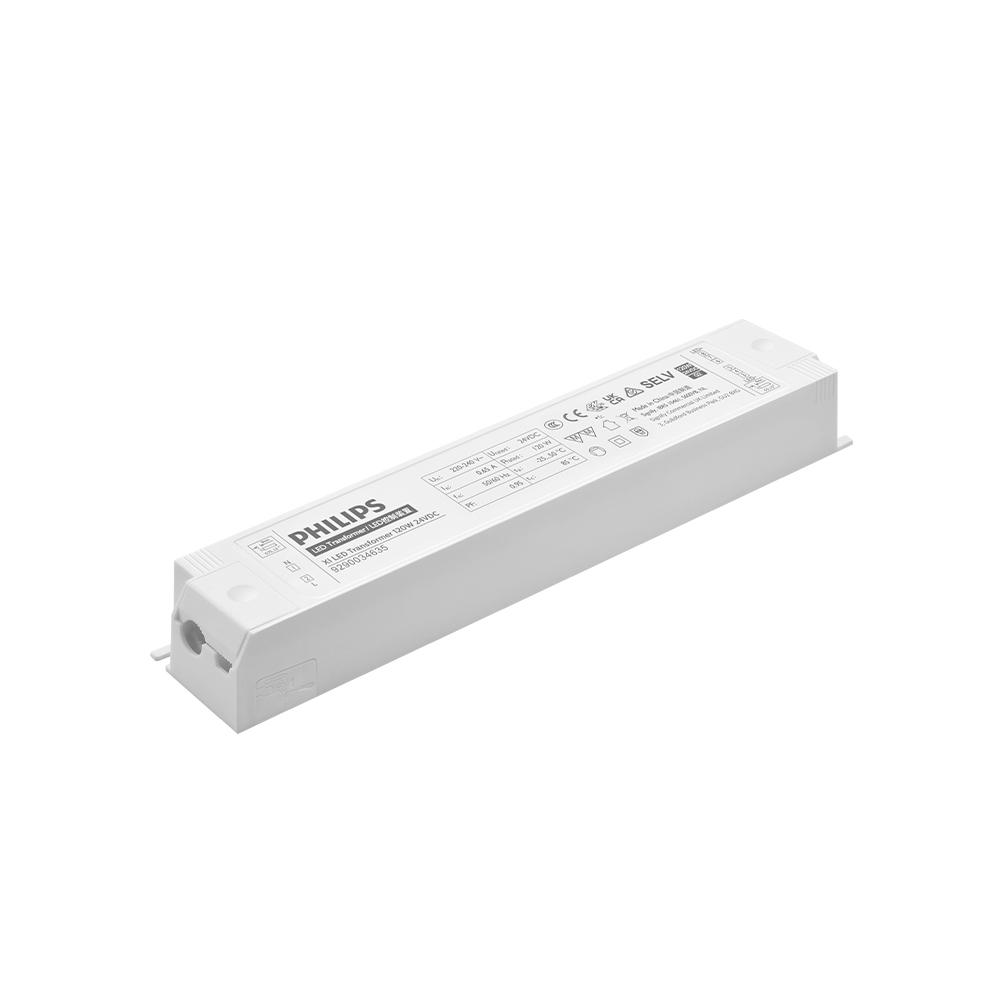

This sturdy Philips LED driver has a maximum output of 120W and 24V and is extremely well suited for use with various light sources. In addition, the compact size makes the driver easy to place.

This product will soon be branded as Xitanium by Signify.

Features

Output current 0 ~ 5000 mA
Output power 0 ~ 120 Watt

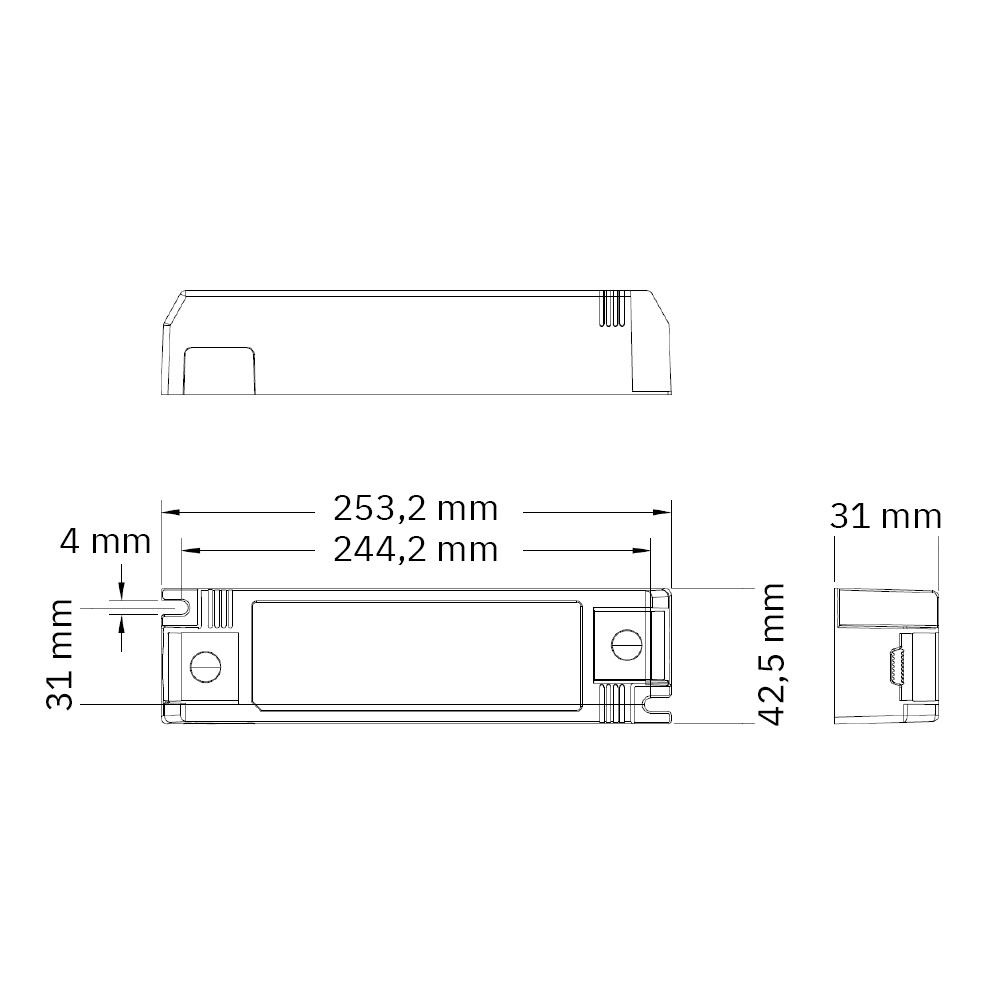

Compact size 253,2*42,5*31 mm

Power cable | 2 meter with stripped wire 595-021

GST18/3 | 30 centimeter cable | stripped wire 595-042

LED strip wire | 2 core | pro meter 127-250

Product Name

Philips power supply | 24V | IP20 | 120W

Ean

8714984949751

Outer box qty

20st

Housing

Plastic housing

Model

Static

Output voltage

24 - 24V

Output current

0 - 5000mA

Suitable for outdoor use

Suitable for DC-voltage (primary side)

Output power

0 - 120W

Degree of protection (IP)

IP20

Length

253.2mm

Width

42.5mm

Height

31mm

Power consumption

120W

Input voltage

220 - 240V

Frequency input voltage

47 - 63Hz

Overload protection

Yes

Overtemperature protection

Yes

Control method

Non-dimmable

Short-circuit protected

Yes

Ambient temperature

-20 - 50°C

Driver lifetime

50000h

DIN-rail mounting

Brand

Philips

Dimmable

Emergency power supply system

None

Control type

Constant voltage

Warranty

5 years

Suitable for DIN rail (top hat rail) mounting

Interface Pulse Width Modulation (PWM)
