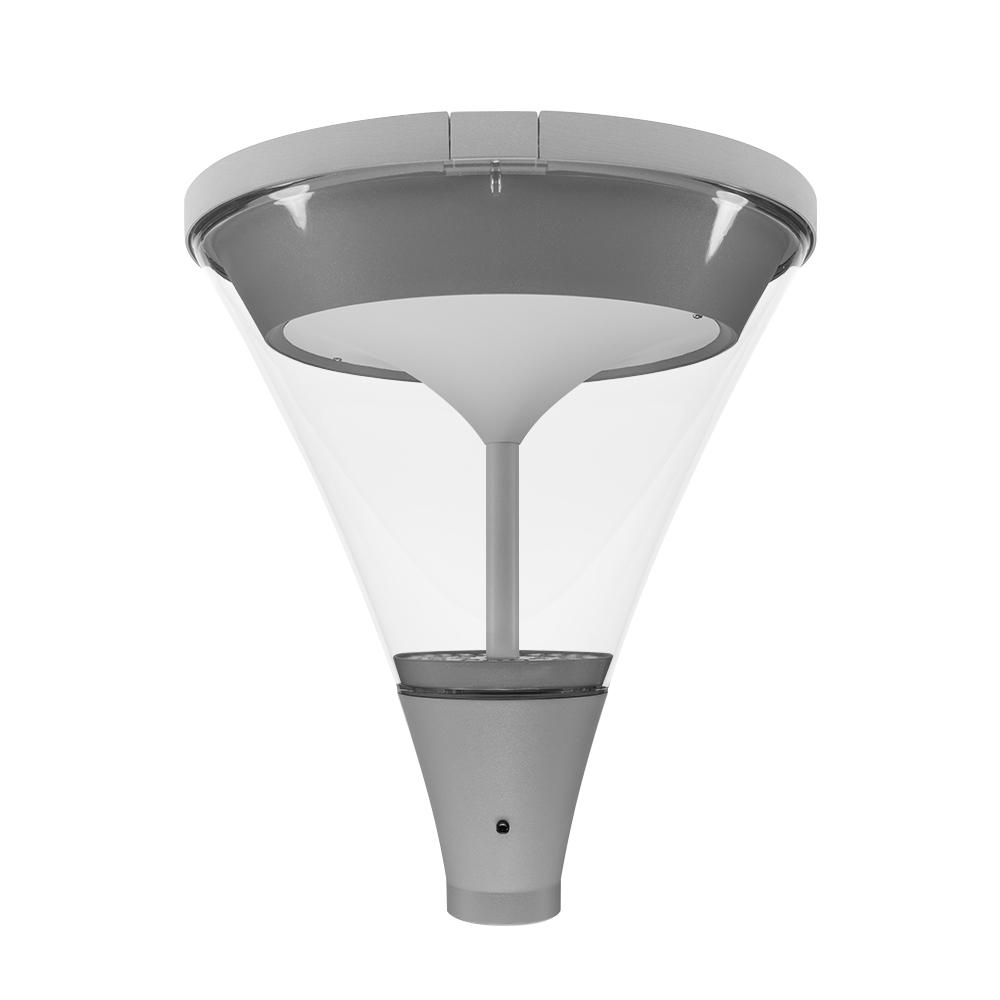

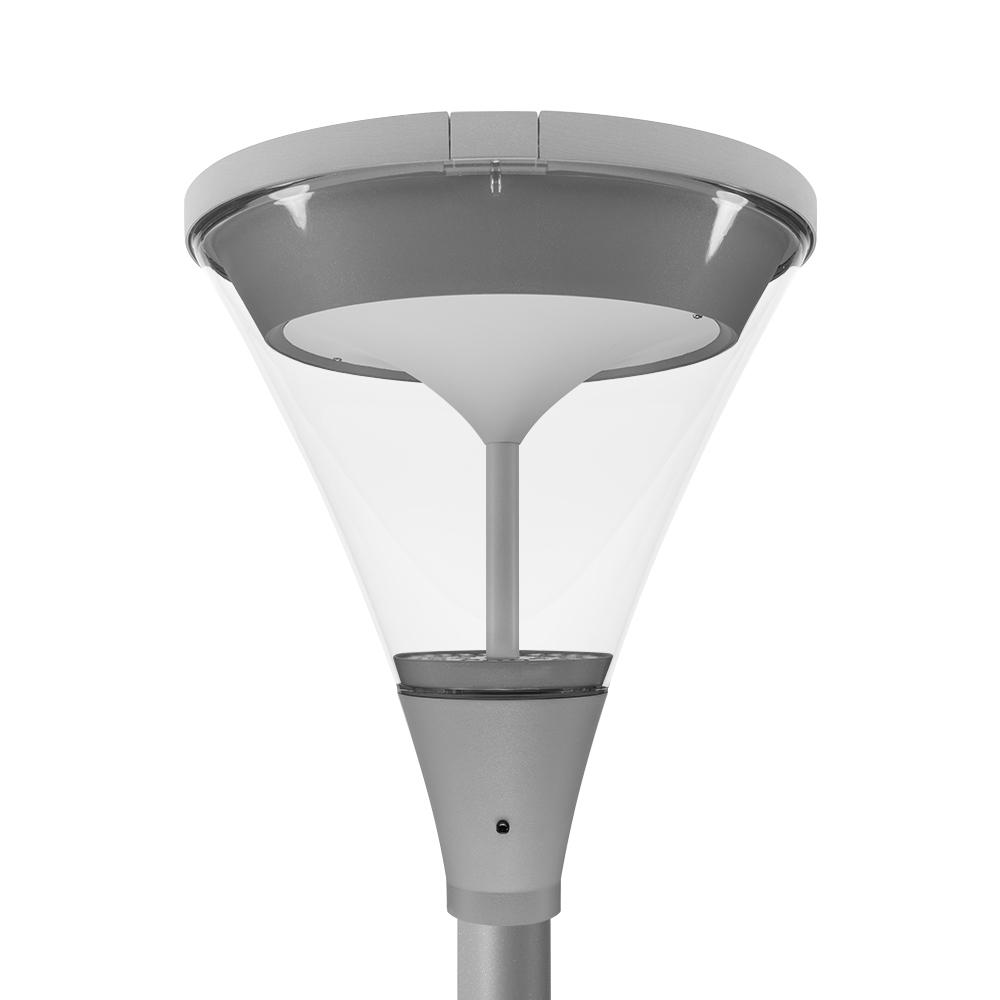

Post top light | silver | 12/20/30/40W | 2700K/3300K/4000K
220-042This lamp head is not only very sturdy, but also provides sufficient light in combination with three different color temperatures. Due to the even, soft and flicker-free light, these lamps are extremely well suited for placement in the garden, at a store or at a business premises.
Features
- Wattage adjustable by powerswitch (4 positions)
- Adjustable by means of a CCT switch in the color temperatures 2700K, 3300K and 4000K
Product Name
Post top light | silver | 12/20/30/40W | 2700K/3300K/4000K
Ean
8714984947191
Outer box qty
1st
Dimmable
No
Type
Post-top fixture
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Grey
Housing material
Aluminium
Material cover
Plastic, transparent
Connection type
Other
Mounting method
Post top/side entry

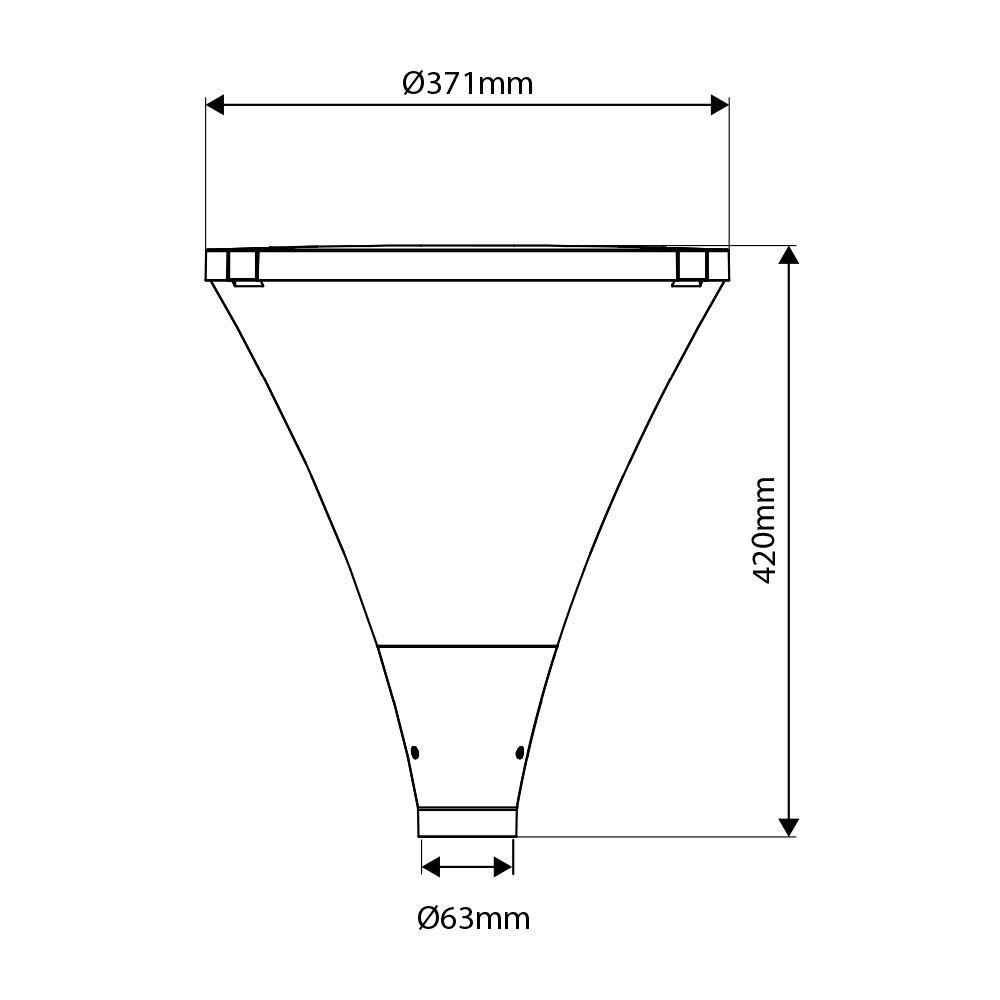

Height/depth
420mm
Diameter
371mm
Colour consistency (McAdam ellipse)
SDCM3
Colour temperature
2700 - 4000K
Colour rendering index CRI
80-89
Voltage type
AC
Nominal voltage
228 - 228V
Nominal current
178 - 178mA
Suitable for lamp power
0 - 0W
Suitable for spigot size
60 - 60mm
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Cable length
0.5m
With connection cable
Yes
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
Not required
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP66
Surface protection
Powder coating
Impact strength
IK09
Rated lifetime L70/B50 at 25 °C
131000h
Max. system power
40W
Rated luminous flux according to IEC 62722-2- 1
1100 - 3200lm
Luminaire efficacy
84lm/W
Power factor
0.96
Type of wiring
Ending
Warranty
5 years
Product Name
Post top light | silver | 12/20/30/40W | 2700K/3300K/4000K
Suitable for spigot size
60 - 60mm
Ean
8714984947191
Number of poles
3
Outer box qty
1st
Light source included
Yes, fixed LED
Dimmable
No
Light distributor
Reflector
Type
Post-top fixture
Cable length
0.5m
Lamp type
LED not exchangeable
With connection cable
Yes
Lamp holder
None
Connectable conductor cross section
0.75 - 2.5mm²
Housing colour
Grey
Type of control gear
Not required
Housing material
Aluminium
Exchangeable control gear
No
Material cover
Plastic, transparent
With control gear
Yes
Connection type
Other
Degree of protection (IP)
IP66
Mounting method
Post top/side entry
Surface protection
Powder coating
Height/depth
420mm
Impact strength
IK09
Diameter
371mm
Rated lifetime L70/B50 at 25 °C
131000h
Colour consistency (McAdam ellipse)
SDCM3
Max. system power
40W
Colour temperature
2700 - 4000K
Rated luminous flux according to IEC 62722-2- 1
1100 - 3200lm
Colour rendering index CRI
80-89
Luminaire efficacy
84lm/W
Voltage type
AC
Power factor
0.96
Nominal voltage
228 - 228V
Type of wiring
Ending
Nominal current
178 - 178mA
Warranty
5 years
Suitable for lamp power
0 - 0W
This lamp head is not only very sturdy, but also provides sufficient light in combination with three different color temperatures. Due to the even, soft and flicker-free light, these lamps are extremely well suited for placement in the garden, at a store or at a business premises.
Features
Wattage adjustable by powerswitch (4 positions)
Adjustable by means of a CCT switch in the color temperatures 2700K, 3300K and 4000K
Datasheet
Datasheet-post-top-light-silver-12203040w-2700k3300k4000k-220-042.pdf
Energy labels
Manual
220-041_042_Manual.pdf
Characteristics sheet
220-042-photometric-light-report.pdf
220-042-photometric-light-report-detailed.zip
220-042-eulumdat.zip
