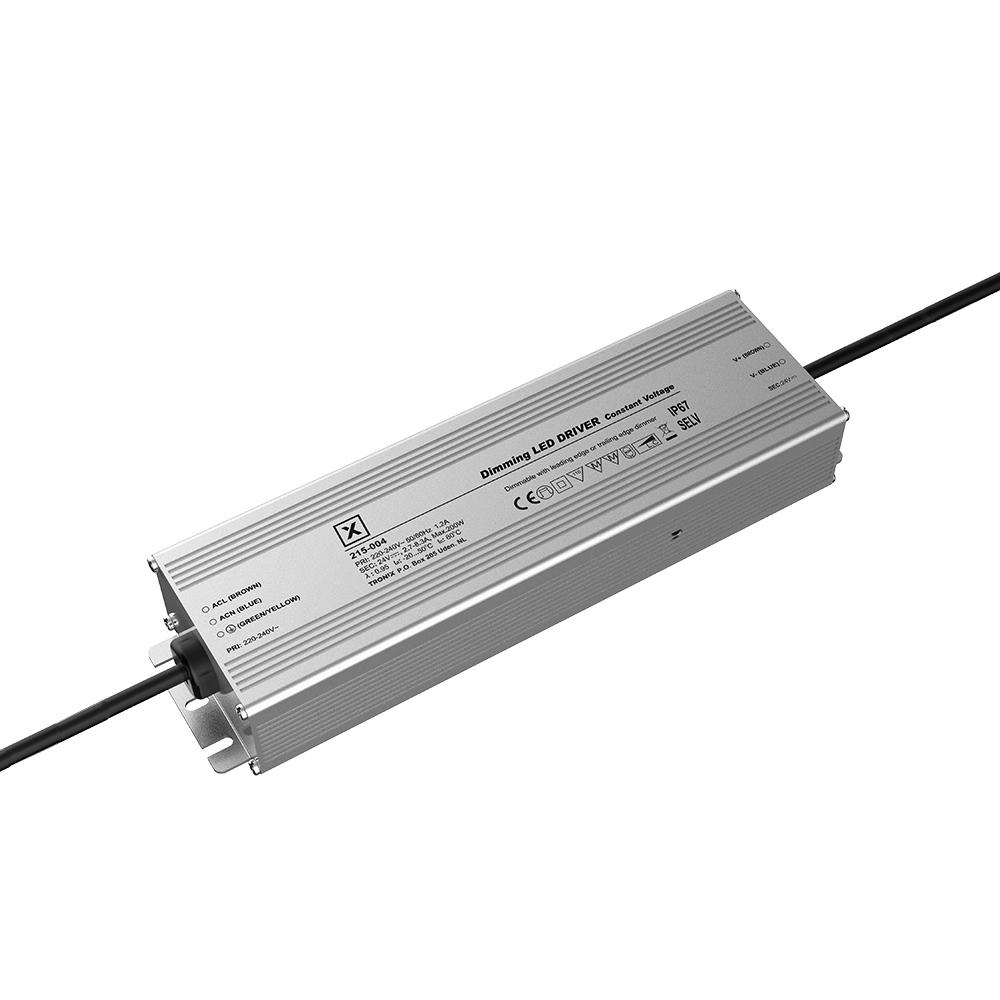

Power supply | 24V | 200W | trailing edge | outdoor
215-004Powerful 24V LED driver (up to 200 W), compatible with leading edge and trailing edge dimmers. Thanks to its IP67 rating, suitable for long-term indoor and outdoor installations.
Key product features
- Suitable for constant voltage: Yes
- Output voltage (V): 24
- Output power (W): 65 – 200
- Degree of protection (IP): IP67
- Dimmig phase cut-off (trailing edge): Yes
- Dimmig phase cut-on (leading edge): Yes
- Input voltage (V): 220 – 240
Product Name
Power supply | 24V | 200W | trailing edge | outdoor
Ean
8714984920361
Outer box qty
20st
Housing
Encapsulated
Model
Static
Output voltage
24 - 24V
Output current
2700 - 8300mA
Suitable for outdoor use
Yes
Suitable for DC-voltage (primary side)
No
Output power
65 - 200W
Degree of protection (IP)
IP67

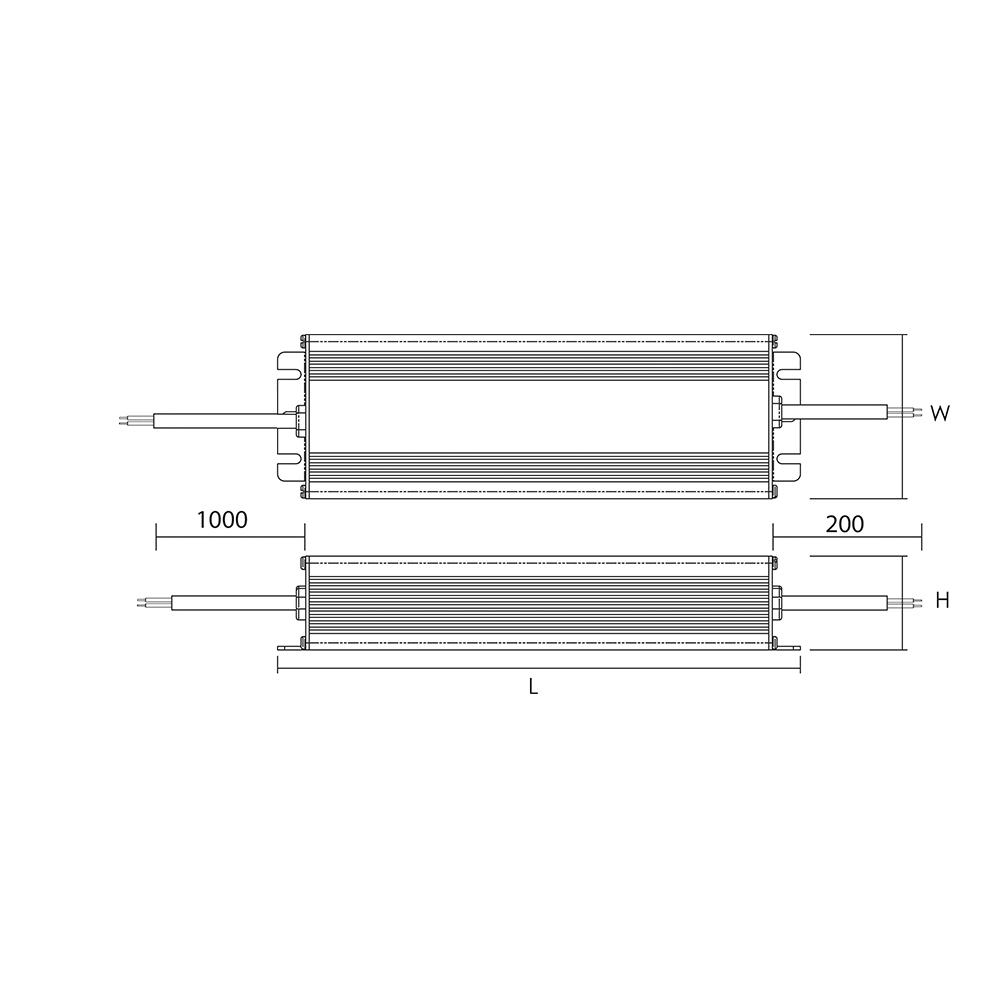

Length
249mm
Width
72mm
Height
40mm
Power consumption
200W
Input voltage
220 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Trailing edge dimming
Short-circuit protected
Yes
Ambient temperature
-20 - 50°C
Driver lifetime
30000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant voltage
Warranty
5 years
Product Name
Power supply | 24V | 200W | trailing edge | outdoor
Input voltage
220 - 240V
Ean
8714984920361
Frequency input voltage
50 - 60Hz
Outer box qty
20st
Overload protection
Yes
Housing
Encapsulated
Overtemperature protection
Yes
Model
Static
Control method
Trailing edge dimming
Output voltage
24 - 24V
Short-circuit protected
Yes
Output current
2700 - 8300mA
Ambient temperature
-20 - 50°C
Suitable for outdoor use
Yes
Driver lifetime
30000h
Suitable for DC-voltage (primary side)
No
DIN-rail mounting
No
Output power
65 - 200W
Brand
Tronix Lighting
Degree of protection (IP)
IP67
Dimmable
Yes
Length
249mm
Emergency power supply system
None
Width
72mm
Control type
Constant voltage
Height
40mm
Warranty
5 years
Power consumption
200W
This robust 24V constant voltage LED driver is designed for high-power applications such as long light lines, façade lighting, neon flex and IP-rated LED strips. With an output capacity of up to 200 W, it provides ample power for extensive indoor or outdoor lighting projects.
The dimming function supports both leading edge and trailing edge dimmers and is compatible with a wide range of wall dimmers. The flicker-free dimming curve runs smoothly from 1 to 100%.
With an efficiency of ≥92% and a power factor of ≥0.95 at full load, this driver offers an energy-efficient solution. The IP67-rated die-cast aluminium housing protects against dust and moisture.
Equipped with integrated protection against overload, short circuit and no-load operation. The driver restarts automatically after fault recovery. The 24V output voltage makes it suitable for LED strips, neon flex and modular lighting systems.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-power-supply-24v-200w-trailing-edge-outdoor-215-004.pdf
Characteristics sheet
215-004_technical_datasheet_extended.pdf
