RF | controller | RGB | 12~24V | push buttons

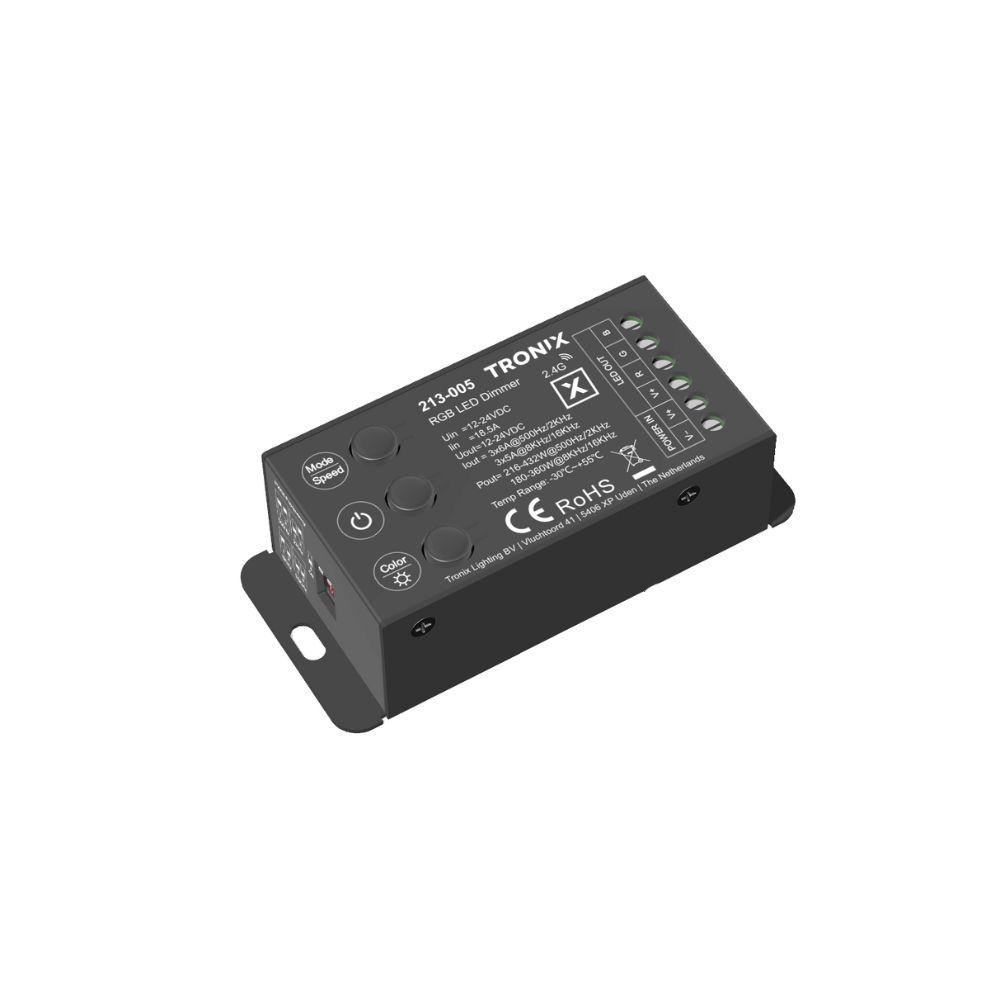

213-005RF controller for RGB LED lighting with 3 integrated buttons for colour selection, mode setting and speed. Enables smooth control of colours, brightness and effects, with 10 dynamic programmes and support for remote control.
Key product features
- Type of control: RF
- Number of colour channels: 3
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 18
- Control type: Constant voltage
Product Name
RF | controller | RGB | 12~24V | push buttons
Ean
8714984952904
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
18A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

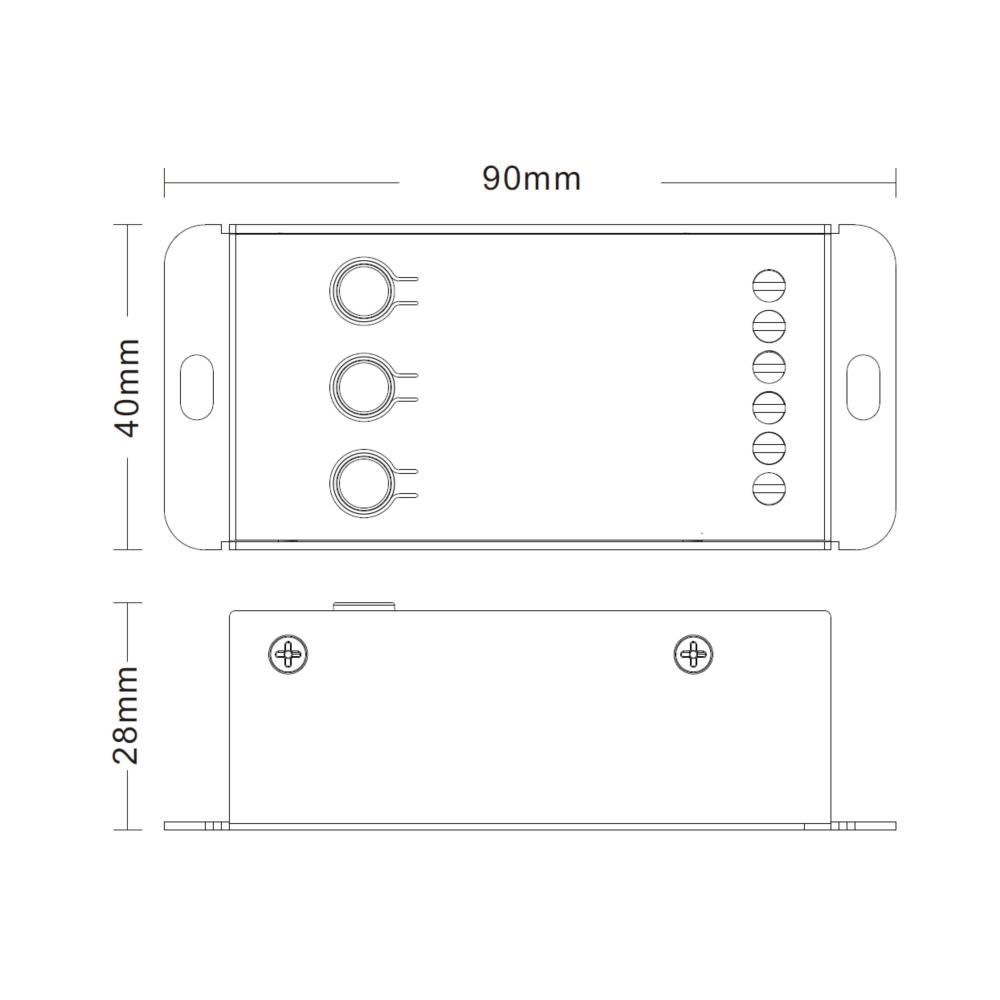

Length
90mm
Width
40mm
Height
28mm
Number of zones
1
Number of colour channels
3, RGB
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | RGB | 12~24V | push buttons
Height
28mm
Ean
8714984952904
Number of zones
1
Outer box qty
1st
Number of colour channels
3, RGB
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
18A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
90mm
Control type
Constant voltage
Width
40mm
Warranty
5 years
This 3-channel RF controller is designed for controlling RGB LED lighting. The 3 integrated buttons provide direct access to colour selection (Colour), lighting mode (Mode) and effect speed (Speed). Users can easily switch between static colours, brightness levels and 10 dynamic lighting programmes – from subtle fades to vibrant colour transitions.
For added flexibility and convenience, the controller also supports wireless control via a compatible remote. It offers 4 selectable PWM frequencies (500 Hz – 16 kHz), ensuring flicker-free performance in video environments or commercial displays.
The housing is equipped with protection against overload, overheating and short circuit. Suitable for RGB installations up to 18 A, this controller ensures stable and durable performance in professional lighting projects.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-rgb-1224v-push-buttons-213-005.pdf
Characteristics sheet
213-005_manual.pdf
