RF | controller | RGBTW | 12~24V

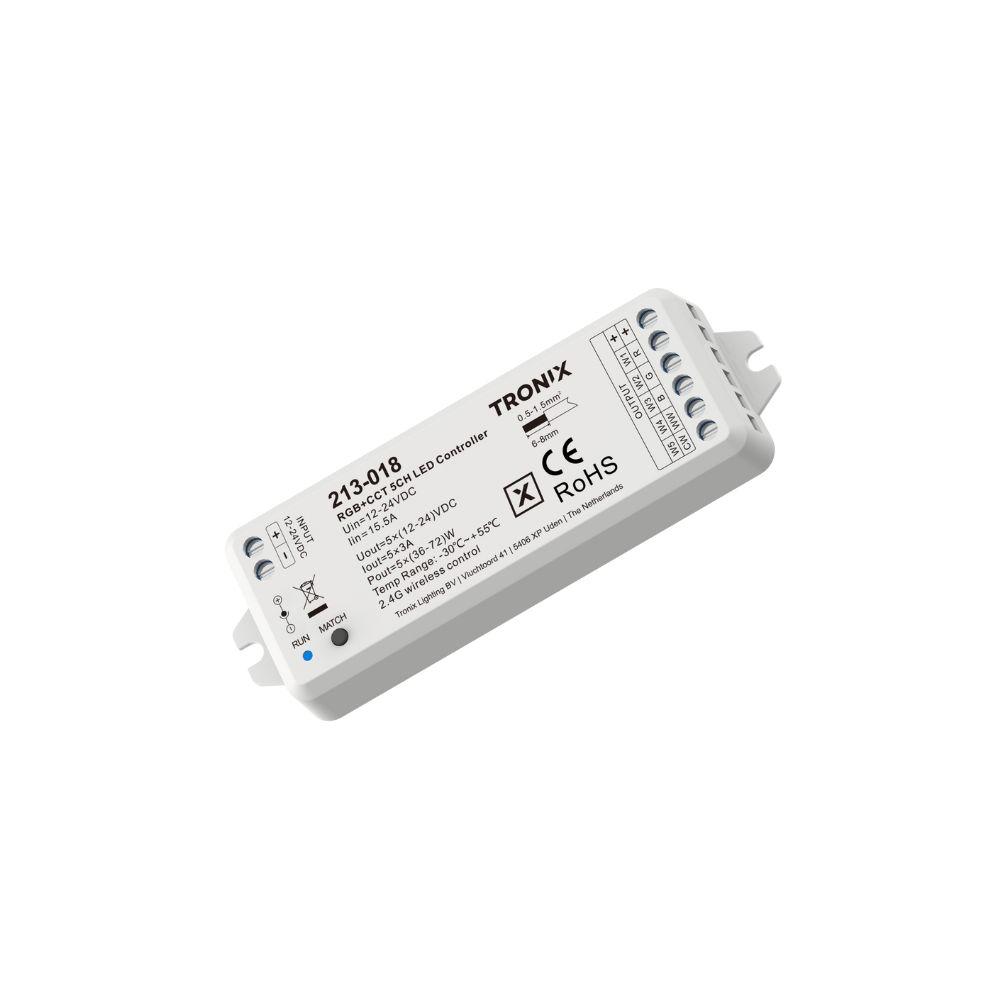

213-018RF LED controller with 5 colour channels for RGBTW applications on 12–24 V DC. Seamless adjustment of colour, colour temperature and brightness. PWM frequency is adjustable for flicker-free performance.
Key product features
- Type of control: RF
- Number of colour channels: 5
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 15
- Control type: Constant voltage
Product Name
RF | controller | RGBTW | 12~24V
Ean
8714984953031
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
15A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

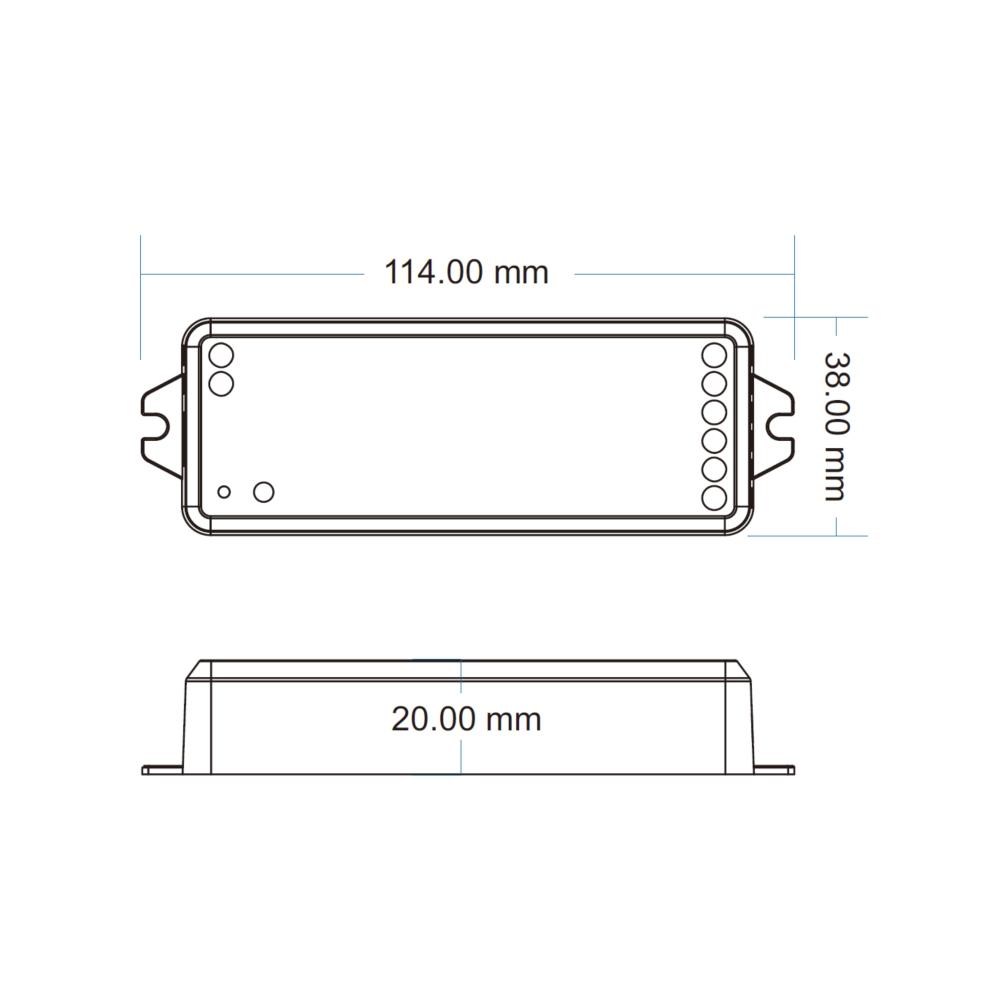

Length
114mm
Width
38mm
Height
20mm
Number of zones
1
Number of colour channels
5, RGBTW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | RGBTW | 12~24V
Height
20mm
Ean
8714984953031
Number of zones
1
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
15A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
114mm
Control type
Constant voltage
Width
38mm
Warranty
5 years
This compact 5-channel controller is designed for versatile control of RGBTW LED strips. RGB and Tuneable White outputs can be used together or independently, depending on the desired lighting setup. The controller supports RF operation with single- or multi-zone remote controls and can pair with up to 10 transmitters. Thanks to automatic signal forwarding, multiple controllers can operate synchronously over distances up to 30 metres—without additional wiring.
With 10 preprogrammed dynamic lighting effects and selectable PWM frequency (ideal for flicker-free dimming in video environments), this controller is suitable for a wide range of applications. The precise colour temperature control makes it ideal for projects where ambiance and colour accuracy are key.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
