RF | controller | RGBW | 12~48V | rotary control

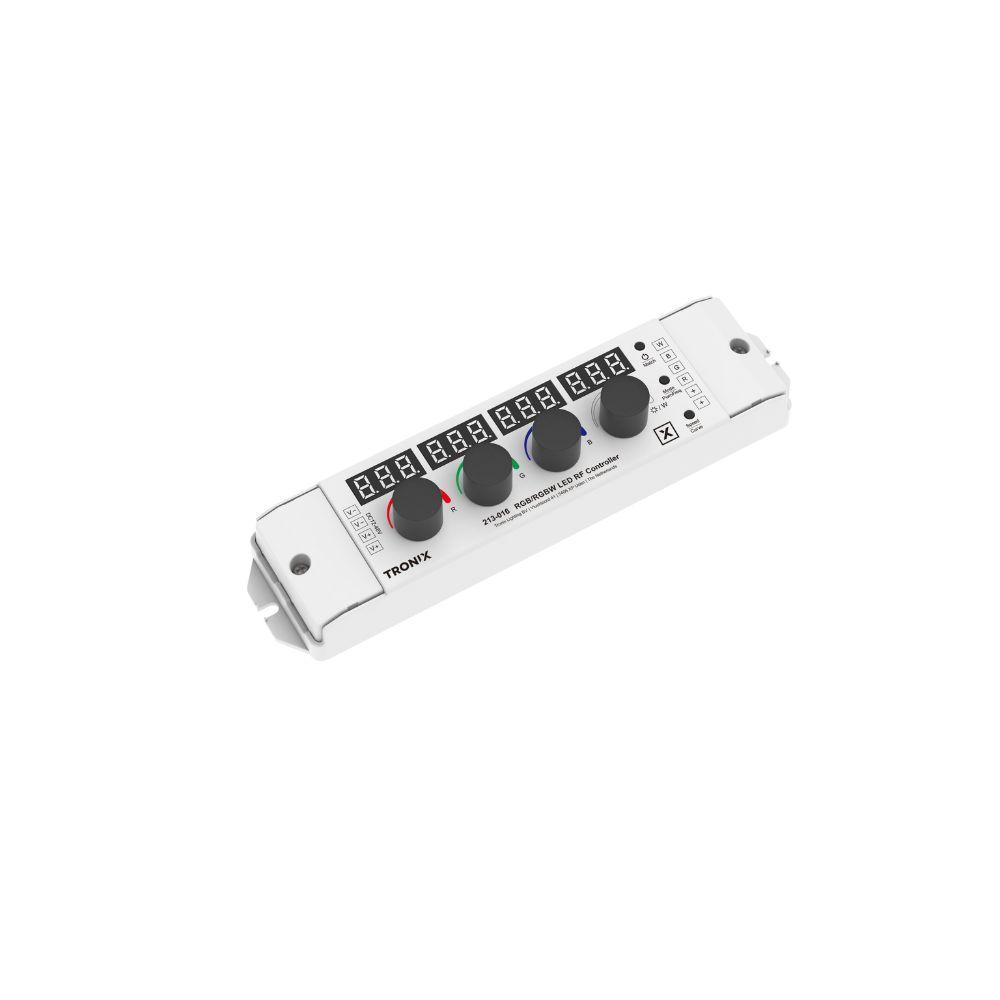

213-0164-channel RF LED controller for RGB and RGBW lighting with individual rotary knobs and digital display. Controls colour, brightness and lighting effects per channel. Supports both local operation and wireless control.
Key product features
- Type of control: RF
- Number of colour channels: 4
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 16
- Control type: Constant voltage
Product Name
RF | controller | RGBW | 12~48V | rotary control
Ean
8714984953017
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
16A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

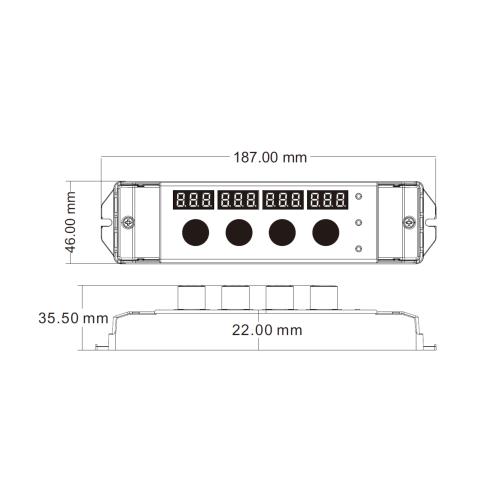

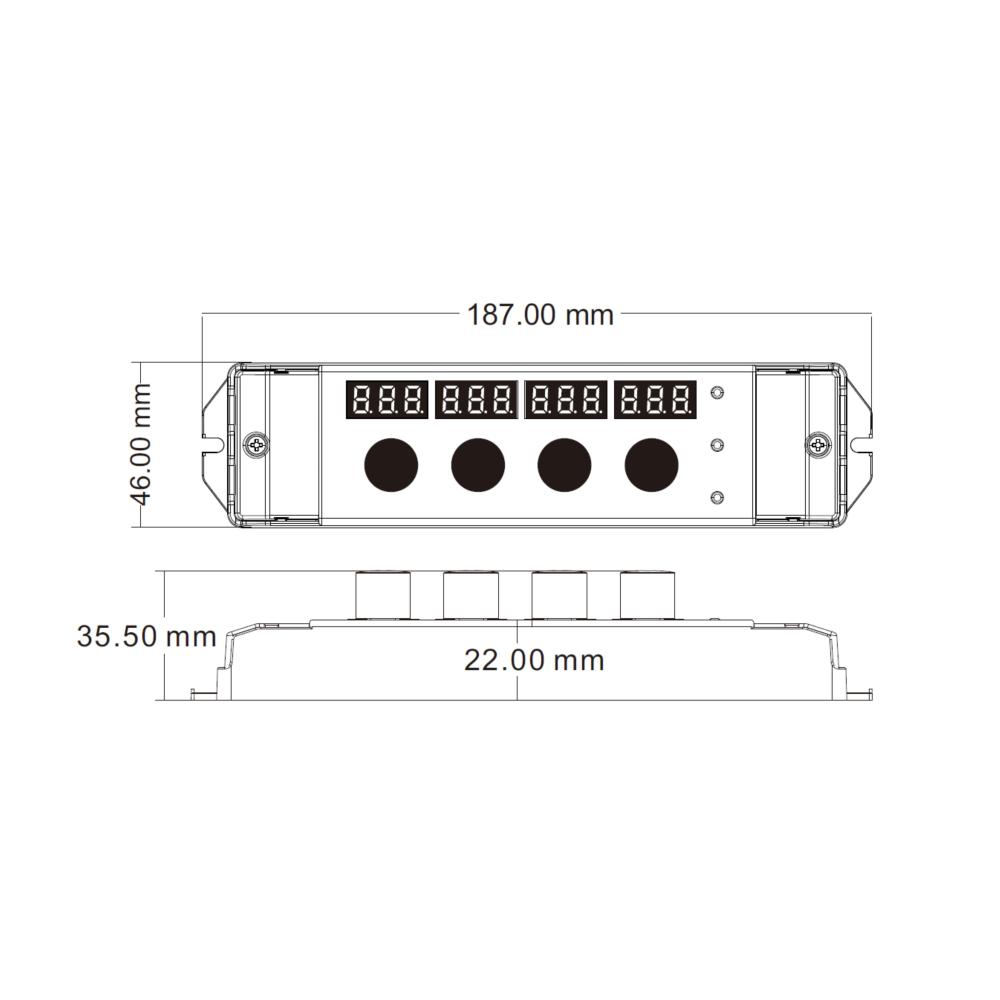

Length
187mm
Width
46mm
Height
35.5mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | RGBW | 12~48V | rotary control
Height
35.5mm
Ean
8714984953017
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 48V
Max. output current
16A
Control method
RF
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
187mm
Control type
Constant voltage
Width
46mm
Warranty
5 years
This controller offers precise control of RGB and RGBW lighting via 4 separate rotary knobs with integrated digital display. Each channel can be adjusted individually, allowing full control over colour, brightness and dynamic lighting effects. The built-in control panel gives access to multiple pre-set effects such as RGB jump, fade and smooth transitions.
The controller supports RF wireless control and can be used either as an RGB(W) controller or as a 4-zone transmitter in a lighting network. PWM frequency (adjustable from 1 to 8Â kHz) and dimming curve (linear or logarithmic) can be configured to optimise lighting performance and ensure compatibility with various applications.
Thanks to its robust housing and mounting brackets, this controller is suitable for fixed installations, mobile applications and professional environments where reliability, precise control and flexibility are essential.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-rgbw-1248v-rotary-control-213-016.pdf
Characteristics sheet
213-016_manual.pdf
