RF | controller | SC | 100-240V trailing edge

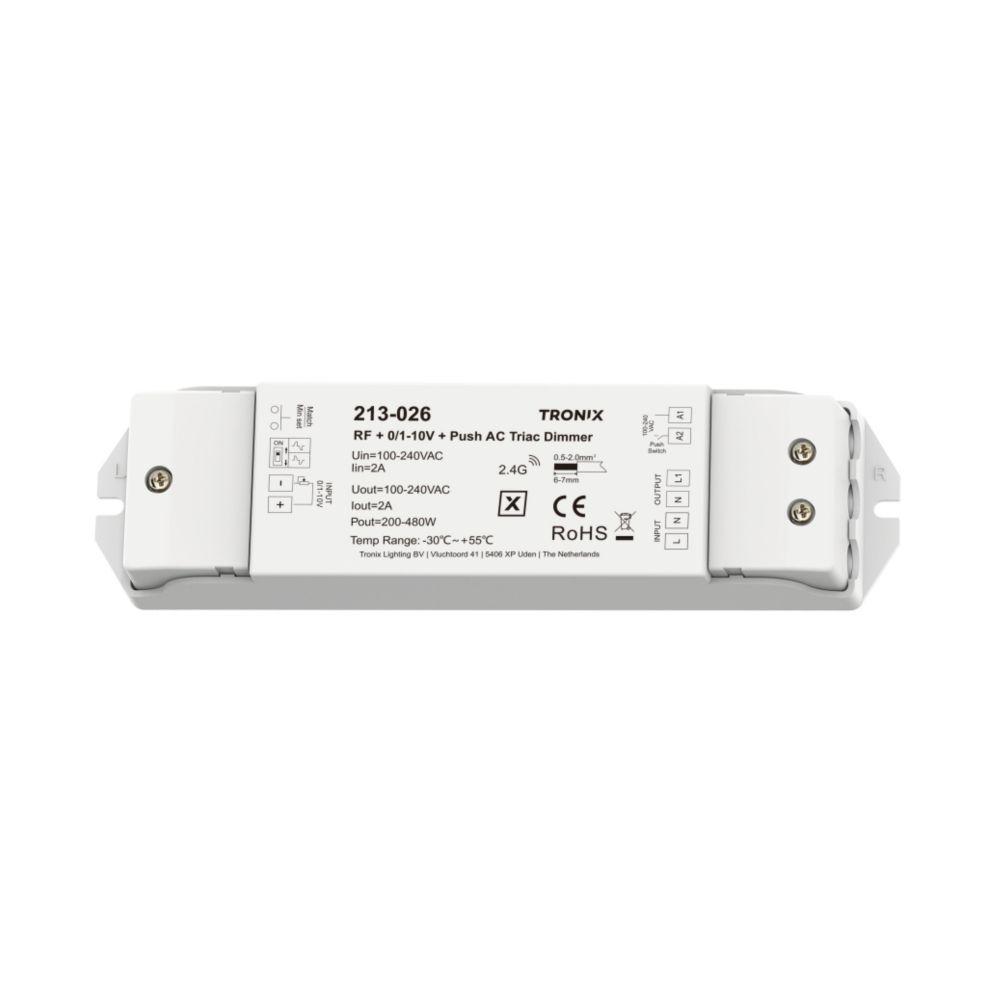

213-026This RF, 0/1–10V and push-dim AC trailing edge dimmer offers versatile control of 230V light sources. One compact solution for both wireless and wired dimming.
Key product features
- Control method: RF
- Number of colour channels: 1
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
- Max. output current (A): 2
- Suitable for surface mounting: Yes
Product Name
RF | controller | SC | 100-240V trailing edge
Ean
8714984956254
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Radio frequency (RF)
Control method
RF
Mounting method
Surface mounted
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. brightness controllable
Yes
Max. switching power LED
300W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
RF | controller | SC | 100-240V trailing edge
Applicable with button
Yes
Ean
8714984956254
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Radio frequency (RF)
Min. brightness controllable
Yes
Control method
RF
Max. switching power LED
300W
Mounting method
Surface mounted
Light value memory
Yes
Material
Plastic
Halogen free
Yes
Material quality
Thermoplastic
RAL-number (similar)
9016
Applicable with presence indicator
Yes
Core cross section
0.75 - 2.5mm²
Suitable for degree of protection (IP)
IP20
Warranty
5 years
Applicable with movement sensor
Yes
This AC trailing edge dimmer combines RF control, 0/1–10V regulation and an AC push-dim input in one compact solution for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting.
With 1 output channel and 256 dimming levels from 0–100%, the dimmer provides smooth and flicker-free light control. A built-in DIP switch allows selection between leading edge and trailing edge dimming for optimal compatibility with different light sources. The minimum brightness is adjustable to ensure stable performance at low dim levels. An adjustable fade-in and fade-out time is available for comfortable switching.
The dimmer is compatible with active and passive 0–10V and 1–10V signals and can be controlled via external wall switches or central control systems. Local control via a momentary push button enables on/off switching and smooth dimming with memory function. RF control supports single- and multi-zone remote controls for wireless operation. Thermal protection safeguards against overheating with automatic recovery.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-100-240v-trailing-edge-213-026.pdf
Characteristics sheet
213-026_manual.pdf
