RF | controller | SC | 100-240V trailing edge | recessed

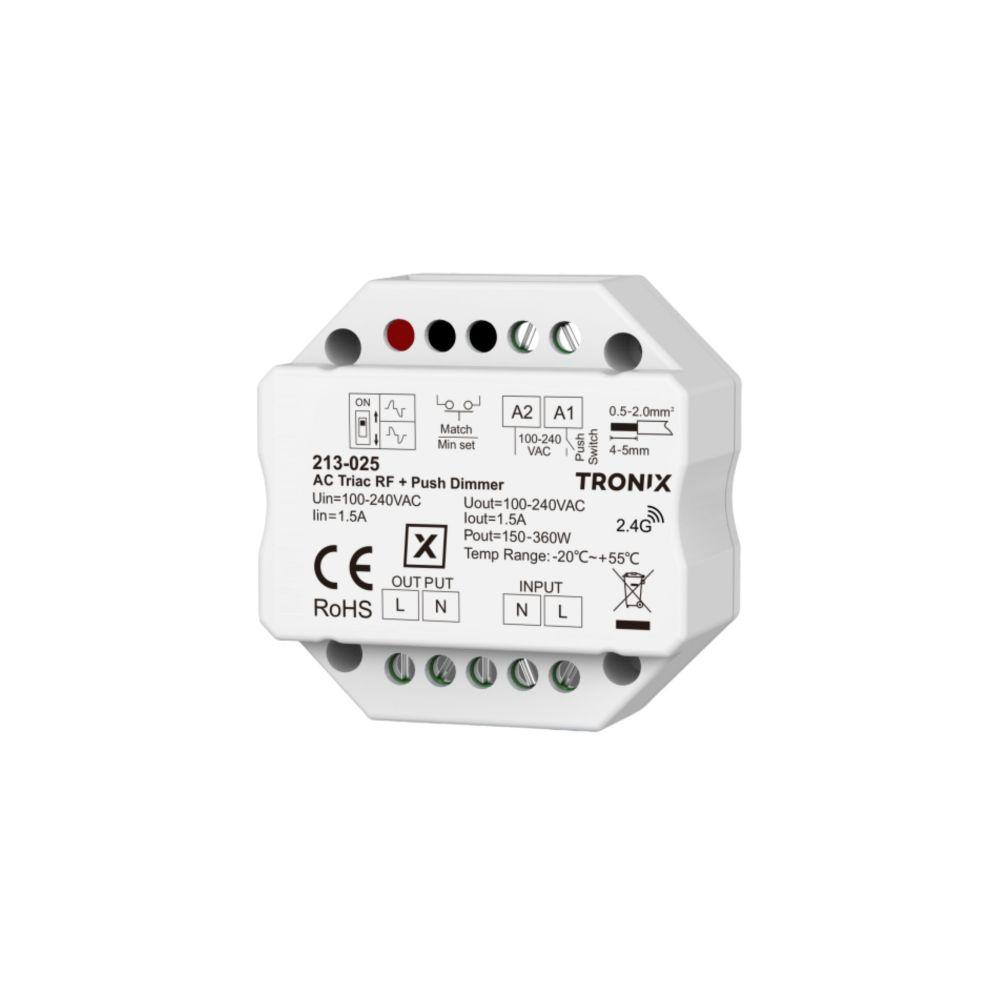

213-025This RF and push-dim AC trailing edge dimmer enables both wireless and wired dimming of 230V light sources. Compact, versatile and suitable for both renovation and new-build projects.
Key product features
- Control method: RF
- Number of colour channels: 1
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
- Max. output current (A): 1.5
- Suitable for flush mounting: Yes
Product Name
RF | controller | SC | 100-240V trailing edge | recessed
Ean
8714984956216
Outer box qty
1st
Colour
White
Connection type
Screwed terminal
Operating method
Radio frequency (RF)
Control method
RF
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
Yes
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
100 - 240V
Control voltage
100 - 240V
Min. depth of built-in installation box
28mm
Min. brightness controllable
Yes
Max. switching power LED
200W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
RF | controller | SC | 100-240V trailing edge | recessed
Applicable with button
Yes
Ean
8714984956216
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
100 - 240V
Connection type
Screwed terminal
Control voltage
100 - 240V
Operating method
Radio frequency (RF)
Min. depth of built-in installation box
28mm
Control method
RF
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
200W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
This AC trailing edge dimmer combines RF 2.4 GHz control with a conventional push-dim input for maximum flexibility. Suitable for switching and dimming single-colour dimmable LED lamps, trailing edge-dimmable LED drivers, incandescent lamps and halogen lighting on mains voltage.
With 1 output channel and 256 dimming levels from 0–100%, the dimmer delivers smooth and flicker-free light control. A built-in DIP switch allows selection between leading edge and trailing edge dimming for optimal compatibility with different light sources. Adjustable minimum brightness prevents flickering at low light levels. Adjustable fade-in and fade-out time ensures smooth and comfortable switching.
The dimmer supports single- and multi-zone RF 2.4 GHz remote controls and allows pairing and unpairing of multiple transmitters. Local control via a standard momentary push button provides on/off switching and smooth dimming with memory function.
Thermal and electrical protection safeguard against overheating and overload, with automatic recovery. The compact design fits into a standard flush-mount box behind a push button.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-100-240v-trailing-edge-recessed-213-025.pdf
Characteristics sheet
213-025_manual.pdf
