RF | controller | SC | 12~24V | push buttons
213-003RF LED dimmer for single-colour lighting with integrated buttons for direct control. Smooth dimming from 0 to 100%, with adjustable PWM frequency and support for remote or push-button control.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 20
- Control type: Voltage-controlled
Product Name
RF | controller | SC | 12~24V | push buttons
Ean
8714984952881
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
20A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

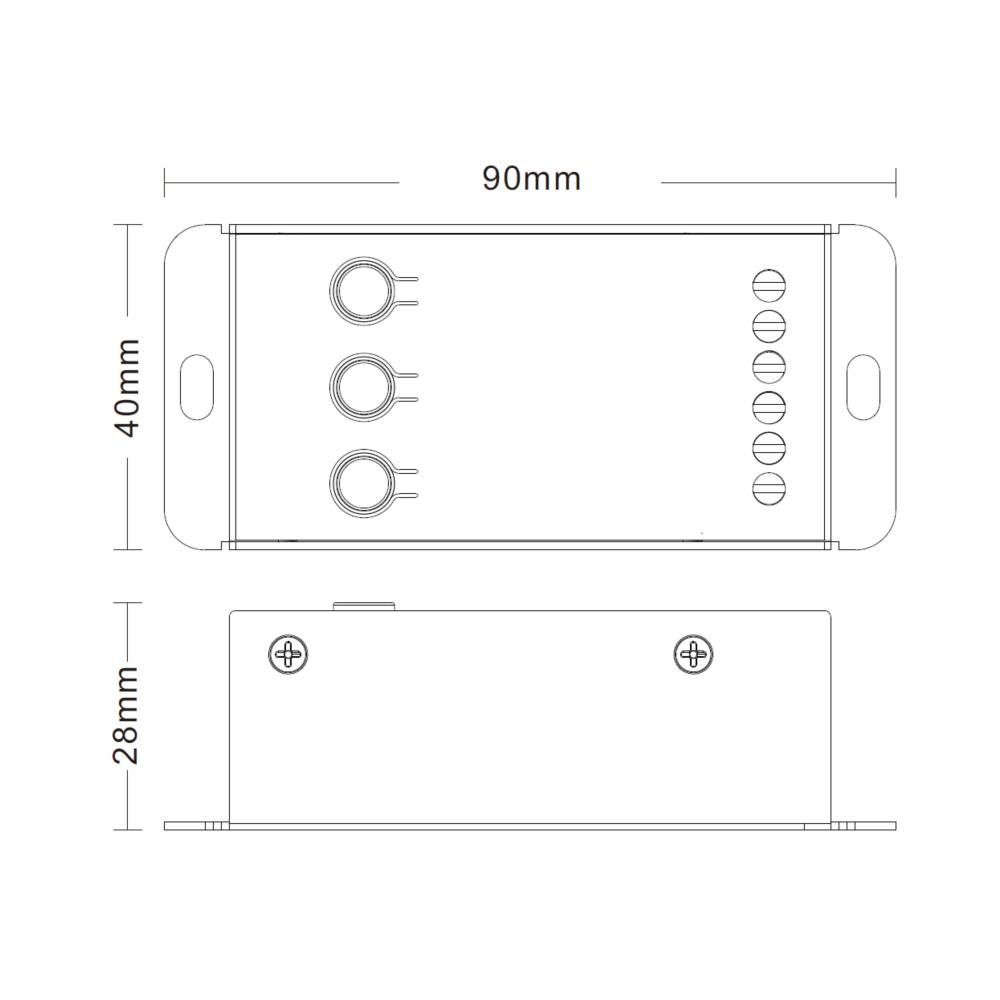

Length
90mm
Width
40mm
Height
28mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC | 12~24V | push buttons
Height
28mm
Ean
8714984952881
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
20A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
90mm
Control type
Constant voltage
Width
40mm
Warranty
5 years

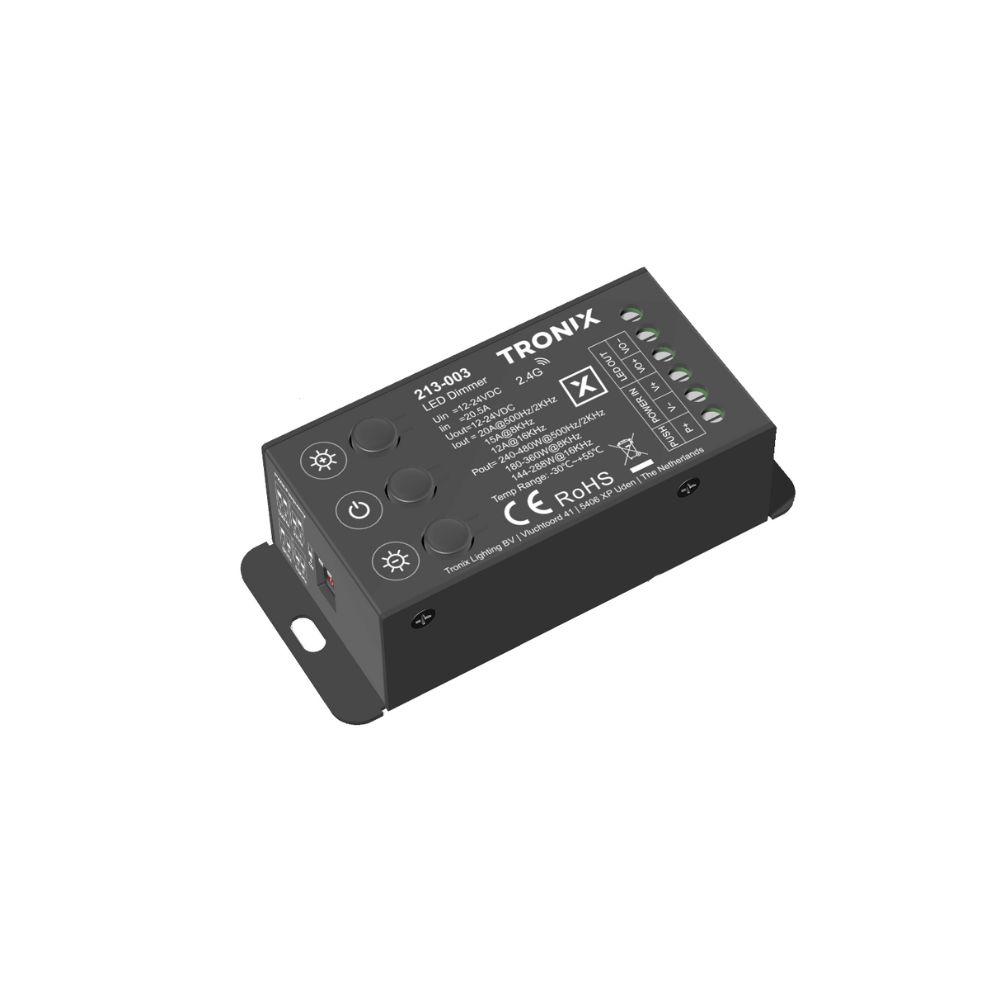

This single-channel RF dimmer combines direct manual control with flexible wireless functionality. The 3 integrated buttons allow for switching the light on/off or adjusting brightness. Short presses enable stepwise dimming; long presses activate a smooth transition.
Control is also possible via remote control or a standard push-button (Push-Dim). Thanks to the built-in synchronisation feature, up to 25 dimmers can be operated simultaneously from a single push-button—without the need for additional wiring. The memory function retains the last used setting after power-off or interruption.
The dimmer supports 4 selectable PWM frequencies (500 Hz – 16 kHz), allowing light output to be fine-tuned for specific applications, such as flicker-free lighting in camera environments. Equipped with protection against overload and thermal risks.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-1224v-push-buttons-213-003.pdf
Characteristics sheet
213-003_manual.pdf
