RF | controller | SC | 12~48V | 4 channel | rotary control
213-0154-channel RF LED controller for single-colour lighting. Each channel dimmable from 0 to 100% via individual rotary knob and digital display. Suitable for both local and wireless control.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 16
- Control type: Constant voltage
Product Name
RF | controller | SC | 12~48V | 4 channel | rotary control
Ean
8714984953000
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
16A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

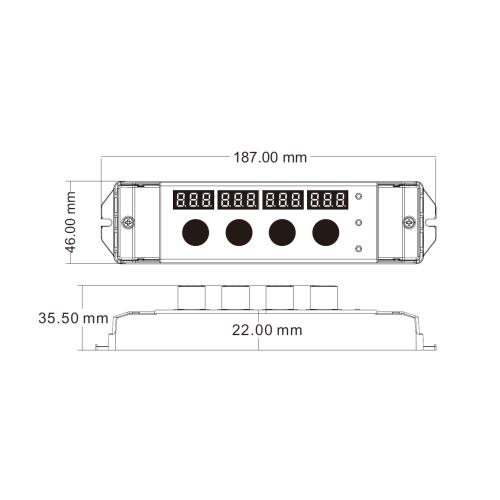

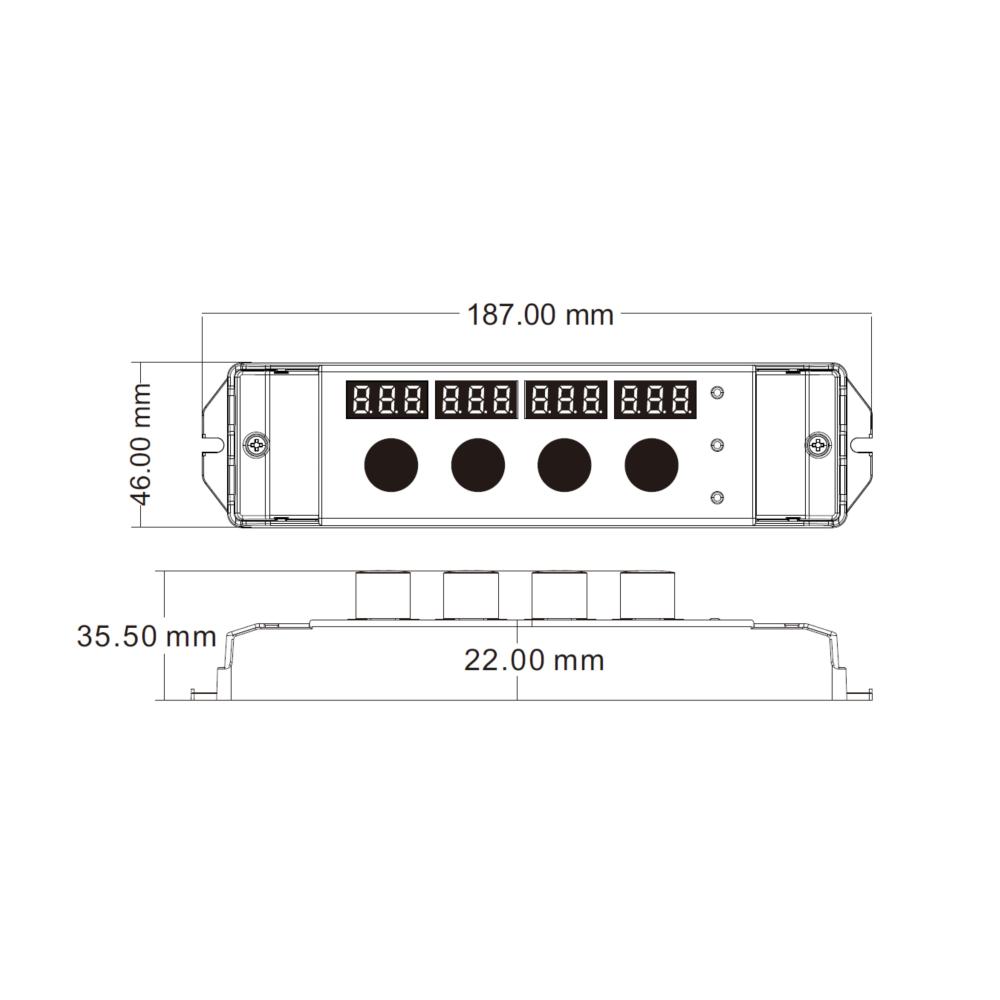

Length
187mm
Width
46mm
Height
35.5mm
Number of zones
4
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC | 12~48V | 4 channel | rotary control
Height
35.5mm
Ean
8714984953000
Number of zones
4
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 48V
Max. output current
16A
Control method
RF
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
187mm
Control type
Constant voltage
Width
46mm
Warranty
5 years

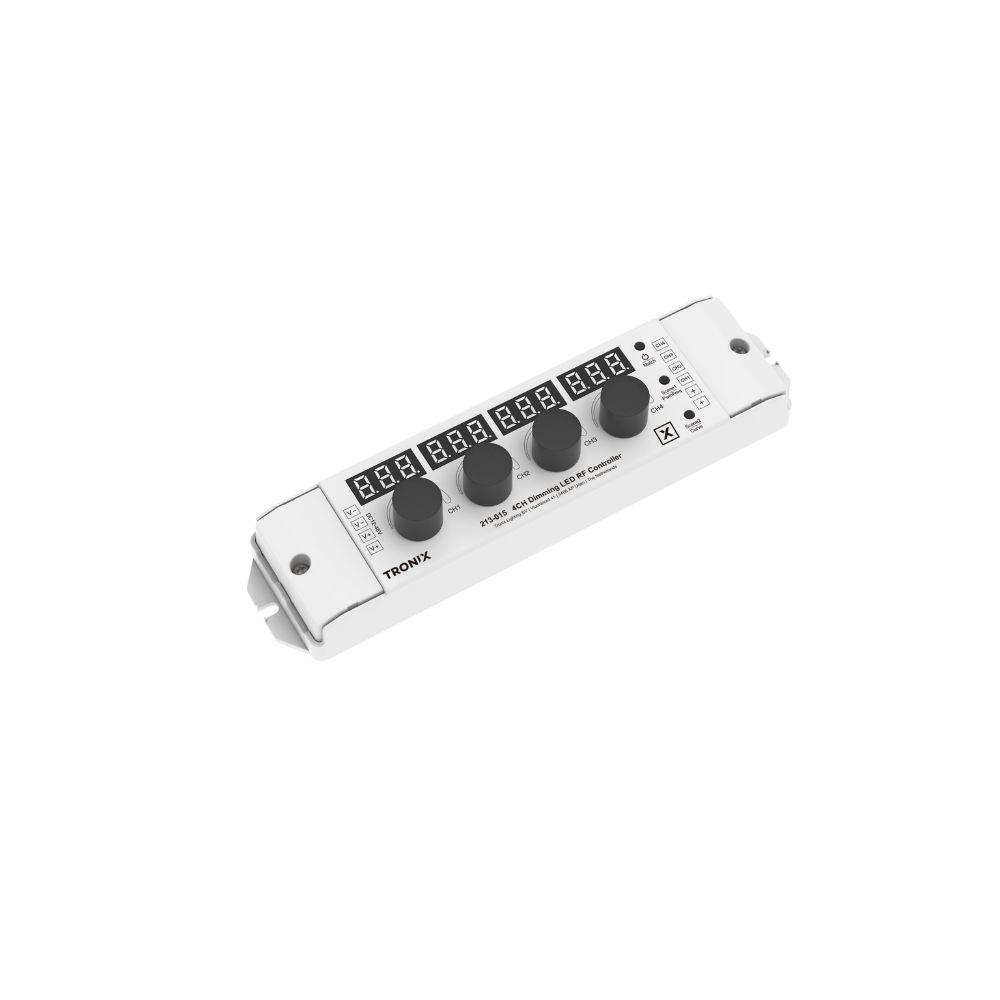

This controller offers 4 independent dimming channels, each equipped with its own rotary knob, digital display and fine-tuning buttons. This allows precise light control per channel, ideal for setups with multiple zones or light groups.
The controller supports RF operation and can be used either as a 4-zone RF transmitter or as a 4-channel LED controller. 2 lighting scenes can be saved and recalled using the integrated control buttons. Both PWM frequency (1–8 kHz) and dimming curve (linear or logarithmic) are adjustable to optimise lighting quality per project.
The dimming performance is smooth and flicker-free across the full range, supporting single-colour LED lighting on 12–48 V DC. Thanks to its robust housing and mounting brackets, this controller is suitable for both fixed and mobile professional installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-1248v-4-channel-rotary-control-213-015.pdf
Characteristics sheet
213-015_manual.pdf
