RF | controller | SC | 12~48V | adjustable fade
213-001RF controller with soft fade-in/fade-out for single-colour lighting. Supports smooth 0–100% dimming via push button or RF remote. Compact design, memory function and adjustable fade time for optimal visual comfort.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 8
- Control type: Voltage-controlled
Product Name
RF | controller | SC | 12~48V | adjustable fade
Ean
8714984952867
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
8A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

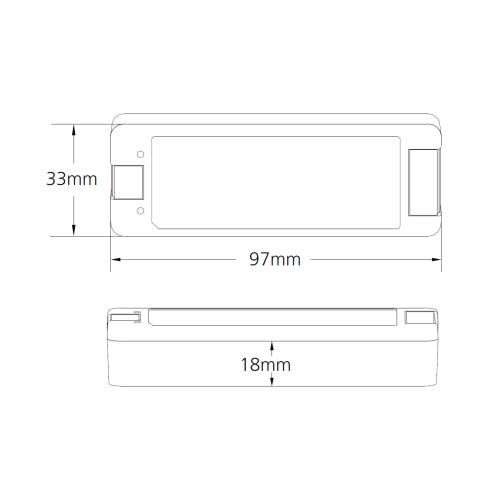

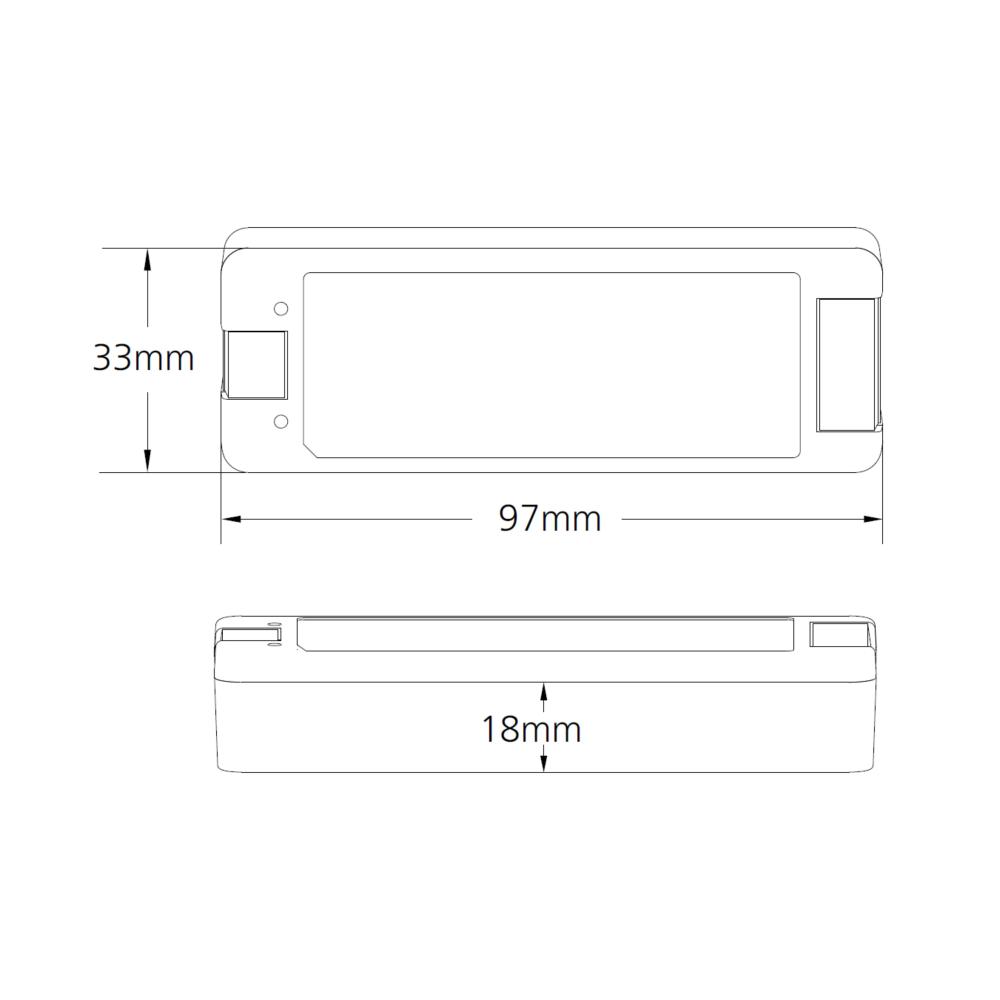

Length
97mm
Width
33mm
Height
18mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC | 12~48V | adjustable fade
Height
18mm
Ean
8714984952867
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 48V
Max. output current
8A
Control method
RF
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
97mm
Control type
Constant voltage
Width
33mm
Warranty
5 years
This 1-channel RF controller is designed for dimming single-colour LED lighting with smooth transitions. The integrated fade function provides a gentle light ramp-up and fade-out when switching on or off. The fade time can be adjusted via a dial on the housing, offering 5 speeds (1 – 20 seconds).
Control is possible via RF remote or a standard push button (Push Dim). A short press switches the light on or off; holding the button for 1–6 seconds enables stepless dimming. The memory function retains the last dimming level even after a power outage.
Thanks to synchronisation, up to 25 units can be controlled in parallel via a single push button without additional wiring. This makes the controller ideal for both small and medium-sized installations in applications where comfort and simplicity are key, such as residential settings, hospitality or representative environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-1248v-adjustable-fade-213-001.pdf
Characteristics sheet
213-001_manual.pdf
