RF | controller | SC | 12~48V | rotary control
213-006RF LED dimmer with rotary knob for single-colour lighting. Smooth 0–100% dimming, with selectable dimming curve, 4 PWM frequencies and support for wireless control.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Output voltage (V): 12 – 48
- Input voltage (V): 12 – 48
- Max. output current (A): 8
- Control type: Constant voltage
Product Name
RF | controller | SC | 12~48V | rotary control
Ean
8714984952911
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
8A
Output voltage
12 - 48V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

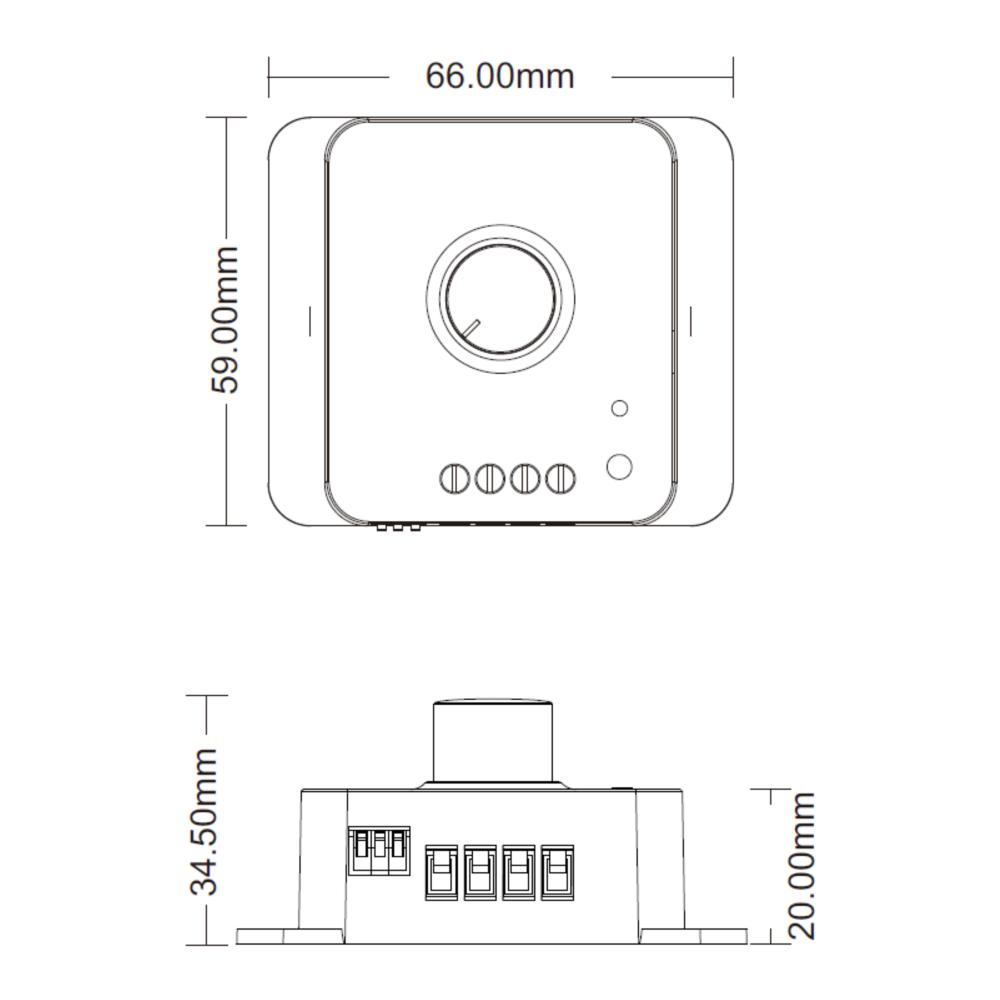

Length
66mm
Width
59mm
Height
34.5mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 48V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC | 12~48V | rotary control
Height
34.5mm
Ean
8714984952911
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 48V
Max. output current
8A
Control method
RF
Output voltage
12 - 48V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
66mm
Control type
Constant voltage
Width
59mm
Warranty
5 years

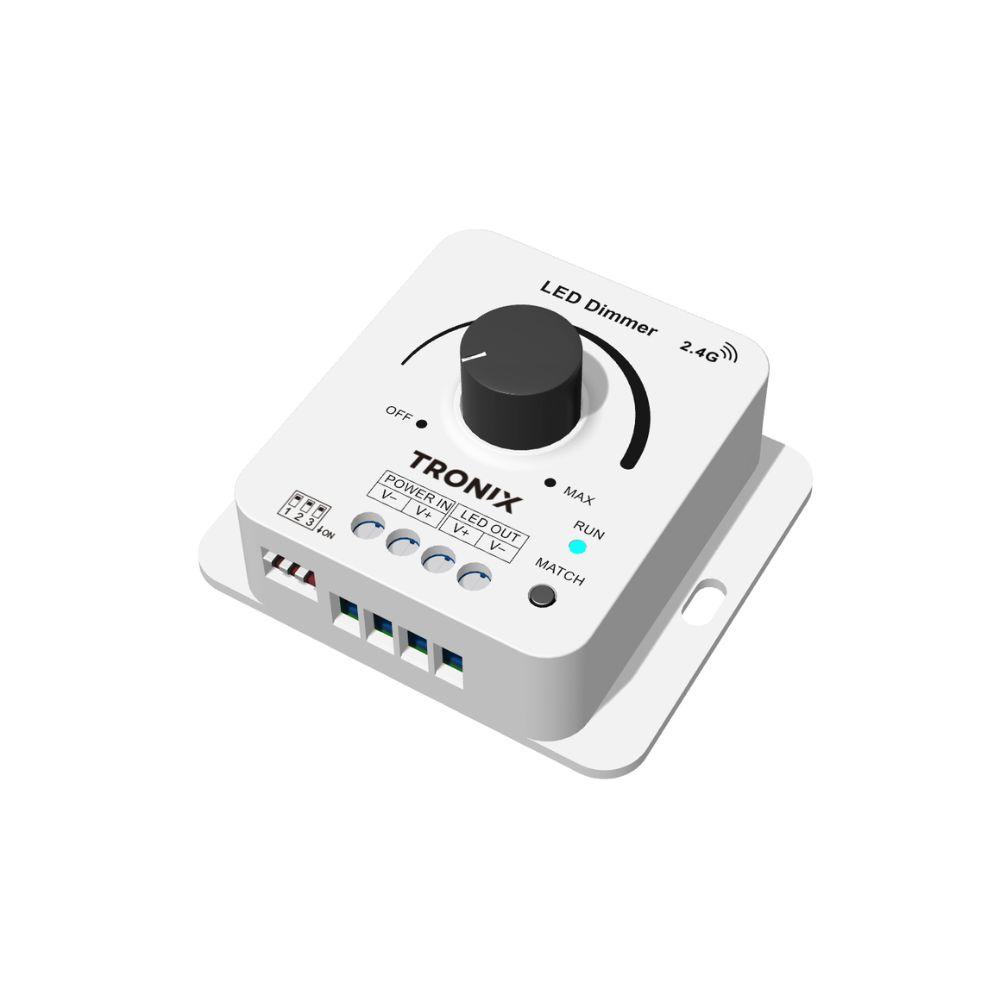

This compact 1-channel rotary dimmer combines precise manual control with wireless flexibility. The integrated rotary knob allows for smooth, flicker-free dimming from 0 to 100%. The built-in RF module supports pairing with single- or multi-zone remote controls.
The dimming curve can be set to either linear or logarithmic, allowing you to tailor the light behaviour for technical accuracy or visual comfort. PWM frequency is selectable in 4 steps (500 Hz – 16 kHz), ensuring compatibility with various LED types and applications where flicker-free performance is essential.
An optional fade function (3 seconds) provides soft transitions when switching on or off. Suitable for 12–48 V DC systems and loads up to 8 A – a versatile solution for projects where usability and light quality are key.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see the related products section. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sc-1248v-rotary-control-213-006.pdf
Characteristics sheet
213-006_manual.pdf
