RF | controller | SC/TW/RGB(W) | 12~24V

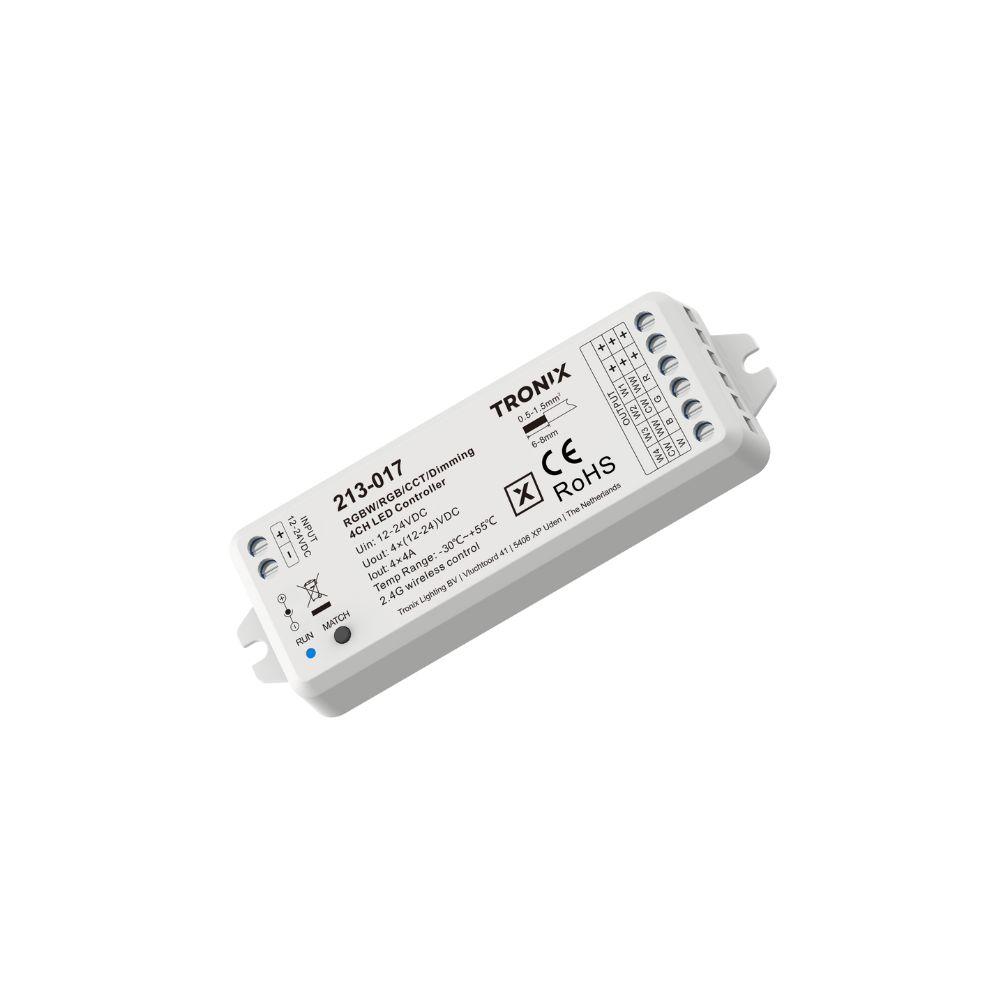

213-017RF controller for 12–24 V LED applications. Supports single colour, Tuneable White, RGB and RGBW LED strips with smooth dimming and selectable PWM frequency for flicker-free light quality.
Key product features
- Type of control: RF
- Number of colour channels: 4
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 6
- Control type: Constant voltage
Product Name
RF | controller | SC/TW/RGB(W) | 12~24V
Ean
8714984953024
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
6A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

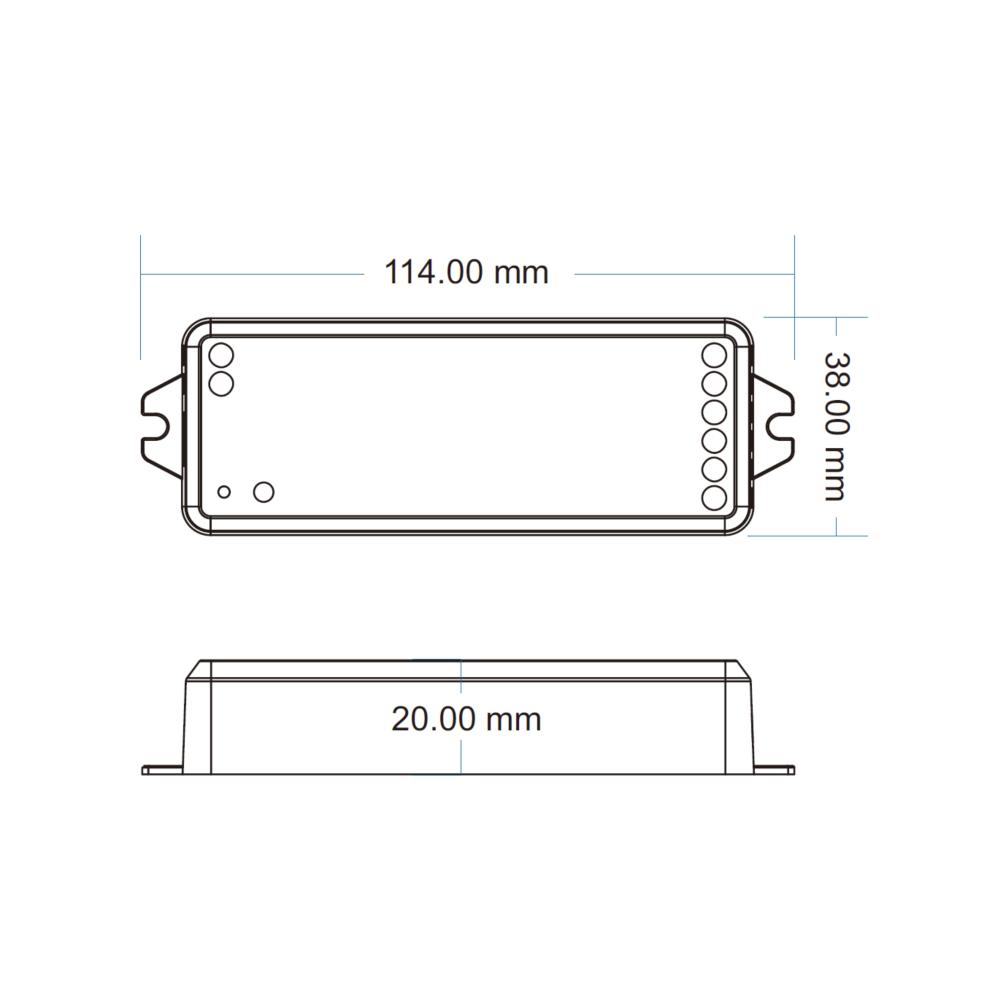

Length
114mm
Width
38mm
Height
20mm
Number of zones
1
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC/TW/RGB(W) | 12~24V
Height
20mm
Ean
8714984953024
Number of zones
1
Outer box qty
1st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
6A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
114mm
Control type
Constant voltage
Width
38mm
Warranty
5 years
This versatile RF controller is designed to control single colour, dual white (CW/WW) and RGB(W) LED strips. It supports both single-zone and multi-zone remote controls and allows pairing with up to 10 transmitters. Thanks to the auto-transmit function, multiple controllers can operate synchronously over distances of up to 30 metres—without additional wiring.
The PWM frequency is adjustable to 1, 2, 4 or 8 kHz. Higher frequencies are ideal for video environments and applications where flicker-free performance is essential. The controller also features 10 dynamic lighting effects (for RGB/RGBW), an adjustable fade time (0.5 or 3 seconds), and a memory function to retain the last used setting.
With an output current of up to 6 A and a wide voltage range, this model provides a robust and flexible solution for a variety of LED projects—from decorative lighting to functional applications in commercial installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sctwrgbw-1224v-213-017.pdf
Characteristics sheet
213-017_manual.pdf
