RF | controller | SC/TW/RGB(W+TW) | 12~24V | push buttons

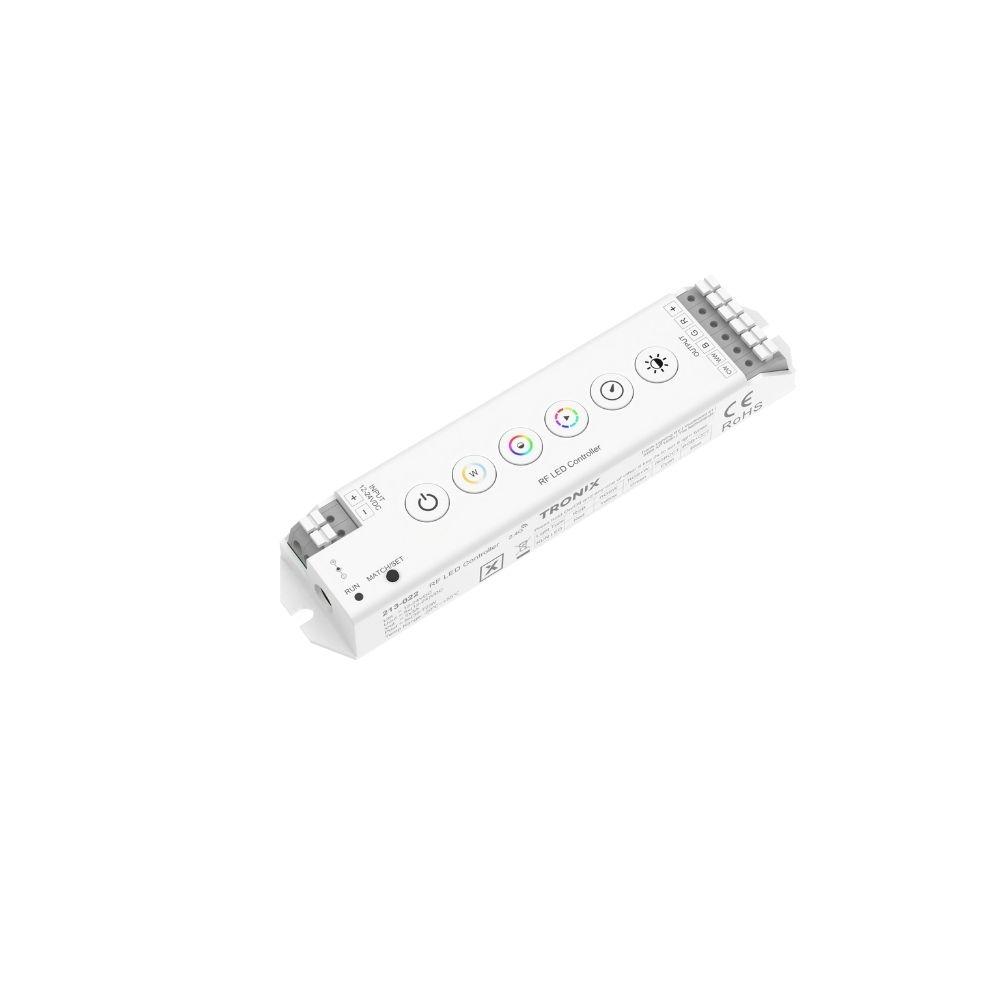

213-0225-channel RF LED controller for RGB, RGBW and RGBTW applications on 12–24 V DC. Features 6 function buttons for direct control of colour, brightness, colour temperature and dynamic effects. Operates wirelessly and flicker-free.
Key product features
- Type of control: RF
- Number of colour channels: 5
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 15
- Control type: Constant voltage
Product Name
RF | controller | SC/TW/RGB(W+TW) | 12~24V | push buttons
Ean
8714984953079
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
15A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

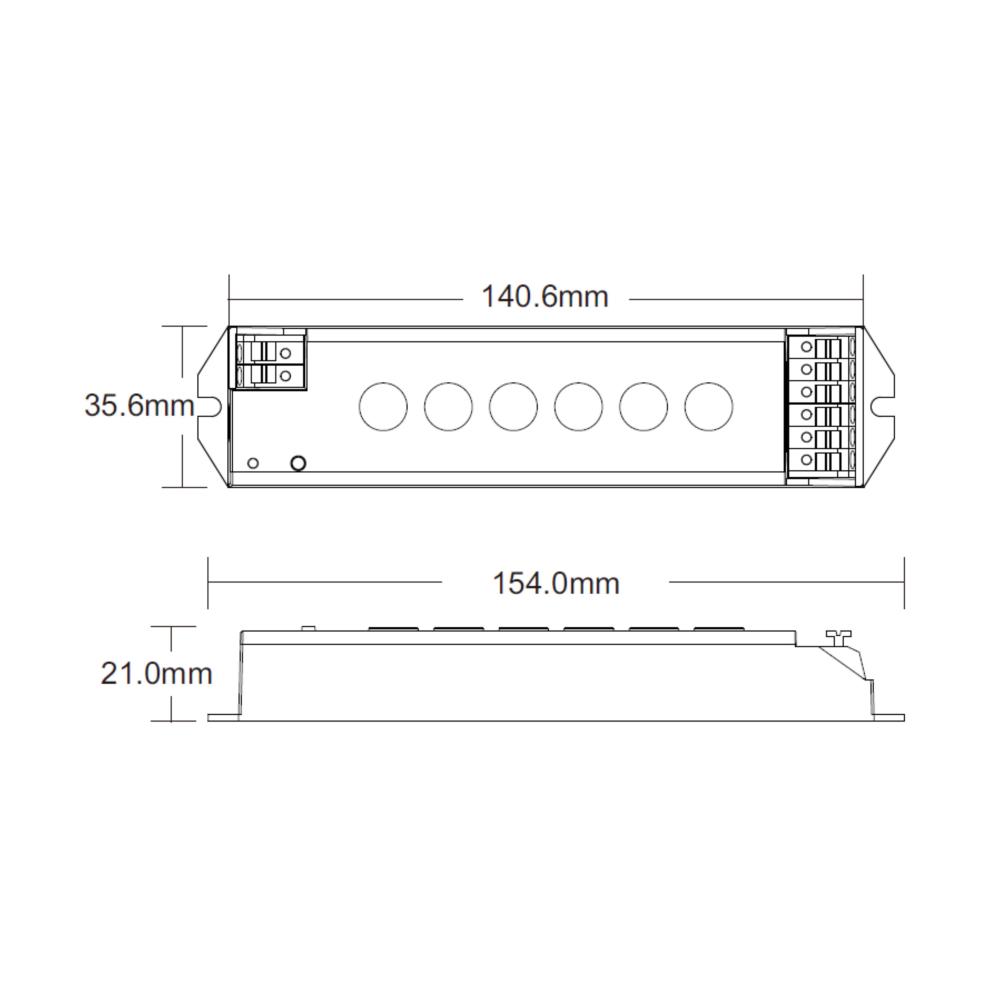

Length
154mm
Width
35.6mm
Height
21mm
Number of zones
1
Number of colour channels
5, RGBTW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | SC/TW/RGB(W+TW) | 12~24V | push buttons
Height
21mm
Ean
8714984953079
Number of zones
1
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
15A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
154mm
Control type
Constant voltage
Width
35.6mm
Warranty
5 years
This 5-channel controller supports RGB, RGBW and RGBTW LED lighting and includes 6 integrated buttons for quick manual control. Adjust colour, brightness, colour temperature and effects easily—no external controls needed.
It offers 10 dynamic lighting modes and smooth, flicker-free dimming with multiple gradation levels. Using the RF protocol, the controller can be paired with up to 10 remote controls. Multiple units can operate synchronously within a 30-metre range without extra wiring.
Thanks to its versatility, stable performance and user-friendly interface, this model is a powerful solution for creative lighting designs and professional installations.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-sctwrgbwtw-1224v-push-buttons-213-022.pdf
Characteristics sheet
213-022_manual.pdf
