RF | controller | TW | 12~24V | push buttons
213-004RF dimmer for Tuneable White LED strips (CW/WW), featuring 3 integrated buttons for brightness and colour temperature control. Operates on 12–24Â V DC, with seamless adjustment from warm to cool white and support for remote or push-button control.
Key product features
- Type of control: RF
- Number of colour channels: 2
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 20
- Control type: Constant voltage
Product Name
RF | controller | TW | 12~24V | push buttons
Ean
8714984952898
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
20A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

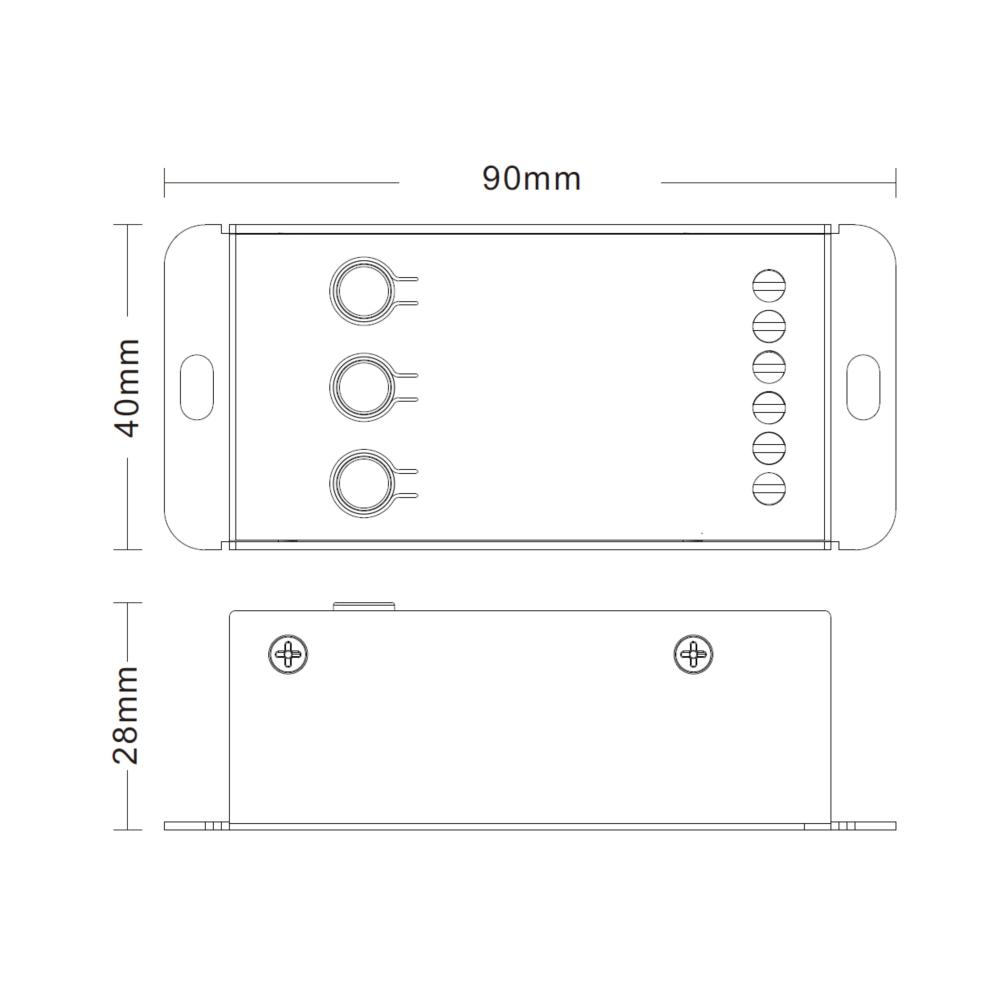

Length
90mm
Width
40mm
Height
28mm
Number of zones
1
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
RF | controller | TW | 12~24V | push buttons
Height
28mm
Ean
8714984952898
Number of zones
1
Outer box qty
1st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
20A
Control method
RF
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
90mm
Control type
Constant voltage
Width
40mm
Warranty
5 years

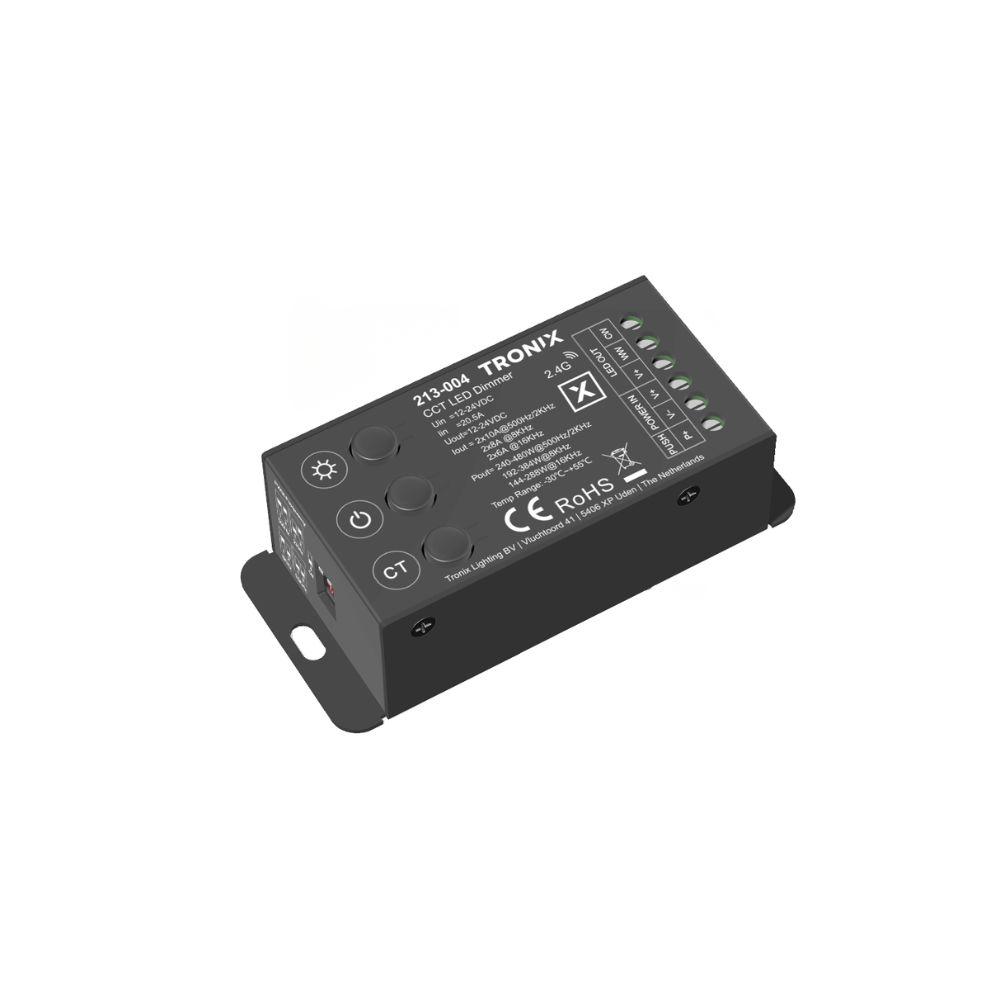

This compact 2-channel RF controller allows both brightness and colour temperature control of CW/WW LED lighting. The 3 built-in buttons provide direct access to on/off, dimming, and switching between 3 fixed colour temperature presets (warm, neutral, cool white). Holding a button enables smooth, continuous adjustment of brightness or colour temperature.
In addition to the onboard controls, the controller supports remote control or a standard push-button (Push-Dim). Up to 25 controllers can be synchronised via a single push-button, with no extra wiring required. The memory function ensures the last setting is retained after a power outage.
With 4 selectable PWM frequencies (500Â Hz – 16Â kHz), flicker-free dimming is possible even in camera-critical applications. The dimmer is equipped with protection against overload and thermal risks.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see the related products section. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-controller-tw-1224v-push-buttons-213-004.pdf
Characteristics sheet
213-004_manual.pdf
