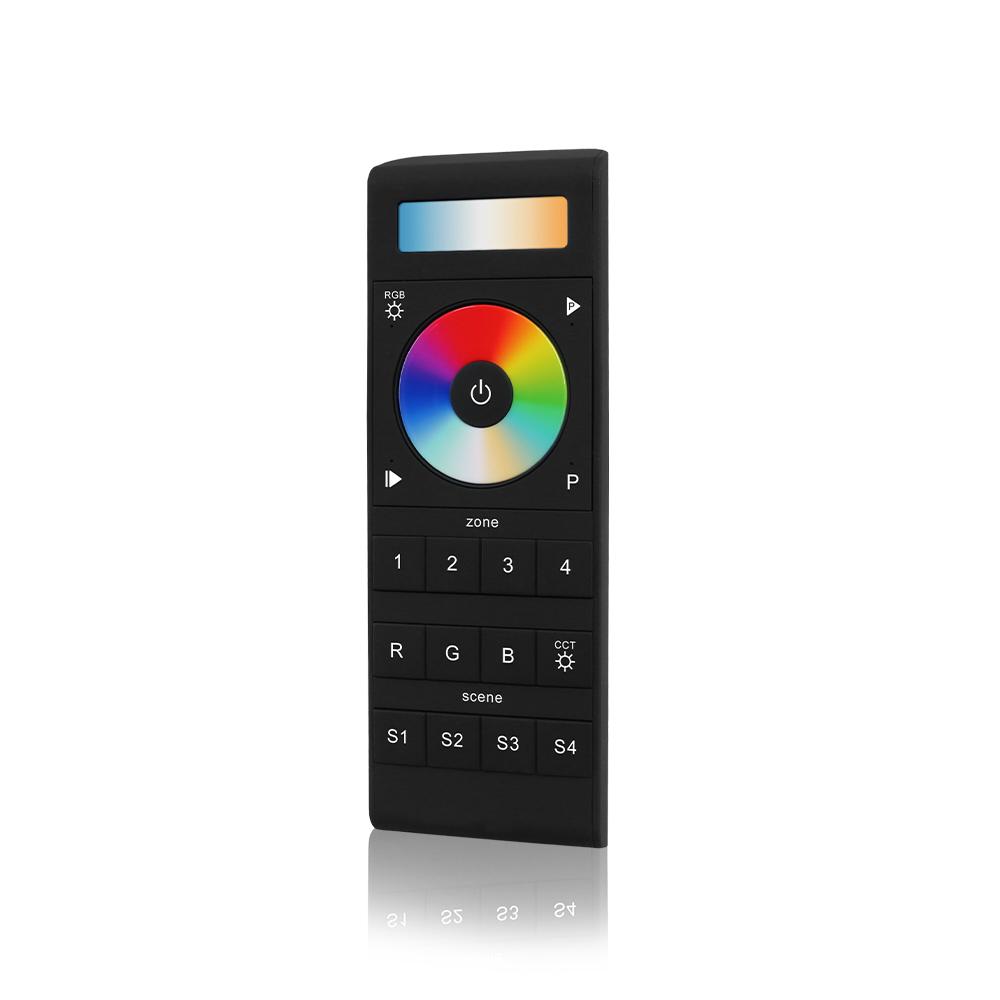

RGB+TW remote control RF || 4 zones
214-178RF remote control for RGBTW LED lighting (RGB + tuneable white) with colour wheel, 4 zones, memory buttons, 10 programmes and a custom programming function.
Key product features
- Type of control: RF
- Number of colour channels: 5
- Number of zones: 4
Product Name
RGB+TW remote control RF || 4 zones
Ean
8714984940888
Outer box qty
64st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
153mm
Width
52mm
Height
19mm
Number of zones
4
Number of colour channels
5, RGBTW
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
4.5 - 4.5V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
RGB+TW remote control RF || 4 zones
Height
19mm
Ean
8714984940888
Number of zones
4
Outer box qty
64st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
4.5 - 4.5V
Output voltage
0 - 0V
Control method
RF
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
153mm
Compatible with Casambi
No
Width
52mm
Warranty
5 years
This RF remote control allows wireless operation of RGB + tuneable white LED lighting across up to 4 zones. The capacitive colour wheel ensures instant colour selection, while brightness and colour temperature are adjusted via dedicated control panels. Each zone can be operated individually or in combination.
In addition to manual operation, up to 4 favourite scenes or colour settings (S1–S4) can be saved and recalled. For dynamic lighting effects, 10 built-in programmes are available, activated using the play/pause button and adjustable in speed using the arrow buttons. A programming function allows users to create custom transitions with up to 5 selected colours.
The controller is powered by 3 AAA batteries (4.5 V) and communicates via a stable RF signal. Each RF receiver can be paired with up to 8 transmitters. Pairing is easily done via the built-in learning key or a power reset.
The R, G, B and CCT buttons allow independent switching and dimming of individual colour channels. Thanks to its broad functionality, this controller is ideal for a wide range of RGBTW lighting applications in retail, hospitality and residential environments.
Its compact size (153 × 52 × 19 mm) and IP20 rating make this remote suitable for indoor use in dry environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
