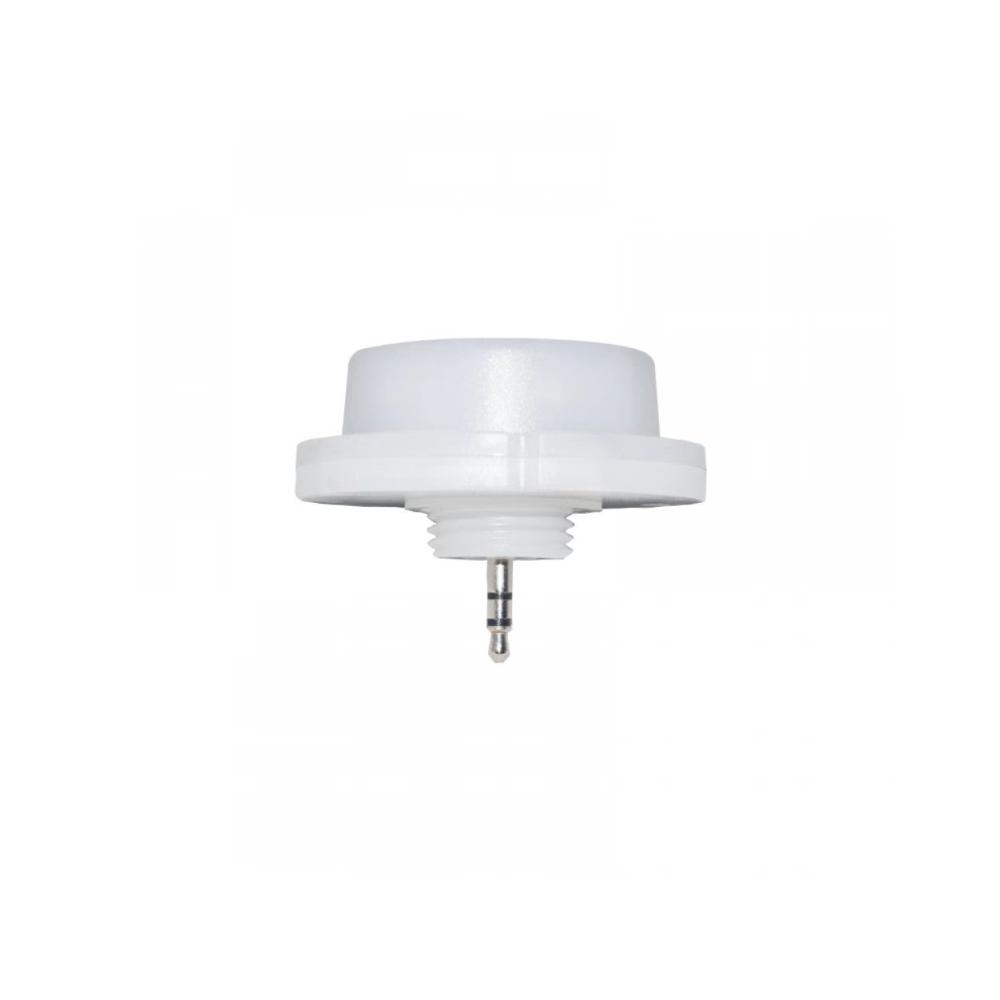

Sensor || for UFO high bay 950-120
950-121This sensor has been specially developed for the Tronix UFO high bay 950-120. Using this sensor, it is possible to create the ideal high bay. This can be done using different methods, such as time, lux value or sensitivity.
To access everything this sensor has to offer, remote control 950-122 is required.
Features
- Choice of detection methods: Sensitivity (motion), lux value (daylight), time and operation time
- Ability to dim the light of the high bay, possibly after a certain amount of time
- Fully adjustable using remote control 950-122
- Quick installation: Unscrew the cap under the high bay and screw the sensor on using the screw-thread
Product Name
Sensor || for UFO high bay 950-120
Ean
8714984943520
Outer box qty
50st
Colour
White
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Other
Mounting height
12m
Suitable for degree of protection (IP)
IP65
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
12m
Max. reach frontally
12m
Diameter reach on floor
12m
Detection angle horizontal
360 - 360°
Min. switch-on time
10s
Max. duty cycle
60min
With presence detector
No
With movement sensor
Yes
With light sensor
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
Yes
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Glossy
Warranty
5 years
Product Name
Sensor || for UFO high bay 950-120
Min. switch-on time
10s
Ean
8714984943520
Max. duty cycle
60min
Outer box qty
50st
With presence detector
No
Colour
White
With movement sensor
Yes
Material
Plastic
With light sensor
No
Sensor connect
No
Response value sensitivity adjustable
Yes
Material quality
Thermoplastic
Response value luminosity adjustable
No
Mounting method
Other
Teach-function for response value luminosity
No
Mounting height
12m
Dim function with dimmer basic element
Yes
Suitable for degree of protection (IP)
IP65
Switch-off delay self-learning
Yes
Suitable for wireless transmission
No
Operation mode switch
No
Constant light control
No
Staircase light controller
No
Networkable
No
Halogen free
Yes
Max. reach sideways
12m
RAL-number (similar)
9016
Max. reach frontally
12m
Surface finishing
Glossy
Diameter reach on floor
12m
Warranty
5 years
Detection angle horizontal
360 - 360°
This sensor has been specially developed for the Tronix UFO high bay 950-120. Using this sensor, it is possible to create the ideal high bay. This can be done using different methods, such as time, lux value or sensitivity.
To access everything this sensor has to offer, remote control 950-122 is required.
Features
Choice of detection methods: Sensitivity (motion), lux value (daylight), time and operation time
Ability to dim the light of the high bay, possibly after a certain amount of time
Fully adjustable using remote control 950-122
Quick installation: Unscrew the cap under the high bay and screw the sensor on using the screw-thread
Datasheet
Datasheet-sensor-for-ufo-high-bay-950-120-950-121.pdf
Characteristics sheet
950-121_122_technical_datasheet_extended.pdf
