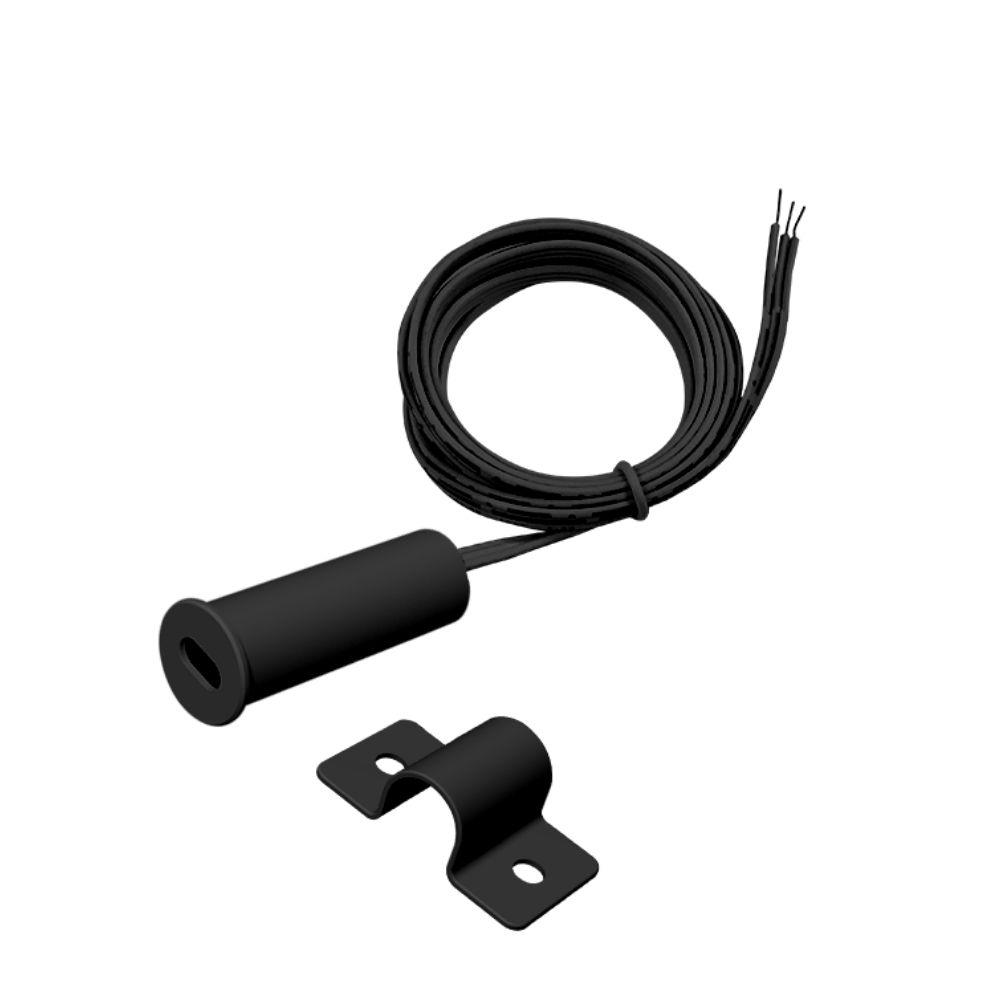

Sensor | hand sweep | 12~24V | black | recessed
213-511Hand wave sensor (12–24 V DC) with constant voltage output for touchless control of LED lighting. Switches the light on or off with a hand movement and allows smooth dimming by briefly holding the hand still. Designed for discreet recessed installation.
Key product features
- Mounting method: Recessed
- Max. reach frontally: 0.08 m
- Colour: Black
Product Name
Sensor | hand sweep | 12~24V | black | recessed
Ean
8714984954267
Outer box qty
1st
Colour
Black
Type
Hand wave sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
0.08m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
0.08m
Max. reach frontally
0.08m
With presence detector
No
With movement sensor
Yes
With light sensor
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Switch-off delay self-learning
No
Max. switching power
24W
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9005
Surface finishing
Matt
Warranty
5 years
Product Name
Sensor | hand sweep | 12~24V | black | recessed
With presence detector
No
Ean
8714984954267
With movement sensor
Yes
Outer box qty
1st
With light sensor
No
Colour
Black
Response value sensitivity adjustable
No
Type
Hand wave sensor
Response value luminosity adjustable
No
Material
Plastic
Teach-function for response value luminosity
No
Sensor connect
No
Dim function with dimmer basic element
No
Material quality
Thermoplastic
Switch-off delay self-learning
No
Mounting method
Flush-mounted
Max. switching power
24W
Mounting height
0.08m
Operation mode switch
No
Suitable for degree of protection (IP)
IP20
Staircase light controller
No
Suitable for wireless transmission
No
Halogen free
Yes
Constant light control
No
RAL-number (similar)
9005
Networkable
No
Surface finishing
Matt
Max. reach sideways
0.08m
Warranty
5 years
Max. reach frontally
0.08m
The sensor detects hand movements up to a distance of 8 cm and responds immediately to a single wave. The light switches on or off smoothly with a fade time of 1 second. By holding a hand in front of the sensor for approximately 2 seconds, the light output can be adjusted steplessly between 5% and 100%. The logarithmic dimming curve ensures natural and comfortable light control.
The sensor operates on 12–24 V DC, provides a constant voltage output up to 1 A (24 W at 24 V) and uses a PWM frequency of 2 kHz.
Its compact design makes it suitable for both recessed and surface-mounted applications, with a detection range of up to 8 cm.
Ideal for use in furniture, cabinets or display cases where touchless and intuitive control is required.
This sensor is available in white and black.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-sensor-hand-sweep-1224v-black-recessed-213-511.pdf
Characteristics sheet
213-510_511_512_513_manual.pdf
