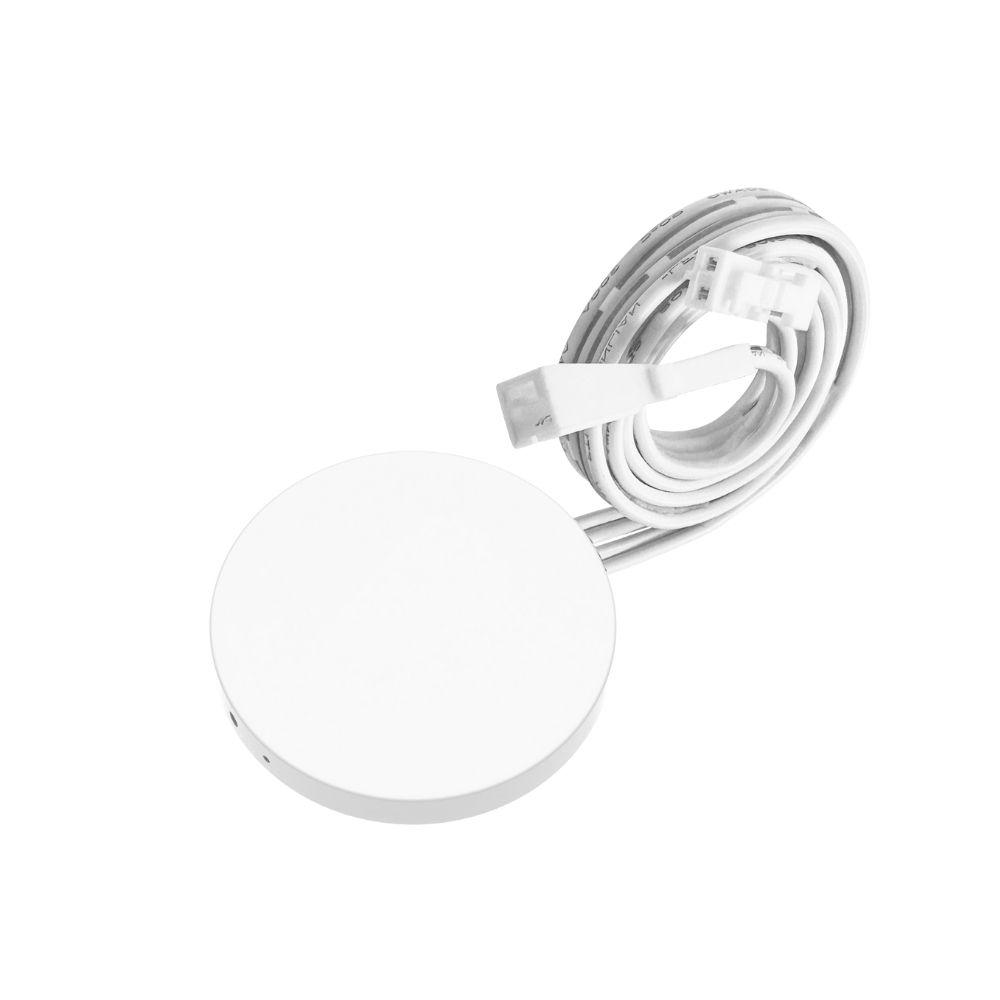

Sensor | touch | 12~24V | white | surface mounted
213-508Touch sensor (5–24 V DC) with constant voltage output. Switches lighting on or off with a short touch and enables smooth dimming when contact is maintained. Suitable for concealed installation.
Key product features
- Mounting method: Surface-mounted
Product Name
Sensor | touch | 12~24V | white | surface mounted
Ean
8714984954014
Outer box qty
1st
Colour
White
Type
Touch sensor
Material
Plastic
Sensor connect
No
Material quality
Thermoplastic
Mounting method
Flush-mounted
Mounting height
0.05m
Suitable for degree of protection (IP)
IP20
Suitable for wireless transmission
No
Constant light control
No
Networkable
No
Max. reach sideways
0.05m
Max. reach frontally
0.05m
Min. switch-on time
5s
Max. duty cycle
0.25min
With presence detector
No
With movement sensor
No
With light sensor
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
Yes
Switch-off delay self-learning
No
Max. switching power
72W
Operation mode switch
No
Staircase light controller
No
Halogen free
Yes
RAL-number (similar)
9016
Surface finishing
Matt
Warranty
5 years
Product Name
Sensor | touch | 12~24V | white | surface mounted
Max. duty cycle
0.25min
Ean
8714984954014
With presence detector
No
Outer box qty
1st
With movement sensor
No
Colour
White
With light sensor
No
Type
Touch sensor
Response value sensitivity adjustable
No
Material
Plastic
Response value luminosity adjustable
No
Sensor connect
No
Teach-function for response value luminosity
No
Material quality
Thermoplastic
Dim function with dimmer basic element
Yes
Mounting method
Flush-mounted
Switch-off delay self-learning
No
Mounting height
0.05m
Max. switching power
72W
Suitable for degree of protection (IP)
IP20
Operation mode switch
No
Suitable for wireless transmission
No
Staircase light controller
No
Constant light control
No
Halogen free
Yes
Networkable
No
RAL-number (similar)
9016
Max. reach sideways
0.05m
Surface finishing
Matt
Max. reach frontally
0.05m
Warranty
5 years
Min. switch-on time
5s
The sensor operates using capacitive touch technology and detects contact through non-metallic surfaces such as wood, plastic, glass or acrylic. This allows discreet installation up to 25 mm behind a panel.
A short touch switches the light on or off, with a 1 s fade-in and 2 s fade-out. When touched for 1–6 s, the brightness adjusts smoothly between 5% and 100%, following a logarithmic dimming curve.
The sensor operates on 5–24 V DC and delivers a constant output current up to 3 A (72 W at 24 V). The PWM frequency is adjustable to 500 Hz, 2 kHz (default) or 4 kHz.
The integrated SET button allows switching between short detection distance (0–1 cm, surface mounting) and extended detection distance (3–4 cm, concealed mounting).
The memory function retains settings after power interruption. Its ultra-slim design and 3M adhesive mounting ensure quick and flexible installation.
Includes 2 × 2 m connection cables: 1 male and 1 female.
Ideal for furniture, display cases, cabinets and stair applications where discreet, intuitive control is required.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-sensor-touch-1224v-white-surface-mounted-213-508.pdf
Characteristics sheet
213-508_manual.pdf
