Spot | 24V | 20W | 30° | IP66 | RGBW | DMX512

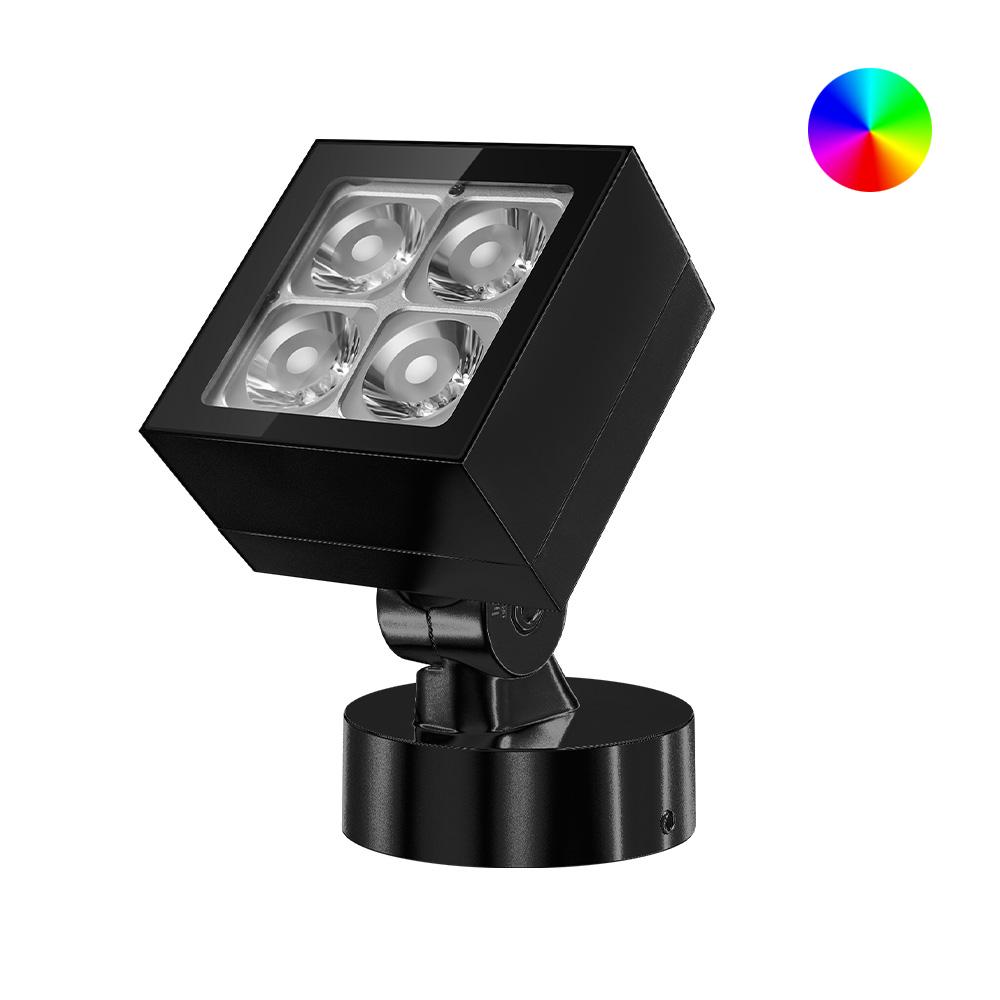

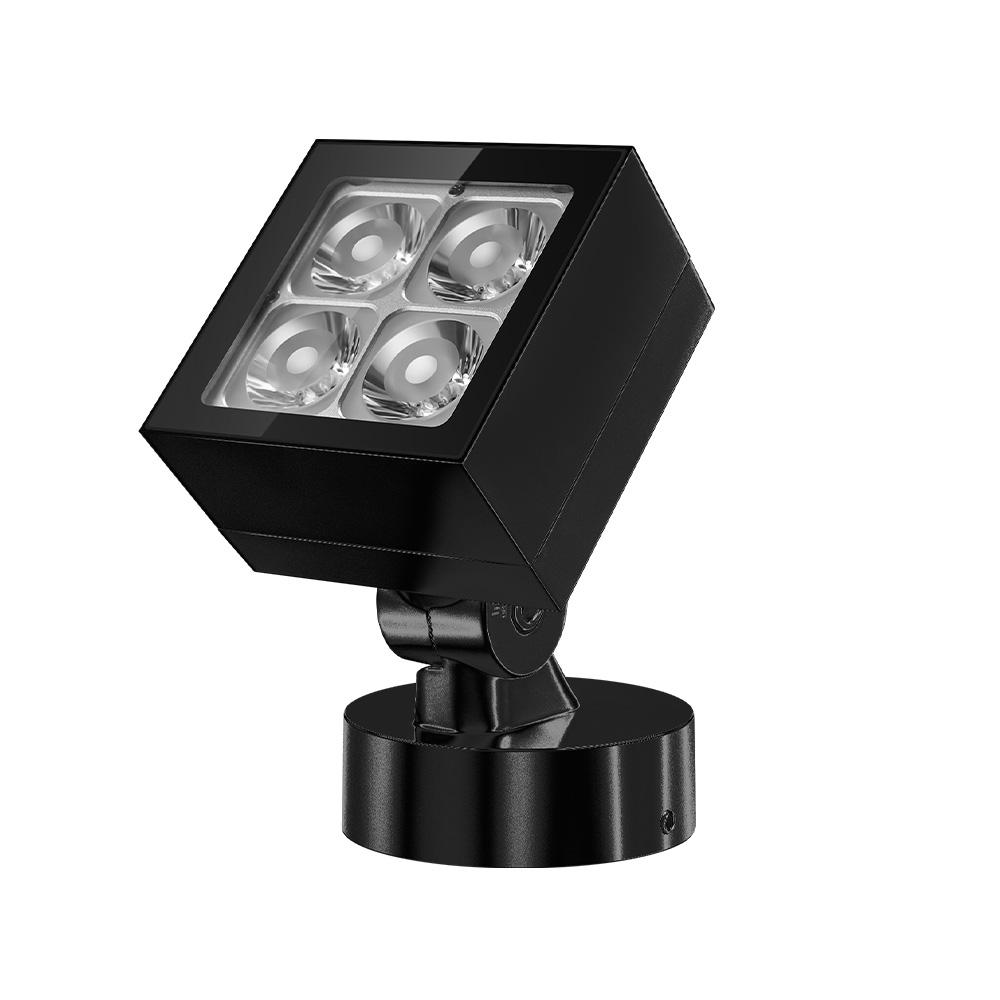

190-130This RGBW LED spotlight has a high resistance to weather such as rain and UV rays. The base is 150° adjustable, allowing the spotlight to illuminate an object or facade from the correct position. In addition, the spot has a venting valve for proper heat and condensation dissipation.
Features
- RGBW: Red, green, blue, warm white (3000K)
- DMX512 controllable
- Polycarbonate lens, aluminium powder coated, stainless steel screws
- Beam angle 30°
- Programmed on DMX channel 1 (other channels possible)
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
Product Name
Spot | 24V | 20W | 30° | IP66 | RGBW | DMX512
Ean
8714984949027
Outer box qty
6st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Glass transparent

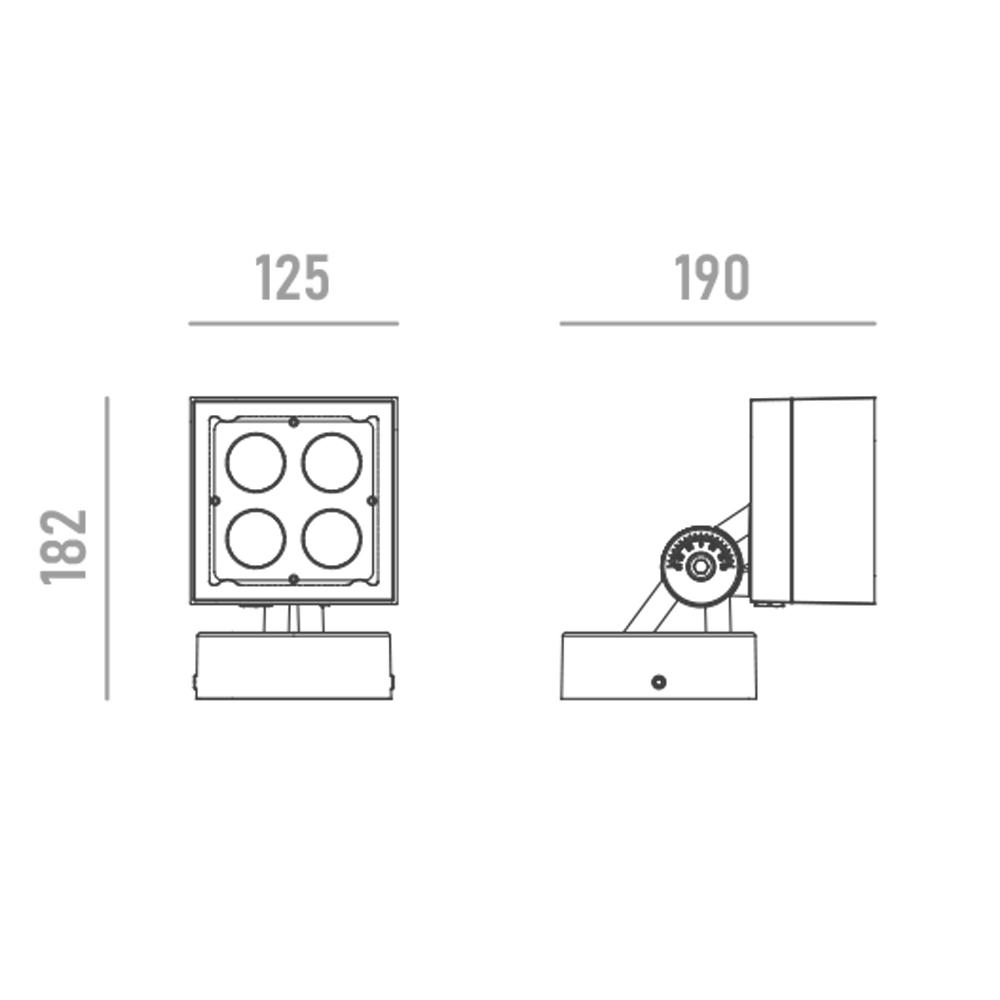

Length
190mm
Width
125mm
Height/depth
182mm
Built-in diameter
0 - 0mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With light sensor
No
Colour of light
Multi-coloured
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Continuously variable
Reflector colour
Silver
Colour temperature
RGBW
Colour rendering index CRI
80-89
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
11-20° - Narrow beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
24 - 24V
Number of poles
5
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 1mm²
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
No
With control gear
No
Degree of protection (IP), front side
IP66
Surface protection
Powder coating
Impact strength
IK08
Max. system power
20W
Power factor
0.9
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Loop-through wiring included
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotatable
Unified Glare Ratio (UGR)
19
Reflector
None
Warranty
5 years
Product Name
Spot | 24V | 20W | 30° | IP66 | RGBW | DMX512
Luminous flux adjustable
Continuously variable
Ean
8714984949027
Light outlet
Direct
Outer box qty
6st
Beam angle
11-20° - Narrow beam
Lamp type
LED not exchangeable
Beam angle adjustable
No
Lamp holder
None
Voltage type
DC
Housing colour
Black
Nominal voltage
24 - 24V
Housing material
Aluminium
Number of poles
5
Material cover
Glass transparent
Light distributor
Focal lens
Length
190mm
Light distribution
Symmetric
Width
125mm
Connectable conductor cross section
0.5 - 1mm²
Height/depth
182mm
Type of control gear
LED operating device voltage-controlled
Built-in diameter
0 - 0mm
Exchangeable control gear
No
Suitable for built-in mounting
No
With control gear
No
Suitable for surface mounting
Yes
Degree of protection (IP), front side
IP66
Suitable for pedestal/floor mounting
Yes
Surface protection
Powder coating
Suitable for wall mounting
Yes
Impact strength
IK08
Suitable for ceiling mounting
Yes
Max. system power
20W
Suitable for light-track mounting
No
Power factor
0.9
Suitable for clamp-mounting
No
Suitable for lamp power
0 - 0W
With movement sensor
No
Surface brushed
No
With light sensor
No
Type of wiring
Loop-through wiring included
Colour of light
Multi-coloured
Emergency power supply system
None
Colour consistency (McAdam ellipse)
SDCM3
Emergency function monitoring system
None
Colour of light adjustable
Continuously variable
Adjustability
Rotatable
Reflector colour
Silver
Unified Glare Ratio (UGR)
19
Colour temperature
RGBW
Reflector
None
Colour rendering index CRI
80-89
Warranty
5 years
This RGBW LED spotlight has a high resistance to weather such as rain and UV rays. The base is 150° adjustable, allowing the spotlight to illuminate an object or facade from the correct position. In addition, the spot has a venting valve for proper heat and condensation dissipation.
Features
RGBW: Red, green, blue, warm white (3000K)
DMX512 controllable
Polycarbonate lens, aluminium powder coated, stainless steel screws
Beam angle 30°
Programmed on DMX channel 1 (other channels possible)
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
