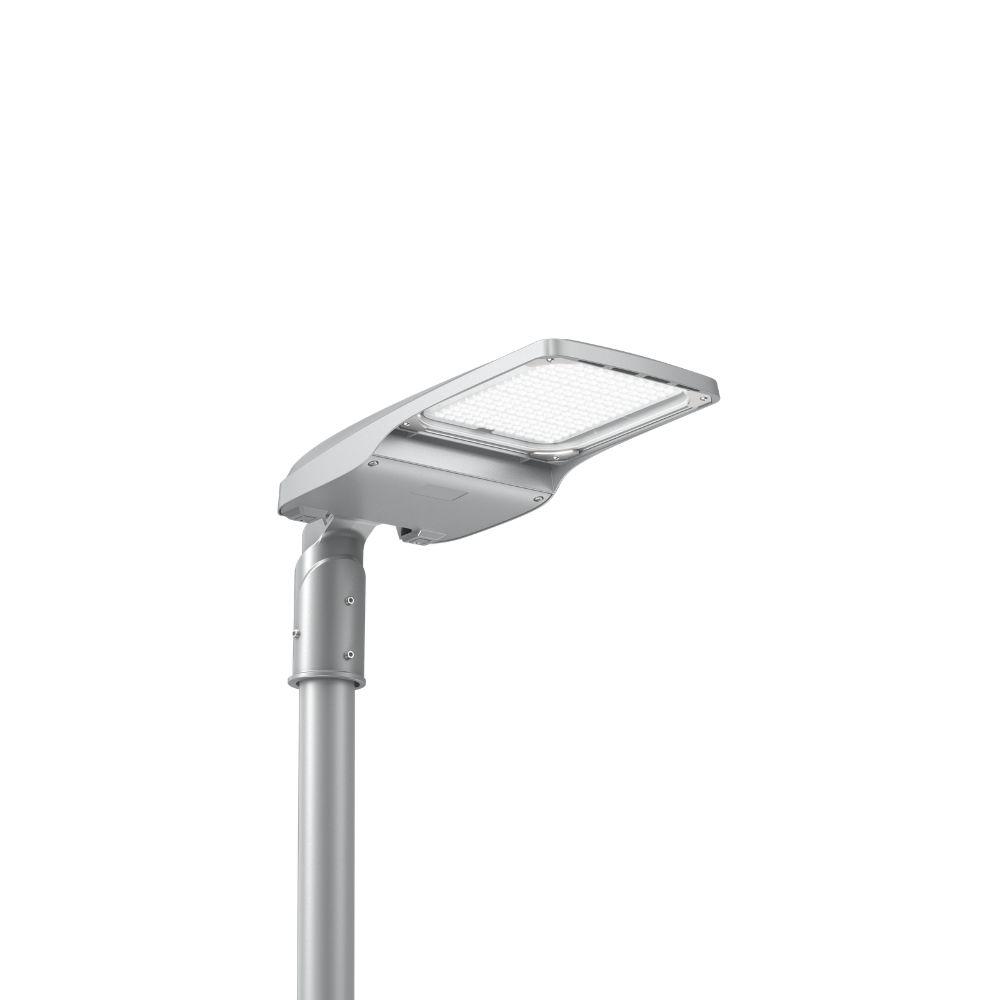

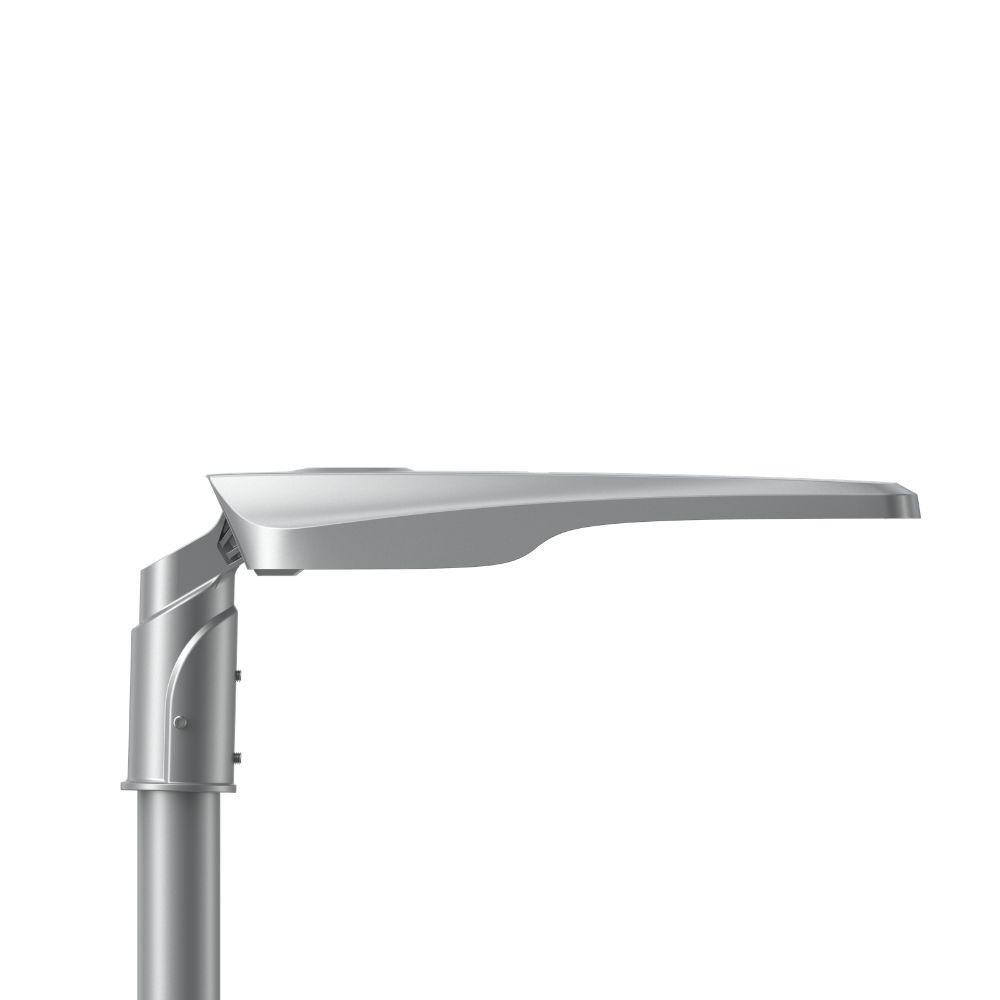

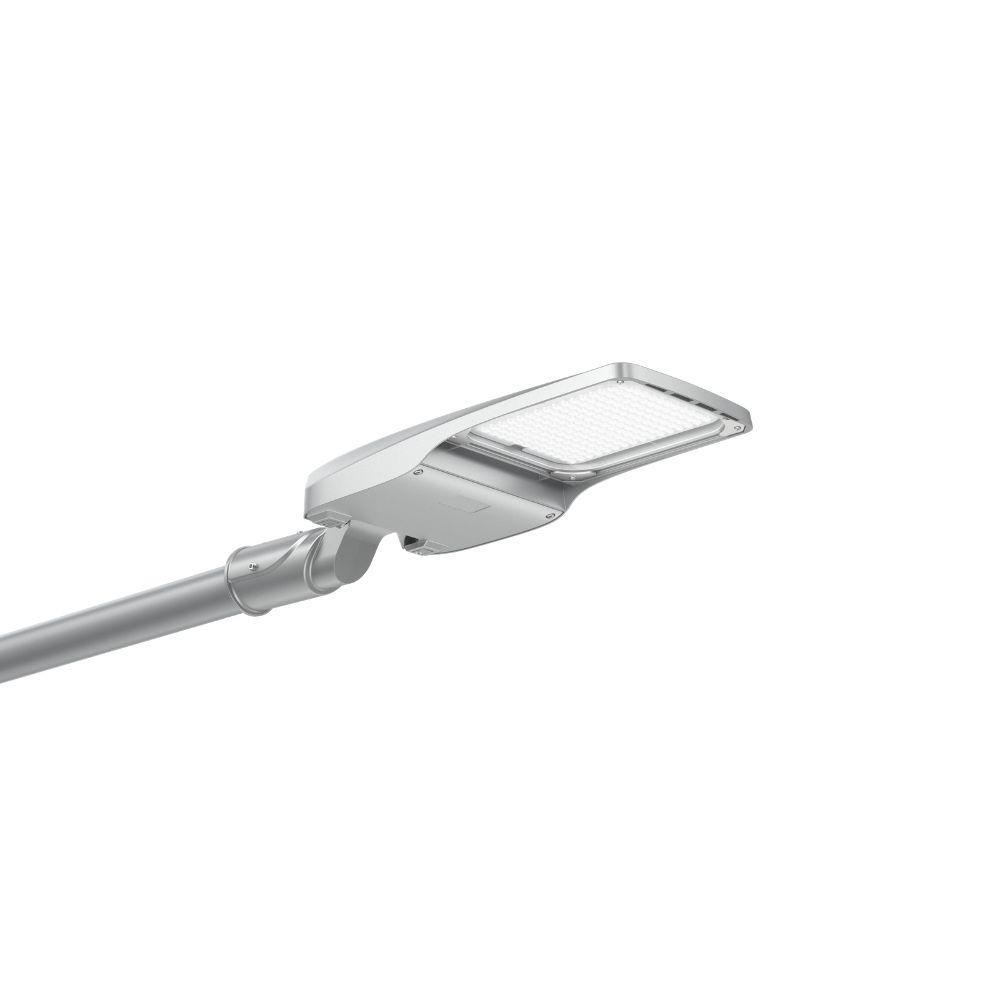

LED street luminaire with adjustable power (23W–75W), high efficiency up to 153 lm/W and IP66 protection. Suitable for a wide range of outdoor environments thanks to its robust aluminium housing and impact-resistant design.

Key product features

Mounting method: Post top/side entry
Degree of protection (IP): IP66
Suitable for spigot size (mm): 60
Impact strength: IK09
Colour temperature (K): 4000
Max. system power (W): 60

Product Name

Street light | 23/38/57/75W | 4000K

Ean

8714984952089

Outer box qty

1st

Dimmable

Type

Streetlight

Lamp type

LED not exchangeable

Lamp holder

None

Housing colour

Aluminium

Housing material

Aluminium

Material cover

Glass transparent

Connection type

Push-in clamp

Mounting method

Post top/side entry

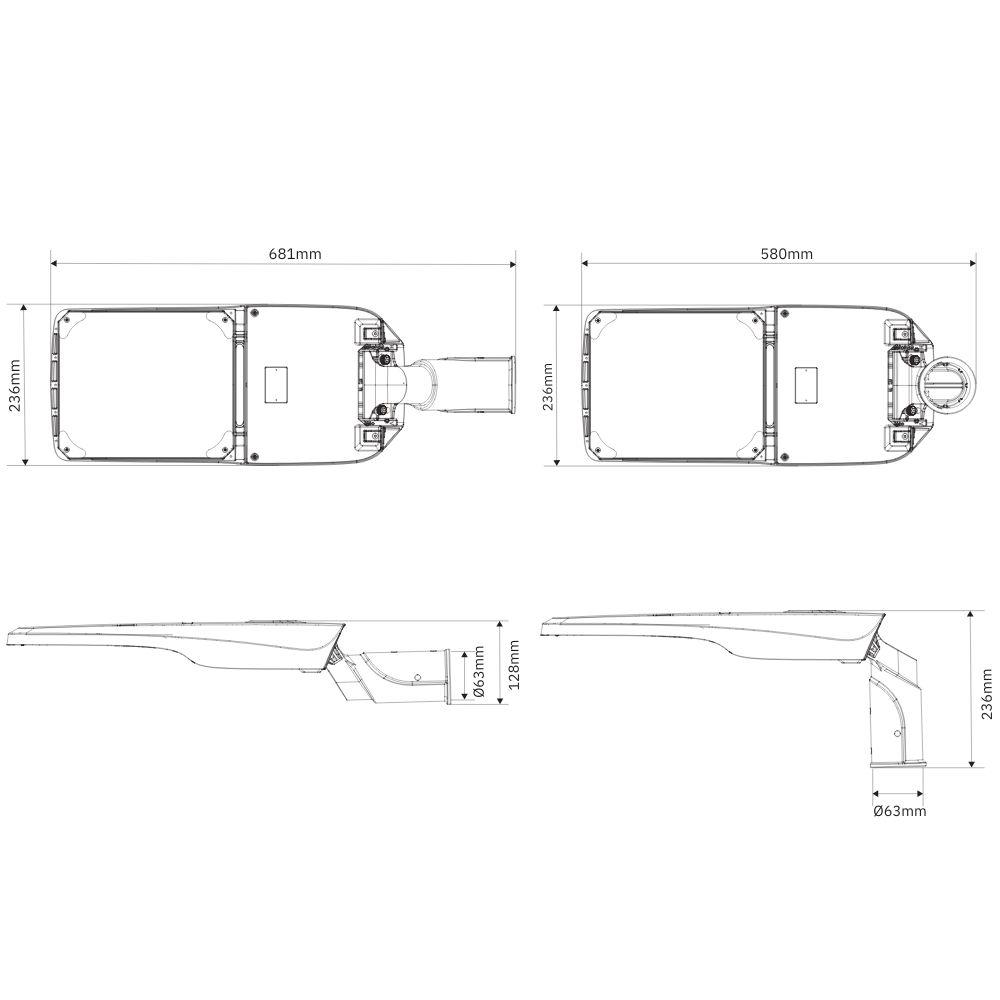

Length

681mm

Width

236mm

Height/depth

128mm

Colour of light

White

Colour consistency (McAdam ellipse)

SDCM3

Colour temperature

4000 - 4000K

Colour rendering index CRI

80-89

Voltage type

Nominal voltage

120 - 277V

Nominal current

135 - 343mA

Suitable for lamp power

0 - 0W

Suitable for spigot size

60 - 60mm

Number of poles

Light source included

Yes, fixed LED

Light distributor

Focal lens

With connection cable

Connectable conductor cross section

0.75 - 2.5mm²

Type of control gear

LED operating device current-controlled

Exchangeable control gear

Yes

With control gear

Yes

Degree of protection (IP)

IP66

Surface protection

Powder coating

Impact strength

IK09

Rated lifetime L70/B50 at 25 °C

131000h

Max. system power

75W

Rated luminous flux according to IEC 62722-2- 1

3700 - 11300lm

Luminaire efficacy

150lm/W

Power factor

0.97

Type of wiring

Ending

Warranty

5 years

Product Name

Street light | 23/38/57/75W | 4000K

Nominal current

135 - 343mA

Ean

8714984952089

Suitable for lamp power

0 - 0W

Outer box qty

1st

Suitable for spigot size

60 - 60mm

Dimmable

Number of poles

Type

Streetlight

Light source included

Yes, fixed LED

Lamp type

LED not exchangeable

Light distributor

Focal lens

Lamp holder

None

With connection cable

Housing colour

Aluminium

Connectable conductor cross section

0.75 - 2.5mm²

Housing material

Aluminium

Type of control gear

LED operating device current-controlled

Material cover

Glass transparent

Exchangeable control gear

Yes

Connection type

Push-in clamp

With control gear

Yes

Mounting method

Post top/side entry

Degree of protection (IP)

IP66

Length

681mm

Surface protection

Powder coating

Width

236mm

Impact strength

IK09

Height/depth

128mm

Rated lifetime L70/B50 at 25 °C

131000h

Colour of light

White

Max. system power

75W

Colour consistency (McAdam ellipse)

SDCM3

Rated luminous flux according to IEC 62722-2- 1

3700 - 11300lm

Colour temperature

4000 - 4000K

Luminaire efficacy

150lm/W

Colour rendering index CRI

80-89

Power factor

0.97

Voltage type

Type of wiring

Ending

Nominal voltage

120 - 277V

Warranty

5 years

This street luminaire is designed for public and semi-public outdoor areas such as streets, parking areas, cycle paths and industrial sites. The adjustable power output allows the light level to be easily tailored to the specific application.

The asymmetrical beam angle of 75x150° ensures targeted and uniform light distribution, minimising light loss and improving overall efficiency.

With a light output of up to 11.264 lumens and an efficiency of up to 153 lm/W, the luminaire provides energy-efficient lighting. The 4000K colour temperature combined with a colour rendering index of Ra80 delivers functional white light.

The robust aluminium housing with Akzo powder coating and IK09 impact resistance makes the luminaire suitable for demanding environments. Thanks to its IP66 rating, it is fully protected against dust and water ingress.

The luminaire is equipped with a constant current driver and operates on 120–277VAC. Installation is possible via top or side entry mounting. A mounting height of 4 to 8 metres is recommended for optimal light distribution.

More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
