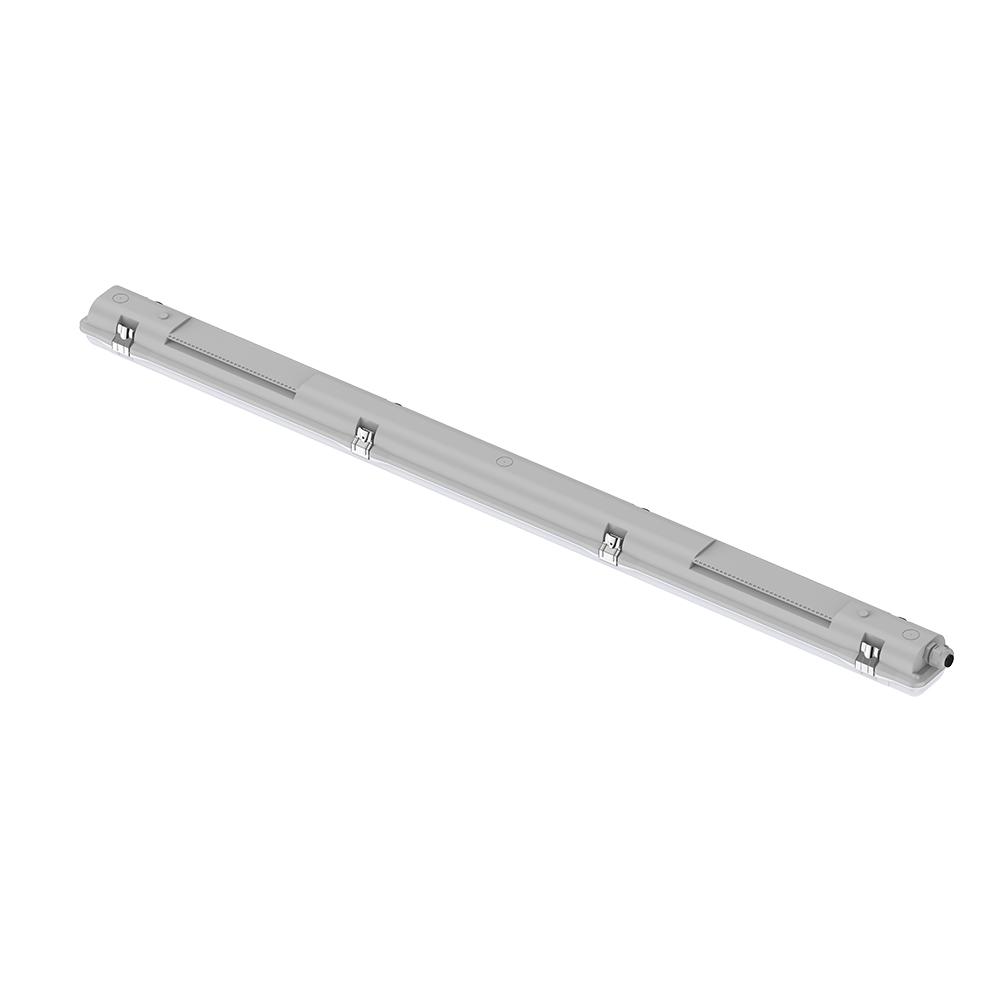

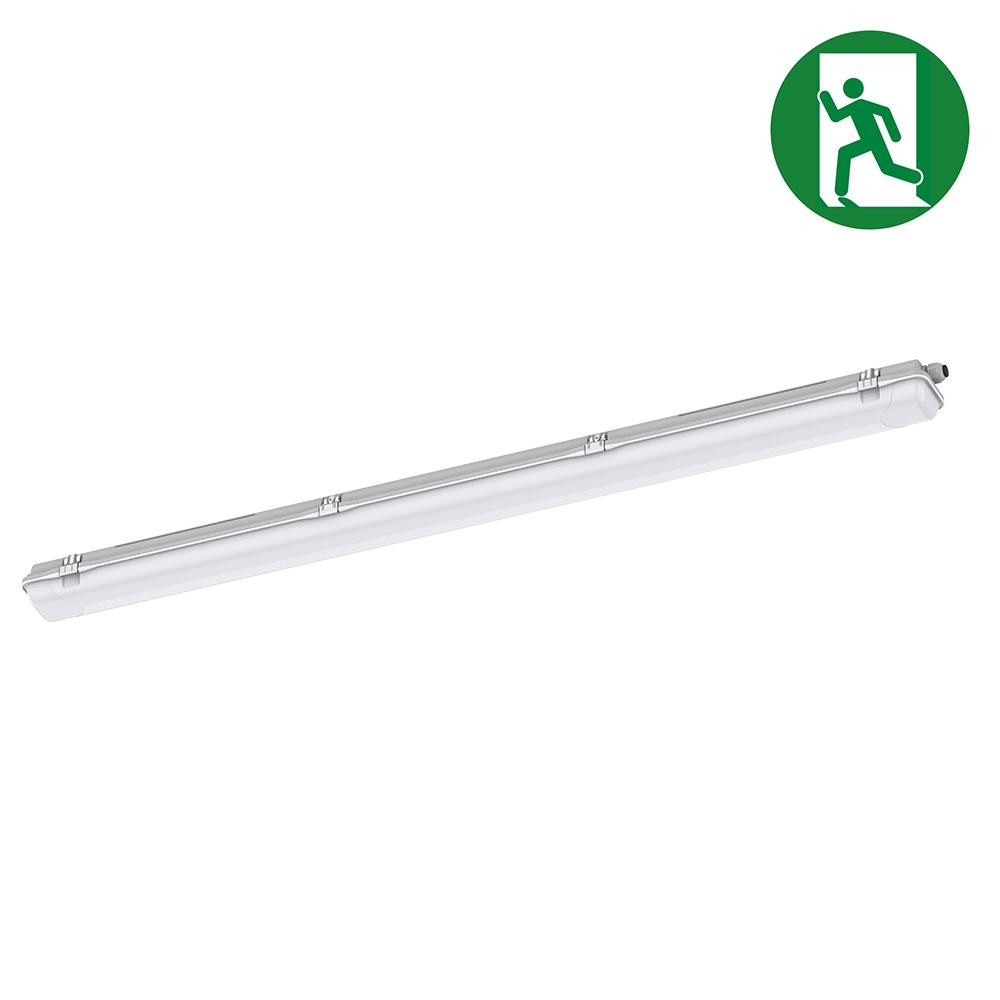

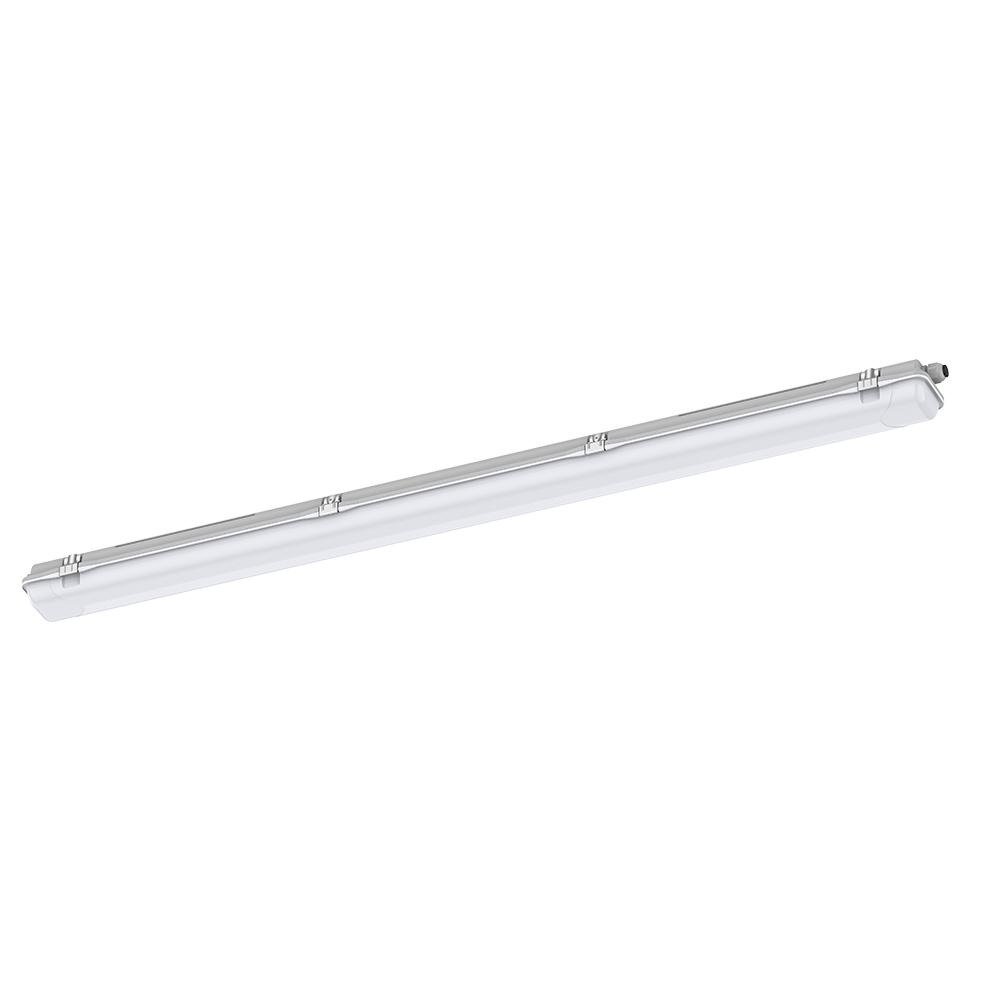

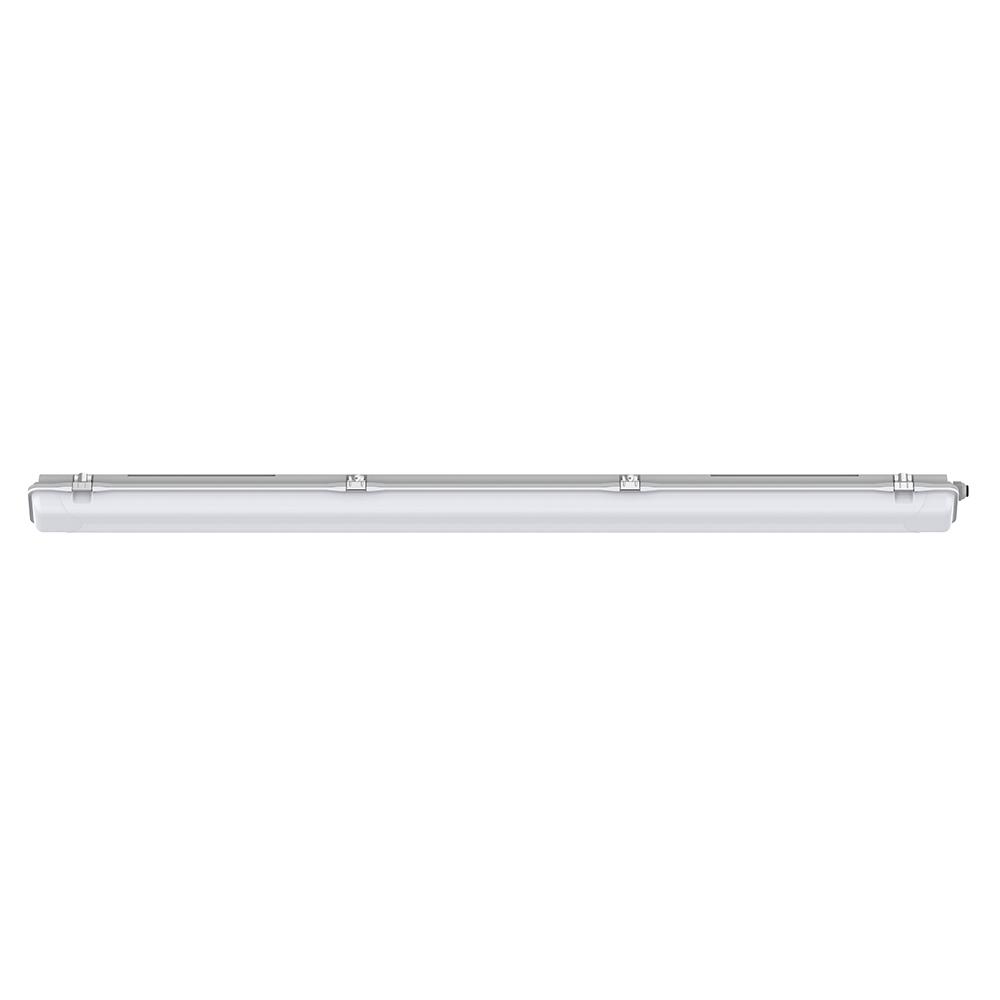

Tri-proof lightbar | 1280mm | 40W | 3-CCT | emergency
950-180These Tri-proof light bars are a perfect alternative to traditional fluorescent lamps, thanks in part to its durable and widely applicable design. This light bar is equipped with a high-quality SMD LED chip, ensuring you good and even illumination over a beam angle of 120º. Each product is equipped with waterproof glands, making these light bars come into their own even in damp locations.
Features
- High lumen efficiency with 120Lm/W
- High degree of protection, IP65 and IK08
- Power adjustable by a DIP switch in the wattages 25W, 30W, 35W and 40W
- Light color adjustable by a CCT switch into the color temperatures 3000K, 4000K and 5700K
- Includes emergency functionality to automatically switch to the internal battery when power is not available
- Can couple up to 1500 watts, thanks in part to internal conduit wiring
- Easy installation as surface mounted
- Flicker-free, internal driver
This fixture is equipped with auto test
Autotest is a function that provides the emergency lighting with automatic periodic testing of the light source, electronics and battery, eliminating the need for manual checks. This is done via a protocol which complies with the international standard IEC62034.
- Test after commissioning: as soon as the luminaire is connected for the first time. The batteries are charging for 24 hours, after 24 hours a full autonomy test takes place. After that, the batteries are recharging again for 24 hours.
- Short function test: for 3 seconds the luminaire tests (after pressing and releasing the test button) the condition of battery, electronics and light source.
- Monthly function test: automatic 3-minute monthly test.
- Annual autonomy test: 3-hour automatic, annual, full autonomy test.
Product Name
Tri-proof lightbar | 1280mm | 40W | 3-CCT | emergency
Ean
8714984949553
Outer box qty
12st
Dimmable
No
Connection type
Push-in clamp
Lamp type
LED exchangeable
Housing colour
Grey
Material
Plastic

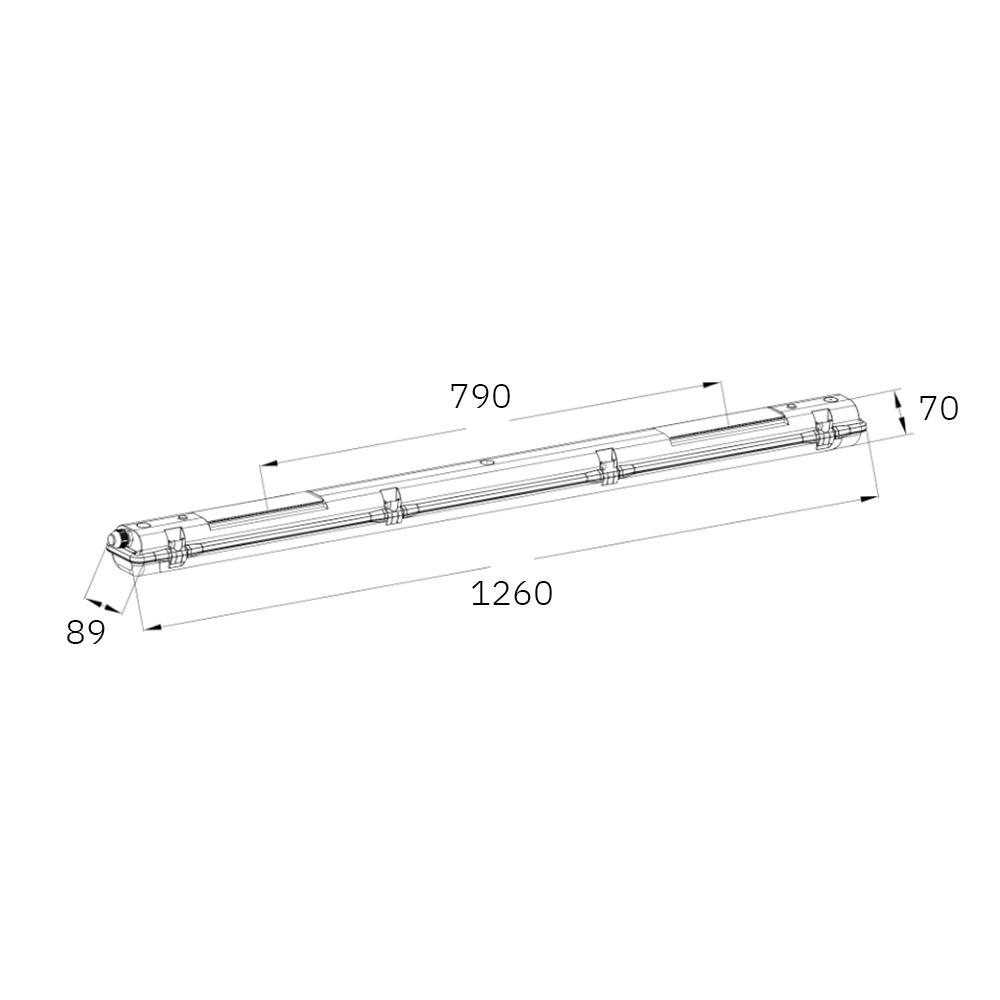

Length
120cm
Length
1260mm
Width
89mm
Height/depth
70mm
Movement sensor/presence detector technology
Other
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Colour of light adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
166 - 166mA
Number of poles
4
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
102000h
Max. system power
40W
Rated luminous flux according to IEC 62722-2- 1
3250 - 5200lm
Luminaire efficacy
130lm/W
Power factor
0.97
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
Yes
Emergency power supply system
Peripheral (individual battery)
Emergency function monitoring system
Automatic self test
Luminous flux in emergency mode
300lm
Power consumption in emergency mode
2W
Warranty
5 years
Product Name
Tri-proof lightbar | 1280mm | 40W | 3-CCT | emergency
Nominal voltage
220 - 240V
Ean
8714984949553
Nominal current
166 - 166mA
Outer box qty
12st
Number of poles
4
Dimmable
No
Light distributor
Diffuser lens/optic/panel
Connection type
Push-in clamp
Connectable conductor cross section
1 - 2.5mm²
Lamp type
LED exchangeable
Type of control gear
LED operating device current-controlled
Housing colour
Grey
Exchangeable control gear
No
Material
Plastic
With control gear
Yes
Length
120cm
Degree of protection (IP)
IP65
Length
1260mm
Impact strength
IK08
Width
89mm
Rated lifetime L70/B50 at 25 °C
102000h
Height/depth
70mm
Max. system power
40W
Movement sensor/presence detector technology
Other
Rated luminous flux according to IEC 62722-2- 1
3250 - 5200lm
With movement sensor
No
Luminaire efficacy
130lm/W
With presence detector
No
Power factor
0.97
With light sensor
No
Type of wiring
Loop-through wiring included
Colour of light
White
Suitable for emergency lighting
Yes
Colour temperature
3000 - 4000 - 5700K
Emergency power supply system
Peripheral (individual battery)
Colour rendering index CRI
80-89
Emergency function monitoring system
Automatic self test
Colour of light adjustable
Positions
Luminous flux in emergency mode
300lm
Luminous flux adjustable
Positions
Power consumption in emergency mode
2W
Beam angle adjustable
No
Warranty
5 years
Voltage type
AC
These Tri-proof light bars are a perfect alternative to traditional fluorescent lamps, thanks in part to its durable and widely applicable design. This light bar is equipped with a high-quality SMD LED chip, ensuring you good and even illumination over a beam angle of 120º. Each product is equipped with waterproof glands, making these light bars come into their own even in damp locations.
Features
High lumen efficiency with 120Lm/W
High degree of protection, IP65 and IK08
Power adjustable by a DIP switch in the wattages 25W, 30W, 35W and 40W
Light color adjustable by a CCT switch into the color temperatures 3000K, 4000K and 5700K
Includes emergency functionality to automatically switch to the internal battery when power is not available
Can couple up to 1500 watts, thanks in part to internal conduit wiring
Easy installation as surface mounted
Flicker-free, internal driver
This fixture is equipped with auto test
Autotest is a function that provides the emergency lighting with automatic periodic testing of the light source, electronics and battery, eliminating the need for manual checks. This is done via a protocol which complies with the international standard IEC62034.
1. Test after commissioning: as soon as the luminaire is connected for the first time. The batteries are charging for 24 hours, after 24 hours a full autonomy test takes place. After that, the batteries are recharging again for 24 hours.
2. Short function test: for 3 seconds the luminaire tests (after pressing and releasing the test button) the condition of battery, electronics and light source.
3. Monthly function test: automatic 3-minute monthly test.
4. Annual autonomy test: 3-hour automatic, annual, full autonomy test.
Datasheet
Datasheet-tri-proof-lightbar-1280mm-40w-3-cct-emergency-950-180.pdf
Energy labels
Characteristics sheet
950-180-photometric-light-report.pdf
950-180-photometric-light-report-detailed.zip
950-180-eulumdat.zip
