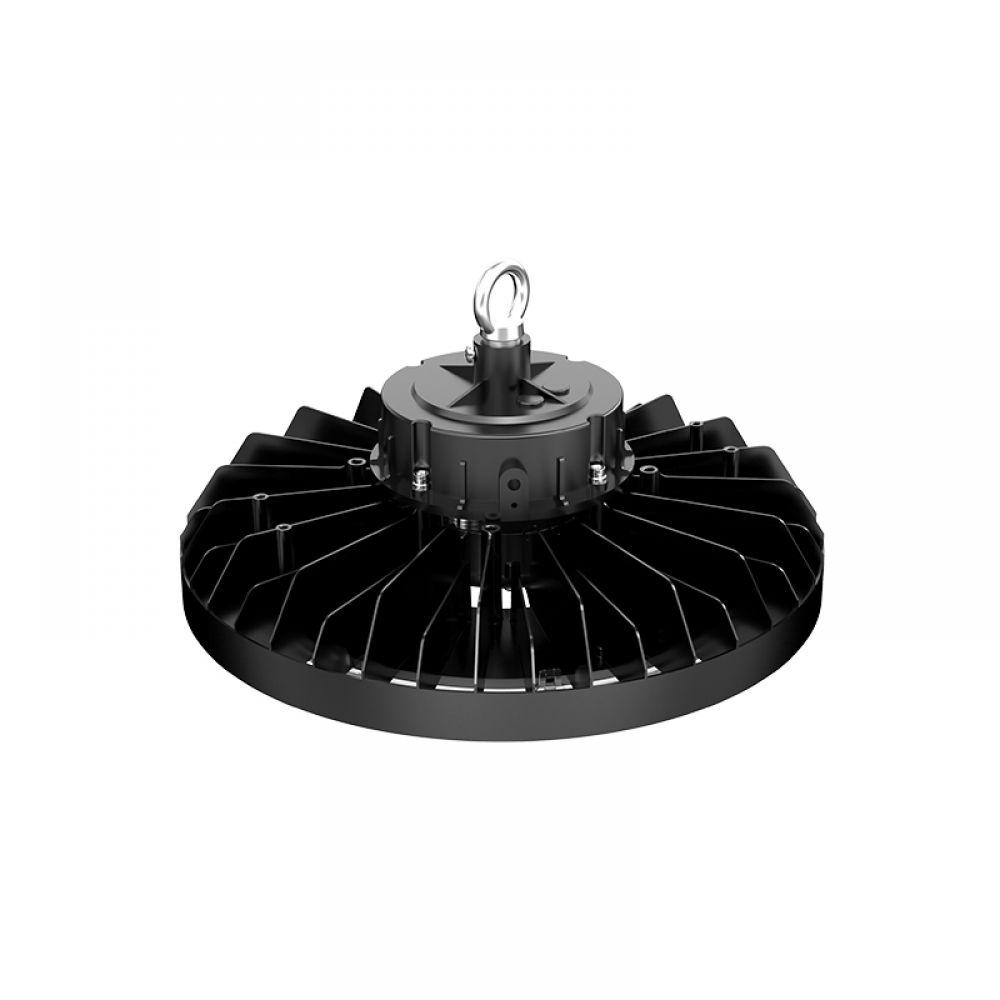

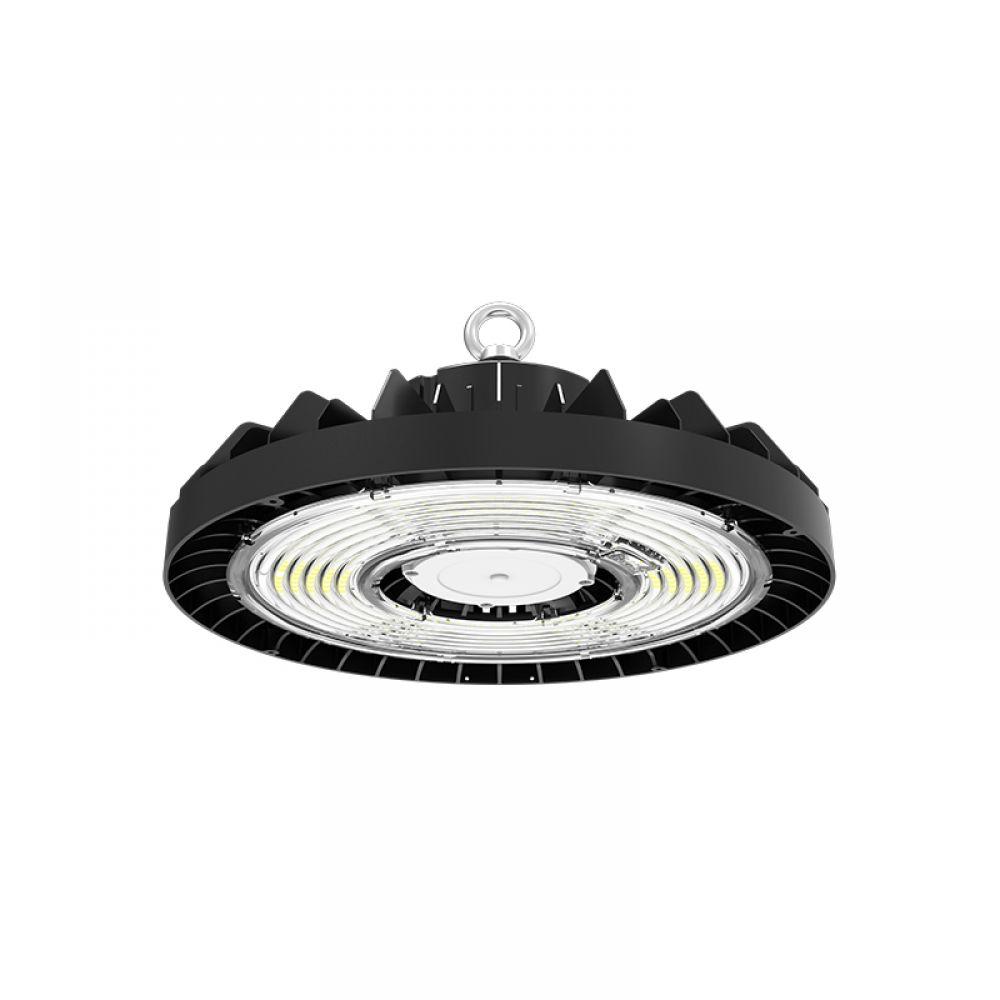

UFO high bay || 100 watt | 190 Lm/W | 4000K | 90°
950-105This UFO high bay features an extremely high luminous flux efficiency versus a consumption of 100 watts. Each high bay is equipped with a 90° lens, but can be adjusted using various accessories. As a result, you always have a customized high bay at your disposal, regardless of the intended location.
Features
- Each UFO high bay consists of a base and a 90° lens
- Fresh color temperature with 4000K
- Optionally available: 120 ° reflector (950-113 and 950-114) or 120° lens (950-112)
- Very high luminous efficiency: 190 Lm / W
- High luminous flux (19.000 lumens) ideal for warehouses or other high spaces
Product Name
UFO high bay || 100 watt | 190 Lm/W | 4000K | 90°
Ean
8714984935365
Outer box qty
1st
Dimmable
No
Dimming 0-10 V
No
Lamp type
LED not exchangeable
Housing colour
Black
Housing material
Aluminium
Connection type
Other

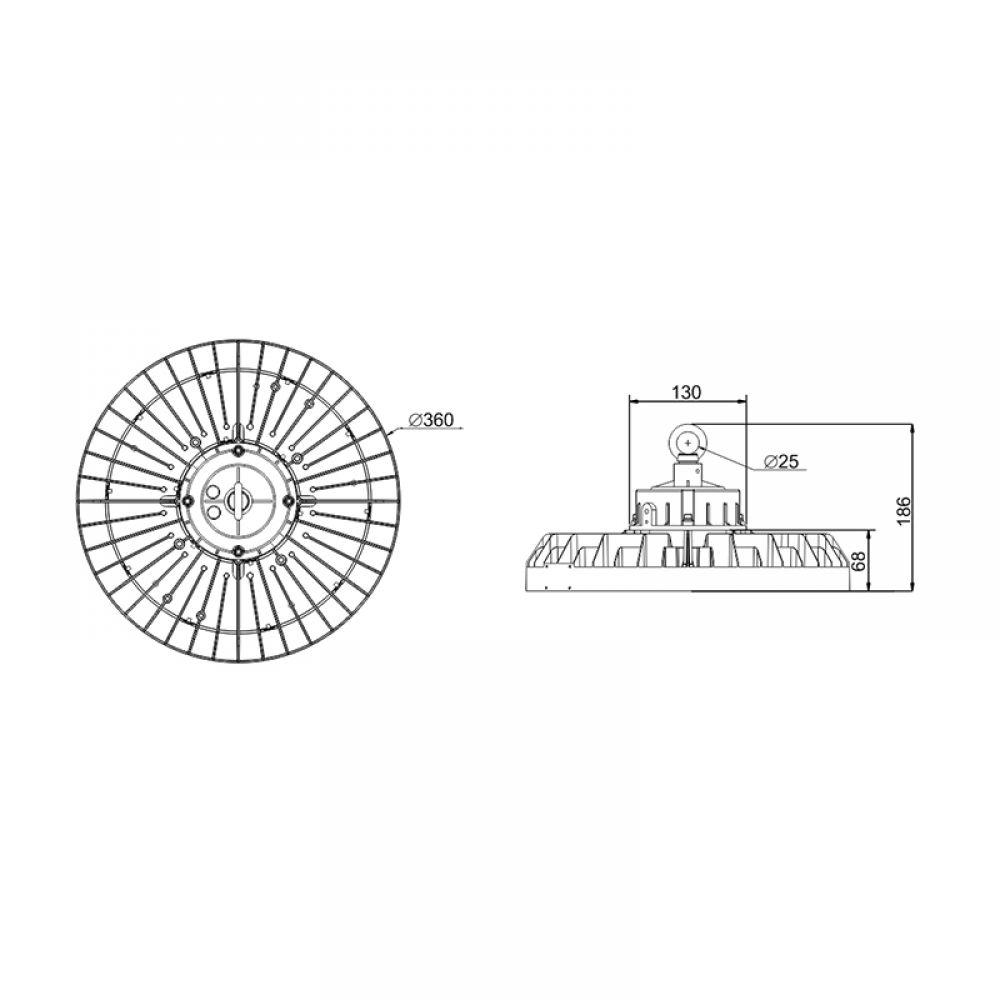

Height/depth
186mm
Outer diameter
360mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM6
Colour temperature
4000K
Colour rendering index CRI
70-79
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal current
417 - 1000mA
Nominal voltage
100 - 240V
Number of poles
3
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Max. system power
100W
Rated luminous flux according to IEC 62722-2- 1
17000 - 17000lm
Luminaire efficacy
170 - 170lm/W
Power factor
0.93
Type of wiring
Ending
Suitable for ceiling mounting
Yes
Suitable for suspended mounting
Yes
Reflector
None
Warranty
5 years
Product Name
UFO high bay || 100 watt | 190 Lm/W | 4000K | 90°
Voltage type
AC
Ean
8714984935365
Nominal current
417 - 1000mA
Outer box qty
1st
Nominal voltage
100 - 240V
Dimmable
No
Number of poles
3
Dimming 0-10 V
No
Light distributor
Focal lens
Lamp type
LED not exchangeable
Light distribution
Symmetric
Housing colour
Black
Connectable conductor cross section
0.75 - 2.5mm²
Housing material
Aluminium
Type of control gear
LED operating device current-controlled
Connection type
Other
Exchangeable control gear
No
Height/depth
186mm
With control gear
Yes
Outer diameter
360mm
Degree of protection (IP)
IP65
With movement sensor
No
Impact strength
IK08
With presence detector
No
Max. system power
100W
With light sensor
No
Rated luminous flux according to IEC 62722-2- 1
17000 - 17000lm
Colour of light
White
Luminaire efficacy
170 - 170lm/W
Colour consistency (McAdam ellipse)
SDCM6
Power factor
0.93
Colour temperature
4000K
Type of wiring
Ending
Colour rendering index CRI
70-79
Suitable for ceiling mounting
Yes
Colour of light adjustable
No
Suitable for suspended mounting
Yes
Luminous flux adjustable
No
Reflector
None
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
Beam angle adjustable
No
This UFO high bay features an extremely high luminous flux efficiency versus a consumption of 100 watts. Each high bay is equipped with a 90° lens, but can be adjusted using various accessories. As a result, you always have a customized high bay at your disposal, regardless of the intended location.
Features
Each UFO high bay consists of a base and a 90° lens
Fresh color temperature with 4000K
Optionally available: 120 ° reflector (950-113 and 950-114) or 120° lens (950-112)
Very high luminous efficiency: 190 Lm / W
High luminous flux (19.000 lumens) ideal for warehouses or other high spaces
Datasheet
Datasheet-ufo-high-bay-100-watt-190-lmw-4000k-90-950-105.pdf
Energy labels
Other attachment
950-105_90_Luminaire_photometric_test_report.pdf
950-105_120_Luminaire_photometric_test_report.pdf
950-105_90_IES.IES
950-105_120_IES.IES
Manual
950-105_Manual_NL.pdf
950-105_Manual_EN.pdf
