Wall washer | 1 meter | 24V | 48W | IP66 | RGBW | DMX512

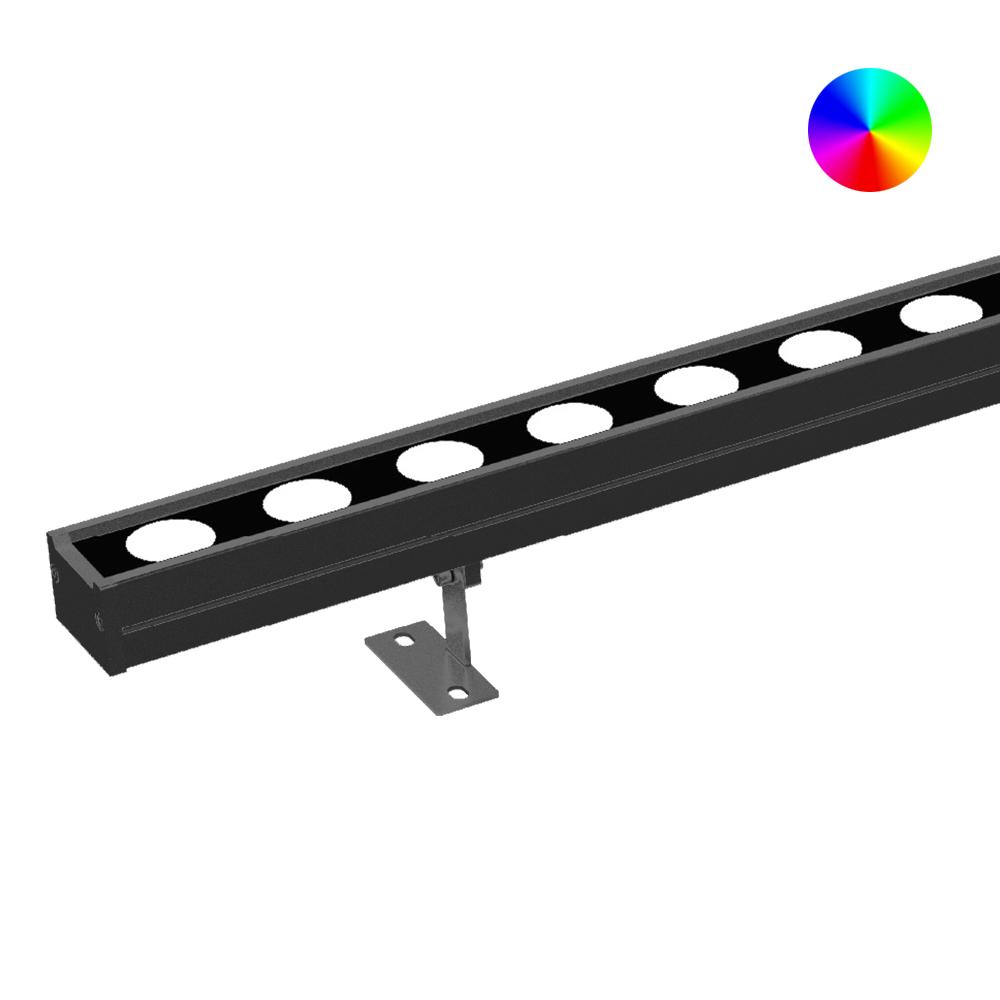

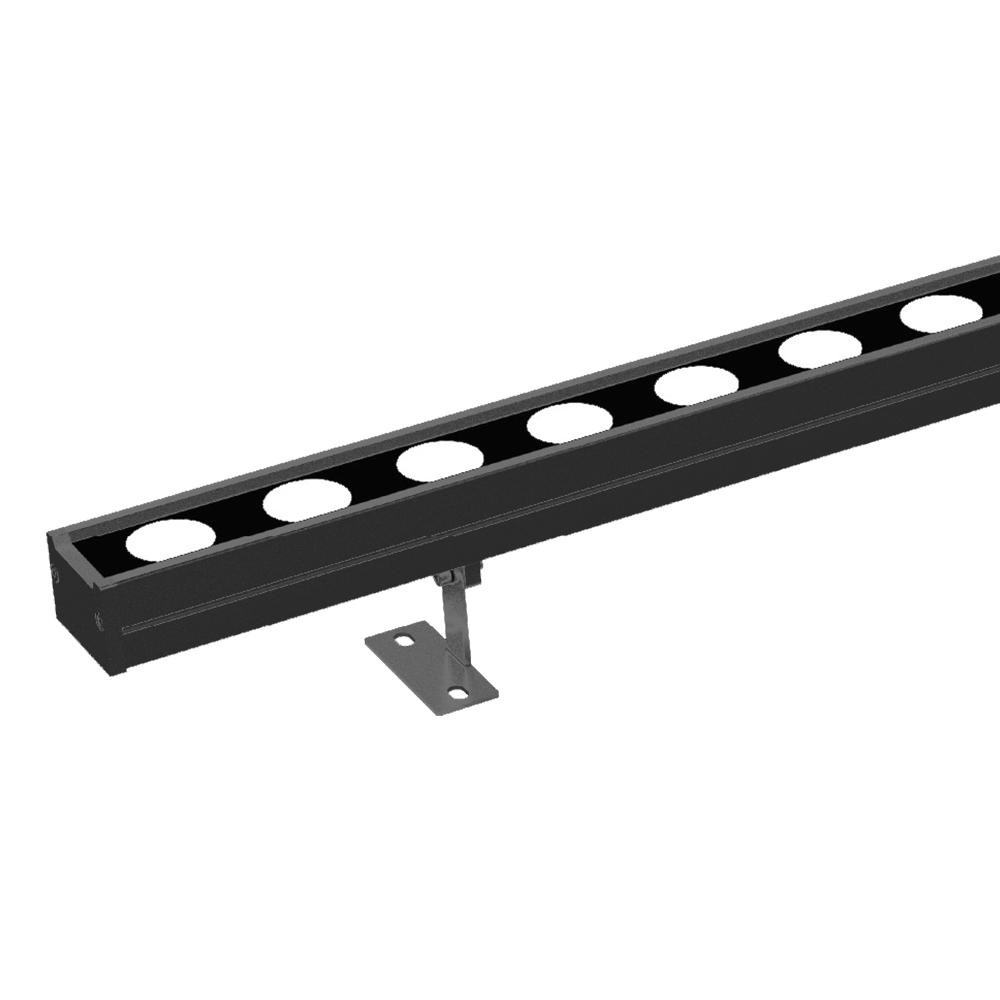

190-120Designed for a high-powered color wash that can easily illuminate several metres down walls or across ceilings, this LED RGBW wall washer is ideal for signage and lighting of e.g. hotels, restaurants, clubs and bars. Create any imaginable color light shade effect mixing red, blue, green and white LEDs right at the source.
Features
- Powerful 48W illumination with ultra-bright lighting effect
- With 24 RGBW LEDs and 25°x45° optic lens for maximum light reach
- IP66 water-resistant and dustproof for sustainable outdoor use
- Equipped with fixing brackets: Screw in position and fix on the right angle
- Programmed on DMX channel 1. Prefering a different channel? Please let us know!
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
Product Name
Wall washer | 1 meter | 24V | 48W | IP66 | RGBW | DMX512
Ean
8714984948952
Outer box qty
15st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Anthracite
Housing material
Aluminium
Material cover
Glass transparent

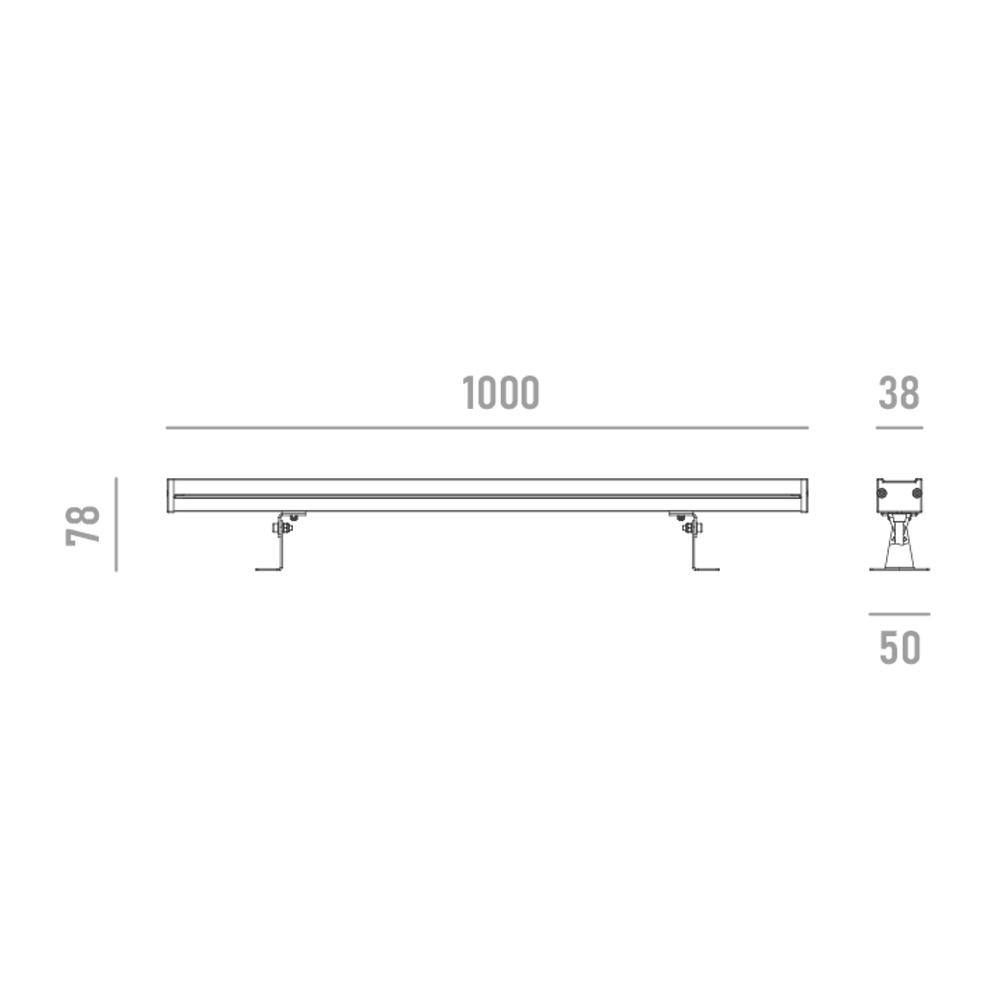

Length
1000mm
Width
50mm
Height/depth
78mm
Built-in diameter
0 - 0mm
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for pedestal/floor mounting
Yes
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With light sensor
No
Colour of light
Multi-coloured
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Continuously variable
Reflector colour
Silver
Colour temperature
RGBW
Colour rendering index CRI
80-89
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
24 - 24V
Number of poles
5
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 1mm²
Type of control gear
LED operating device voltage-controlled
Exchangeable control gear
No
With control gear
No
Degree of protection (IP), front side
IP66
Surface protection
Powder coating
Impact strength
IK07
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
48W
Power factor
0.95
Suitable for lamp power
0 - 0W
Surface brushed
No
Type of wiring
Loop-through wiring included
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Swivelling
Unified Glare Ratio (UGR)
19
Reflector
None
Warranty
3 years
Product Name
Wall washer | 1 meter | 24V | 48W | IP66 | RGBW | DMX512
Light outlet
Direct
Ean
8714984948952
Beam angle
21-40° - Medium beam
Outer box qty
15st
Beam angle adjustable
No
Lamp type
LED not exchangeable
Voltage type
DC
Lamp holder
None
Nominal voltage
24 - 24V
Housing colour
Anthracite
Number of poles
5
Housing material
Aluminium
Light distributor
Focal lens
Material cover
Glass transparent
Light distribution
Symmetric
Length
1000mm
Connectable conductor cross section
0.5 - 1mm²
Width
50mm
Type of control gear
LED operating device voltage-controlled
Height/depth
78mm
Exchangeable control gear
No
Built-in diameter
0 - 0mm
With control gear
No
Suitable for built-in mounting
No
Degree of protection (IP), front side
IP66
Suitable for surface mounting
Yes
Surface protection
Powder coating
Suitable for pedestal/floor mounting
Yes
Impact strength
IK07
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
48W
Suitable for light-track mounting
No
Power factor
0.95
Suitable for clamp-mounting
No
Suitable for lamp power
0 - 0W
With movement sensor
No
Surface brushed
No
With light sensor
No
Type of wiring
Loop-through wiring included
Colour of light
Multi-coloured
Emergency power supply system
None
Colour consistency (McAdam ellipse)
SDCM3
Emergency function monitoring system
None
Colour of light adjustable
Continuously variable
Adjustability
Swivelling
Reflector colour
Silver
Unified Glare Ratio (UGR)
19
Colour temperature
RGBW
Reflector
None
Colour rendering index CRI
80-89
Warranty
3 years
Luminous flux adjustable
Continuously variable
Designed for a high-powered color wash that can easily illuminate several metres down walls or across ceilings, this LED RGBW wall washer is ideal for signage and lighting of e.g. hotels, restaurants, clubs and bars. Create any imaginable color light shade effect mixing red, blue, green and white LEDs right at the source.
Features
Powerful 48W illumination with ultra-bright lighting effect
With 24 RGBW LEDs and 25°x45° optic lens for maximum light reach
IP66Â water-resistant and dustproof for sustainable outdoor use
Equipped with fixing brackets: Screw in position and fix on the right angle
Programmed on DMX channel 1. Prefering a different channel? Please let us know!
Our LED RGB fixtures collection
The collection of LED RGB fixtures offers plenty of possibilities in terms of powerful, colorful lighting for facades and properties. These wall washers feature powerful LED chips in a sturdy frame, which offers high resistance to UV rays and weather. These fixtures also work on the basis of DMX512, so that every project can be taken care of down to the last detail.
Datasheet
Datasheet-wall-washer-1-meter-24v-48w-ip66-rgbw-dmx512-190-120.pdf
