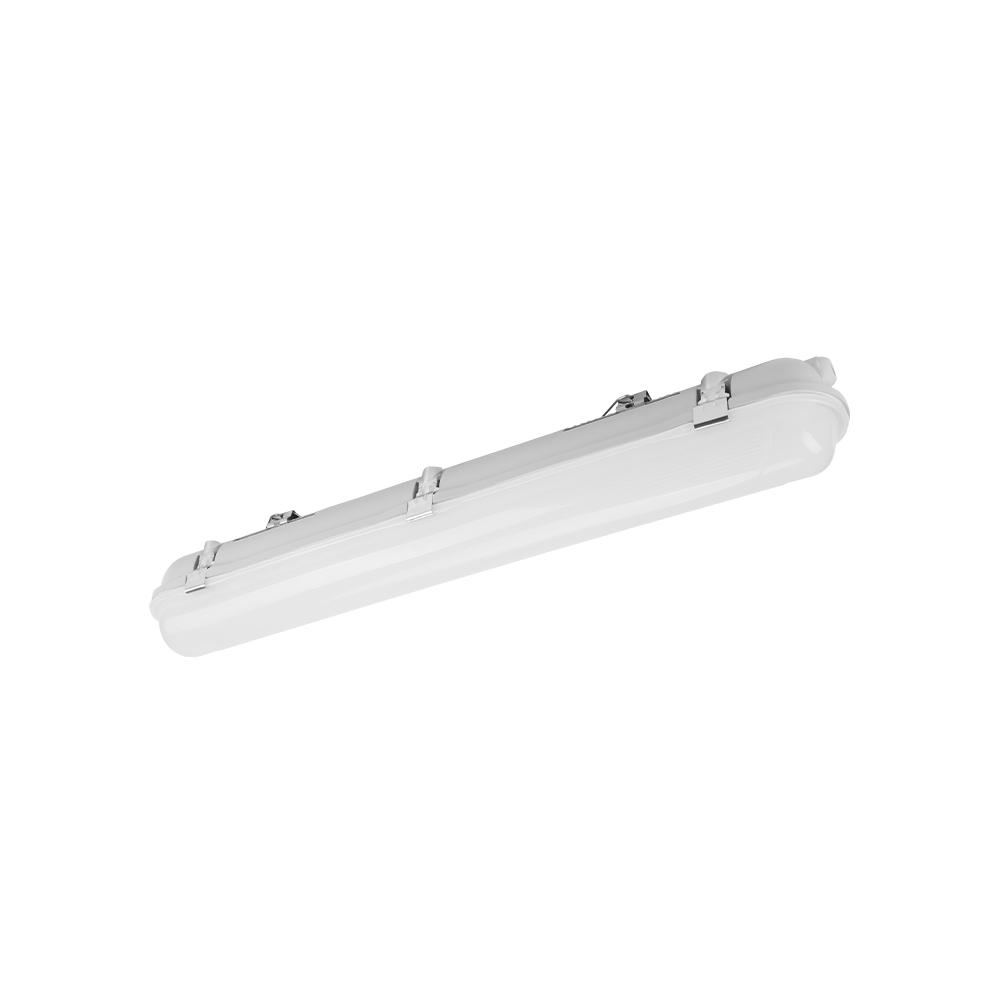

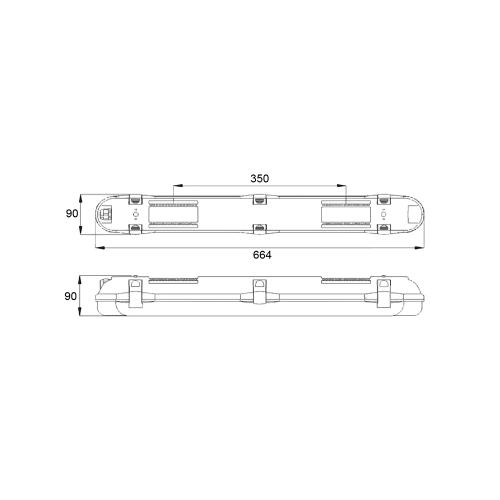

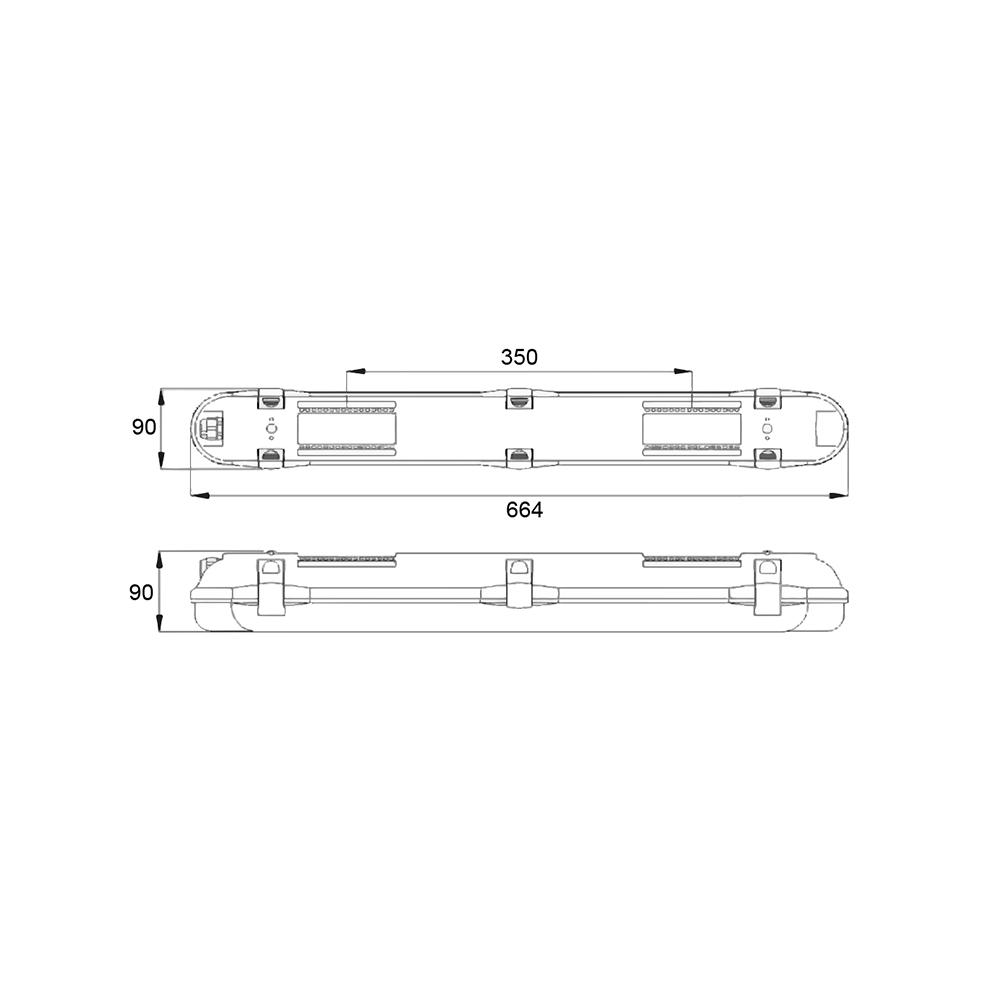

Waterproof lightbar || 664*90*90mm | IP65 | 10W | 5000K
950-080These waterproof light bars are an ideal alternative to fluorescent fixtures. The PC cover has a high light transmission and gives a perfect uniform light output. The light bar is supplied with stainless steel clips for easy assembly and disassembly. The lightbar can be used in factories, warehouses and other locations with high humidity or dust.
Optional: 3 meter suspension cable art.nr. 950-090
Features
- High Lumen/Watt ratio >130 lm/w
- 6063 aluminum mounting plate with perfect cooling

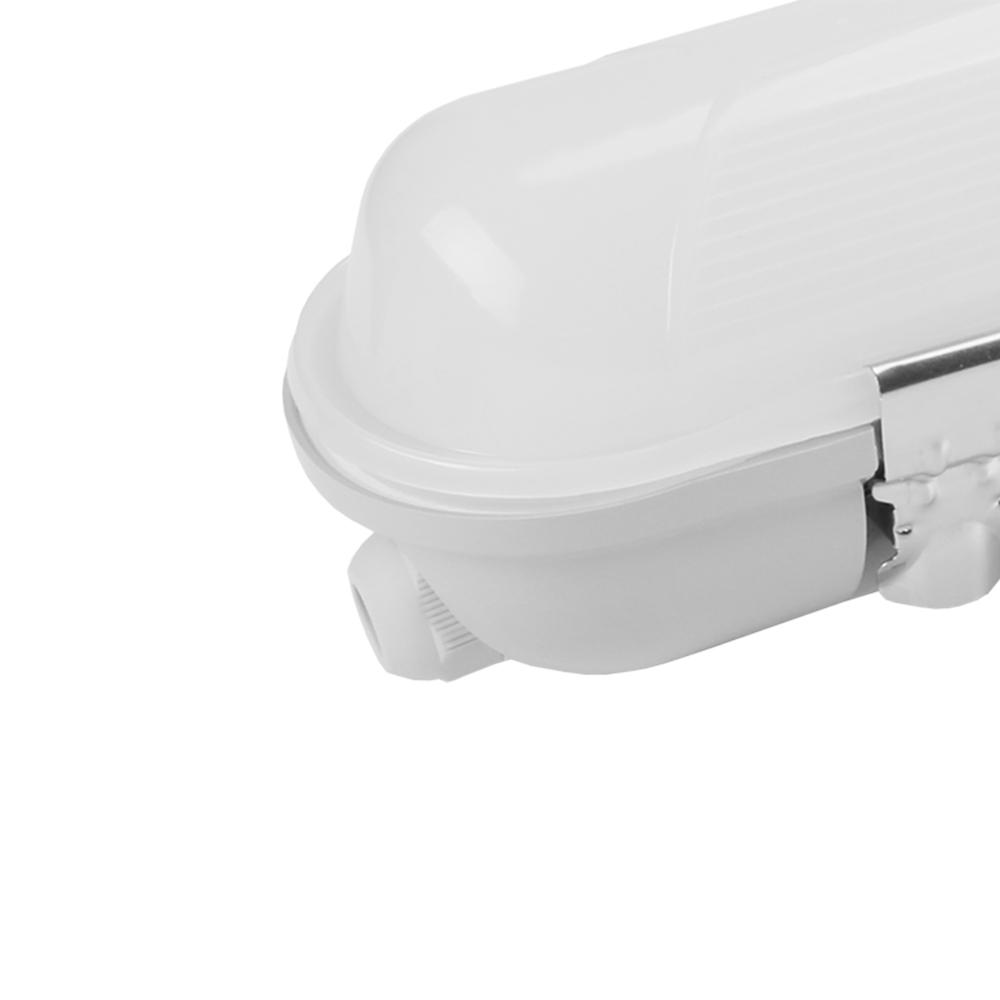

- M20 cable gland with strain relief on both sides

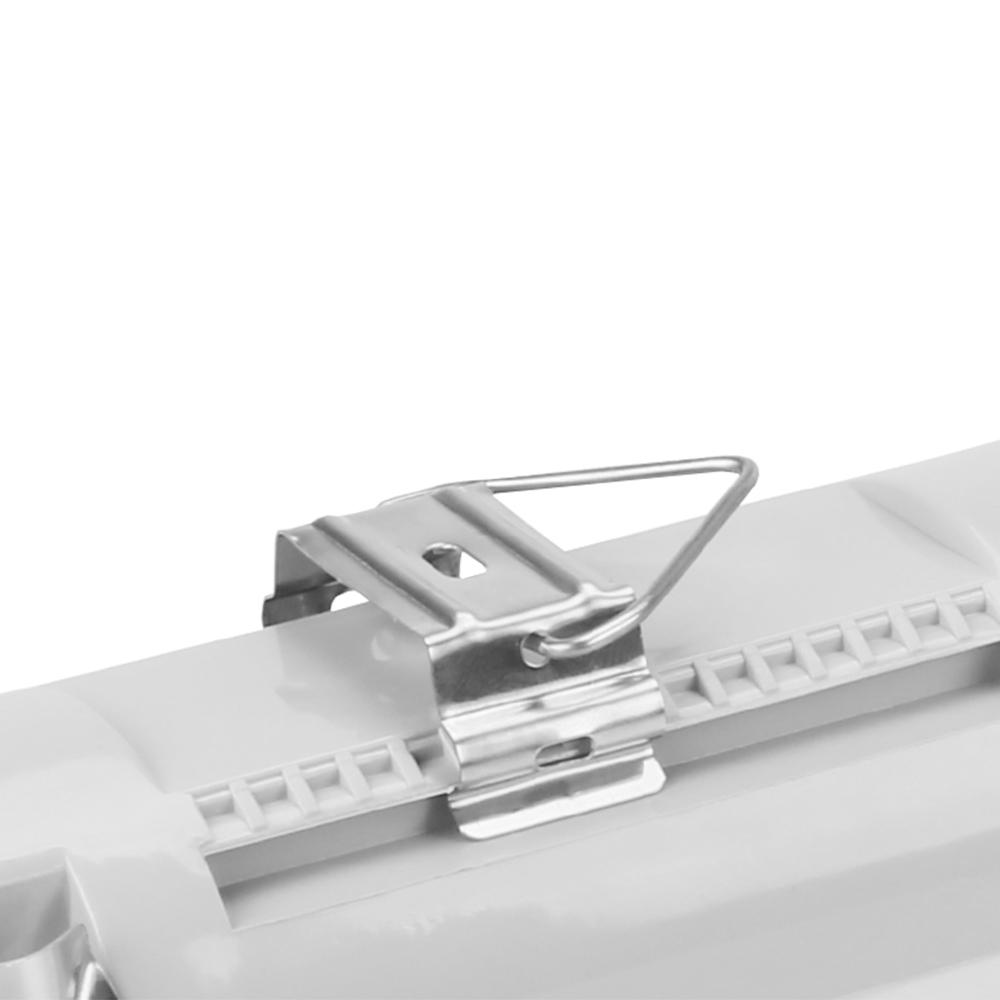

- Including stainless steel clips
Product Name
Waterproof lightbar || 664*90*90mm | IP65 | 10W | 5000K
Ean
8714984942370
Outer box qty
12st
Dimmable
No
Connection type
Push-in clamp
Lamp type
LED not exchangeable
Housing colour
Grey
Material
Plastic
Length
60cm
Length
660mm
Width
90mm
Height/depth
90mm
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour temperature
5000K
Colour rendering index CRI
80-89
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
200 - 240V
Nominal current
350 - 350mA
Number of poles
3
Light distributor
Diffuser lens/optic/panel
Connectable conductor cross section
1 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP)
IP65
Impact strength
IK08
Rated lifetime L70/B50 at 25 °C
30000h
Max. system power
10W
Rated luminous flux according to IEC 62722-2- 1
1200 - 1200lm
Luminaire efficacy
120lm/W
Power factor
0.9
Type of wiring
Loop-through wiring included
Suitable for emergency lighting
No
Emergency power supply system
None
Emergency function monitoring system
None
Warranty
3 years
Product Name
Waterproof lightbar || 664*90*90mm | IP65 | 10W | 5000K
Voltage type
AC
Ean
8714984942370
Nominal voltage
200 - 240V
Outer box qty
12st
Nominal current
350 - 350mA
Dimmable
No
Number of poles
3
Connection type
Push-in clamp
Light distributor
Diffuser lens/optic/panel
Lamp type
LED not exchangeable
Connectable conductor cross section
1 - 2.5mm²
Housing colour
Grey
Type of control gear
LED operating device current-controlled
Material
Plastic
Exchangeable control gear
No
Length
60cm
With control gear
Yes
Length
660mm
Degree of protection (IP)
IP65
Width
90mm
Impact strength
IK08
Height/depth
90mm
Rated lifetime L70/B50 at 25 °C
30000h
With movement sensor
No
Max. system power
10W
With presence detector
No
Rated luminous flux according to IEC 62722-2- 1
1200 - 1200lm
With light sensor
No
Luminaire efficacy
120lm/W
Colour of light
White
Power factor
0.9
Colour temperature
5000K
Type of wiring
Loop-through wiring included
Colour rendering index CRI
80-89
Suitable for emergency lighting
No
Colour of light adjustable
No
Emergency power supply system
None
Luminous flux adjustable
No
Emergency function monitoring system
None
Beam angle adjustable
No
Warranty
3 years
These waterproof light bars are an ideal alternative to fluorescent fixtures. The PC cover has a high light transmission and gives a perfect uniform light output. The light bar is supplied with stainless steel clips for easy assembly and disassembly. The lightbar can be used in factories, warehouses and other locations with high humidity or dust.
Optional: 3 meter suspension cable art.nr. 950-090
Features
High Lumen/Watt ratio >130 lm/w
6063 aluminum mounting plate with perfect cooling
M20 cable gland with strain relief on both sides
Including stainless steel clips
Datasheet
Datasheet-waterproof-lightbar-6649090mm-ip65-10w-5000k-950-080.pdf
Energy labels
Other attachment
950-080_Luminaire_photometric_test_report.pdf
950-080_IES.IES
Characteristics sheet
950-080_081_082_083_084_085_technical_datasheet_extended.pdf
Manual
950-080_Manual_NL.pdf
950-080_Manual_EN.pdf
