Zigbee | driver | 12W | 100~700mA | max. 42V | NFC

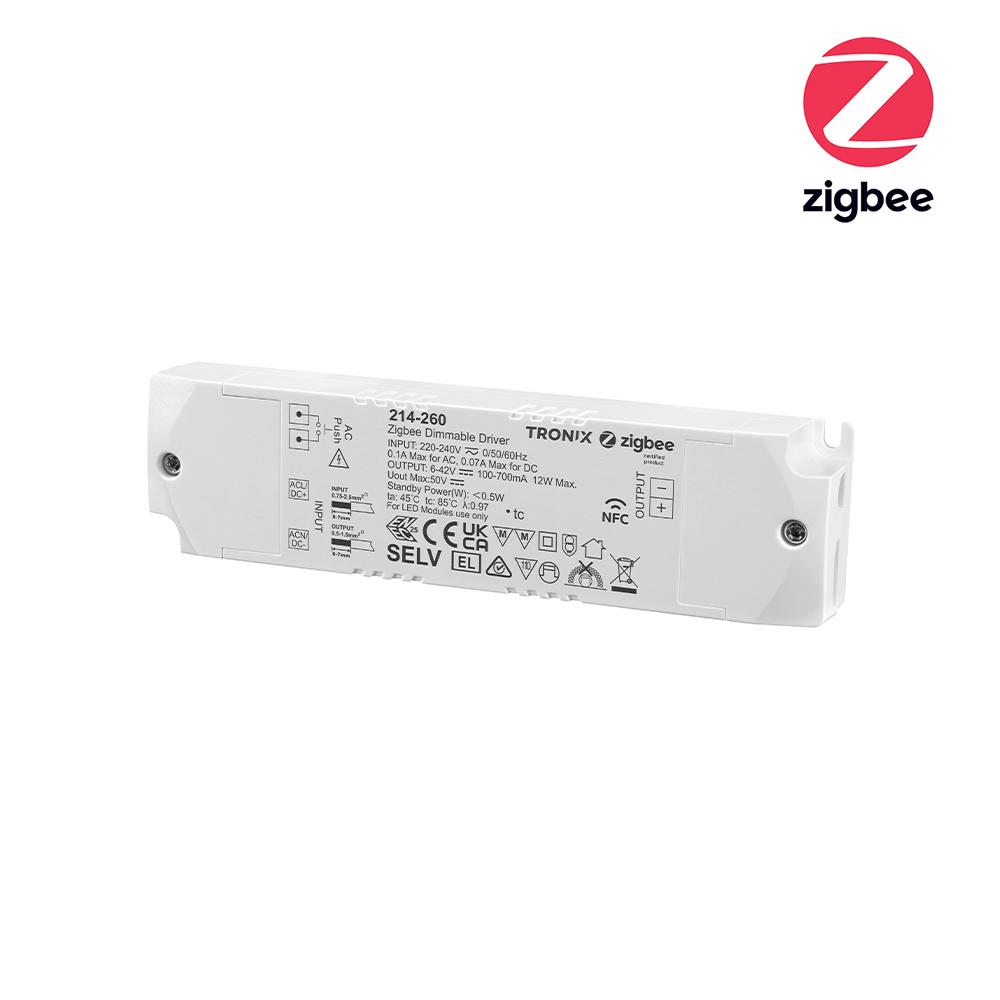

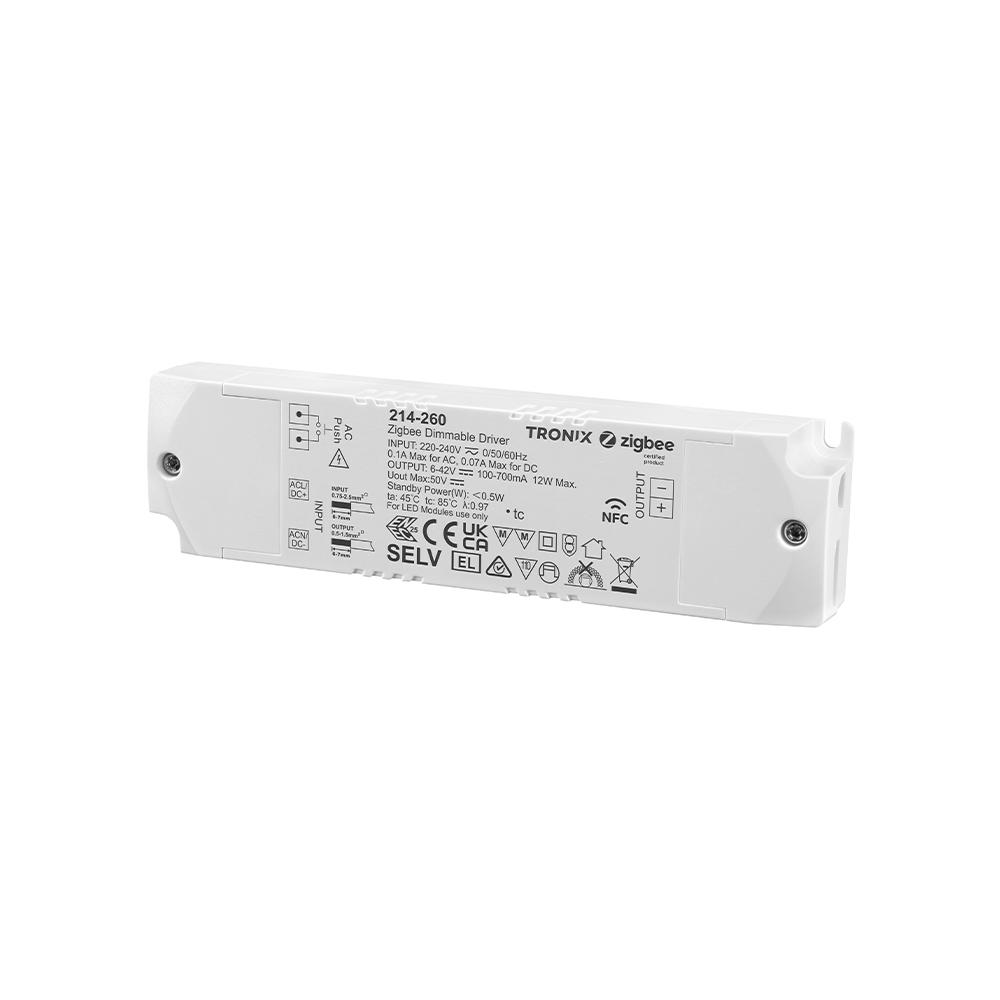

214-260Zigbee 3.0 LED driver for constant current applications up to 12 W. Output current adjustable via NFC. Compatible with Philips Hue, Homey and other smart home platforms.
Key product features
- Suitable for constant current: Yes
- Output voltage (V): 6 – 42
- Output current (mA): 100 – 700
- Output power (W): 1 – 12
- Input voltage (V): 200 – 240
- Control protocol: Zigbee
- Control type: Constant current
Product Name
Zigbee | driver | 12W | 100~700mA | max. 42V | NFC
Ean
8714984948365
Outer box qty
1st
Housing
Plastic housing
Model
Static
Output voltage
6 - 42V
Output current
100 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
1 - 12W
Degree of protection (IP)
IP20

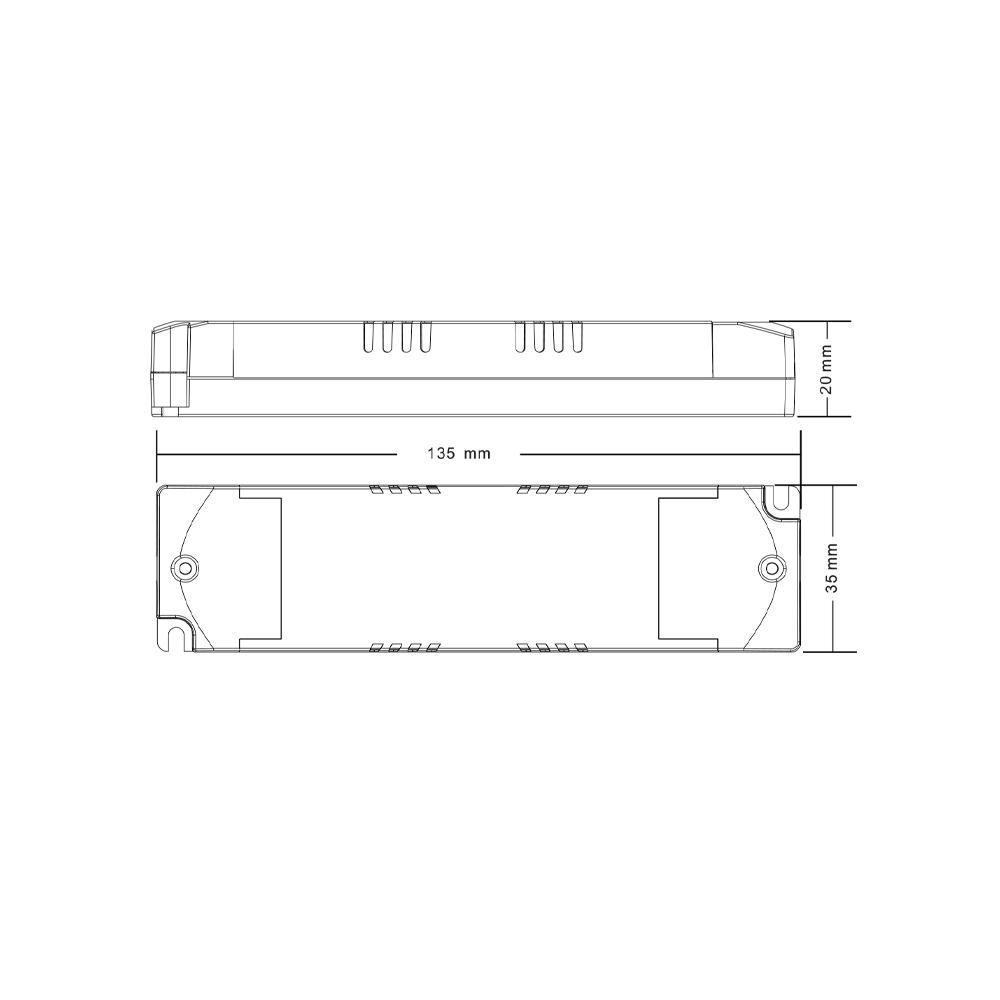

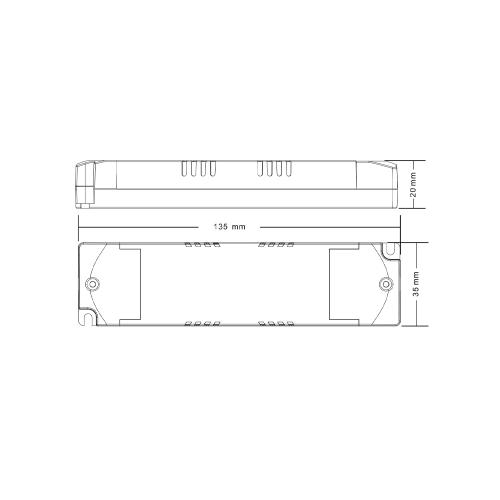

Length
135mm
Width
35mm
Height
20mm
Power consumption
12W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
Overload protection
Yes
Overtemperature protection
Yes
Control method
Zigbee
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
Zigbee | driver | 12W | 100~700mA | max. 42V | NFC
Input voltage
200 - 240V
Ean
8714984948365
Frequency input voltage
50 - 60Hz
Outer box qty
1st
Overload protection
Yes
Housing
Plastic housing
Overtemperature protection
Yes
Model
Static
Control method
Zigbee
Output voltage
6 - 42V
Short-circuit protected
Yes
Output current
100 - 700mA
Ambient temperature
-25 - 45°C
Suitable for outdoor use
No
Driver lifetime
100000h
Suitable for DC-voltage (primary side)
Yes
DIN-rail mounting
No
Output power
1 - 12W
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Dimmable
Yes
Length
135mm
Emergency power supply system
None
Width
35mm
Control type
Constant current
Height
20mm
Warranty
5 years
Power consumption
12W
This compact Zigbee LED driver is designed for constant current applications up to 12 watts. The output current is configurable from 100 to 700 mA via NFC, with a default setting of 300 mA. Operating at 200–240V AC or DC, it delivers a regulated output voltage of 6–42V. With an efficiency of over 80% and a power factor >0.97, it’s a sustainable choice for professional lighting systems.
Wireless control is based on the Zigbee 3.0 protocol and works seamlessly with Philips Hue, Homey, Amazon Echo and other platforms. The driver supports Touchlink, Find & Bind and Zigbee Green Power, allowing up to 20 wireless switches to be paired directly—no gateway required.
Using the SR NFC Tool app, advanced settings can be configured, such as dimming curve (linear/logarithmic), power-on behaviour, soft start/stop and current adjustment. The driver supports OTA updates and enables flicker-free dimming from 0.01–100% using amplitude/CCR technology.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-zigbee-driver-12w-100700ma-max-42v-nfc-214-260.pdf
Characteristics sheet
214-260_technical_datasheet_extended.pdf
