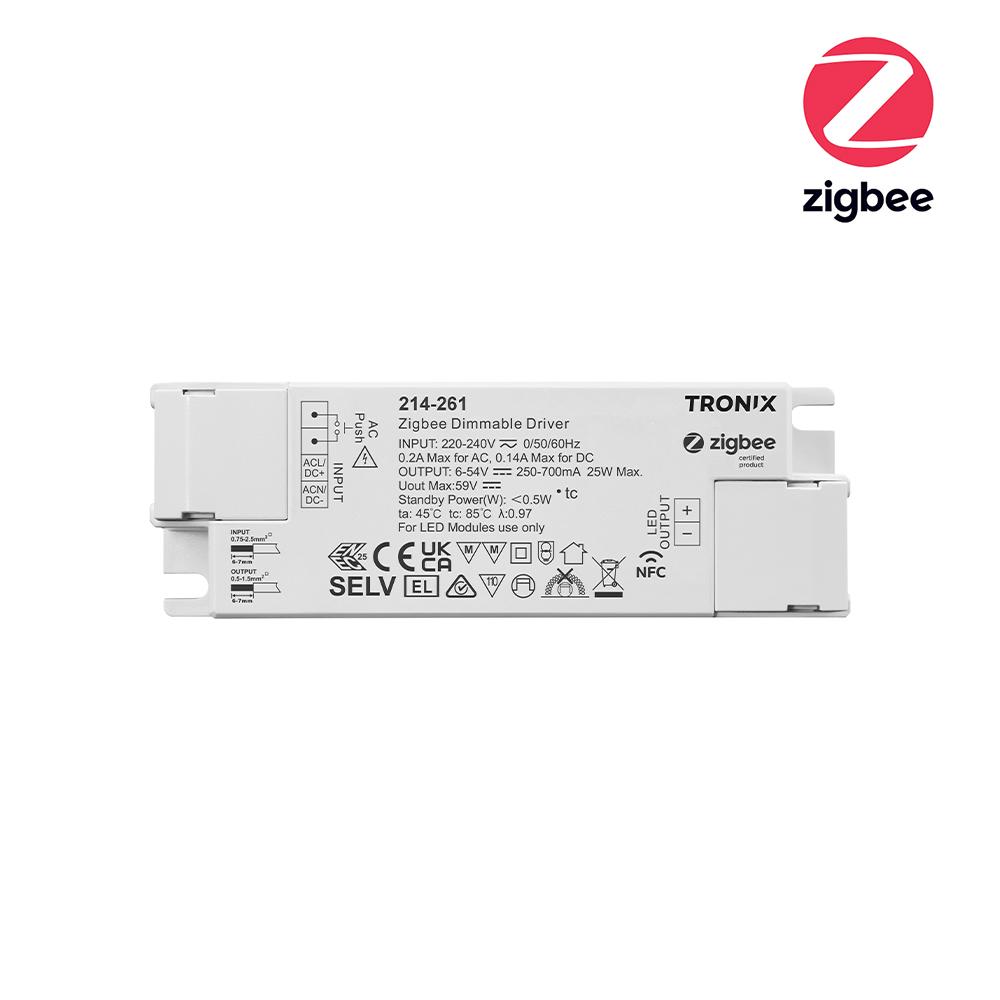

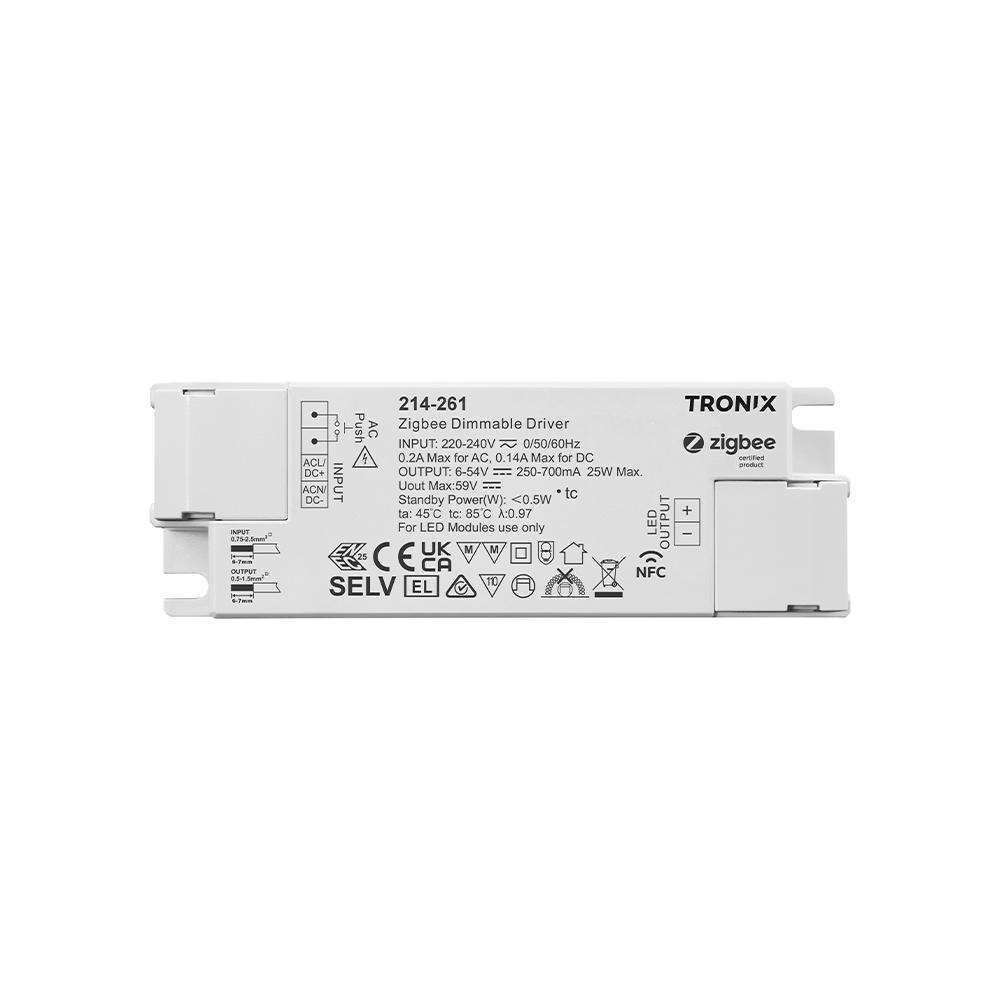

Zigbee | driver | 25W | 250~700mA | max. 54V | NFC
214-261Zigbee 3.0 LED driver for constant current applications up to 25 W. Output current adjustable via NFC. Compatible with Philips Hue, Homey and other platforms.
Key product features
- Suitable for constant current: Yes
- Output voltage (V): 6 – 54
- Output current (mA): 250 – 700
- Output power (W): 1.5 – 25
- Input voltage (V): 200 – 240
- Control protocol: Zigbee
- Control type: Constant current
Product Name
Zigbee | driver | 25W | 250~700mA | max. 54V | NFC
Ean
8714984948358
Outer box qty
1st
Housing
Plastic housing
Model
Static
Output voltage
6 - 54V
Output current
250 - 700mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
Yes
Output power
1.5 - 25W
Degree of protection (IP)
IP20
Length
120mm
Width
41mm
Height
28mm
Power consumption
25W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
Zigbee
Short-circuit protected
Yes
Ambient temperature
-25 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
Central (central battery)
Control type
Constant current
Warranty
5 years
Product Name
Zigbee | driver | 25W | 250~700mA | max. 54V | NFC
Input voltage
200 - 240V
Ean
8714984948358
Frequency input voltage
50 - 60Hz
Outer box qty
1st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
6 - 54V
Control method
Zigbee
Output current
250 - 700mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-25 - 45°C
Suitable for DC-voltage (primary side)
Yes
Driver lifetime
100000h
Output power
1.5 - 25W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Dimmable
Yes
Width
41mm
Emergency power supply system
Central (central battery)
Height
28mm
Control type
Constant current
Power consumption
25W
Warranty
5 years
This Zigbee LED driver is designed for constant current lighting systems up to 25 watts. The output current is adjustable from 250 to 700 mA via NFC technology. The default value is 500 mA; minimum step size is 0.1 mA. Output voltage ranges from 6 to 54 V DC, while the input accepts 200–240 V AC or DC.
The driver supports amplitude/CCR dimming with a flicker-free dimming range from 0.01% to 100%. Configuration is done using the SR NFC Tool app, enabling settings such as dimming curve, soft start/stop, power-on behaviour and current compensation. OTA firmware updates are automatically downloaded via Zigbee.
Thanks to Zigbee 3.0 support, the driver integrates seamlessly with systems like Philips Hue, Amazon Echo and Homey. Touchlink pairing enables direct device control without a gateway; Find & Bind ensures automatic device discovery. Zigbee Green Power is also supported, allowing up to 20 wireless switches without a central gateway.
The fully isolated housing (Class II) is IP20 rated and thermally protected up to 85 °C. The driver features short-circuit and overload protection and resumes operation automatically after recovery.

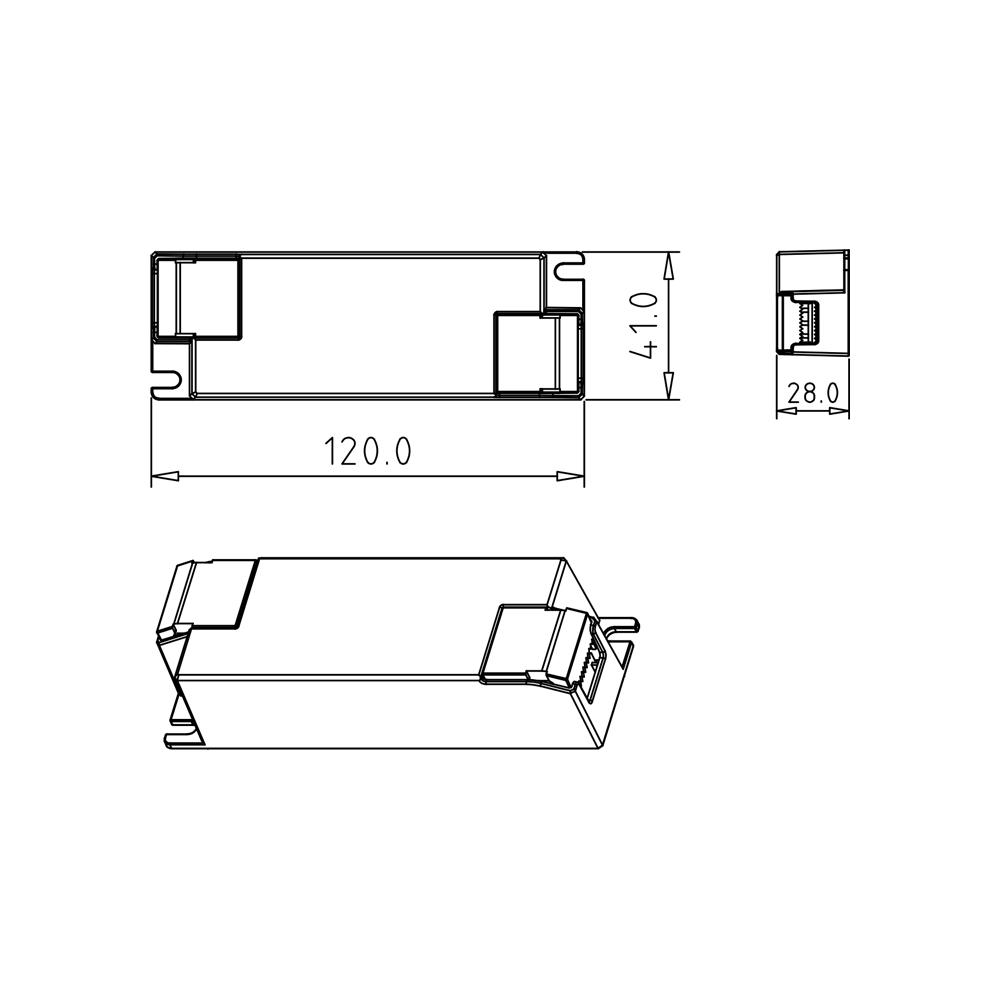

With compact dimensions (120 × 41 × 28 mm) and high efficiency (>85%), this driver is a professional solution for luminaires, linear lighting and ceiling systems with wireless control.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-zigbee-driver-25w-250700ma-max-54v-nfc-214-261.pdf
Characteristics sheet
214-261_technical_datasheet_extended.pdf
