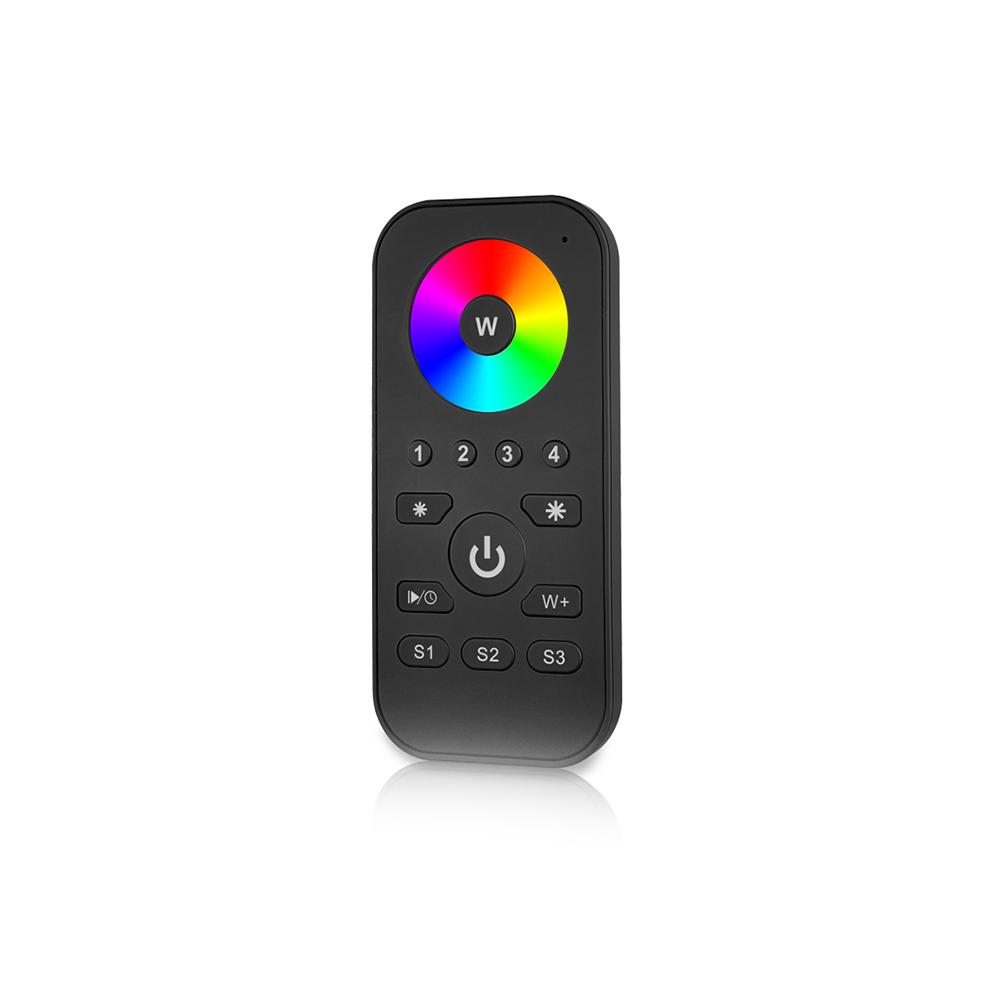

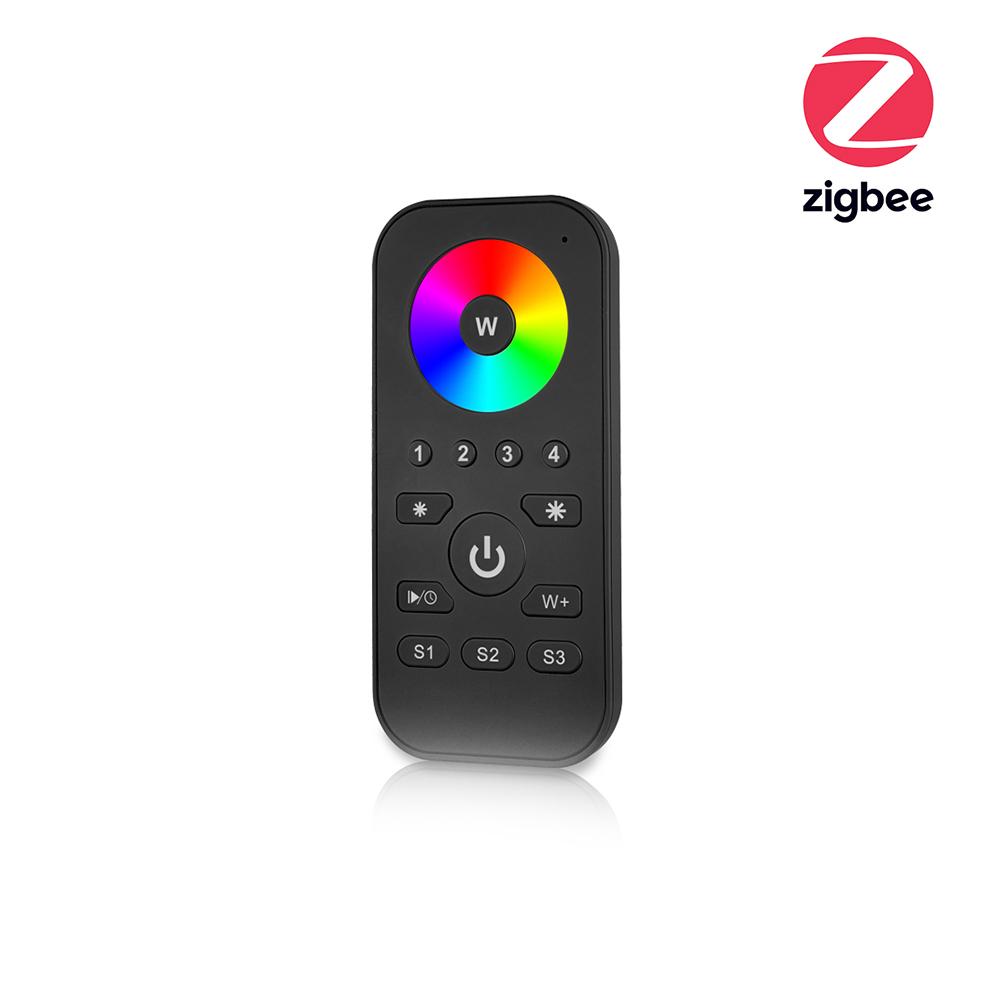

Zigbee | remote control | 4 groups | RGB + TW, RGBW or RGB
214-275Zigbee 3.0 remote control with touch-sensitive colour wheel for RGB(W)(CCT) lighting. Controls 4 groups, up to 30 luminaires per group. Enables direct colour selection, dimming and effect control.
Key product features
- Number of colour channels: 5
- Type of control: Zigbee
- Number of zones: 4
Product Name
Zigbee | remote control | 4 groups | RGB + TW, RGBW or RGB
Ean
8714984937642
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
120mm
Width
55mm
Height
17mm
Number of zones
4
Number of colour channels
5, RGBTW
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
4.5 - 4.5V
Control method
Zigbee
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Zigbee | remote control | 4 groups | RGB + TW, RGBW or RGB
Height
17mm
Ean
8714984937642
Number of zones
4
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
4.5 - 4.5V
Output voltage
0 - 0V
Control method
Zigbee
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Compatible with Casambi
No
Width
55mm
Warranty
5 years
This wireless remote is designed for intuitive control of RGB, RGBW and RGB+CCT lighting. The high-response colour wheel and touch buttons provide instant access to colour, brightness, white balance and lighting effects. Up to 30 luminaires can be assigned per group, with options to store and recall custom scenes or colour settings.
Supports 4 separate groups, linkable via Touchlink, Find & Bind or a compatible Zigbee hub. Thanks to Zigbee Green Power, devices can also be paired without a central gateway, making hub-free operation possible. OTA updates are received automatically via the network.
The remote operates on 3 AAA batteries (4.5V) and offers a wireless range of approximately 30 metres (open field). The built-in LED status indicator provides real-time feedback. Supplied with a magnetic wall mount for optional fixed installation or use as a handheld controller. The compact housing (120 × 55 × 17 mm) is IP20-rated and designed for dry indoor environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
