Zigbee | remote control | 4 groups | TW

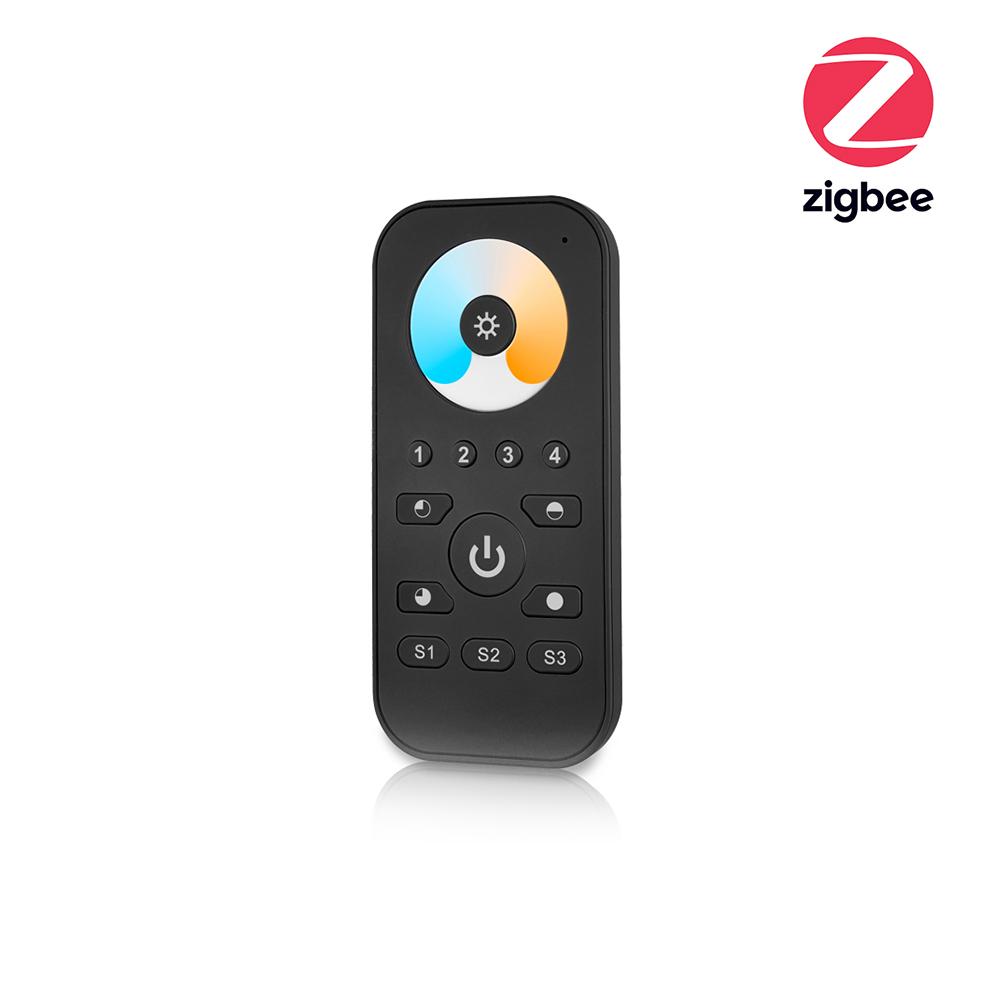

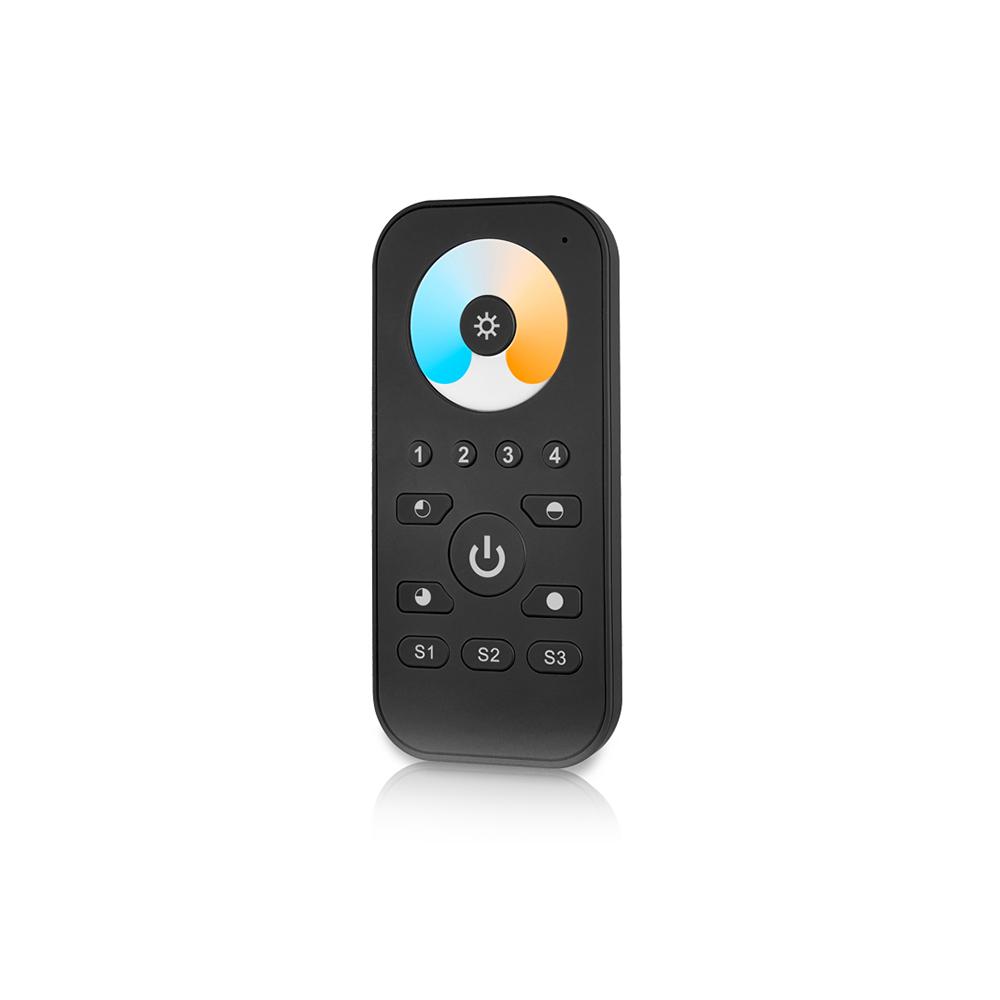

214-276Zigbee 3.0 remote control with touch-sensitive colour temperature dial for Tuneable White lighting. Controls 4 groups, up to 30 luminaires per group. Supplied with magnetic wall mount.
Key product features
- Number of colour channels: 2
- Type of control: Zigbee
- Number of zones: 4
Product Name
Zigbee | remote control | 4 groups | TW
Ean
8714984937659
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
120mm
Width
55mm
Height
17mm
Number of zones
4
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
4.5 - 4.5V
Control method
Zigbee
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Zigbee | remote control | 4 groups | TW
Height
17mm
Ean
8714984937659
Number of zones
4
Outer box qty
1st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
Yes
Input voltage
4.5 - 4.5V
Output voltage
0 - 0V
Control method
Zigbee
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
120mm
Compatible with Casambi
No
Width
55mm
Warranty
5 years
This advanced Zigbee 3.0 remote is specifically designed for Tuneable White LED lighting. The touch-sensitive colour temperature dial allows precise and intuitive adjustment of white tone. Brightness buttons support stepless dimming from 0.1 to 100%.
Battery-operated (3 × AAA, 4.5V), the remote supports Touchlink, Find & Bind and Zigbee Green Power. Up to 4 groups can be controlled simultaneously, with a maximum of 30 Zigbee light sources per group. Compatible with Philips Hue*, Homey and Amazon Echo (with Zigbee support).
Pairing is possible either directly without a hub/gateway (Touchlink) or via an existing Zigbee network. The built-in LED indicator shows the connection status. Group settings, network information and reset functions are easily accessible via the integrated menu.
The wireless range is approximately 30 metres (open field). The remote is IP20-rated, suitable for dry indoor use, and comes with a magnetic wall holder – for either fixed installation or handheld use.
*Please note: when used with Philips Hue, certain functions (such as group control) may be limited.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
