Casambi | controller | SC/TW | 12~36V
213-402Casambi Bluetooth constant voltage LED controller for precise control of constant voltage LED strips. Developed for professional applications where flexible configuration, stable wireless communication and reliable dimming performance are required.
Key product features
- Number of colour channels: 2
- Output voltage (V): 12–36
- Input voltage (V): 12–36
- Max. output current (A): 10
- Type of control: Casambi
- Control type: Constant voltage Number of zones: 1
Product Name
Casambi | controller | SC/TW | 12~36V
Ean
8714984954397
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
10A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

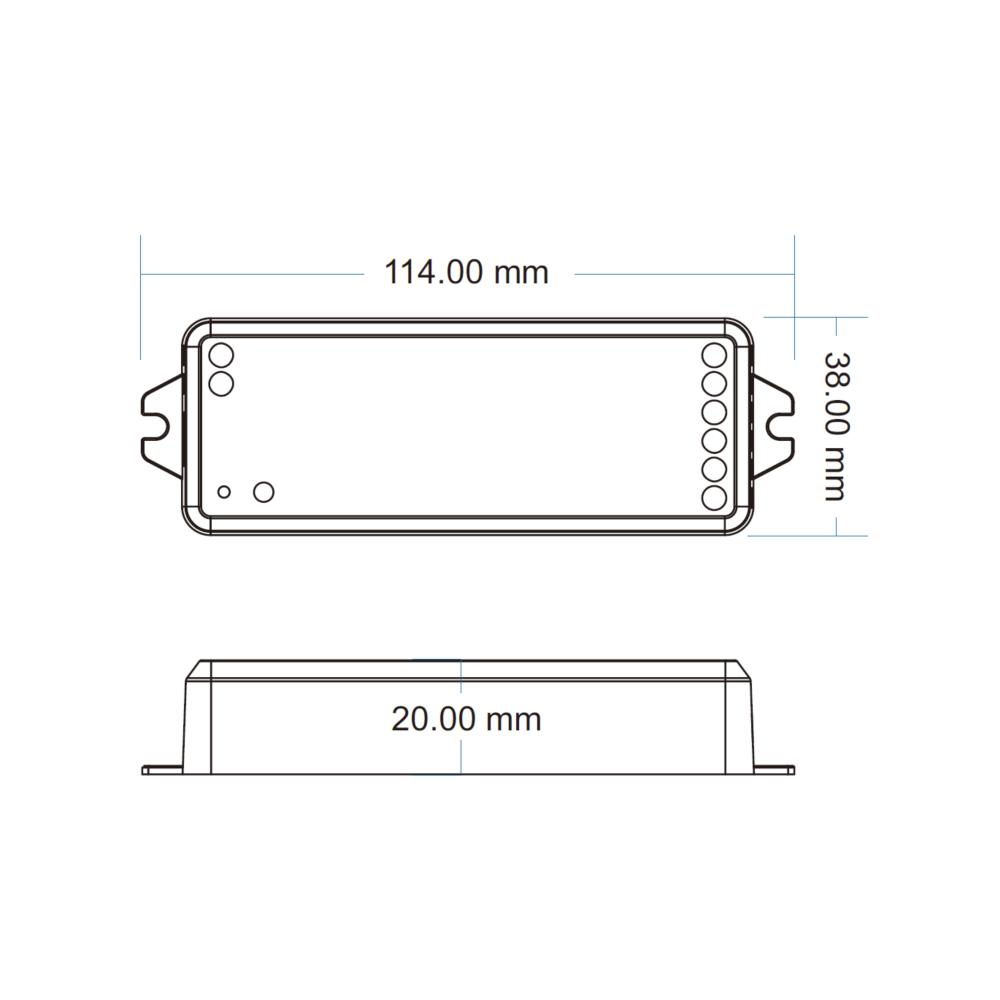

Length
114mm
Width
38mm
Height
20mm
Number of zones
1
Number of colour channels
2, Tuneable White
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 36V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Control type
Constant voltage
Warranty
5 years
Product Name
Casambi | controller | SC/TW | 12~36V
Height
20mm
Ean
8714984954397
Number of zones
1
Outer box qty
1st
Number of colour channels
2, Tuneable White
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 36V
Max. output current
10A
Control method
Casambi
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
Yes
Length
114mm
Control type
Constant voltage
Width
38mm
Warranty
5 years

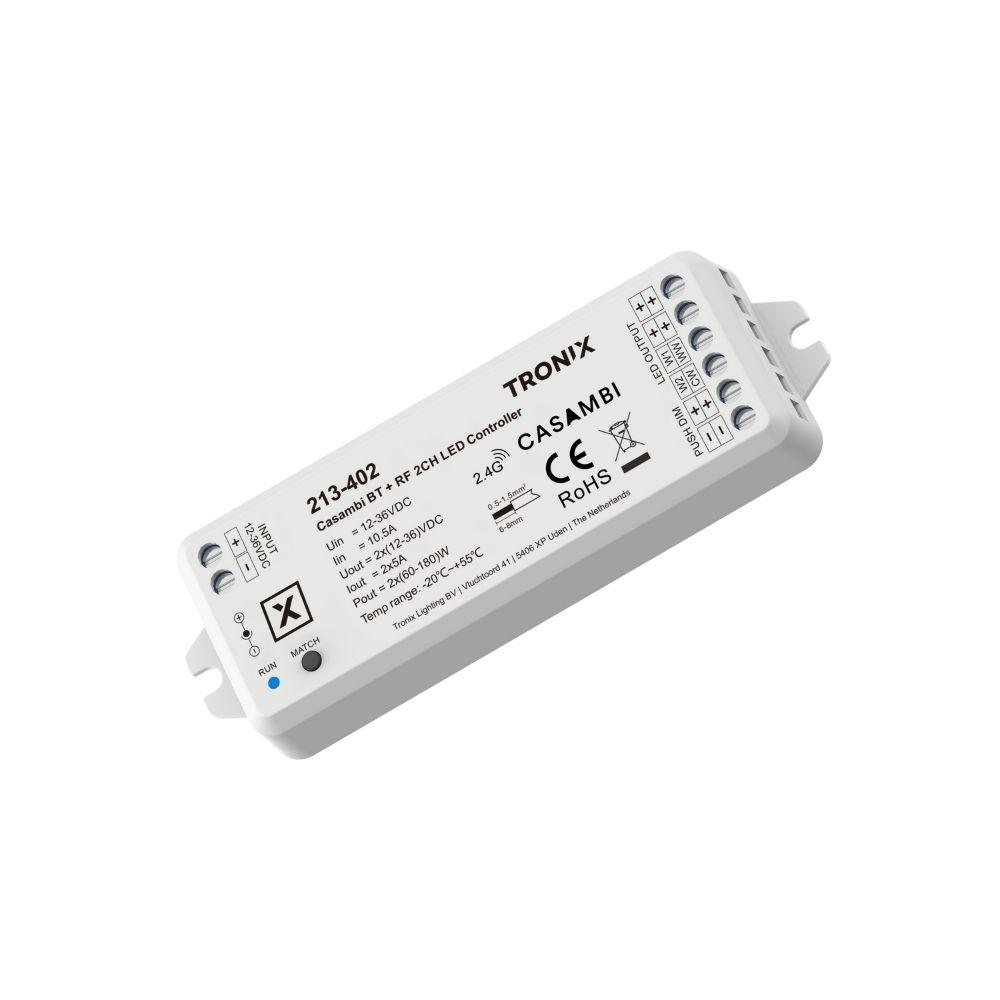

This Casambi Bluetooth + RF 2-channel constant voltage LED controller is designed to control single-colour LED strips or Tuneable White LED strips based on constant voltage. The controller operates on a supply voltage of 12–36 V DC and features two independent outputs with a maximum current of 5 A per channel, suitable for a wide range of LED applications.
Control is provided via Bluetooth Mesh in combination with the Casambi app, an external 2.4 GHz RF remote control or a conventional push button. Within the Casambi app, functions such as on/off control, dim level, colour temperature, group control, scenes, minimum and maximum brightness levels and start-up behaviour can be configured easily. Depending on the selected settings, the controller can be used for single-channel dimming, dual-channel independent dimming or dual-channel Tuneable White control.
The controller uses high-frequency PWM dimming, ensuring stable and flicker-free light control across the entire dimming range. Thanks to Bluetooth Mesh technology, each Casambi device acts as a repeater, making the network scalable and robust in professional installations. Protection against reverse polarity, overheating and short circuit contributes to safe and reliable operation. The compact design makes the controller suitable for a wide range of indoor installations in residential and commercial environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-controller-sctw-1236v-213-402.pdf
Characteristics sheet
213-402_manual.pdf
