Casambi | controller | SC/TW/RGB(W+TW) | 12~24V
213-403Casambi Bluetooth constant voltage LED controller for versatile control of multi-channel LED strips. Developed for professional lighting installations where flexibility, colour control and stable wireless communication are required.
Key product features
Number of colour channels: 5
Output voltage (V): 12–24
Input voltage (V): 12–24
Max. output current (A): 15
Type of control: Casambi
Control type: Constant voltage
Number of zones: 1
Product Name
Casambi | controller | SC/TW/RGB(W+TW) | 12~24V
Ean
8714984954403
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
15A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

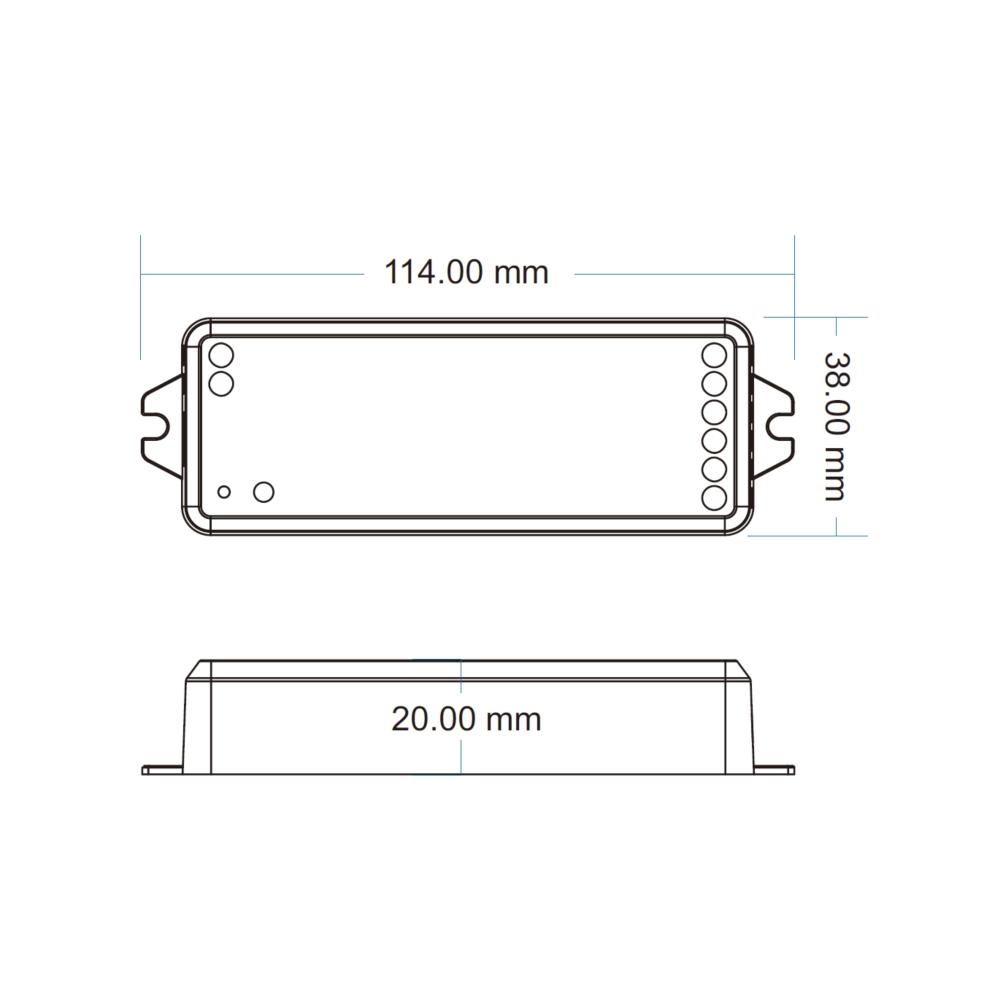

Length
114mm
Width
38mm
Height
20mm
Number of zones
1
Number of colour channels
5, RGBTW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
Control method
Casambi
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
Yes
Control type
Constant voltage
Warranty
5 years
Product Name
Casambi | controller | SC/TW/RGB(W+TW) | 12~24V
Height
20mm
Ean
8714984954403
Number of zones
1
Outer box qty
1st
Number of colour channels
5, RGBTW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
12 - 24V
Max. output current
15A
Control method
Casambi
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
Yes
Length
114mm
Control type
Constant voltage
Width
38mm
Warranty
5 years

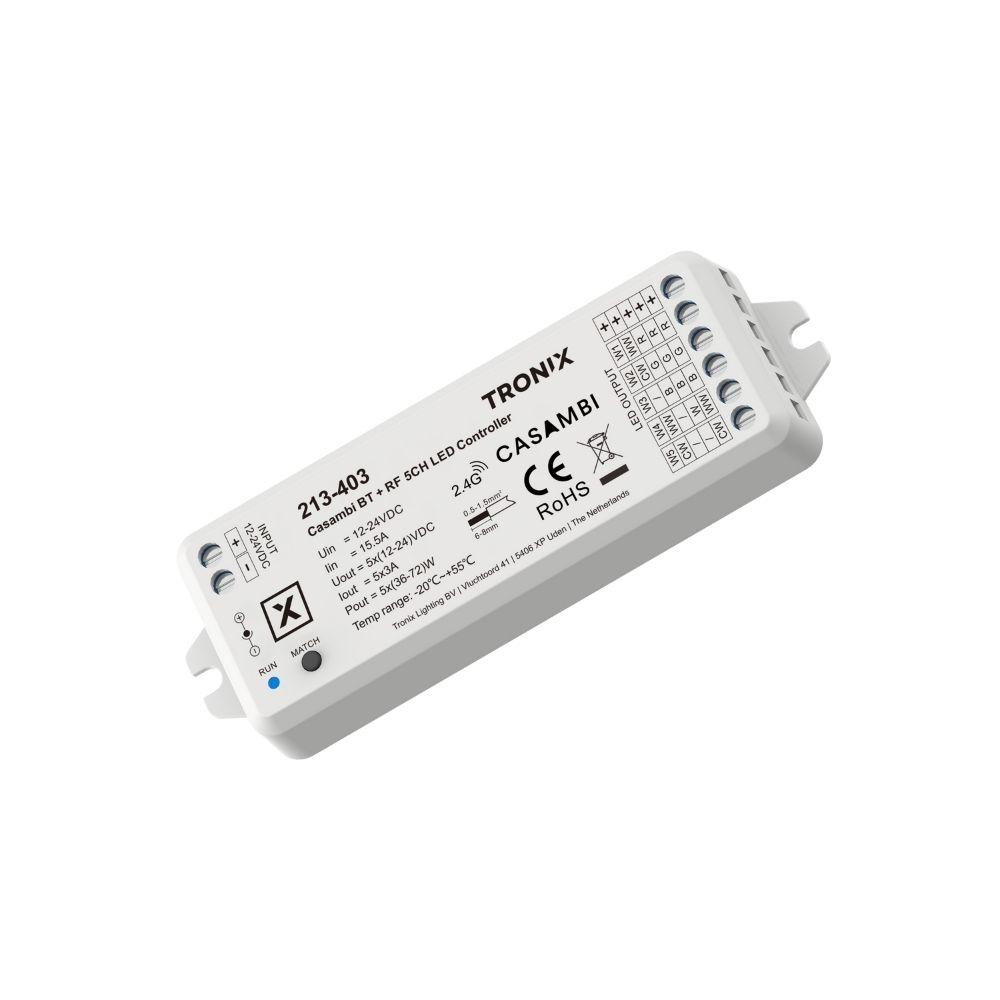

This Casambi Bluetooth + RF 5-channel constant voltage LED controller is designed to control low-voltage LED strips with various light types, including single colour, Tuneable White, RGB, RGBW and RGB+TW. The controller operates on a 12–24 V DC power supply and features five independent outputs with a maximum current of 3 A per channel, making it suitable for complex and dynamic lighting applications.
Configuration and control are handled via Bluetooth Mesh, with support for the Casambi app and an optional 2.4 GHz RF remote control. Within the app, light types can be selected and functions such as on/off control, dimming level, colour, colour temperature, group control, scenes, minimum and maximum brightness levels and start-up behaviour can be configured easily. The controller also includes integrated dynamic programmes for colour transitions and effects in RGB and RGBW applications.
The controller uses high-resolution PWM dimming, ensuring stable and flicker-free light control across the entire dimming range. Thanks to Bluetooth Mesh technology, each Casambi device acts as a repeater, making the network scalable and reliable in professional installations. Protection against reverse polarity, overheating and short circuit ensures safe and durable operation. The compact design makes the controller suitable for a wide range of indoor residential and commercial applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-casambi-controller-sctwrgbwtw-1224v-213-403.pdf
Characteristics sheet
213-403_manual.pdf
