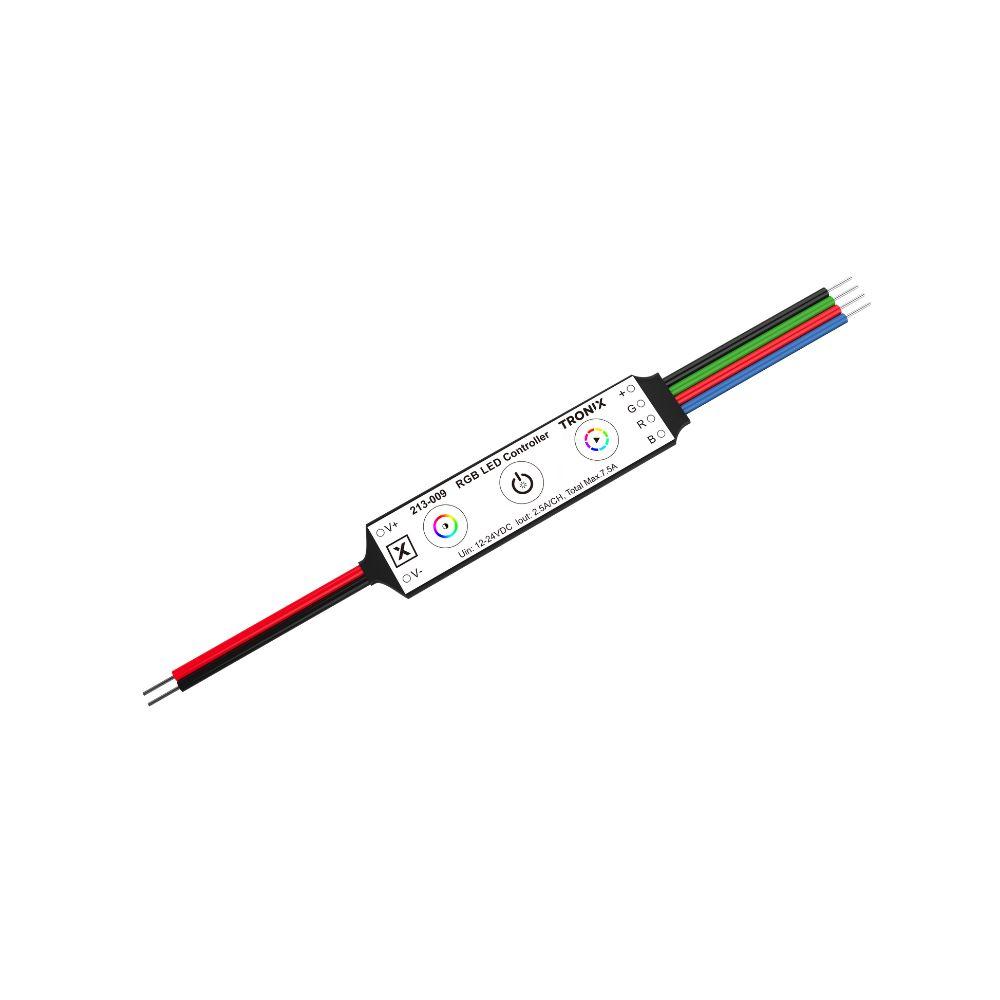

Controller | RGB | 12~24V | push buttons
213-009Compact LED controller for RGB lighting with 3 integrated buttons. Controls colour, brightness and lighting effects either smoothly or in steps. Ideal for short RGB LED strips or space-constrained applications.
Key product features
- Number of colour channels: 3
- Output voltage (V): 12 – 24
- Input voltage (V): 12 – 24
- Max. output current (A): 7.5
- Control type: Constant voltage
Product Name
Controller | RGB | 12~24V | push buttons
Ean
8714984952942
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
7.5A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20

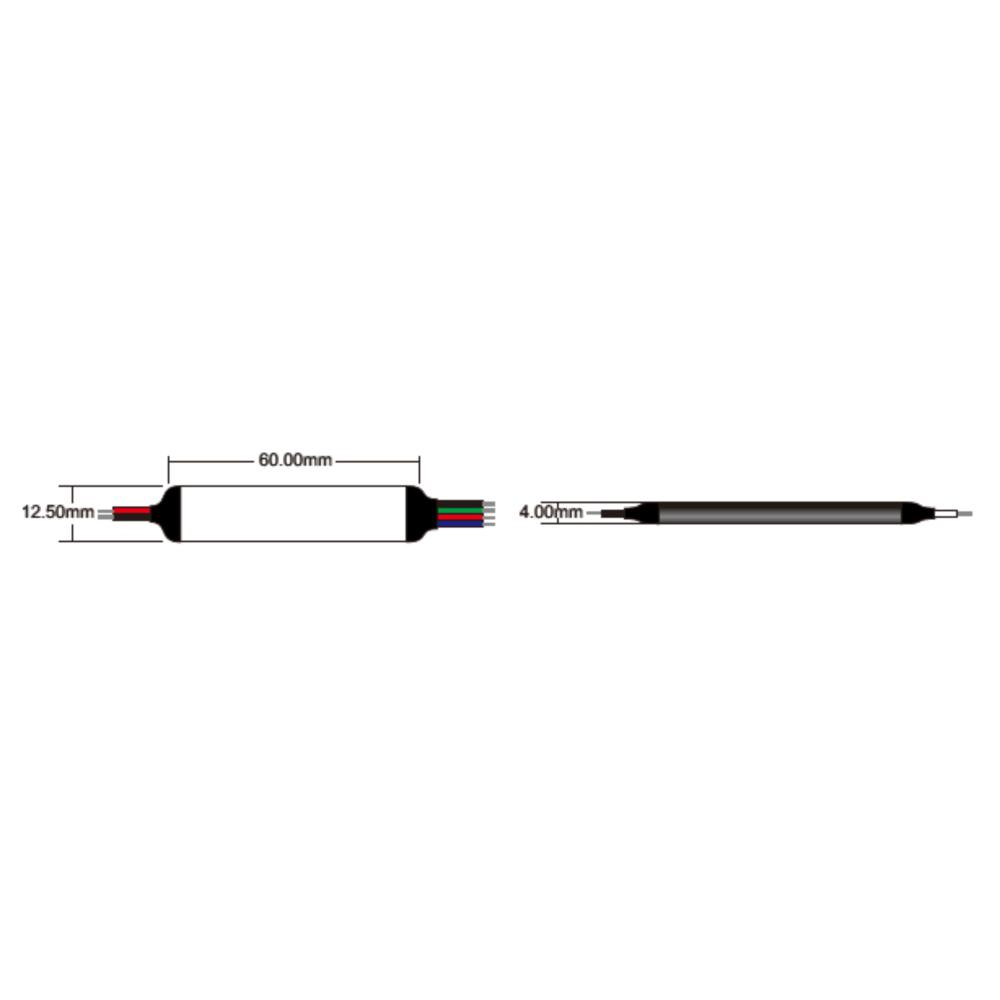

Length
60mm
Width
12.5mm
Height
4mm
Number of zones
1
Number of colour channels
3, RGB
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
12 - 24V
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Controller | RGB | 12~24V | push buttons
Height
4mm
Ean
8714984952942
Number of zones
1
Outer box qty
1st
Number of colour channels
3, RGB
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
No
Input voltage
12 - 24V
Max. output current
7.5A
DIN-rail mounting
No
Output voltage
12 - 24V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Length
60mm
Warranty
5 years
Width
12.5mm
This RGB controller is designed for simple manual control of LED strips, without the need for an external remote. The 3 integrated buttons allow you to switch the light on or off, adjust brightness, and select colours or dynamic effects. It offers 24 fixed colours and 10 programmes including fade, jump and smooth transition. Effect speed is adjustable in 10 levels.
The 2Â kHz PWM frequency ensures flicker-free dimming, even at low brightness levels. Built-in protection against overheating and reverse polarity ensures safe operation. Thanks to its compact design, this controller is well suited for RGB installations in showcases, furniture, displays or other decorative applications.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-controller-rgb-1224v-push-buttons-213-009.pdf
Characteristics sheet
213-009_manual.pdf
