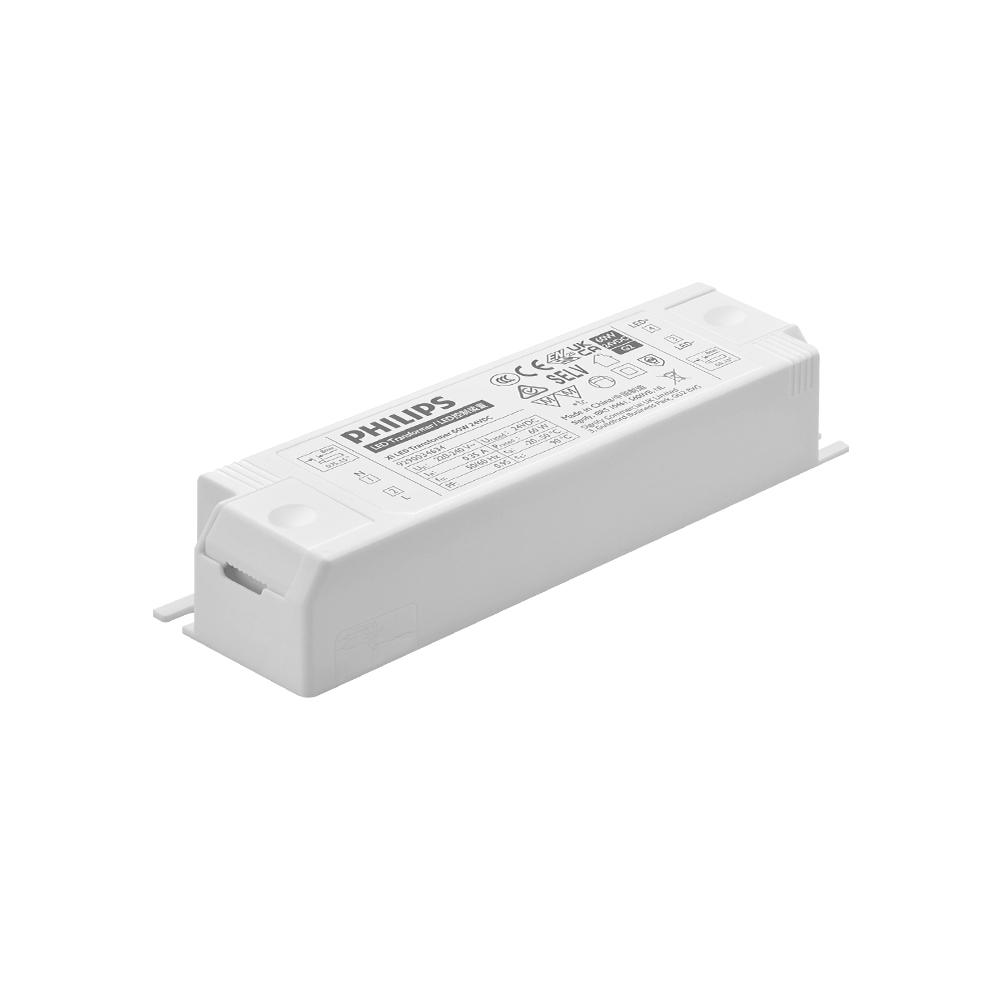

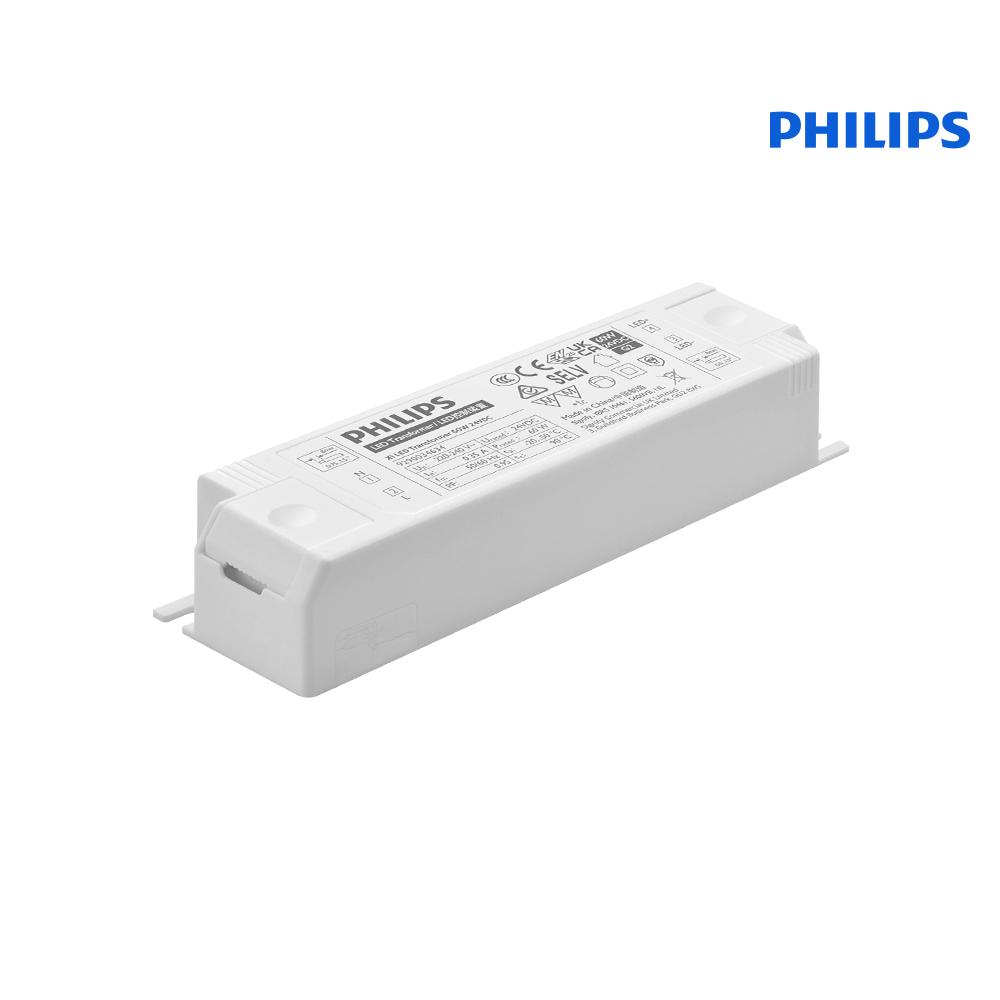

This sturdy Philips LED driver has a maximum output of 60W and 24V and is extremely well suited for use with various light sources. In addition, the compact size makes the driver easy to place.

Features

Output current 0 ~ 2500 mA
Output power 0 ~ 60 Watt

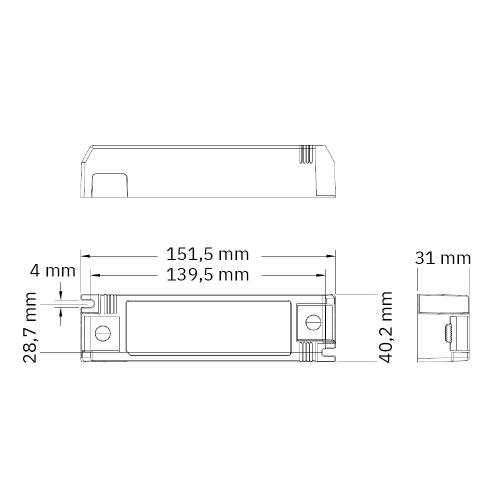

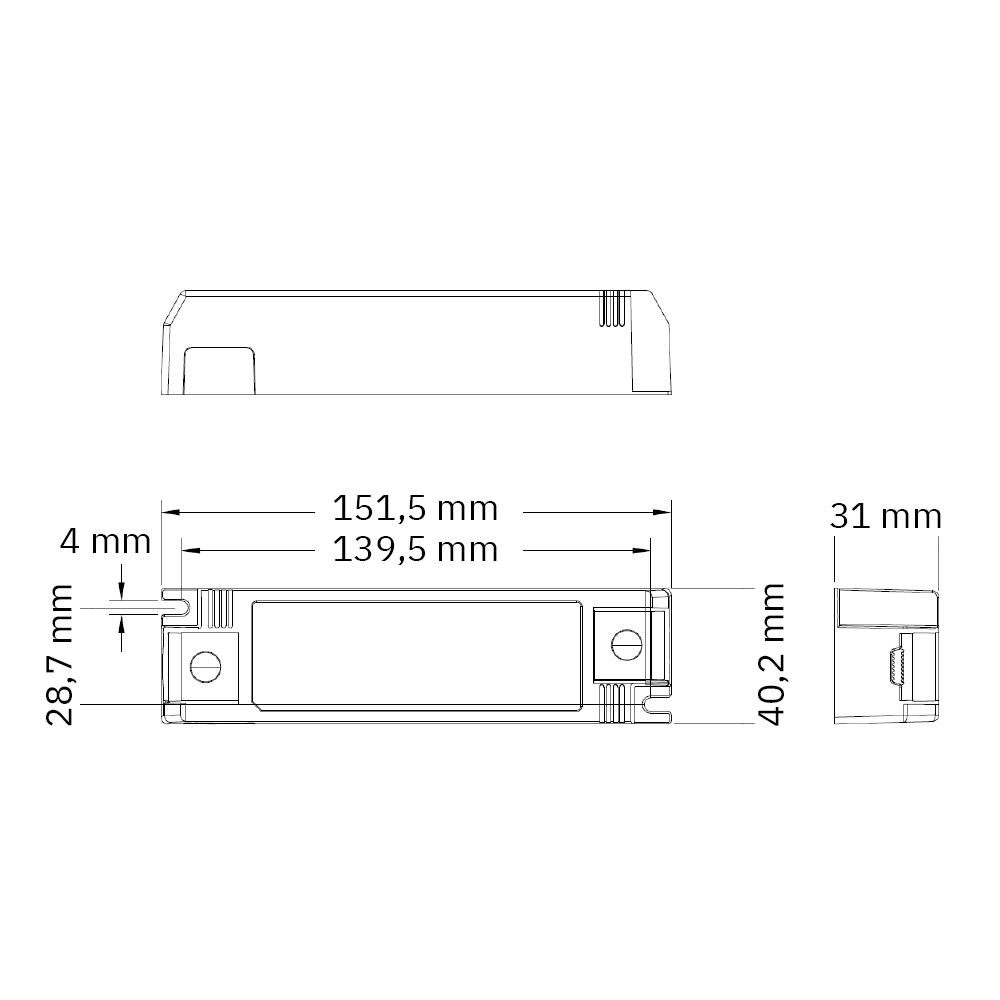

Compact size 151,5*40,2*31 mm

230V AC switch receiver || 1 x 100W 214-174

Power cable | 2 meter with stripped wire 595-021

GST18/3 | 30 centimeter cable | stripped wire 595-042

LED strip wire | 2 core | pro meter 127-250

Product Name

Philips power supply | 24V | IP20 | 60W V2

Ean

8714984949744

Outer box qty

60st

Housing

Plastic housing

Model

Static

Output voltage

24 - 24V

Output current

0 - 2500mA

Suitable for outdoor use

Suitable for DC-voltage (primary side)

Output power

0 - 60W

Degree of protection (IP)

IP20

Length

151.5mm

Width

40.2mm

Height

31mm

Power consumption

60W

Input voltage

220 - 240V

Frequency input voltage

47 - 63Hz

PWM modulation

Overload protection

Yes

Overtemperature protection

Yes

Control method

Non-dimmable

Short-circuit protected

Yes

Ambient temperature

-20 - 50°C

Driver lifetime

50000h

DIN-rail mounting

Brand

Philips

Dimmable

Emergency power supply system

None

Control type

Constant voltage

Warranty

5 years
