230V AC switch receiver || 1 x 100W
214-174RF switch module for wireless on/off control of single-colour 230V lighting. Supports both dimmable and non-dimmable LED, halogen and incandescent lamps. Max. 100 W, IP20 rated.
Key product features
- Type of control: RF
- Output voltage (V): 100 – 240
- Input voltage (V): 100 – 240
Product Name
230V AC switch receiver || 1 x 100W
Ean
8714984931121
Outer box qty
1st
Model
Static
Housing
Plastic housing
Programmable
No
Max. output current
1.5A
Output voltage
100 - 240V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Height
19.5mm
Diameter
46.5mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Input voltage
100 - 240V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
230V AC switch receiver || 1 x 100W
Number of zones
1
Ean
8714984931121
Number of colour channels
1, Single Colour
Outer box qty
1st
Suitable for surface mounting
No
Model
Static
Suitable for built-in mounting
Yes
Housing
Plastic housing
Input voltage
100 - 240V
Programmable
No
Control method
RF
Max. output current
1.5A
DIN-rail mounting
No
Output voltage
100 - 240V
Brand
Tronix Lighting
Suitable for outdoor use
No
Compatible with Casambi
No
Degree of protection (IP)
IP20
Control type
Constant voltage
Height
19.5mm
Warranty
5 years
Diameter
46.5mm

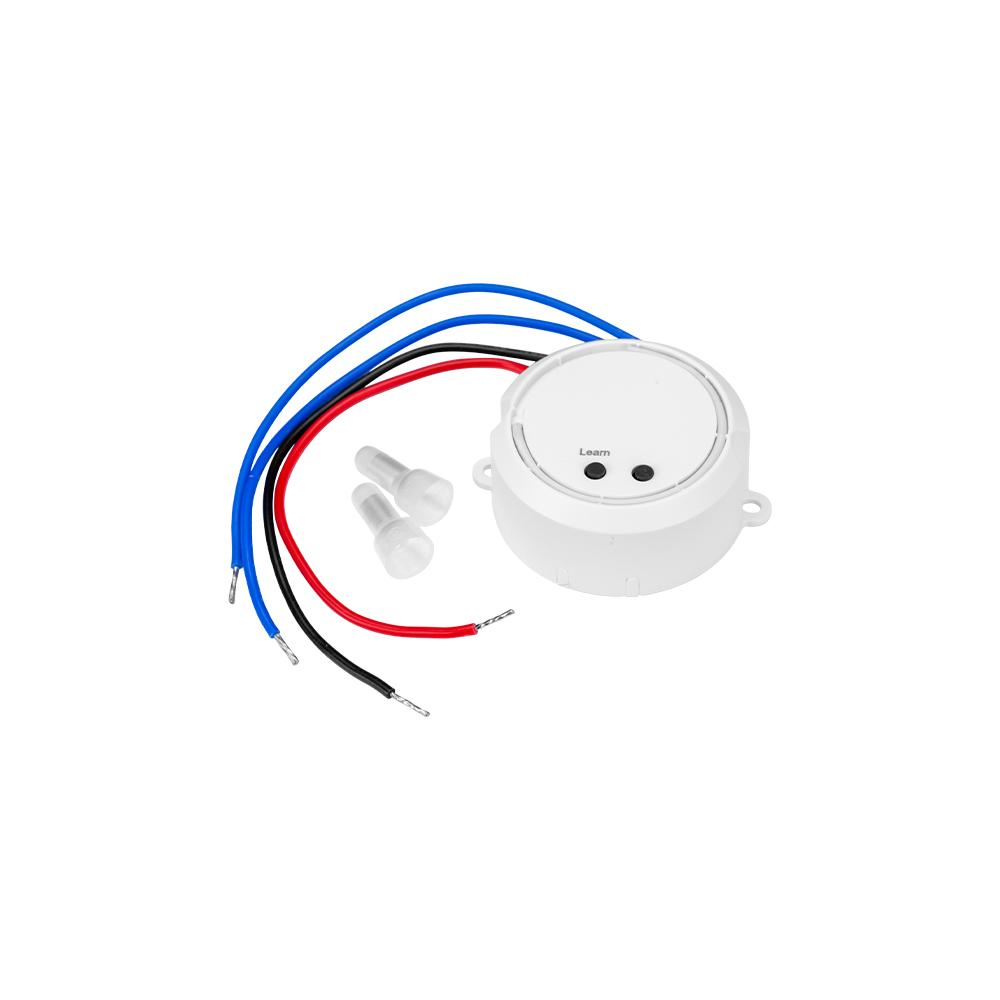

This compact RF switch module enables wireless on/off switching of single-colour 230V light sources via a compatible radio frequency remote control. Suitable for use with dimmable and non-dimmable LED lamps, halogen lamps and incandescent bulbs within a voltage range of 100–240V AC.
Operation is strictly on/off – dimming is not supported. The integrated learning key allows pairing with up to 8 transmitters.
The maximum output power is 100 W. The fully isolated design ensures safe installation. Soft switching technology prevents current spikes when controlling inductive or capacitive loads.
With its compact size (Ø46.5 × 19.5 mm), the module fits easily into junction boxes, fixtures or technical enclosures. IP20 rated and intended for use in dry indoor environments. For outdoor applications, installation in a waterproof housing is required.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
