Remote control | 5 zones

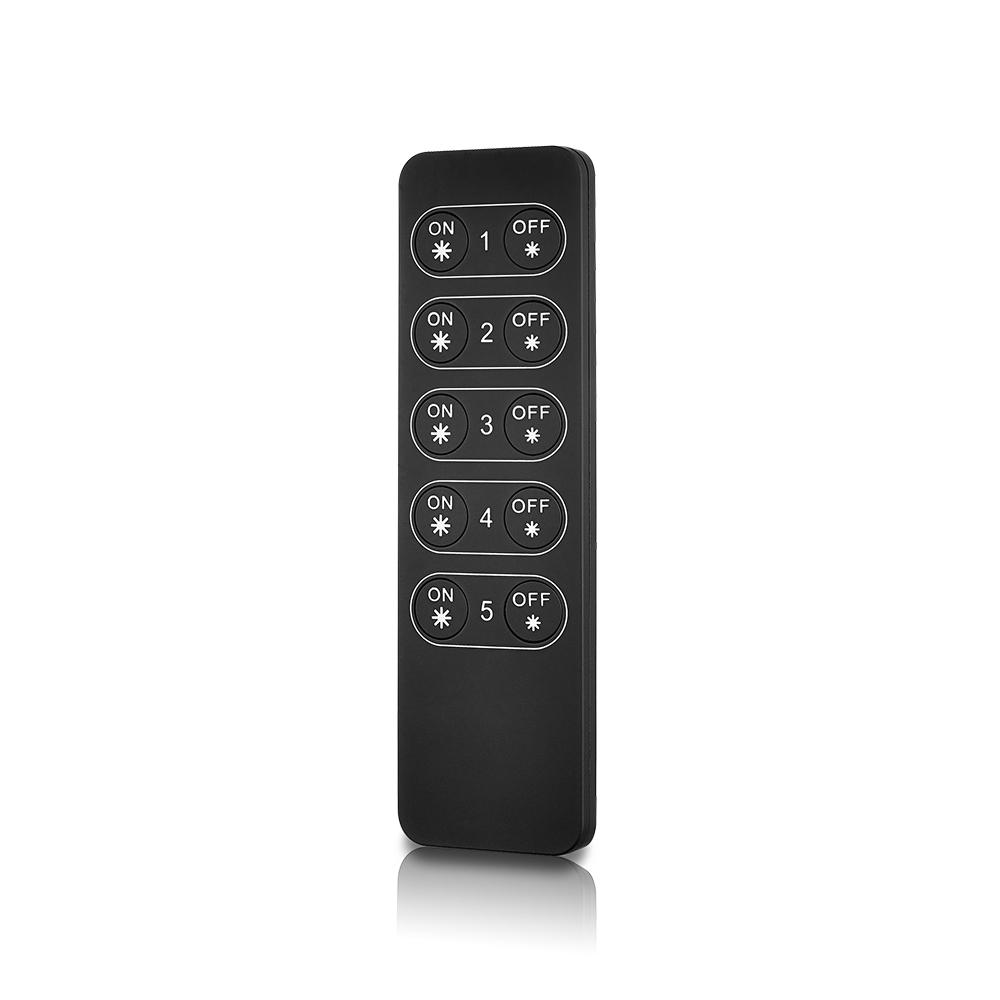

214-131The 214-131 remote control features switching and dimming functions, operates by RF signal and is suitable for switching or dimming single color LED lighting. The compact design is accompanied by a user-friendly interface, allowing one to control up to five sundials separately. In addition, this remote offers a dimming range of 0.1% to 100% via logarithmic dimming with 256 levels, making smooth dimming without flickering a given. The internal battery powers the remote control for two years, combined with a maximum range of 20 meters.
Wireless dimming of LED strips and LED modules is now possible everywhere
For LED applications with constant voltage (12/24V): Use 1-channel controller 214-147 or 4-channel controller 214-132.
For constant-current LED applications: use 1-channel controller 214-148 or 4-channel controller 214-133.
Each controller requires a power supply.
Product Name
Remote control | 5 zones
Ean
8714984910362
Outer box qty
100st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
136.3mm
Width
38.9mm
Height
10.7mm
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
3 - 3V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Remote control | 5 zones
Height
10.7mm
Ean
8714984910362
Number of colour channels
1, Single Colour
Outer box qty
100st
Suitable for surface mounting
Yes
Model
Dynamic
Suitable for built-in mounting
No
Housing
Plastic housing
Input voltage
3 - 3V
Programmable
No
Control method
RF
Output voltage
0 - 0V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
136.3mm
Warranty
5 years
Width
38.9mm
The 214-131 remote control features switching and dimming functions, operates by RF signal and is suitable for switching or dimming single color LED lighting. The compact design is accompanied by a user-friendly interface, allowing one to control up to five sundials separately. In addition, this remote offers a dimming range of 0.1% to 100% via logarithmic dimming with 256 levels, making smooth dimming without flickering a given. The internal battery powers the remote control for two years, combined with a maximum range of 20 meters.
Wireless dimming of LED strips and LED modules is now possible everywhere
For LED applications with constant voltage (12/24V): Use 1-channel controller 214-147 or 4-channel controller 214-132.
For constant-current LED applications: use 1-channel controller 214-148 or 4-channel controller 214-133.
Each controller requires a power supply.
