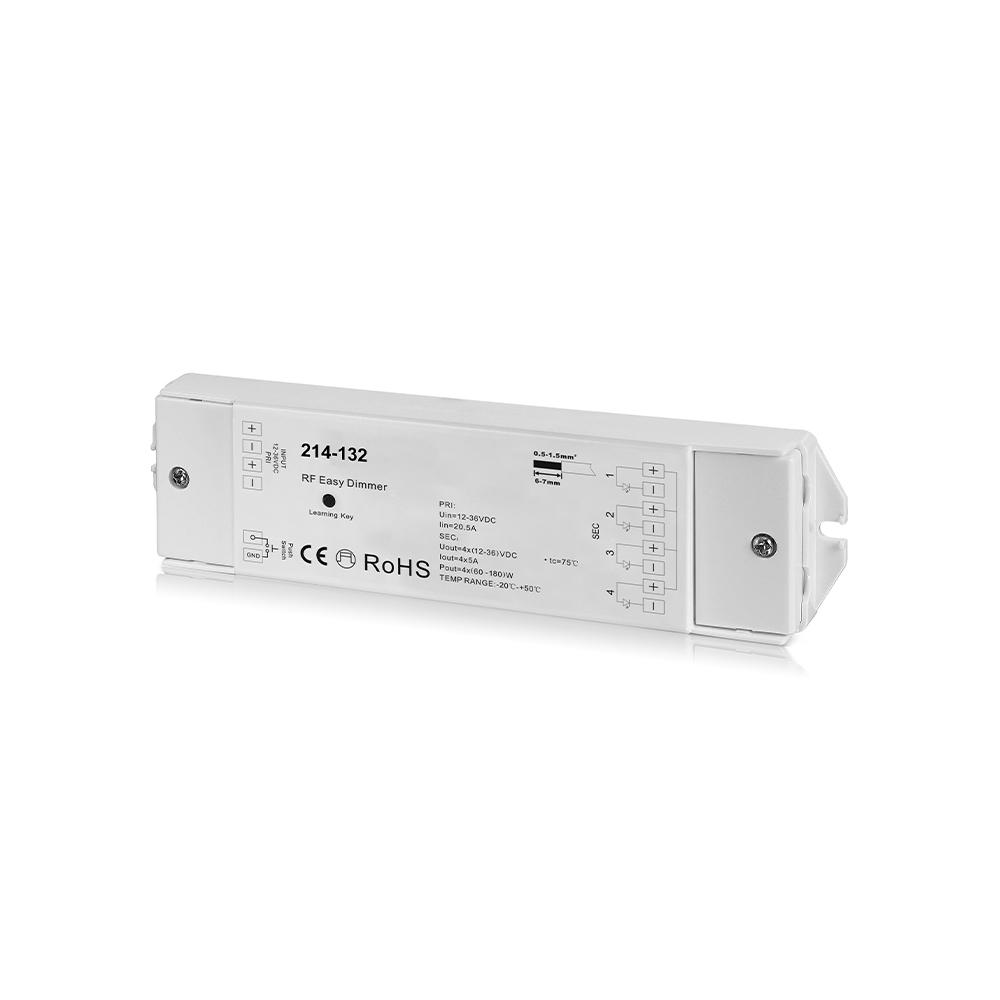

Constant voltage receiver | 4 channels x 5 ampère
214-1324-channel RF receiver for single-colour LED lighting based on constant voltage (12–36V DC). Supports wireless switching and dimming via RF remote or push switch. External power supply required. Can be paired with up to max. 8 remote controls.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Voltage type: DC
- Nominal voltage (V): 12–36
- Max. output current per channel (A): 5
- Degree of protection (IP): IP20
Product Name
Constant voltage receiver | 4 channels x 5 ampère
Ean
8714984910348
Outer box qty
100st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
5A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
178mm
Width
45mm
Height
19mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Constant voltage receiver | 4 channels x 5 ampère
Height
19mm
Ean
8714984910348
Number of zones
1
Outer box qty
100st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
12 - 36V
Max. output current
5A
Control method
RF
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
178mm
Control type
Constant voltage
Width
45mm
Warranty
5 years
Built-in RF receiver with 4 outputs for single-colour LED lighting (12–36V DC). Requires external power supply. Suitable for constant voltage applications up to 5A per channel.
Supports wireless switching and dimming via RF remote control or push switch. The dimming function is continuous from 1% to 100%. Pairing with remotes is easy using the built-in learning key; one receiver can be paired with up to 8 remotes.
The push switch input enables local control: a short press switches the light on or off; a long press dims up or down. The required external power supply must match the LED load and system voltage (12–36V DC).
IP20 rated and designed for use in dry indoor environments. With wireless control, push-dim functionality, and four independent outputs, this receiver is ideal for custom projects in retail, hospitality, and residential applications.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
