Switch dimmer wall || wireless | 1 zone

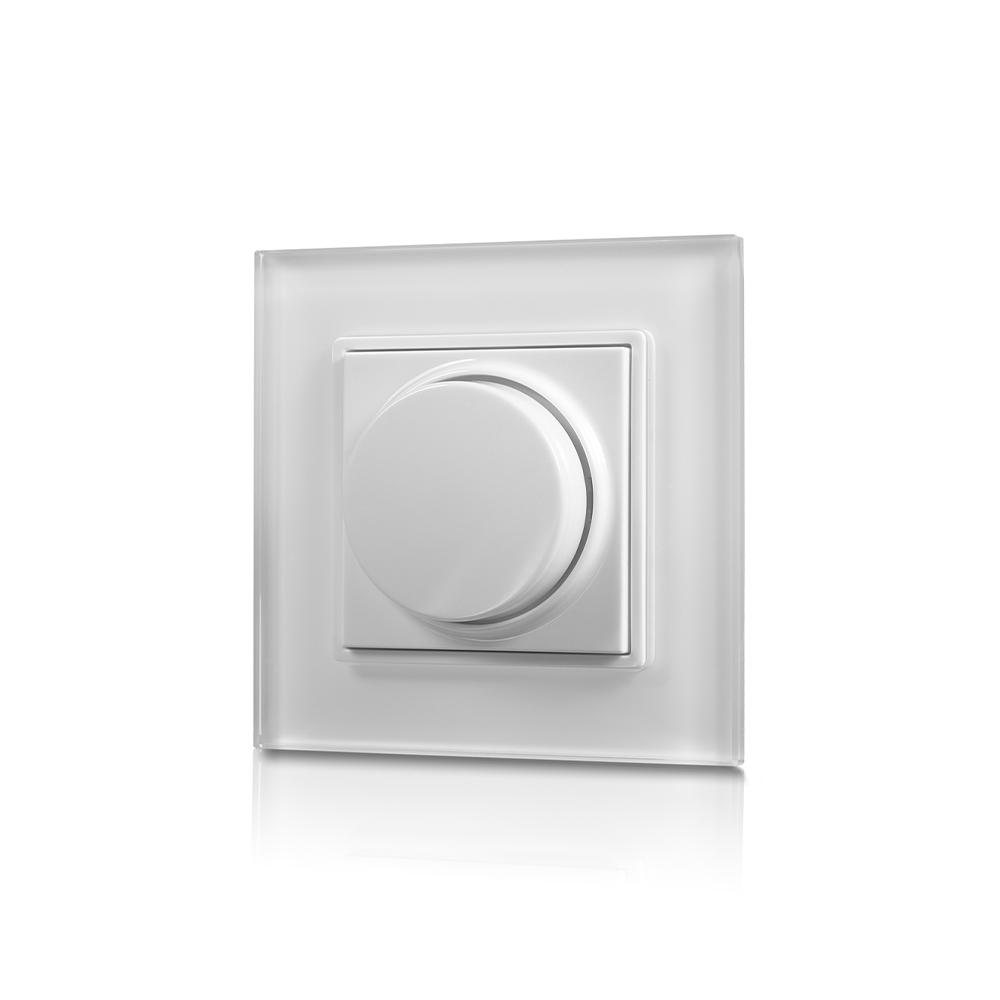

214-145Rotary RF wall transmitter for single-colour LED lighting. On/off via short press, dimming by rotation (1–100%). Compatible with various RF receivers. Battery-powered, IP20-rated, suitable for indoor use.
Key product features
- Type of control: RF
- Number of colour channels: 1
Product Name
Switch dimmer wall || wireless | 1 zone
Ean
8714984915046
Outer box qty
24st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
27mm
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
3 - 3V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Switch dimmer wall || wireless | 1 zone
Height
27mm
Ean
8714984915046
Number of colour channels
1, Single Colour
Outer box qty
24st
Suitable for surface mounting
Yes
Model
Dynamic
Suitable for built-in mounting
No
Housing
Plastic housing
Input voltage
3 - 3V
Programmable
No
Control method
RF
Output voltage
0 - 0V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
86mm
Warranty
5 years
Width
86mm
This wireless RF wall transmitter features a rotary knob for intuitive control. The knob functions as a switch with a short press: the lighting is turned on or off. By rotating it, the brightness is smoothly adjusted from 1% to 100% and back.
The transmitter can control multiple RF receivers within a single zone. Pairing is quick and easy via the learning key. Control is fast and intuitive so ideal for residential, office, retail, or hospitality environments.
This product is designed as a universal control panel and fits cover frames from well-known brands such as Gira (Standard 55, E2, Event, Esprit), Jung (A500, Aplus), Merten (M-Smart, M-Arc, M-Plan), and Beker (S1, B1, B3, B7). A 3V CR2430 coin cell battery is included. The transmitter is IP20-rated and suitable for surface-mounted or flush-mounted installation, or with double-sided tape on smooth surfaces.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
