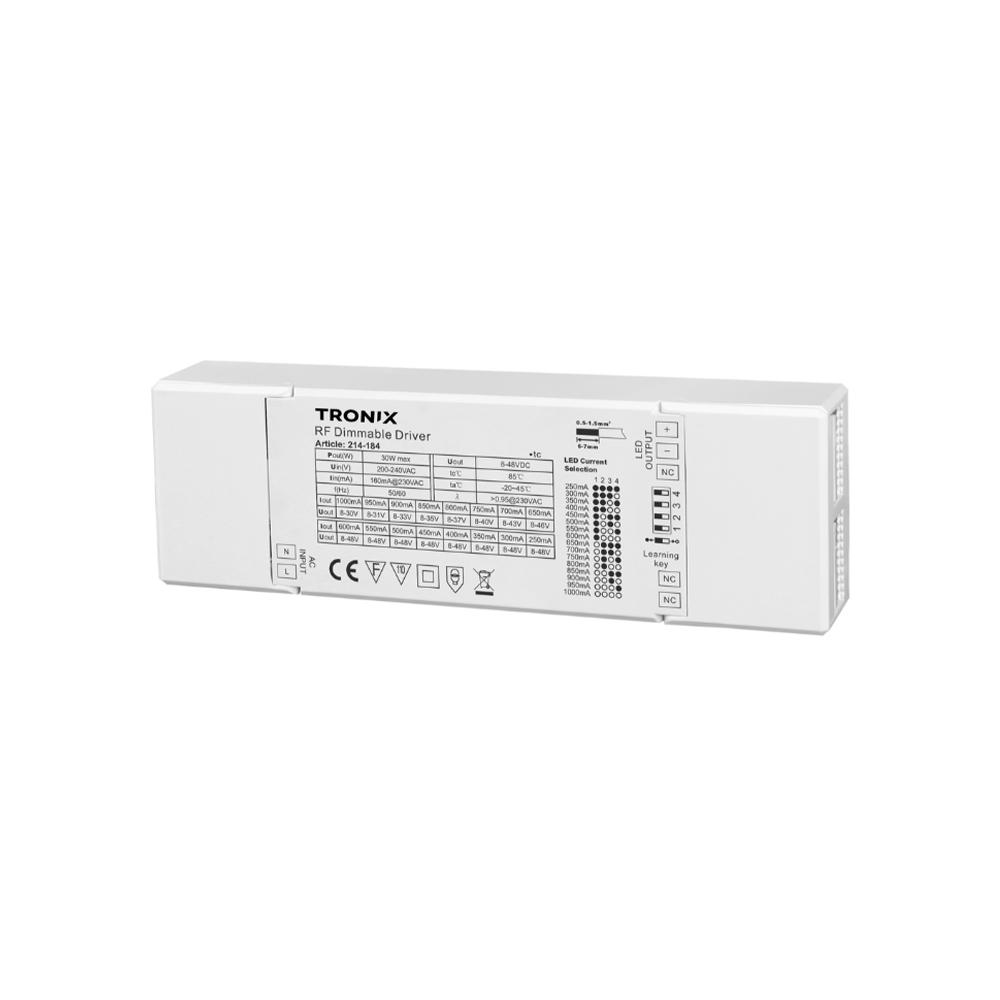

RF | LED driver | 250-1000mA | 30W
214-184RF-dimmable LED driver with constant current output for wireless control of single-colour lighting. Adjustable from 250 to 1000 mA, 30 W output power, suitable for panels and downlights.
Key product features
- Control method: RF
- Number of colour channels: 1
- Output voltage (V): 3 – 43
- Input voltage (V): 100 – 240
- Output current (mA): 250 – 1000
- Output power (W): 30
- Control type: Constant current
Product Name
RF | LED driver | 250-1000mA | 30W
Ean
8714984946132
Outer box qty
64st
Housing
Plastic housing
Model
Static
Output voltage
8 - 48V
Output current
250 - 1000mA
Suitable for outdoor use
No
Suitable for DC-voltage (primary side)
No
Output power
2 - 30W
Degree of protection (IP)
IP20

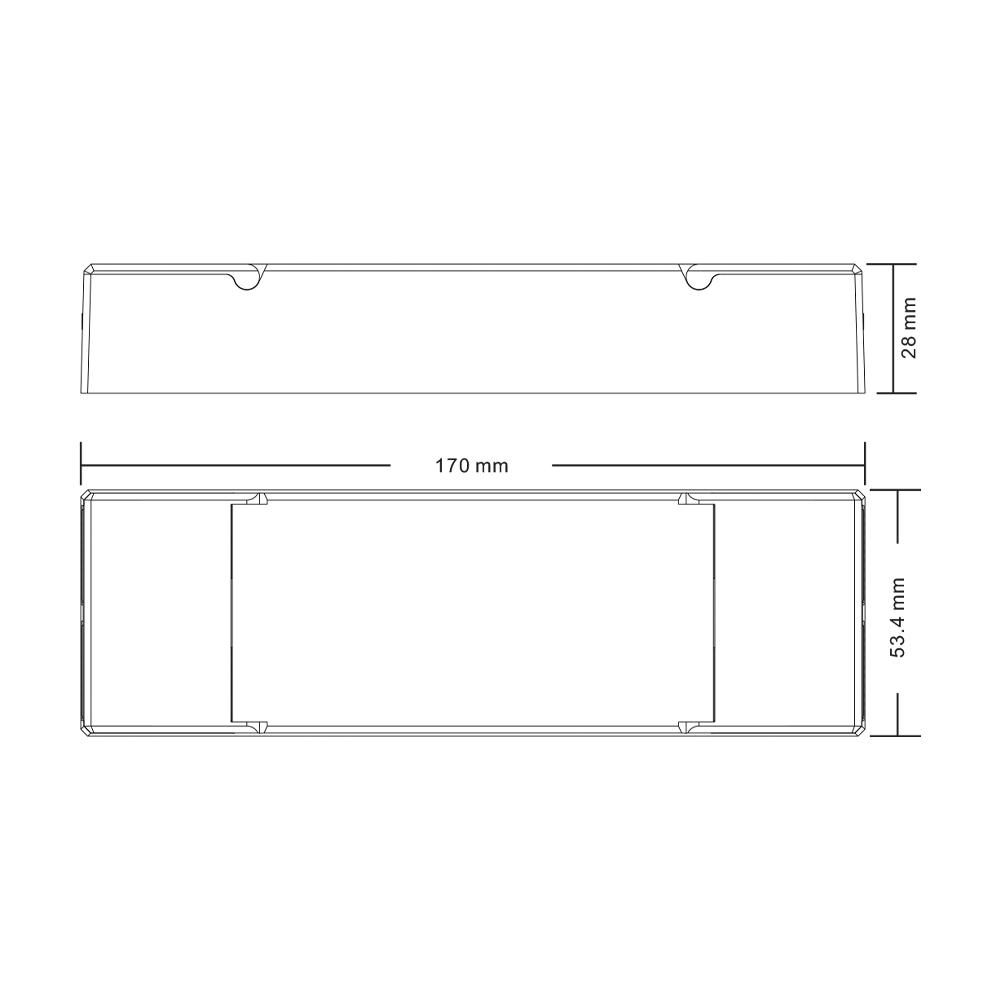

Length
170mm
Width
53.4mm
Height
28mm
Power consumption
30W
Input voltage
200 - 240V
Frequency input voltage
50 - 60Hz
PWM modulation
No
Overload protection
Yes
Overtemperature protection
Yes
Control method
RF
Short-circuit protected
Yes
Ambient temperature
-20 - 45°C
Driver lifetime
100000h
DIN-rail mounting
No
Brand
Tronix Lighting
Dimmable
Yes
Emergency power supply system
None
Control type
Constant current
Warranty
5 years
Product Name
RF | LED driver | 250-1000mA | 30W
Input voltage
200 - 240V
Ean
8714984946132
Frequency input voltage
50 - 60Hz
Outer box qty
64st
PWM modulation
No
Housing
Plastic housing
Overload protection
Yes
Model
Static
Overtemperature protection
Yes
Output voltage
8 - 48V
Control method
RF
Output current
250 - 1000mA
Short-circuit protected
Yes
Suitable for outdoor use
No
Ambient temperature
-20 - 45°C
Suitable for DC-voltage (primary side)
No
Driver lifetime
100000h
Output power
2 - 30W
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
170mm
Dimmable
Yes
Width
53.4mm
Emergency power supply system
None
Height
28mm
Control type
Constant current
Power consumption
30W
Warranty
5 years
This RF LED driver is designed for dimmable single-colour lighting such as LED panels, downlights, and luminaires requiring constant current. The output current is adjustable between 250 and 1000 mA, making the driver suitable for a wide range of applications up to 30 W.
Operating on 100–240V AC, it provides a DC output voltage of 3–43V. Wireless control is enabled via a stable RF signal and requires a compatible RF transmitter, such as a remote control or wall-mounted controller. The dimming range covers 0–100%.
The integrated learning key allows easy pairing. One driver supports up to 8 transmitters. With its compact size (145 × 46 × 30 mm), it fits easily into luminaires or ceiling spaces. IP20 rated, suitable for dry indoor environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-rf-led-driver-250-1000ma-30w-214-184.pdf
Other attachment
20220908103223009_1362284527.pdf
