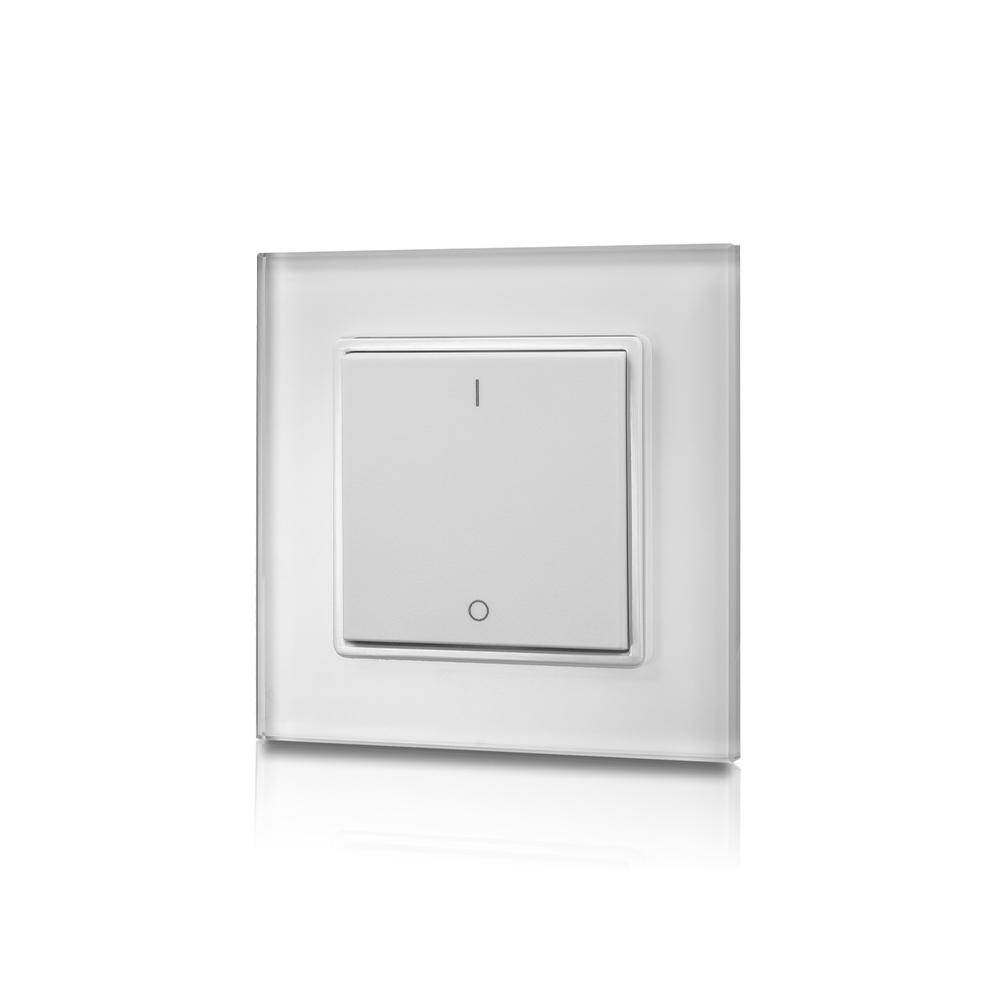

Push dimmer wall | wireless | 1 zone
214-144Wireless wall-mounted transmitter for switching and dimming single-colour LED lighting via radio frequency signal. Features two control buttons and fits standard cover frames by Gira, Jung, Merten and Beker. Available in white and black.
Key product features
- Type of control: RF
- Number of colour channels: 1
Product Name
Push dimmer wall | wireless | 1 zone
Ean
8714984915039
Outer box qty
24st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
13.8mm
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
3 - 3V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Push dimmer wall | wireless | 1 zone
Height
13.8mm
Ean
8714984915039
Number of colour channels
1, Single Colour
Outer box qty
24st
Suitable for surface mounting
Yes
Model
Dynamic
Suitable for built-in mounting
No
Housing
Plastic housing
Input voltage
3 - 3V
Programmable
No
Control method
RF
Output voltage
0 - 0V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
86mm
Warranty
5 years
Width
86mm
Wireless RF wall transmitter for switching and dimming single-colour LED lighting via radio frequency. Compact 1-zone transmitter, compatible with various RF receivers.
Control is provided through two buttons:
- Top button (I): short press switches on, long press increases brightness.
- Bottom button (0): short press switches off, long press gradually dims.
Thanks to its intuitive operation, this transmitter is ideal for residential, commercial and project-based environments. Multiple receivers within the same zone can be controlled simultaneously. Pairing is easy using the built-in learning key. Compatible with Tronix RF receivers and supplied with a 3V CR2430 coin cell battery.
Universally applicable and designed to fit cover frames from Gira (Standard 55, E2, Event, Esprit), Jung (A500, Aplus), Merten (M-Smart, M-Arc, M-Plan) and Beker (S1, B1, B3, B7). Can be mounted on or in the wall, or affixed with double-sided tape to smooth surfaces. IP20-rated and suitable for dry indoor spaces such as homes, offices and commercial environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
