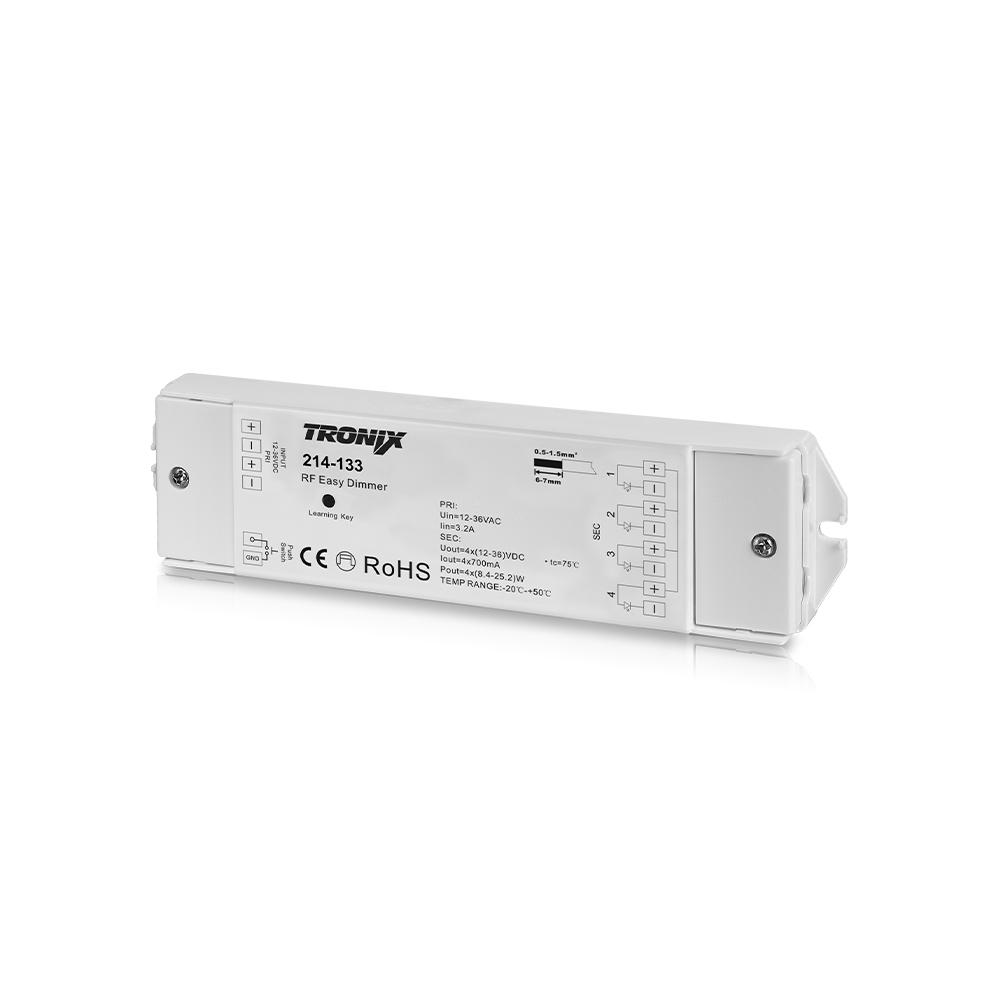

Constant current receiver || 4 channels x 700mA
214-1334-channel RF receiver for single-colour LED lighting (700 mA per channel, constant current). Wireless dimming and switching via RF or push-button control. Requires external power supply (12–36V DC). Can be paired with up to 8 remote controls.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Input voltage (V): 12–36
- Max. output current (A): 0.7
- Control type: Constant current
Product Name
Constant current receiver || 4 channels x 700mA
Ean
8714984910423
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
0.7A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
178mm
Width
45mm
Height
19mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant current
Warranty
5 years
Product Name
Constant current receiver || 4 channels x 700mA
Height
19mm
Ean
8714984910423
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
12 - 36V
Max. output current
0.7A
Control method
RF
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
178mm
Control type
Constant current
Width
45mm
Warranty
5 years
This 4-channel RF receiver is designed for controlling single-colour LED lighting in constant current setups. Each output delivers 700 mA and supports 8.4 to 25.2 watts per channel.

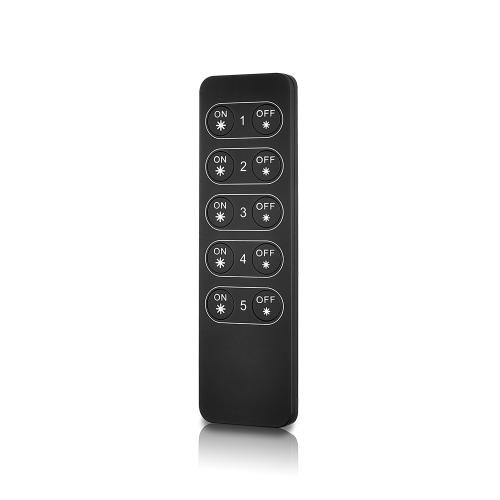

Control is possible via compatible RF remote controls or a push switch. A short press toggles the lights; a long press dims smoothly between 1% and 100%.
Pairing is simple via the learning key, and up to 8 remotes can be connected per receiver. The required power supply should match the system voltage (12–36V DC).
Rated IP20, this receiver is intended for use in dry indoor environments such as retail, hospitality, and residential lighting projects.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
