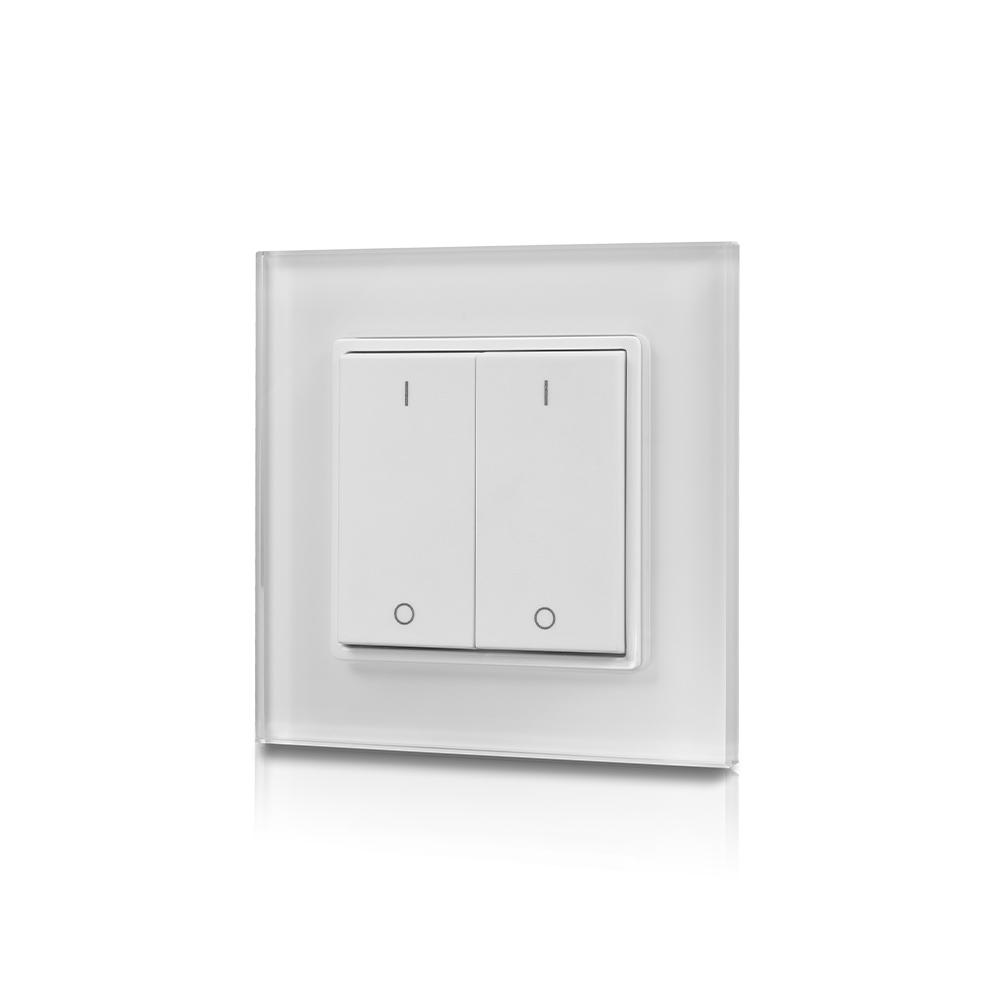

Push dimmer wall | wireless | 2 zones
214-152Compact wireless wall-mounted transmitter for switching and dimming single-colour LED lighting in 2 zones. Operates via RF and fits Gira, Jung, and Merten cover frames. Battery included, IP20 rated, for indoor use.
Key product features
- Type of control: RF
- Number of colour channels: 1
Product Name
Push dimmer wall | wireless | 2 zones
Ean
8714984918580
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Output voltage
0 - 0V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
86mm
Width
86mm
Height
13.8mm
Number of zones
2
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
3 - 3V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Warranty
5 years
Product Name
Push dimmer wall | wireless | 2 zones
Height
13.8mm
Ean
8714984918580
Number of zones
2
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
3 - 3V
Output voltage
0 - 0V
Control method
RF
Suitable for outdoor use
No
DIN-rail mounting
No
Degree of protection (IP)
IP20
Brand
Tronix Lighting
Length
86mm
Compatible with Casambi
No
Width
86mm
Warranty
5 years
Wireless wall-mounted transmitter for switching and dimming single-colour LED lighting via radio frequency. This 2-zone transmitter enables independent control of two lighting groups using compatible RF receivers.
Each zone has its own control set: a short press switches the lights on or off, while a long press dims the lighting up or down. The transmitter operates on a 3V CR2430 coin cell battery (included), is IP20 rated, and intended for use in dry indoor environments.
Pairing with receivers is straightforward using the learning key. A single transmitter can control multiple receivers across one or more zones.
This transmitter is compatible with cover frames from Gira (Standard 55, E2, Event, Esprit), Jung (A500, Aplus), Merten (M-Smart, M-Arc, M-Plan), and Beker (S1, B1, B3, B7). It can be surface-mounted, flush-mounted or installed using the supplied 3M adhesive tape.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
