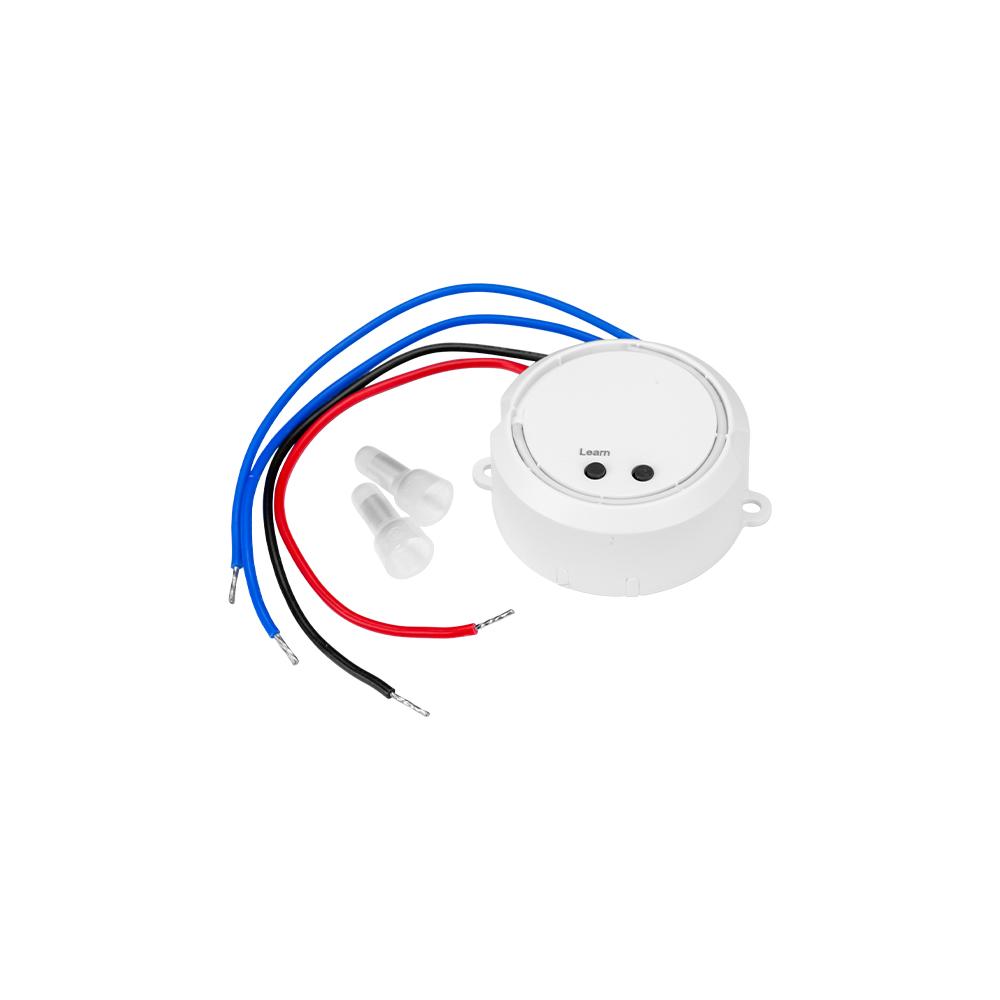

230V AC dim receiver || 1 x 100W
214-158Mini RF dimmer for dimmable 230V lighting (max. 100 W). Supports trailing edge dimming, adjustable minimum brightness and compatible with multiple RF remote controls.
Key product features
- Light value memory: Yes
- Nominal voltage (V): 220 – 240
- Control voltage (V): 220 – 240
- Dimming phase cut-off (trailing edge): Yes
- Max switching power LED (W): 100
- Control method: RF
Product Name
230V AC dim receiver || 1 x 100W
Ean
8714984923089
Outer box qty
1st
Colour
White
Connection type
Other
Operating method
Radio frequency (RF)
Control method
RF
Mounting method
Built-in
Material
Plastic
Material quality
Thermoplastic
Applicable with presence indicator
Yes
Suitable for degree of protection (IP)
IP20
Applicable with movement sensor
Yes
Applicable with button
No
Applicable with transmission button
Yes
Applicable with time switch/timer
Yes
Nominal voltage
220 - 240V
Control voltage
220 - 240V
Min. depth of built-in installation box
20mm
Min. brightness controllable
Yes
Max. switching power LED
100W
Light value memory
Yes
Halogen free
Yes
RAL-number (similar)
9016
Core cross section
0.75 - 2.5mm²
Warranty
5 years
Product Name
230V AC dim receiver || 1 x 100W
Applicable with button
No
Ean
8714984923089
Applicable with transmission button
Yes
Outer box qty
1st
Applicable with time switch/timer
Yes
Colour
White
Nominal voltage
220 - 240V
Connection type
Other
Control voltage
220 - 240V
Operating method
Radio frequency (RF)
Min. depth of built-in installation box
20mm
Control method
RF
Min. brightness controllable
Yes
Mounting method
Built-in
Max. switching power LED
100W
Material
Plastic
Light value memory
Yes
Material quality
Thermoplastic
Halogen free
Yes
Applicable with presence indicator
Yes
RAL-number (similar)
9016
Suitable for degree of protection (IP)
IP20
Core cross section
0.75 - 2.5mm²
Applicable with movement sensor
Yes
Warranty
5 years
Compact RF dimmer for wireless switching and dimming of single-colour dimmable 220–240V AC lighting. Suitable for dimmable LED lamps, halogen, and incandescent lights. Supports trailing edge dimming and is compatible with a variety of RF remote controls.
The dimmer delivers up to 100 watts (1 × 0.45 A) and features full electrical insulation for safe operation. The integrated 'Learn' button allows easy pairing with up to 8 RF remote controls. Minimum brightness can be adjusted to ensure stable dimming performance.
Multiple dimmers can be grouped across one or more zones. The soft on/off function ensures smooth light transitions.
Thanks to its compact size (Ø46.5 × 19.5 mm), the dimmer is ideal for installation in junction boxes or behind luminaires. IP20 rated, suitable for use in dry indoor environments.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
