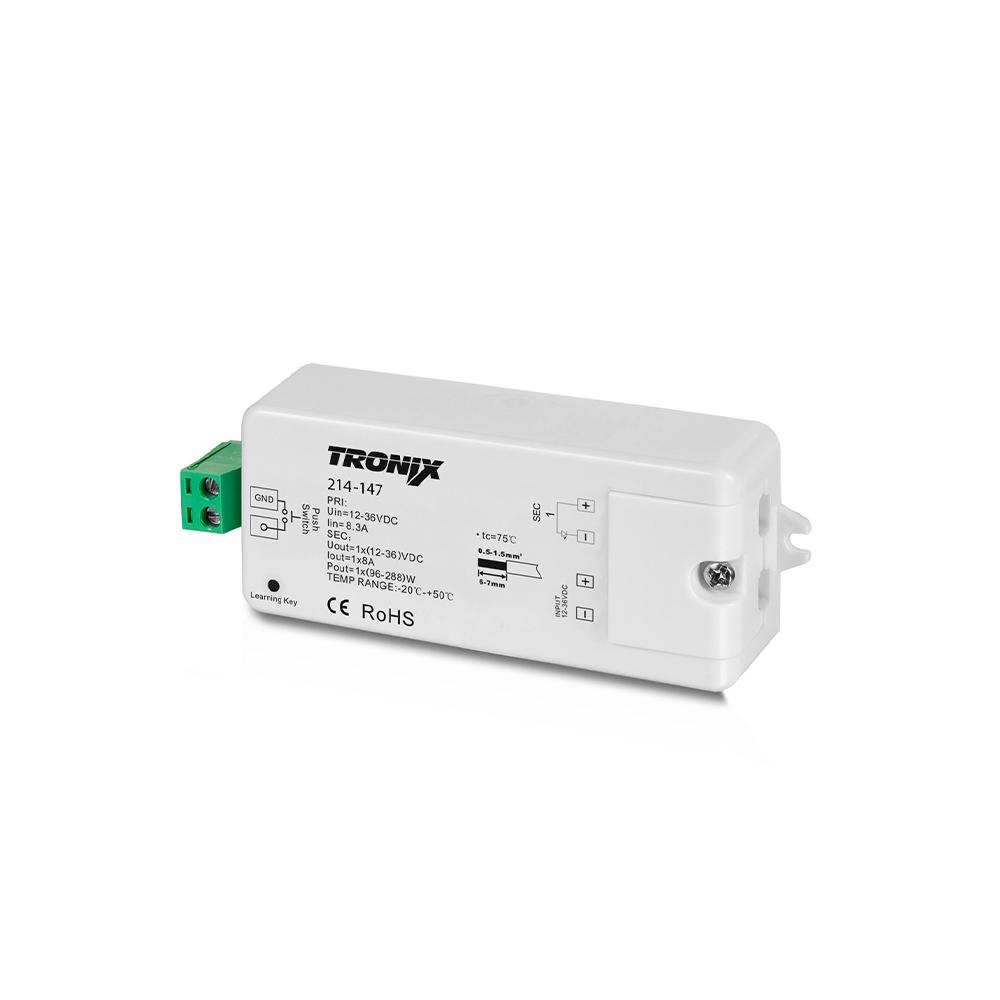

Constant voltage receiver | 1 channel x 8 ampère
214-1471-channel RF receiver for single-colour LED lighting (12–36V DC, max. 8 A). Supports wireless switching and dimming via remote control or push switch. External power supply required.
Key product features
- Type of control: RF
- Number of colour channels: 1
- Output voltage (V): 12 – 36
- Input voltage (V): 12 – 36
- Max. output current (A): 8
- Control type: Constant voltage
Product Name
Constant voltage receiver | 1 channel x 8 ampère
Ean
8714984915060
Outer box qty
1st
Model
Dynamic
Housing
Plastic housing
Programmable
No
Max. output current
8A
Output voltage
12 - 36V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
101mm
Width
36mm
Height
21mm
Number of zones
1
Number of colour channels
1, Single Colour
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Input voltage
12 - 36V
Control method
RF
DIN-rail mounting
No
Brand
Tronix Lighting
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
Constant voltage receiver | 1 channel x 8 ampère
Height
21mm
Ean
8714984915060
Number of zones
1
Outer box qty
1st
Number of colour channels
1, Single Colour
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
No
Programmable
No
Input voltage
12 - 36V
Max. output current
8A
Control method
RF
Output voltage
12 - 36V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
Tronix Lighting
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
101mm
Control type
Constant voltage
Width
36mm
Warranty
5 years
1-channel RF receiver for wireless switching and dimming of single-colour LED lighting based on constant voltage. Suitable for 12–36V DC installations with a maximum output power of 96–288 watts (at 8 A max.).
The receiver supports both RF remote control and local control via a push switch. A short press turns the light on or off; a long press smoothly dims the light up or down. Pairing with an RF transmitter is easy using the learning key. One receiver can be controlled by up to 8 different remote controls.
An external power supply is required, matched to the system voltage and load. The receiver is IP20-rated and suitable for dry indoor environments. Thanks to its compact size (95 × 37 × 20 mm), it’s also suitable for tight installation spaces or luminaires.
Ideal for professional applications in residential, retail, office, and project environments where reliability, flexibility, and ease of installation are key.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
